VW PASSAT 1999 – 5 Speed automatic gearbox (AG5), 2.8 l ltr./142 kW Motronic, engine code AQD . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW PASSAT
  4. >VW PASSAT 1999
  5. >VW PASSAT 1999 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

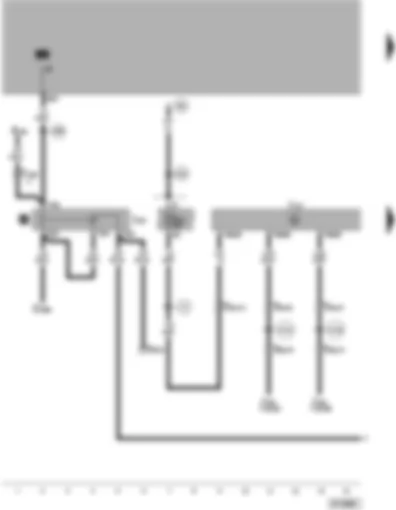

Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - starter inhibitor relay



Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - starter inhibitor relay https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
BStarter
DIgnition/starter switch
J207Starter inhibitor relay, on 13 position additional relay carrier
J217Automatic gearbox control unit in front right footwell
J220Motronic control unit
S15Fuse in relay plate fuse box
T99-pin connector, on starter inhibitor relay
T10d10-pin connector, brown, on protective housing for control units, in engine compartment, left
T10h10-pin connector, blue, on protective housing for control units, in left engine compartment
T15m15-pin connector, brown, coupling station right A-pillar
T15s15-pin connector, red, on protective housing, in engine compartment, left
T8888-pin connector, on automatic gearbox control unit
T121121-pin connector, on Motronic control unit
   501 Screw connection -2- (30), on relay plate
   A1 Positive (+) connection (30a), in dash panel wiring harness
   A32 Positive connection (30), in dash panel wiring harness
   A86 Connection (50a), in dash panel wiring harness
   A121 Connection (high bus), in dash panel wiring harness
   A122 Connection (low bus), in dash panel wiring harness

Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - multi-function switch - gearbox speed sender



Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - multi-function switch - gearbox speed sender https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
E45Cruise control system switch
F125Multi-function switch
G38Gearbox speed sender
J217Automatic gearbox control unit in front right footwell
T3m3-pin connector, brown, coupling station right A-pillar
T88-pin connector, on left lower of gearbox
T15m15-pin connector, brown, coupling station right A-pillar
T16a16-pin connector, on gearbox
T8888-pin connector, on automatic gearbox control unit
   A87 Connection (RL), in dash panel wiring harness
   114 Earth connection (dash panel insert), in automatic gearbox wiring harness
   U10 Connection (GRA), in automatic gearbox wiring harness
---For vehicles with cruise control system only

Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - solenoid valves - road speed sender



Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - solenoid valves - road speed sender https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
FBrake light switch
G68Road speed sender
G93Gearbox oil temperature sender
J217Automatic gearbox control unit in front right footwell
J285Control unit with display in dash panel insert
N88Solenoid valve 1
N89Solenoid valve 2
N90Solenoid valve 3
N91Solenoid valve 4
N92Solenoid valve 5
N93Solenoid valve 6
N94Solenoid valve 7
T15m15-pin connector, brown, coupling station right A-pillar
T1610-pin connector, self-diagnosis connector, in centre console near handbrake lever
T16a16-pin connector, on gearbox
T32a32-pin connector, blue, on dash panel insert
T8888-pin connector, on automatic gearbox control unit
   A76 Connection (diagnosis wire K), in dash panel wiring harness
   A89 Connection -2- (54), in dash panel wiring harness
   W1 Positive (+) connection (54), in rear wiring harness

Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - kick-down switch



Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - kick-down switch https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F8Kick-down switch
J104ABS with EDL control unit
J217Automatic gearbox control unit in front right footwell
J285Control unit with display in dash panel insert
T10h10-pin connector, blue, on protective housing for control units, in left engine compartment
T10i10-pin connector, blue, coupling station right A-pillar
T10w10-pin connector, grey, coupling station right A-pillar
T15m15-pin connector, brown, coupling station right A-pillar
T15s15-pin connector, red, on protective housing, in engine compartment, left
T3131-pin connector
T32b32-pin connector, green, on dash panel insert
T8686-pin connector
T8888-pin connector, on automatic gearbox control unit
   12 Earth point, in engine compartment, left
   33 Earth point, behind dash panel, right
   114 Earth connection, in automatic gearbox wiring harness
   124 Earth connection, in engine compartment right wiring harness
*For vehicles with TCS (ASR) only

Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - selector lever lock solenoid - Tiptronic switch



Wiring Diagram VW PASSAT 1999 - Automatic gearbox control unit - selector lever lock solenoid - Tiptronic switch https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
DIgnition/starter switch
F189Tiptronic switch
J17Fuel pump relay
J217Automatic gearbox control unit in front right footwell
K142Selector lever position P/N warning lamp
L101Selector lever display illumination
N110Selector lever lock solenoid
S231Fuse in fuse holder
T3m3-pin connector, brown, coupling station right A-pillar
T10q10-pin connector, under centre console
T15m15-pin connector, brown, coupling station right A-pillar
T8888-pin connector, on automatic gearbox control unit
   114 Earth connection (dash panel insert), in automatic gearbox wiring harness
   A2 Positive (+) connection (15), in dash panel wiring harness
   A19 Connection (58d), in dash panel wiring harness
   A70 Connection (15a, fuse 231), in dash panel wiring harness
   U3 Connection -1-, in automatic gearbox wiring harness
   U6 Connection -2-, in automatic gearbox wiring harness
