VW FOX 2009 – Parking aid (PDC) . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW FOX
  4. >VW FOX 2009
  5. >VW FOX 2009 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

Wiring Diagram VW FOX 2009 - Parking aid control unit - rear parking aid warning buzzer - fuses



Wiring Diagram VW FOX 2009 - Parking aid control unit - rear parking aid warning buzzer - fuses https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
DIgnition/starter switch
H15Rear parking aid warning buzzer
J446Parking aid control unit
SB38Fuse 38 on fuse holder B
T2bm2-pin connector
T8a8-pin connector
T16f16-pin connector
  278 Earth connection 4, in interior wiring harness
  606 Earth point, under the centre console near gear stick
  B135 Connection 1 (15a), in interior wiring harness
  B163 Positive connection 1 (15), in interior wiring harness

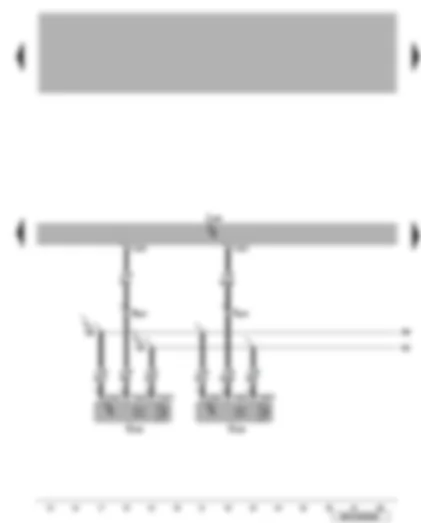

Wiring Diagram VW FOX 2009 - Parking aid control unit - rear left parking aid sender - rear centre left parking aid sender



Wiring Diagram VW FOX 2009 - Parking aid control unit - rear left parking aid sender - rear centre left parking aid sender https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G203Rear left parking aid sender
G204Rear centre left parking aid sender
J446Parking aid control unit
T3aa3-pin connector
T3ab3-pin connector
T6s6-pin connector, coupling point centre rear bumper
T12f12-pin connector
  352 Earth connection (parking aid), in rear bumper wiring harness
  X68 Connection (parking aid), in rear bumper wiring harness

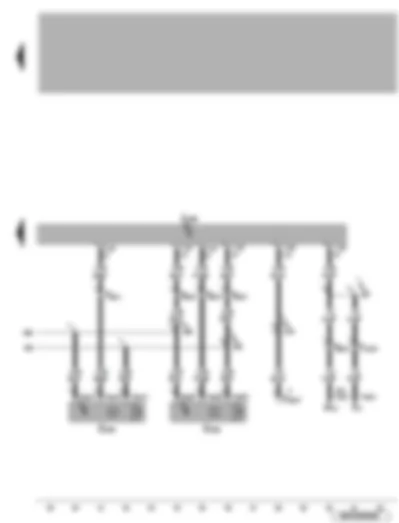

Wiring Diagram VW FOX 2009 - Parking aid control unit - rear centre right parking aid sender - rear right parking aid sender - self-diagnosis connection



Wiring Diagram VW FOX 2009 - Parking aid control unit - rear centre right parking aid sender - rear right parking aid sender - self-diagnosis connection https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F4Reversing light switch
G205Rear centre right parking aid sender
G206Rear right parking aid sender
J446Parking aid control unit
M17Right reversing light bulb
T2s2-pin connector
T2al2-pin connector
T3ac3-pin connector
T3ad3-pin connector
T5b5-pin connector, behind side trim on rear left
T6s6-pin connector, coupling point centre rear bumper
T11d11-pin connector
T12f12-pin connector
T16a16-pin connector, self-diagnosis connection
T16f16-pin connector
  352 Earth connection (parking aid), in rear bumper wiring harness
  A76 Connection (diagnosis wire K), in dash panel wiring harness
  A87 Connection (RL), in dash panel wiring harness
  X68 Connection (parking aid), in rear bumper wiring harness
