Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Isuzu Amigo S 1999

ВНЕШНЕЕ ОСВЕЩЕНИЕ

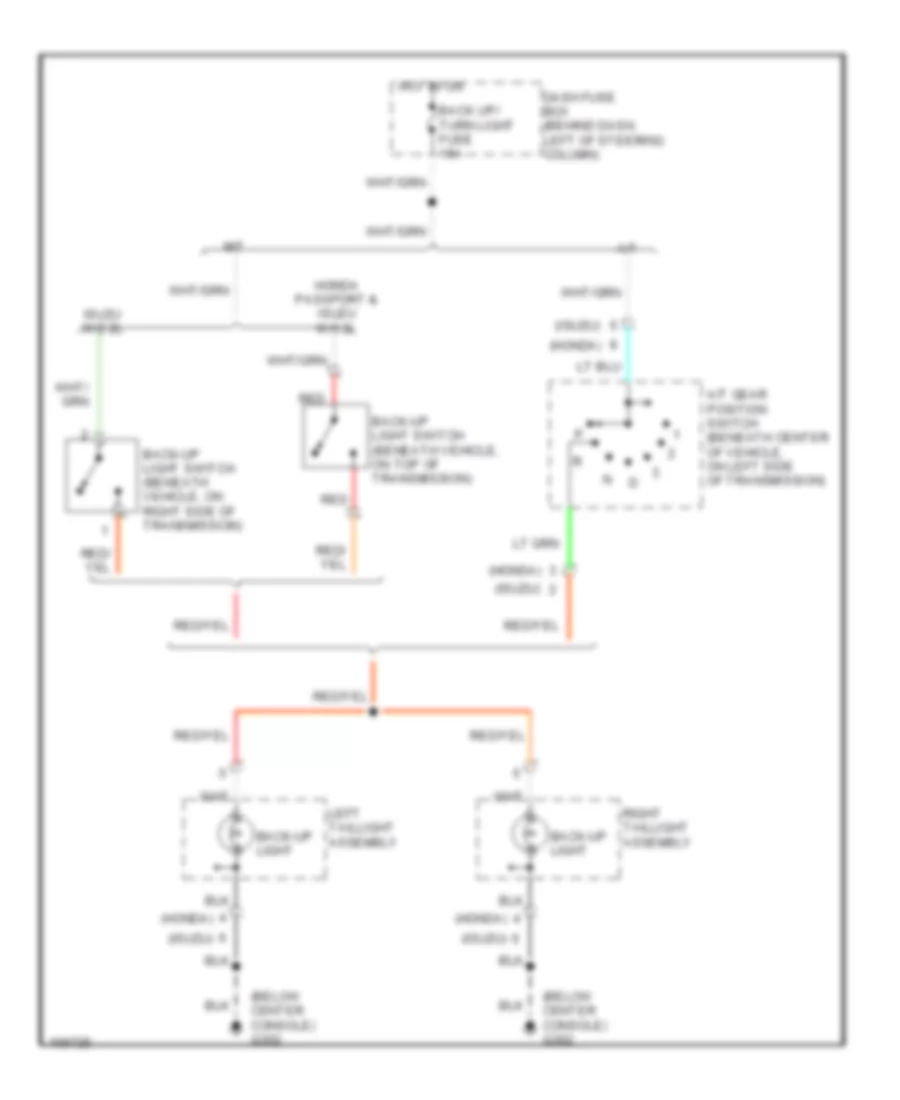

Электросхема заднего хода для Isuzu Amigo S 1999

Электросхема заднего хода для Isuzu Amigo S 1999 - Список элементов:

• (below center console) g302
• (honda)
• (isuzu)
• A/t
• A/t gear position switch (beneath center of vehicle, on left side of transmission)
• Back up/ turn light fuse 15a
• Back-up light
• Back-up light switch (beneath vehicle, on right side of transmission)
• Back-up light switch (beneath vehicle, on top of transmission)
• Dash fuse box (behind dash, left of steering column)
• Honda passport & isuzu w/3.2l
• Hot in on
• Isuzu w/2.2l
• Left taillight assembly
• M/t
• Red
• Right taillight assembly

Электросхема внешнего освещения (1 из 2) для Isuzu Amigo S 1999

Электросхема внешнего освещения (1 из 2) для Isuzu Amigo S 1999 - Список элементов:

• (below center console) g302
• (left rear corner of engine compartment) g104
• (right rear corner of engine compartment) g105
• B12
• B13
• B14
• Back up/ turn light fuse 15a
• Combination switch
• Dash fuse box (behind dash, left of steering column)
• Flasher unit (above left kick panel)
• Fuse/relay box (on right side of engine compartment)
• Gauge assembly or meter assembly
• Gnd
• Harness)
• Hazard
• Hazard fuse 15a
• Hazard warning switch
• Hazard warning switch light
• Honda
• Hot at all times
• Hot in on
• Ignition
• Interior lights system
• Isuzu
• Left
• Left front combination light
• Left front parking/ turn signal light
• Left turn indicator light
• Off
• Output
• Park
• Pnk
• Rear cargo compartment, taped to
• Red
• Right
• Right front combination light
• Right front parking/ turn signal light
• Right turn indicator light
• Trailer lighting connector (in left
• Turn
• Turn signal switch

Электросхема внешнего освещения (2 из 2) для Isuzu Amigo S 1999

Электросхема внешнего освещения (2 из 2) для Isuzu Amigo S 1999 - Список элементов:

• (below center console) g302
• Brake switch (behind dash, on brake pedal support)
• Combination switch
• Cruise control & shift interlock systems
• Dash fuse box (behind dash, left of steering column)
• G-10
• G-11
• Head
• Headlight switch
• High mounted stop light
• Honda
• Hot at all times
• Isuzu
• Left license light
• Left taillight assembly
• License light
• Off
• Park
• Pnk
• Red
• Right license light
• Right taillight assembly
• Stop
• Stop light fuse 15a
• Tail
• Tail/illumi light fuse 15a
• Tail/stop light
• Taillight relay
• Transmission & anti-lock brakes systems
• Turn light
• W/spare tire mounted on tailgate
• W/spare tire under floor
