Электросхемы БЛОК УПРАВЛЕНИЯ КУЗОВОМ Dodge Grand Caravan SE 1999

БЛОК УПРАВЛЕНИЯ КУЗОВОМ

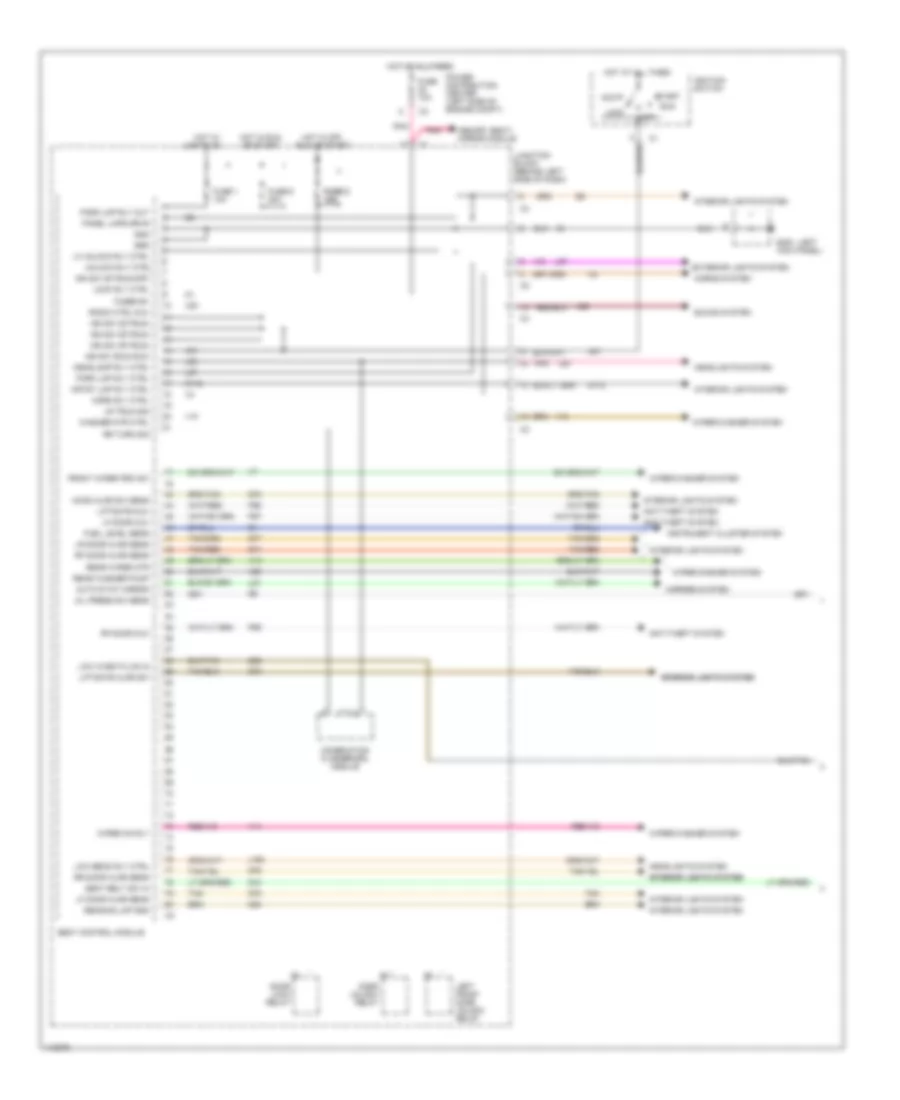

Электросхема блока управления кузовом (1 из 2) для Dodge Grand Caravan SE 1999

Электросхема блока управления кузовом (1 из 2) для Dodge Grand Caravan SE 1999 - Список элементов:

• (left
• A31
• Acc
• Anti-theft system
• Auto dy/nt mirror
• Body control module
• Combination flasher/drl module
• Crtsy lmp rly ctrl
• Door lock relay
• Door unlock relay
• Exterior lights system
• Front wiper prk sw
• Fuel level sens
• Fuse 1 10a
• Fuse 10a
• Fuse 2 fuse 2 10a 10a
• Fuse 6 20a
• Fused b+
• G10
• G200 kick panel)
• G29
• G70
• G74
• G75
• G76
• G77
• G78
• Gnd
• Grd
• Headlamp rly ctrl
• Headlights system
• Hood ajar sw sens
• Horn rly ctrl
• Horns system
• Hot at all times
• Hot in off, run or start
• Hot in run or start
• Hot w/
• Ign sw (run/acc)
• Ign sw (st/run)
• Ign sw (st/run/off)
• Ignition switch
• Instrument cluster system
• Interior lights system
• Interior lights system interior lights system
• Junction block (behind left side of dash)
• L193
• L24
• L93
• L97
• Left front door unlock relay
• Lf door ajar sens
• Lf door mux
• Lf unlock rly ctrl
• Liftgate ajar sw
• Liftgate mux
• Lights on
• Lock
• Lock rly ctrl
• Low beam rly ctrl
• Low wash fluid in
• Lr door ajar sens
• Lr trun sig
• M112
• M20
• Memory seat/ mirror module
• Mirrors system
• Off
• Oil press sw sens
• P96
• P97
• P98
• Panel lmps drvr
• Park lmp rly ctrl
• Park lmp rly out
• Pnk
• Power distribution center (left side of engine compt)
• Radio ctrl mux
• Reading lmp gnd
• Rear washer pump
• Rear wiper mtr
• Rf door ajar sens
• Rf door mux
• Rr door ajar sens
• Rr turn sig
• Run
• Seat belt sw in
• Sound system
• Start
• Tan
• Tan/red
• Unlock rly ctrl
• V10
• V13
• V14
• V20
• Washer mtr ctrl
• Wiper on rly
• Wiper/washer system
• X20

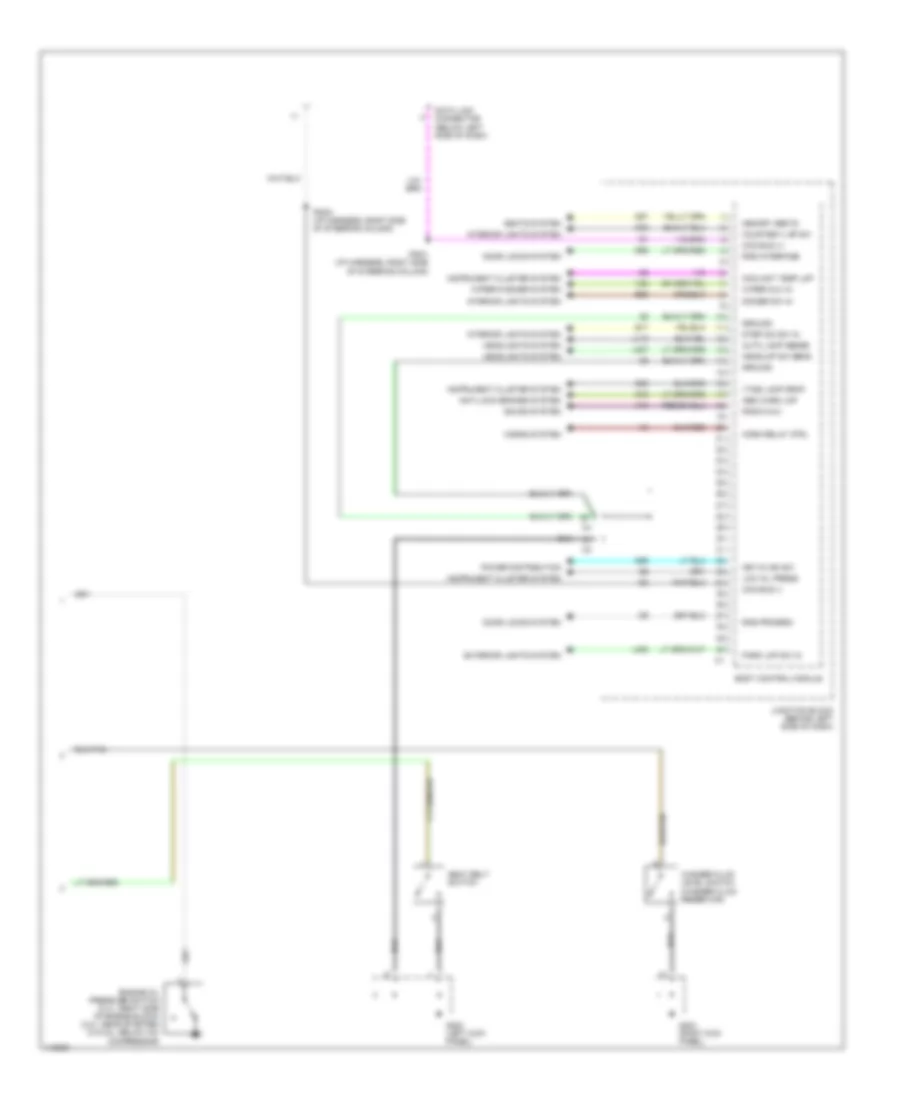

Электросхема блока управления кузовом (2 из 2) для Dodge Grand Caravan SE 1999

Электросхема блока управления кузовом (2 из 2) для Dodge Grand Caravan SE 1999 - Список элементов:

• Abs warn lmp
• Anti-lock brakes system
• Auto lamp sense
• Body control module
• Ccd bus (+)
• Ccd bus (-)
• Coolant temp lmp
• Courtesy lmp sw
• Data link connector (below left side of dash)
• Dimmer sw in
• Door locks system
• E17
• E92
• Engine oil pressure switch (2.4l: right side of engine block) (3.0l: near starter) (3.3/3.8l: below a/c compressor)
• Exterior lights system
• G19
• G200 (left kick panel)
• G203 (right kick panel)
• G26
• G69
• G87
• G96
• Ground
• Headlights system
• Headlmp sw sens
• Horn relay ctrl
• Horns system
• Instrument cluster system
• Interior lights system
• Junction block (behind left side of dash)
• Key-in ign sw
• L110
• L307
• L308
• Low oil press
• M32
• Memory seats
• Park lmp sw in
• Power distribution
• Pso1 (i/p harness, right side of steering column)
• Pso2 (i/p harness, right side of steering column)
• Radio mux
• Rke interface
• Rke program
• Seat belt switch
• Seats system
• Sound system
• Step dim sw in
• V52
• Vtss lamp drvr
• Washer fluid level switch (washer fluid reservoir)
• Wiper mux in
• Wiper/washer system
• X10
