Электросхемы Стеклоочистители и Стеклоомыватели Дворники Dodge Grand Caravan SE 1999

Стеклоочистители и Стеклоомыватели Дворники

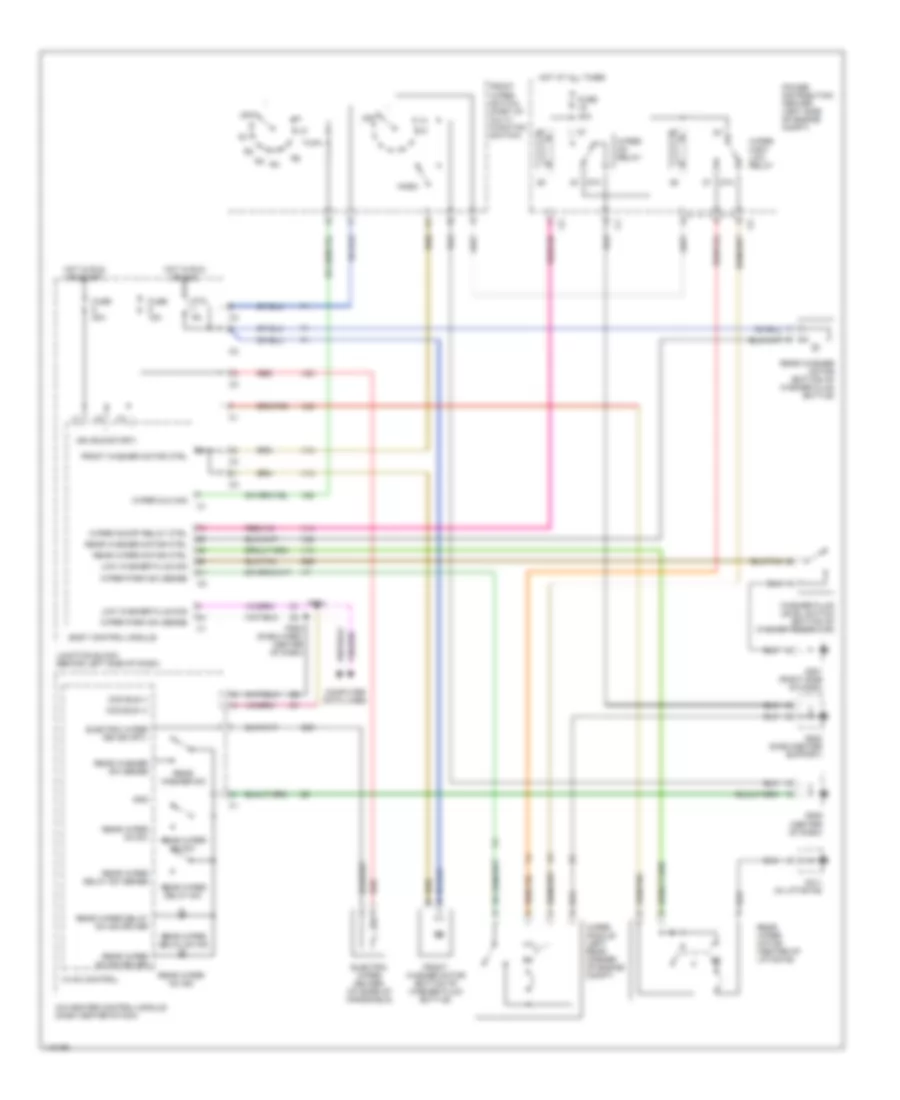

Электросхема стеклоочистителя, дворников и омывателя для Dodge Grand Caravan SE 1999

Электросхема стеклоочистителя, дворников и омывателя для Dodge Grand Caravan SE 1999 - Список элементов:

• 87a
• A/c-heater control module (dash center stack)
• Body control module
• C66
• Ccd bus (+)
• Ccd bus (-)
• Computer data lines
• Electric wiper de-ice crtl
• Electric wiper de-icer (at base of windshield)
• Front washer motor (bottom of washer fluid bottle)
• Front washer motor ctrl
• Front wiper switch (part of multi- function switch)
• Fuse 15a
• Fuse 20a
• Fuse 30a
• G201 (right side of dash)
• G202 (dash center support)
• G206 (center of dash)
• G29
• G411 (in liftgate)
• Gnd
• Hot at all times
• Hot in run or acc
• Hot in run or start
• Hvac control
• Ign (run/start)
• Junction block (behind left side of dash)
• Low washer fluid sig
• Off
• Power distribution center (left side of engine compt)
• Ps01
• Ps02 (dash harn, center of dash)
• Ptc 9a
• Rear washer motor (bottom of washer fluid bottle)
• Rear washer motor ctrl
• Rear washer sw
• Rear washer sw sense
• Rear wiper delay on ind
• Rear wiper delay on ind driver
• Rear wiper delay sw
• Rear wiper delay sw sense
• Rear wiper motor (center of liftgate)
• Rear wiper motor ctrl
• Rear wiper on ind
• Rear wiper on ind driver
• Rear wiper on sw
• Red
• V10
• V13
• V14
• V20
• V23
• V52
• Wash
• Washer fluid level switch (bottom of washer reservoir)
• Wiper high/ low relay
• Wiper module (left rear corner of engine compt)
• Wiper mux sig
• Wiper on relay
• Wiper on/off relay ctrl
• Wiper park sw sense
