Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Grand Caravan SE 1999

ПРИБОРНАЯ ПАНЕЛЬ

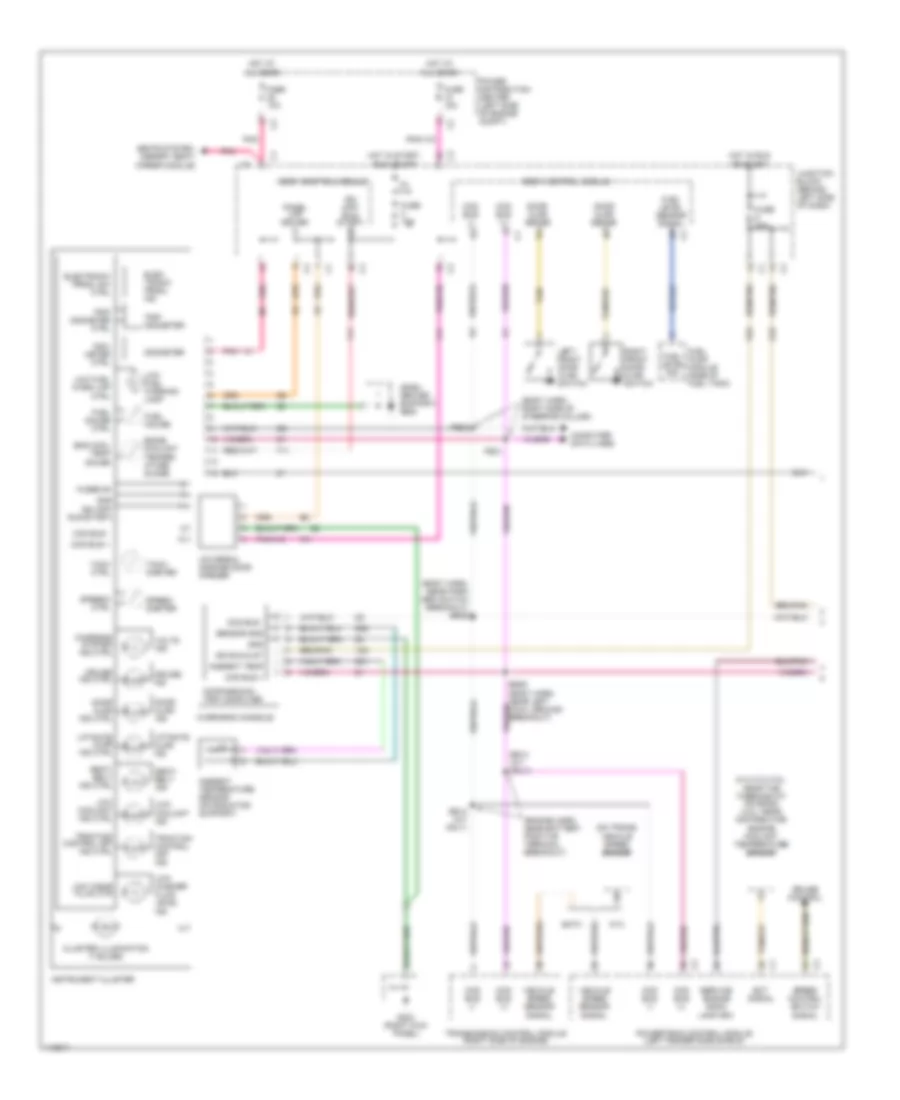

Электросхема панели приборов (1 из 2) для Dodge Grand Caravan SE 1999

Электросхема панели приборов (1 из 2) для Dodge Grand Caravan SE 1999 - Список элементов:

• (2.4l/3.3l/3.8l: near the thermostat housing) (3.0l: near distributor) engine coolant temperature sensor
• (body harn, near park brk switch breakout) bs06
• (body harn, right side of steering column)
• (dash center support) g206
• (engine harn, near battery positive terminal breakout)
• (on trans) vehicle speed sensor
• All times
• Ambient temp
• Ambient temperature sensor (on radiator support)
• Atx
• Body control module
• Bs05 (body harn, near left cowl ground breakout)
• Ccd bus (+)
• Ccd bus (-)
• Ccd bus +
• Ccd bus -
• Charging system ind ctrl
• Cluster illumination (7 bulbs)
• Compass/mini- trip computer
• Computer data lines
• Cruise control
• Cruise ind
• Cruise ind ctrl
• Door ajar ind
• Door ajar ind ctrl
• Door ajar sense
• Eatx
• Ect signal
• Egine coolant temper- ature guage
• Elec- tronic prndl ind
• Electronic prndl sw ctrl
• Eng cool temp gauge
• Es13 (a/t only)
• Es14 (a/t only)
• F11
• F41
• Fuel gauge
• Fuel gauge ctrl
• Fuel level sensor signal
• Fuel level sig
• Fuel pump module (side of fuel tank)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fused b+
• G203 (right kick panel)
• G31
• G32
• Gnd
• Hot at
• Hot in run or start
• Hot in start,
• Ign (off/ run/ start)
• Ign (off/ run/start)
• Ign run & st
• Instrument cluster
• Junction block (behind left side of dash)
• Left front door ajar switch
• Liftgate ajar ind
• Liftgate ajar ind ctrl
• Low coolant ind
• Low coolant ind ctrl
• Low fuel warn lmp ctrl
• Low fuel warning lamp
• Low washer fluid level ind
• Low wshr fluid ctr
• Odo- meter ctrl
• Odometer
• Overhead console
• Panel lmp driver
• Pnk
• Power distribution center (left side of engine compt)
• Powertrain control module (left fender side shield)
• Ps01
• Ps02
• Right front door ajar switch
• Run or off
• Seat- belt ind
• Seat- belt ind ctrl
• Seats system, (memory seat/ mirror module)
• Sensor gnd
• Service engine soon lamp drv
• Speed control switch signal
• Speed- ometer
• Speedo ctrl
• Tach ctrl
• Tach- ometer
• Tan
• Tan/red
• Traction control off ind
• Traction control off ind ctrl
• Transmission control module (right side of engine)
• Trip odometer
• Trip odometer ctrl
• Universal garage door opener
• V23
• Vehicle speed sensor signal
• Volts ind

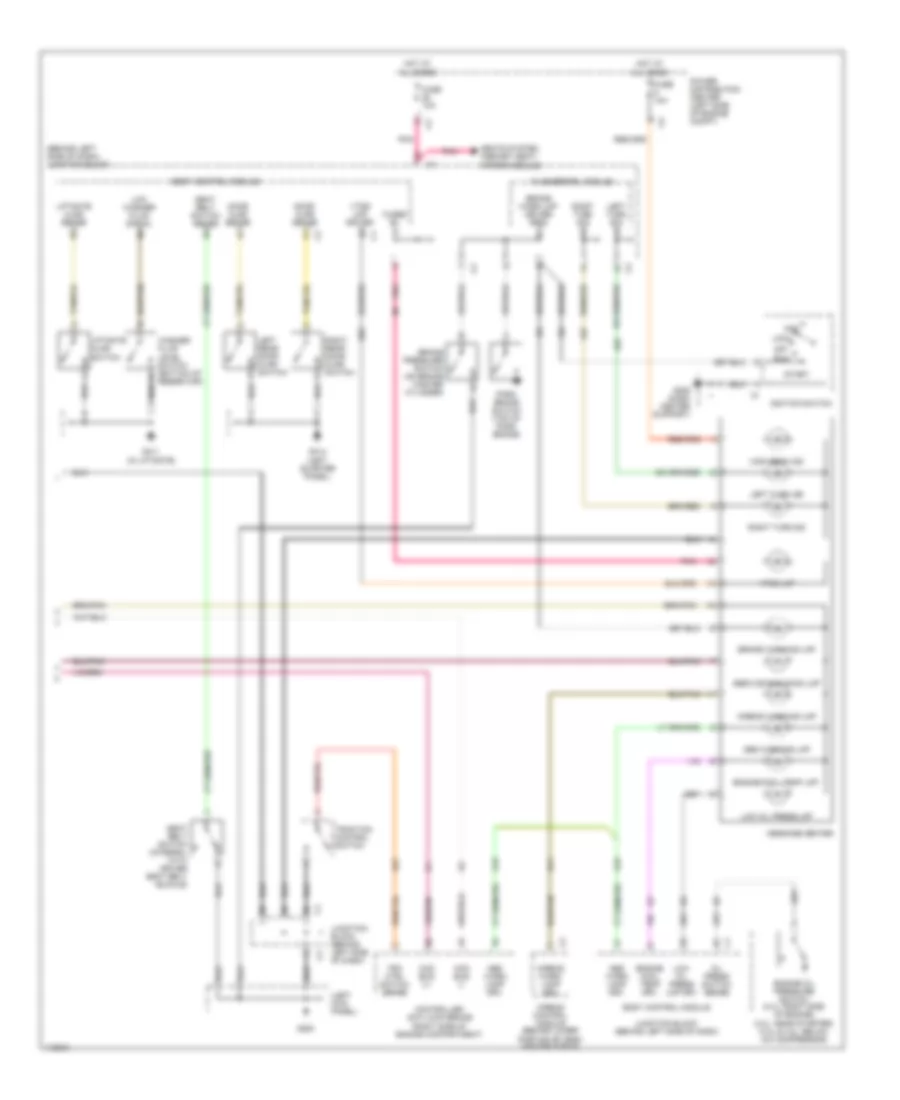

Электросхема панели приборов (2 из 2) для Dodge Grand Caravan SE 1999

Электросхема панели приборов (2 из 2) для Dodge Grand Caravan SE 1999 - Список элементов:

• (behind left side of dash) junction block
• (left kick panel)
• Abs warn lamp drv
• Abs warning lmp
• Acc
• Airbag control module (behind lower portion of dash center stack)
• Airbag warn lamp drv
• Airbag warning lmp
• All times
• B27
• Body control module
• Brake pressure switch (on brake master cylinder)
• Brake warn lmp driver (red)
• Brake warning lmp
• Ccd bus (+)
• Ccd bus (-)
• Controller anti-lock brake (right side of engine compartment)
• Door ajar sense
• Engine cool temp drv
• Engine cool temp lmp
• Engine oil pressure switch (2.4l: right side of engine) (3.0l: near starter) (3.3l & 3.8l: below a/c compressor)
• Flasher/drl module
• Fuse 10a
• Fused b+
• G19
• G200
• G206 (dash center support)
• G411 (in liftgate)
• G414 (left quarter panel)
• G69
• High beam ind
• Hot at
• Ignition switch
• Junction block (behind left side of dash)
• L62
• L63
• Left rear door ajar switch
• Left turn ind
• Left turn sig
• Liftgate ajar sense
• Liftgate ajar switch
• Lock
• Low oil press lmp
• Low oil press lmp drv
• Low washer fluid signal
• Message center
• Off
• Oil press switch sense
• Park brake switch (top of park brake)
• Pnk
• Power distribution center (left side of engine compt)
• R41
• Right rear door ajar switch
• Right turn ind
• Right turn sig
• Run
• Seat belt switch (integral with driver seat belt buckle)
• Seat belt switch sense
• Seats system, (memory seat/ mirror module)
• Service eng soon lmp
• Start
• Traction control switch
• Trc ctrl switch sense
• Vtss lmp
• Vtss lmp driver
• Washer fluid level switch (bottom of reservoir)
