Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Charger R/T 2014

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема панели приборов (1 из 2) для Dodge Charger R/T 2014

Электросхема панели приборов (1 из 2) для Dodge Charger R/T 2014 - Список элементов:

• (base of parking brake)
• (left center of dash) g211
• (or k915)
• (right rear of engine compt, in engine harness) s925
• 3.6l
• 32b
• 34b
• 45b
• 5v sply
• A929
• A938
• Analog clock module (chrysler)
• Batt fd
• Can c (+)
• Can c (-)
• Cluster
• Compass module (center of dash)
• Computer data lines system
• D402
• D64
• D65
• E12
• Eng oil temp sens sig
• Except 3.6l
• F855
• F924
• Fsd b (+)
• Fuse 10a
• Fuse 15a
• Fuse 30a
• G211 (left center of dash)
• G24
• G84
• G911 (left side of dash)
• Gnd
• Ground
• Hot at all times
• Hot w/ run relay energized
• I231
• Ign r
• Interior lights system
• K900
• Lin bus
• Oil press sens/sw sig
• Oil pressure sensor (right front of engine)
• Oil temperature sensor (except 3.6l: right front of engine) (3.6l: left rear of engine)
• Parking brake switch
• Pnk
• Pnl lmps
• Powertrain control module (right rear of engine compt)
• Prk brk sw sig
• Rear power distribution center (pdc) (center rear of luggage compt)
• Run rly ctrl
• S1614
• S1620
• S1631
• S990 (3.6l) s991 (except 3.6l) (3.6l: right rear of engine compt, in engine harness) (except 3.6l: center rear of engine, in engine harness)
• Sens gnd
• Vta wrng ind
• Z910
• Z911

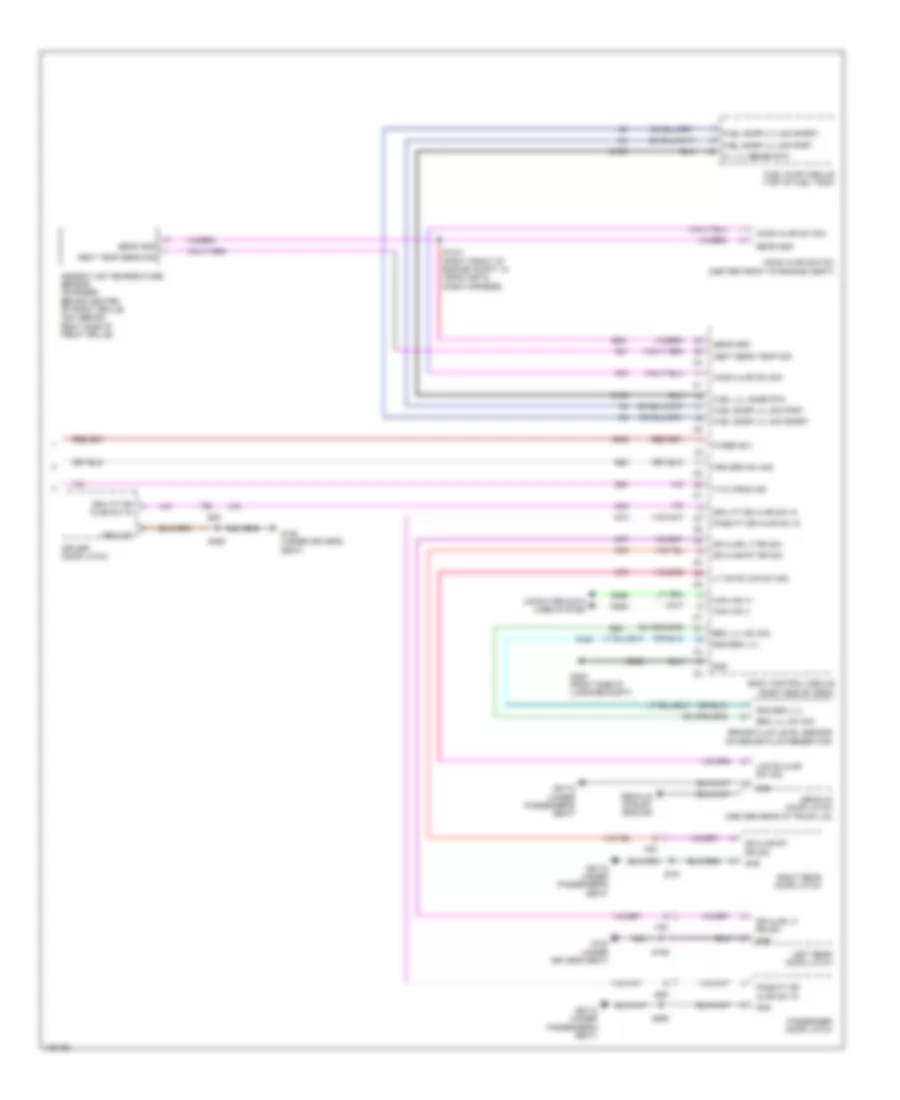

Электросхема панели приборов (2 из 2) для Dodge Charger R/T 2014

Электросхема панели приборов (2 из 2) для Dodge Charger R/T 2014 - Список элементов:

• A905
• Abmt sens temp sig
• Abmt temp sens sig
• Ambient air temperature sensor (charger: behind center of front grille) (300: behind right side of front grille)
• B20
• B25
• Body control module (right end of dash)
• Brake fluid level sensor (on brake fluid reservoir)
• Brk lvl sw sig
• Can ihs (+)
• Can ihs (-)
• Computer data lines system
• D264
• D265
• Decklid door latch (center rear of trunk lid)
• Dr ajar lt rr sig
• Dr ajar rt rr sig
• Driv ft dr ajar sw in
• Driver door latch
• Fl lvl sensr rtn
• Fuel lvl snsr rtn
• Fuel pump module (top of fuel tank)
• Fuel sndr lvl sig pmry
• Fuel sndr lvl sig sndry
• Fused b(+)
• G109
• G120 (under driver's seat)
• G305 (right side of luggage compt)
• G31
• G70
• G74
• G75
• G76
• G77
• G78
• G84
• G917a (under passenger's seat)
• G931
• Gnd
• Gnd brk lvl
• Ground
• Hood ajar sw sig
• Hood ajar switch (center front of engine compt)
• I600
• I650
• I700
• I750
• Left rear door latch
• Lgate ajar sw sig
• Lt gate ajr sw sig
• Pass ft dr ajar sw in
• Passenger door latch
• Prk brk sw sig
• Right rear door latch
• S1341 (right front of engine compt, in headlamp & dash harness)
• S490
• S590
• S750
• S751
• Sens gnd
• Vta wrng ind
• Z420
• Z922

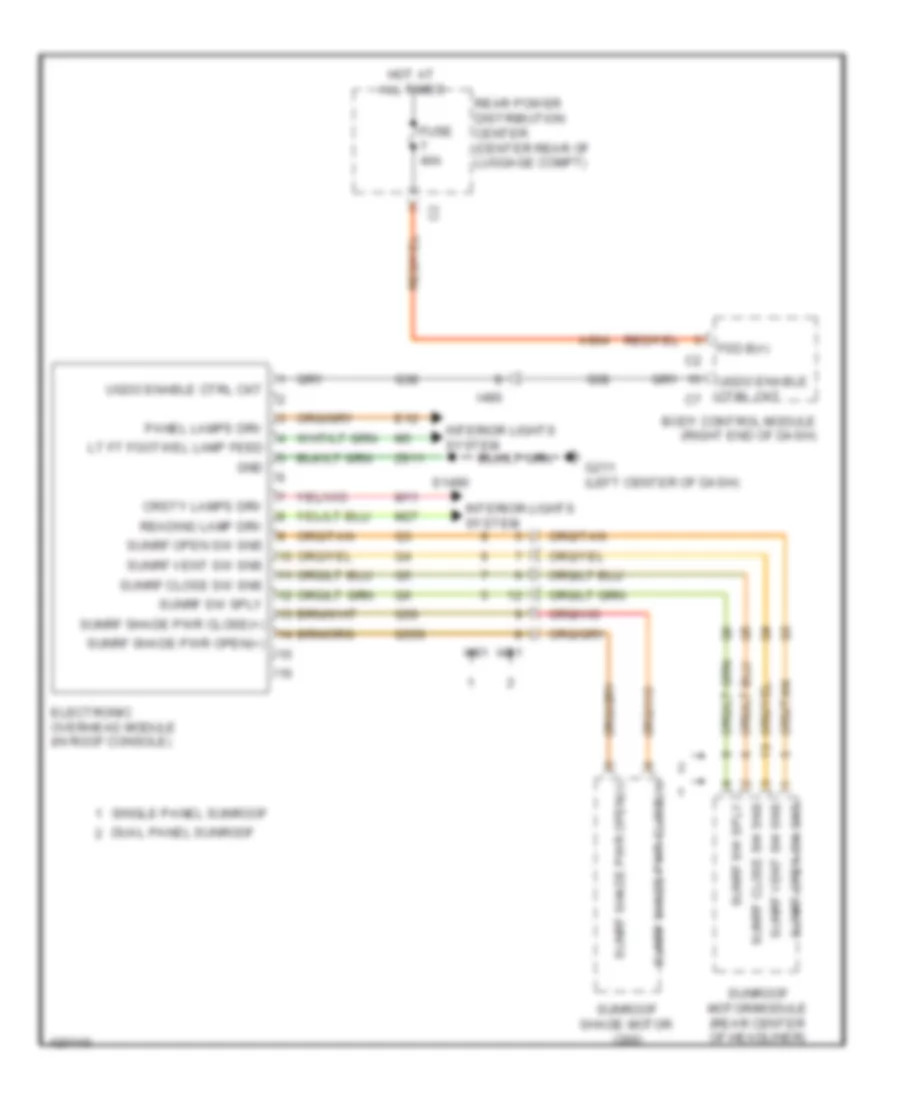

Электросхема верхней консоли управления для Dodge Charger R/T 2014

Электросхема верхней консоли управления для Dodge Charger R/T 2014 - Список элементов:

• A904
• Body control module (right end of dash)
• Crsty lamps drv
• Dual panel sunroof
• E12
• Electronic overhead module (in roof console)
• Fsd b(+)
• Fuse 40a
• G211 (left center of dash)
• G38
• Gnd
• Hot at all times
• I480
• I481
• Interior lights system
• Lt ft footwel lamp feed
• M11
• M27
• Panel lamps drv
• Q556
• Q56
• Reading lamp drv
• Rear power distribution center (center rear of luggage compt)
• S1490
• Single panel sunroof
• Sunrf close sw sns
• Sunrf open sw sns
• Sunrf shade pwr close(+)
• Sunrf shade pwr open(+)
• Sunrf sw sply
• Sunrf vent sw sns
• Sunroof motor/module (rear center of headliner)
• Sunroof shade motor (300)
• Ugdo enable ctrl ckt
• Z911
