Электросхемы Система Фар Dodge Charger R/T 2014

Система Фар

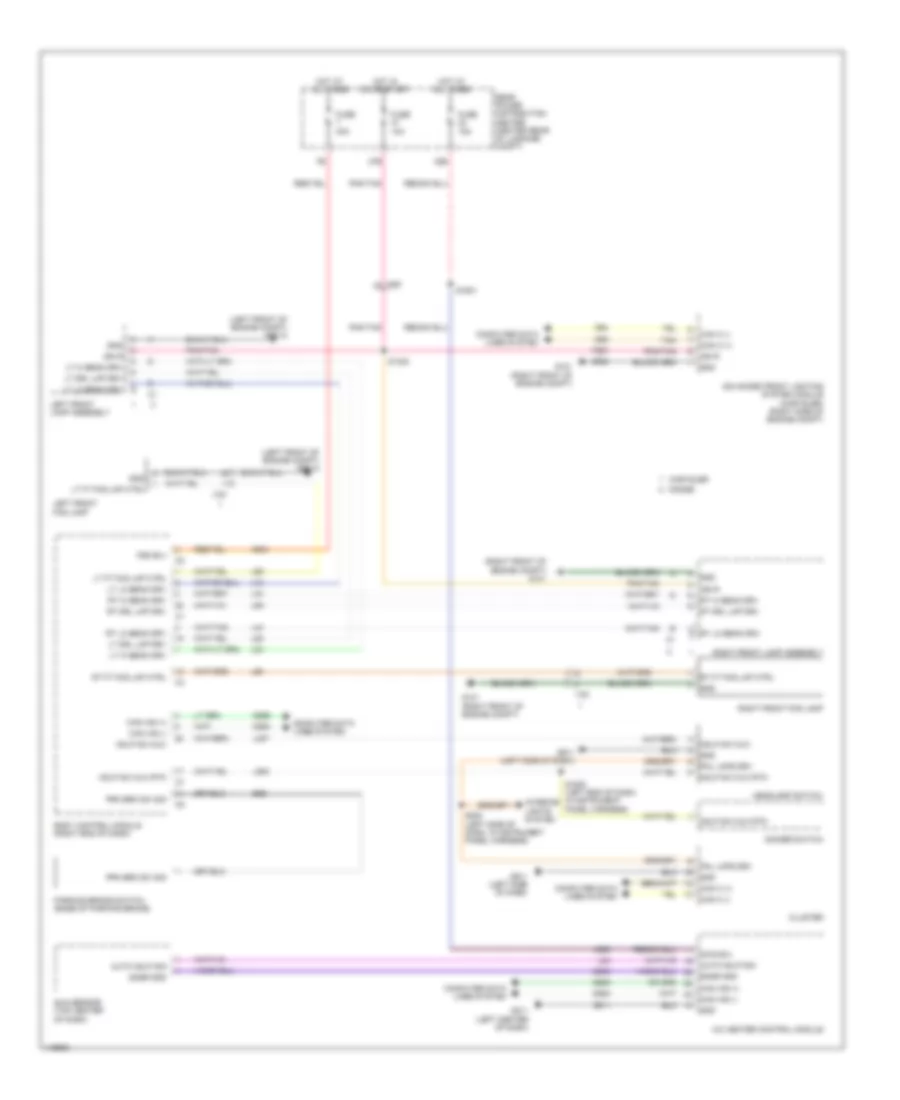

Электросхема фар для Dodge Charger R/T 2014

Электросхема фар для Dodge Charger R/T 2014 - Список элементов:

• (left front of engine compt) g901a
• (right front of engine compt) g101
• 32b
• 47b
• A/c heater control module
• A904
• A938
• Advanced front lighting system module (chrysler) (right side of engine compt)
• Auto hdlp sig
• B25
• Body control module (right end of dash)
• Can c (+)
• Can c (-)
• Can ihs (+)
• Can ihs (-)
• Chrysler
• Cluster
• Computer data lines system
• D264
• D265
• D64
• D65
• Dimmer switch
• Dodge
• F927
• Fsd b(+)
• Fuse 10a
• Fuse 15a
• Fuse 40a
• G101 (right front of engine compt)
• G211 (left center of dash)
• G911 (left side of dash)
• G939
• Gnd
• Hdlp sw mux
• Hdlp sw mux rtn
• Headlamp switch
• Hot at all times
• Hot in on or start
• I100
• I250
• Ign r
• Interior lights system
• L24
• L307
• L33
• L34
• L43
• L44
• L58
• L59
• L89
• L90
• L900
• Left front fog lamp
• Left front lamp assembly
• Lt drl lmp drv
• Lt ft fog lmp ctrl
• Lt hi beam drv
• Lt lo beam drv
• Parking brake switch (base of parking brake)
• Pnk/tan
• Pnl lmps drv
• Prk brk sw sig
• Rear power distribution center (center rear of luggage compt)
• Right front fog lamp
• Right front lamp assembly
• Rt drl lmp drv
• Rt ft fog lmp ctrl
• Rt hi beam drv
• Rt lo beam drv
• S1323
• S1630 (left end of dash, in instrument panel harness)
• S1631
• S208 (left side of dash, in instrument panel harness)
• Snsr gnd
• Sun sensor (top center of dash)
• Swd b(+)
• Tan
• Z902
• Z911
