Электросхемы СИСТЕМЫ СИДЕНИЙ Dodge Charger R/T 2014

СИСТЕМЫ СИДЕНИЙ

Электросхема привода водительского сиденья для Dodge Charger R/T 2014

Электросхема привода водительского сиденья для Dodge Charger R/T 2014 - Список элементов:

• 31b
• Driver seat front vertical adjuster motor
• Driver seat horizontal adjuster motor
• Driver seat rear vertical adjuster motor
• Driver seat recliner adjuster motor
• Driver seat switch
• Drv mem sts rclne dn
• Drv mem sts rclne up
• Drv pwr
• Drv pwr rclnr mtr dn
• Drv pwr rclnr mtr up
• Drv pwr sts
• Drv pwr sts ft dn
• Drv pwr sts ft up
• Drv pwr sts horz aft
• Drv pwr sts horz fwd
• Drv pwr sts rr vert dn
• Drv pwr sts rr vert up
• Fsd b (+)
• Fuse 25a
• G916a
• Gnd
• Horz aft
• Horz fwd
• Hot at all times
• I1900a
• Rear power distribution center (center rear of luggage compt)
• Red
• S100a
• S101a
• Sts ft dn
• Sts ft up

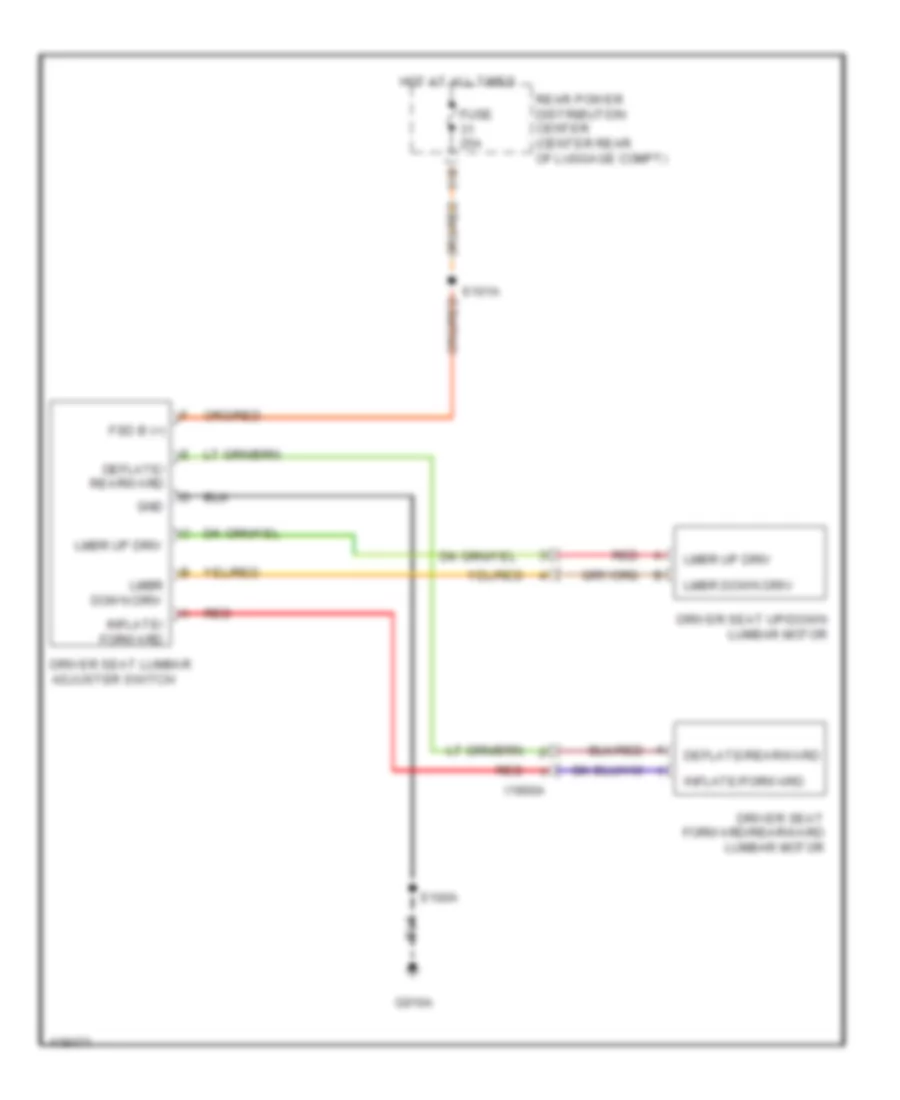

водитель "s Электросхема регулировки поясницы для Dodge Charger R/T 2014

водитель "s Электросхема регулировки поясницы для Dodge Charger R/T 2014 - Список элементов:

• 31b
• Deflate/ rearward
• Deflate/rearward
• Driver seat forward/rearward lumbar motor
• Driver seat lumbar adjuster switch
• Driver seat up/down lumbar motor
• Fsd b (+)
• Fuse 25a
• G916a
• Gnd
• Hot at all times
• I1900a
• Inflate/ forward
• Inflate/forward
• Lmbr down driv
• Lmbr up driv
• Rear power distribution center (center rear of luggage compt)
• Red
• S100a
• S101a

Электросхема подогрева сидений (1 из 2) для Dodge Charger R/T 2014

Электросхема подогрева сидений (1 из 2) для Dodge Charger R/T 2014 - Список элементов:

• 43b
• 51b
• 52b
• C91
• C986
• Can ihs (+)
• Can ihs (-)
• Computer data lines system
• Cshn bk vent mtr fd-ft rt
• Ctrl htr seat ft lt
• Ctrl htr seat rr lt
• Ctrl htr seat rr rt
• D264
• D265
• F921
• F922
• Ft lt chsn bk vent mtr fd
• Ft lt cshn bk vent mtr rtn
• Ft rt cshn bk vent mtr rtn
• Fuse 10a
• Fuse 20a
• G1a
• G922a
• Gnd
• Ground
• Heated seat sens rtn
• Heated seats module (under front passenger's seat)
• Heated steering wheel circuit
• Hot w/ run relay energized
• Htd str whl fd
• I460
• I470
• I471
• I660
• I760a
• Ign r
• Left rear seat back heater
• Lt ft htd sts temp snsr
• Lt rr htd sts temp snsr
• P177
• P178
• P187
• P188
• P421
• P422
• P672
• P673
• P687
• P688
• P921
• P922
• P968
• Pnk
• Rear power distribution center (center rear of luggage compt)
• Red
• Rf ft htd seat temp sens
• Rf seat htr ctrl
• Right rear seat back heater
• Rt rr htd sts temp snsr
• S198
• S199
• S200a
• S203a
• Seat rr lt ctrl htr
• Seat rr rt ctrl htr
• Snsr rtn heated sts
• Snsr rtn htd sts
• Str whl htr rtn
• Tan
• Temp snsr lt rr htd sts
• Temp snsr rt rr htd sts
• Z917

Электросхема подогрева сидений (2 из 2) для Dodge Charger R/T 2014

Электросхема подогрева сидений (2 из 2) для Dodge Charger R/T 2014 - Список элементов:

• (under passenger's seat, in seat harness) s107a
• C330
• Cshn bk vent mtr fd-ft lt
• Cshn bk vent mtr fd-ft rt
• Ctrl htr seat ft lt
• Ctrl htr seat ft rt
• Dim3 ip
• Ft lt cshn bk vent mtr rtn
• Ft rt cshn bk vent mtr rtn
• G1a
• G916a
• G917a (under passenger's seat)
• Gnd
• Ground
• Heated seats module (under front passenger's seat)
• High ind lt rr htd sts
• Htd sts snse rtn
• I1450a
• I1900a
• I460
• I471
• I660
• I760a
• Ign run
• Interior
• Left rear heated seat switch
• Left seat back vent
• Left seat cushion heater
• Lights
• Low ind lt rr htd sts
• Low ind rt rr htd sts
• Lt ft htd sts temp snse
• P165
• P166
• P181
• P182
• P183
• P184
• Pos snse lt rr htd sts sw
• Pos snse rt rr htd sts sw
• Power distribution system
• Red
• Right rear heated seat switch
• Right seat back vent
• Right seat cushion heater
• Rr heated seat high ind rt
• Rr htd sts hi ind rt
• Rr htd sts high ind lt
• Rr htd sts low ind rt
• Rr htd sts sw pos snse lt
• Rr htd sts sw pos snse rt
• Rt ft htd sts temp snse
• S01
• S03
• S100a
• S102a (under passenger's seat, in seat harness)
• S106a (under passenger's seat, in seat harness)
• S143 (under left rear seat, in body harness)
• S200a
• S201a
• S202a
• S206a
• S207a
• System
• Tan

Электросхема подогрева руля для Dodge Charger R/T 2014

Электросхема подогрева руля для Dodge Charger R/T 2014 - Список элементов:

• (in steering wheel harness) s2302
• 34b
• A929
• C91
• C986
• Can c (+)
• Can c (-)
• Can ihs (+)
• Can ihs (-)
• Computer data lines system
• D264
• D265
• D507
• D64
• D65
• Dimm sws
• Evic rmux rtn
• Evic rmux sig
• Fsd b (+)
• Fuse 10a
• G910a
• Gnd
• Heated seats module (under front passenger's seat)
• Horns system
• Hot at all times
• Hrn sw sig
• Htd str whl fd
• Htd str whl rd
• Htd str whl sig
• Htr rtn strg whl
• I420
• I471
• Left steering wheel switch
• Lin bus
• Pnk
• Rad ctrl sw sig
• Rad sw sns rtn
• Rear power distribution center (center rear of luggage compt)
• Red
• Right steering wheel switch
• Rmux rtn evic
• S1614
• Sig evic rmux
• Sound systems
• Steering control module (steering column)
• Steering wheel heater
• Steering wheel heater sensor (in steering wheel)
• Str whl htr rtn
• Sw spd ctrl rtn
• Sw spd ctrl sns1
• Sw spd ctrl sns2
• V71
• V72
• V937
• Whl fd htd str
• Whl sig htd str
• Z910

Электросхема привода пассажирского сиденья для Dodge Charger R/T 2014

Электросхема привода пассажирского сиденья для Dodge Charger R/T 2014 - Список элементов:

• C330
• Fsd b (+)
• Fuse 25a
• G917a (under passenger's seat)
• Ground
• Hot at all times
• I1450a
• Passenger seat front vertical adjuster motor
• Passenger seat horizontal adjuster motor
• Passenger seat rear vertical adjuster motor
• Passenger seat recliner adjuster motor
• Passenger seat switch
• Pwr ft dn pass
• Pwr ft up pass
• Pwr horz fwd pass
• Pwr horz rwd pass
• Pwr rclnr dn pass
• Pwr rclnr up pass
• Pwr vert rr dn pass
• Pwr vert rr up pass
• Rear power distribution center (center rear of luggage compt)
• Red
• S200a
• S204a

пассажир "s Электросхема регулировки поясницы для Dodge Charger R/T 2014

пассажир "s Электросхема регулировки поясницы для Dodge Charger R/T 2014 - Список элементов:

• 31b
• C330
• Deflate/rearward
• Fsd b (+)
• Fuse 25a
• G917a (under passenger's seat)
• Gnd
• Hot at all times
• I1450a
• Inflate/forward
• Lmbr down pass
• Lmbr up pass
• Passenger seat forward/rearward seat lumbar motor
• Passenger seat lumbar adjuster switch
• Passenger seat up/down lumbar motor
• Rear power distribution center (center rear of luggage compt)
• Red
• S200a
• S204a
