Электросхемы Стеклоочистители и Стеклоомыватели Дворники Dodge Grand Caravan SXT 2010

Стеклоочистители и Стеклоомыватели Дворники

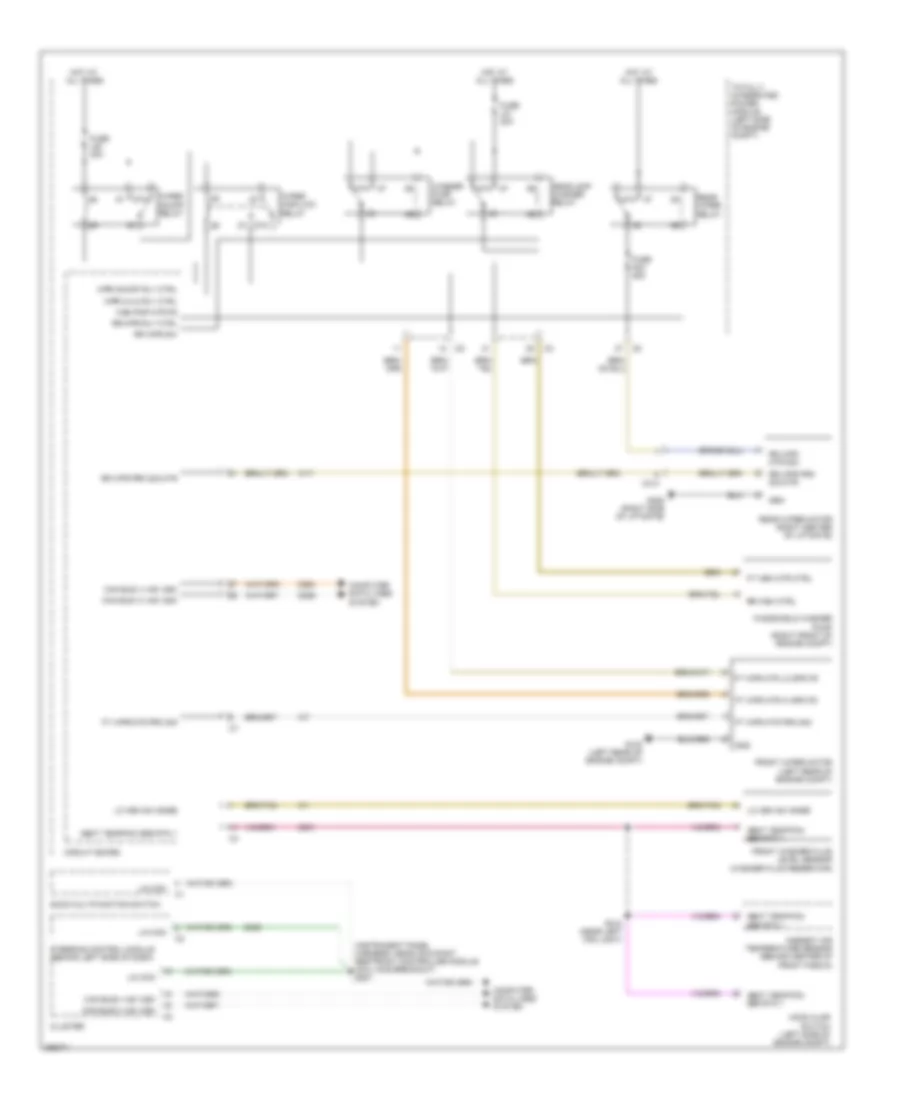

Электросхема стеклоочистителя, дворников и омывателя для Dodge Grand Caravan SXT 2010

Электросхема стеклоочистителя, дворников и омывателя для Dodge Grand Caravan SXT 2010 - Список элементов:

• (instrument panel harness, near occupant restraint controller module c2-a, c2-b breakout) s207
• 87a
• Abmt temp/fcm ssr rtn 1
• Ambient air temperature sensor (behind center of front fascia)
• C314
• Can bus (+) ihs 125k
• Can bus (-) ihs 125k
• Can bus(+) ihs 125k
• Can bus(-) ihs 125k
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• D506
• Front washer fluid level sensor (washer fluid reservoir)
• Front wiper motor (left rear of engine compt)
• Ft wpr mtr hi spd fd
• Ft wpr mtr lo spd fd
• Ft wpr mtr prk sig
• Ft wsh mtr ctrl
• Fuse j20 30a
• Fuse j21 20a
• Fuse m24 25a
• G102 (left rear of engine compt)
• G305 (right side of liftgate)
• G931
• Gnd
• Headlamp washer relay
• Hood ajar switch (left side of engine compt)
• Hot at all times
• Lin ccn
• Lo wsh sw snse
• Rear wiper motor (right center of liftgate)
• Rear wiper relay
• Rr wpr mtr sig
• Rr wpr prk sig mtr
• Rr wpr rly ctrl
• Rr wpr sw
• Rr wsh ctrl
• S102 (near left fog light)
• Sccm multifunction switch
• Steering control module (behind left side of dash)
• Totally integrated power module (left side of engine compt)
• W17
• Washer pump relay
• Windshield washer pump (right front of engine compt)
• Wiper high/low relay
• Wiper on/off relay
• Wpr hi/lo rly ctrl
• Wpr on/off rly ctrl
• Wsh pmp mtr fd
