Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Grand Caravan SXT 2010

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Dodge Grand Caravan SXT 2010

Электросхема заднего хода для Dodge Grand Caravan SXT 2010 - Список элементов:

• (body harness, center of floor) s316
• 4 speed transmission
• 6 speed transmission
• B(+)
• Backup lamp relay
• Backup lamp rly ctrl
• Backup lamps fd
• C314
• C328
• Can bus (+)
• Can bus (-)
• Circuit board
• Computer data lines system
• D64
• D65
• Fuse m31 20a
• G300 (base of left "b" pillar)
• G302 (base of right "d" pillar)
• G305 (right side of liftgate)
• Gnd
• Hot at all times
• Inside rearview mirror
• Left tail lamp assembly
• License plate lamp/ rear camera assembly
• Powertrain control module (left side of engine compt)
• Right tail lamp assembly
• S459 (w/ rain sensor)
• T42
• Totally integrated power module (left side of engine compt)
• Transmission range sensor
• Transmission solenoid/ trs assembly (left side of transmission)
• Trs rng c2 sig

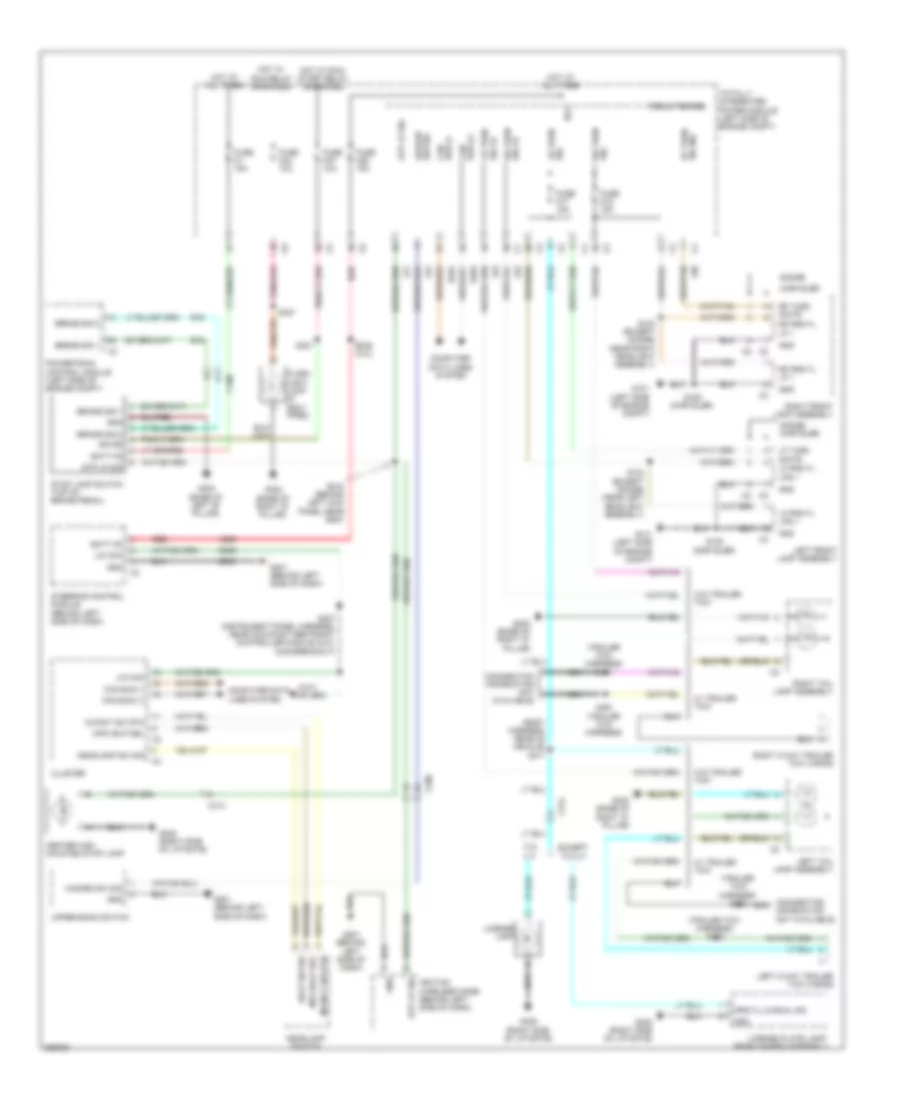

Электросхема внешнего освещения для Dodge Grand Caravan SXT 2010

Электросхема внешнего освещения для Dodge Grand Caravan SXT 2010 - Список элементов:

• (body harness, rear of vehicle) s317
• (connection information not available)
• (connection nca
• (trailer tow harness) s433
• (trailer tow harness) s462
• (trailer tow harness) s467
• 3.3l lx
• A909
• B(+)
• B15
• B16
• Batt fd
• Brake sig 1
• Brake sig 2
• Bus (+) can
• C100
• C200
• C314
• Can bus (+)
• Can bus (-)
• Center high mounted stop lamp
• Chrysler
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• D506
• Dodge
• Dodge chrysler
• Except 3.3l lx
• Flash light lamp (if equi- pped)
• Fuse m1 15a
• Fuse m17 15a
• Fuse m18 15a
• Fuse m20 15a
• Fuse m34 10a
• Fuse m37 10a
• G101 (left side of engine compt)
• G201 (behind left side of dash)
• G300 (base of left "b" pillar)
• G302 (base of right "d" pillar)
• G305 (right side of liftgate)
• Gnd
• Hazard sw sig
• Hdlp sw sig
• Headlamp sw sig
• Headlamp switch
• Hot at all times
• Hot w/ run relay energized
• Hot w/ run/ start relay energized
• Ign rs
• Ignition wireless node (behind left side of dash)
• Information not available)
• L51
• L60
• L62
• L63
• L91
• Left 3-way trailer tow wiring
• Left front lamp assembly
• Left tail lamp assembly
• Lf prk/tl lps 1
• Lf turn sig fd
• Lh turn sig
• License lamp
• License plate lamp/ rear camera assembly
• Lin ccn
• Lr turn sig fd
• Mfs hdlp sel
• Mlfnct sw rtn
• Nca
• Powertrain control module (left side of engine compt)
• Prk/tl/lic/run lps
• Red
• Rf prk/tl lp 1
• Rf turn sig fd
• Rf turn sig ind
• Right 3-way trailer tow wiring
• Right front lamp assembly
• Right tail lamp assembly
• Rr turn sig fd
• S103 (except dodge) (near right headlight assembly)
• S104 (except dodge) (near left headlight assembly)
• S105 (chrysler)
• S106 (chrysler)
• S207 (instrument panel harness, near occupant restraint controller module c2-a, c2-b breakout)
• S226 (4.0l)
• S319 (behind left kick panel near c200)
• S321
• S327
• S461 (trailer tow harness)
• Sig rh turn
• Steering control module (behind left side of dash)
• Stop lamp switch (top of brake pedal)
• Stp lp sig
• Sw sig hazard
• Totally integrated power module (left side of engine compt)
• Upper bank switch
• W/ trailer tow
• W/o trailer tow
• Z905
