Электросхемы БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Audi A6 Premium Plus Quattro 2013

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ

электронная схема стояночного тормоза для Audi A6 Premium Plus Quattro 2013

электронная схема стояночного тормоза для Audi A6 Premium Plus Quattro 2013 - Список элементов:

• Abs control module (left side of engine compt)
• Auto hold button
• Clutch position sensor (m/t)
• Computer data lines system
• Electro- mechanical parking brake control module (right side of luggage compt)
• Electro-mechanical parking brake button
• Fuse 30a
• Fuse 5a
• Fuse carrier
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G51 (right side of luggage compt)
• Hot at all times
• Interior lights system
• Left parking brake motor (on left rear caliper assembly)
• Right parking brake motor (on right rear caliper assembly)

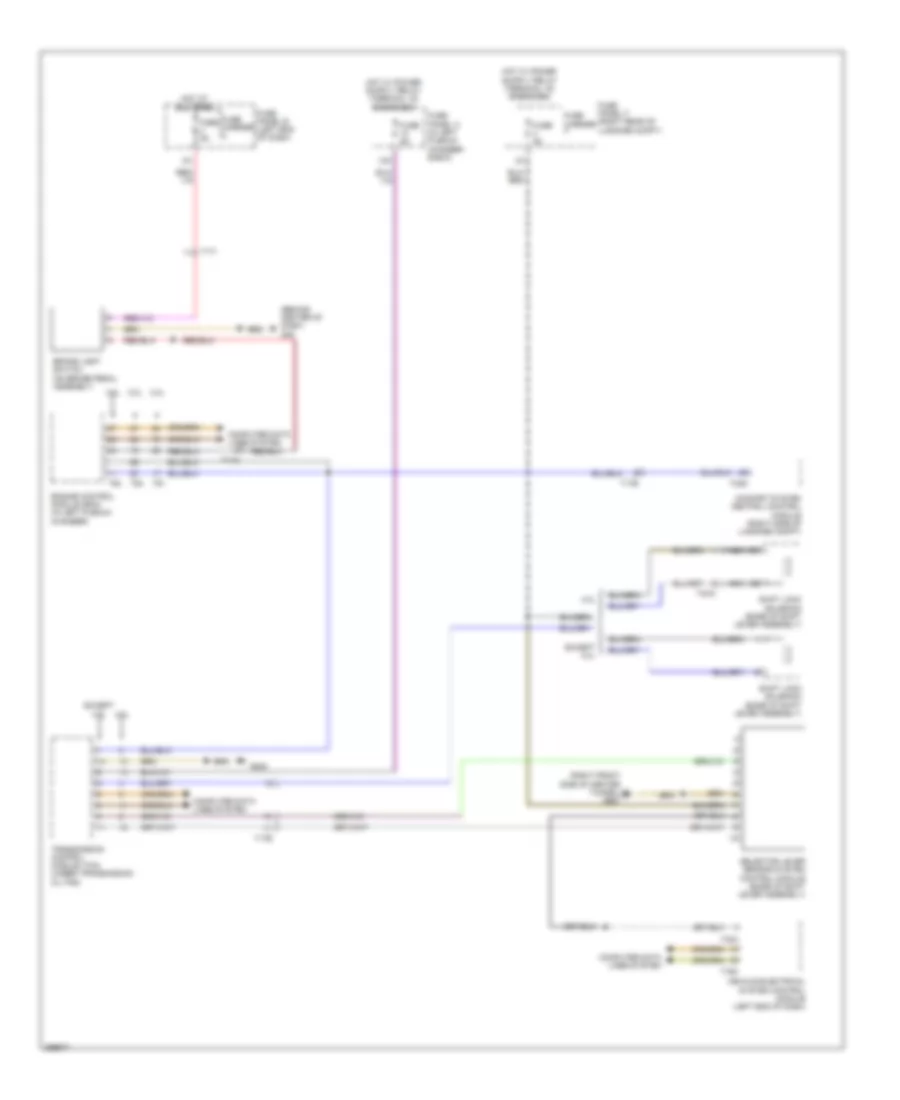

Электросхема блокировки селектора, A/T для Audi A6 Premium Plus Quattro 2013

Электросхема блокировки селектора, A/T для Audi A6 Premium Plus Quattro 2013 - Список элементов:

• (behind center of dash) g45
• (right front side of center tunnel) g687
• 12a
• 2.0l
• 3.0l
• 4.0l
• Brake light switch (on brake pedal assembly)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Engine control module (ecm) (in left plenum chamber)
• Except 4.0l
• Fuse 5a
• Fuse carrier
• Fuse panel a (in left plenum chamber e-box)
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G645
• Hot at all times
• Nca
• Selector lever sensor system control module (base of shift lever assembly)
• Shift lock solenoid (base of shift lever assembly)
• T16c
• T17a
• T17b
• T17i
• T32a
• T32g
• T4ca
• T91
• T94
• Transmission control module (tcm) (under transmission oil pan)
• Vehicle electrical system control module (left end of dash)

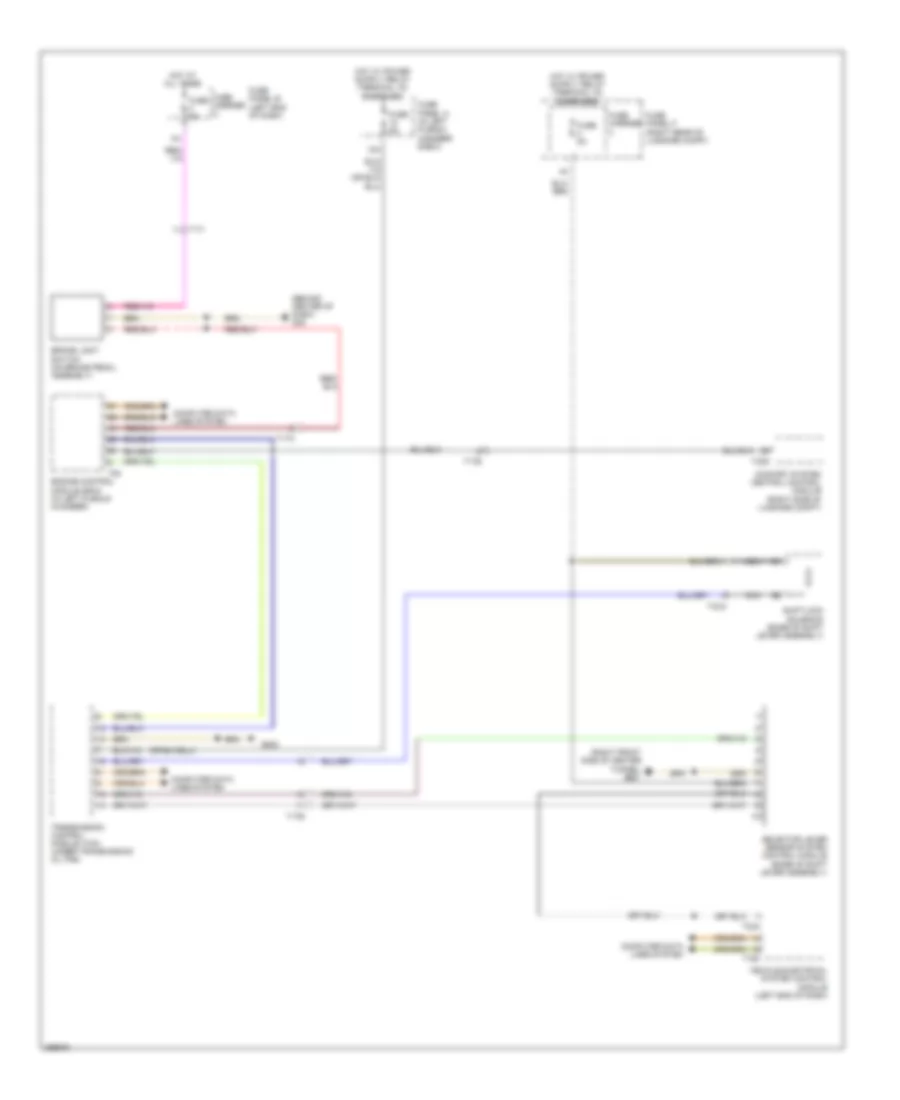

Электросхема блокировки селектора, CVT для Audi A6 Premium Plus Quattro 2013

Электросхема блокировки селектора, CVT для Audi A6 Premium Plus Quattro 2013 - Список элементов:

• (behind center of dash) g45
• (right front side of center tunnel) g687
• 12a
• Brake light switch (on brake pedal assembly)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Engine control module (ecm) (in left plenum chamber)
• Fuse 5a
• Fuse carrier
• Fuse panel a (in left plenum chamber e-box)
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G645
• Hot at all times
• Nca
• Selector lever sensor system control module (base of shift lever assembly)
• Shiftlock solenoid (base of shift lever assembly)
• T16c
• T17a
• T17b
• T17i
• T32a
• T32g
• T4ca
• T94
• Transmission control module (tcm) (under transmission oil pan)
• Vehicle electrical system control module (left end of dash)
