Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Audi A6 Premium Plus Quattro 2013

ПРИБОРНАЯ ПАНЕЛЬ

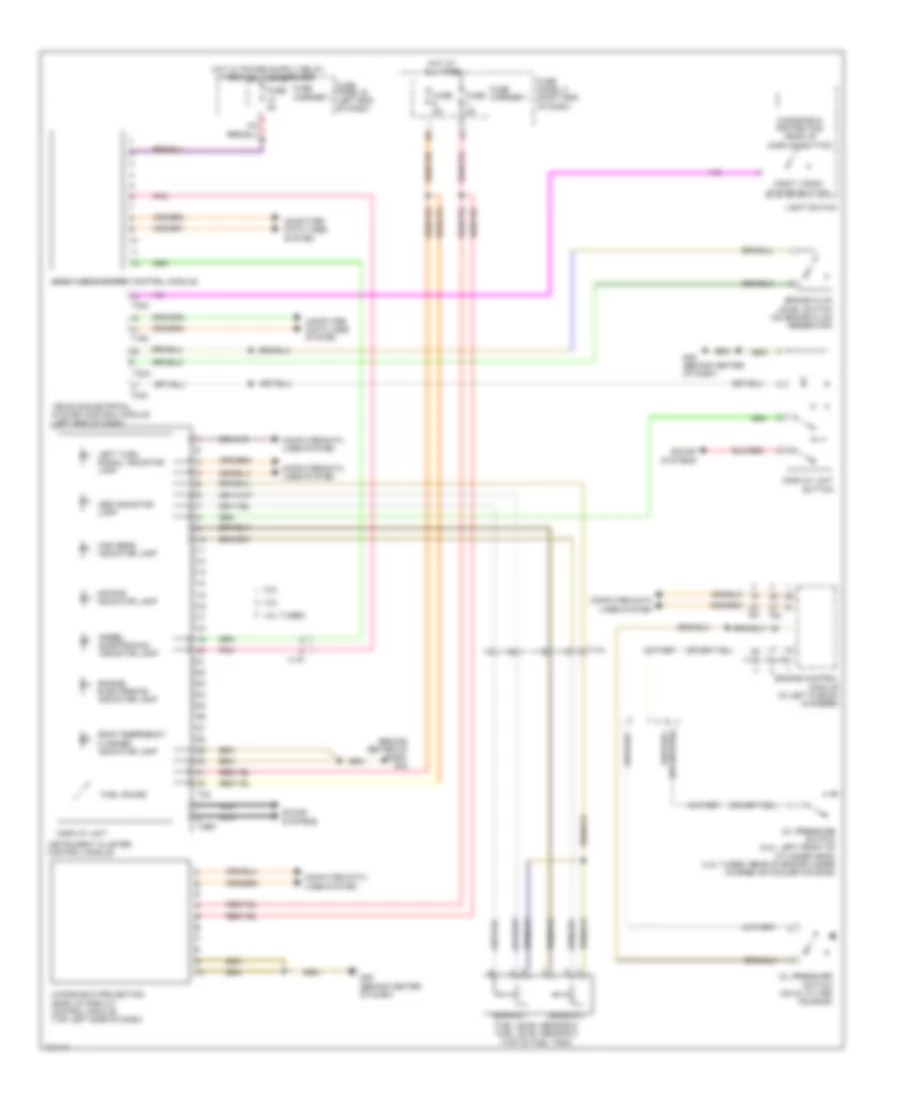

Электросхема панели приборов для Audi A6 Premium Plus Quattro 2013

Электросхема панели приборов для Audi A6 Premium Plus Quattro 2013 - Список элементов:

• (behind center of dash) g45
• 10a
• 2.0l
• 3.0l
• 4.0l turbo
• Abs indicator lamp
• Air bag indicator lamp
• Brake fluid level switch (on brake fluid reservoir)
• Computer data lines system
• Diesel electronics indicator lamp
• Display unit
• Display unit button
• Engine control module (in left plenum chamber)
• Engine electronics indicator lamp
• Fuel gauge
• Fuel level sensor & fuel level sensor 2 (top of fuel tank)
• Fuse 5a
• Fuse carrier 1
• Fuse panel b (left end of dash)
• Fuse panel c (right end of dash)
• G45 (behind center of dash)
• High beam indicator lamp
• Hot at all times
• Instrument cluster control module
• Left turn signal indicator lamp
• Light switch
• Nca
• Night vision system button
• Night vision system control module
• Oil pressure switch (2.0l: left front of cylinder head) (4.0l turbo: rear of engine under charge air cooler housing)
• Oil pressure switch (on oil filter housing)
• Pnk
• Right emergency flasher indicator lamp
• Sensor 1
• Sensor 2
• Sound systems
• T105
• T16c
• T17f
• T17h
• T2bm
• T32
• T32a
• T32c
• T91
• T94
• Vehicle electrical system control module (left end of dash)
• Windshield projection head up display control module (top left side of dash)
• Windshield protection head up display button
