Электросхемы Магнитола Мультимедия Audi A6 Avant Quattro 2004

Магнитола Мультимедия

Электросхема магнитолы, стандартная комплектация для Audi A6 Avant Quattro 2004

Электросхема магнитолы, стандартная комплектация для Audi A6 Avant Quattro 2004 - Список элементов:

• (below front of center console)
• 37a
• Acc
• Auto check system
• Batt
• Cd changer unit (if equipped)
• Central locking control module
• Ch data
• Clock
• Combination processor
• Computer data lines system
• Data link connector (below left side of dash)
• Defogger system
• Fuse 20a
• Fuse panel (left end of dash)
• G610
• G610 (below front of center console)
• G75 (right rear pillar)
• Gnd
• Hot at all times
• Instrument cluster
• Lch
• Left front bass & midrange speakers
• Left rear bass & midrange speakers
• Multi-function steering wheel
• Nca
• Pnk
• R data
• Radio
• Rch
• Rear window defogger w/ antenna
• Red
• Right front bass & midrange speakers
• Right rear bass & midrange speakers
• Right rear woofer/ amplifier
• Roof antenna (radio/ telephone/ navigation)
• S gnd
• Sedan
• T10z
• T20c
• T32a
• T32c
• T8e
• T8f
• Telephone/ radio antenna amplifier
• Telephone/ telematics control (if equipped)
• W/ auto check system
• W/o auto check system
• Wagon

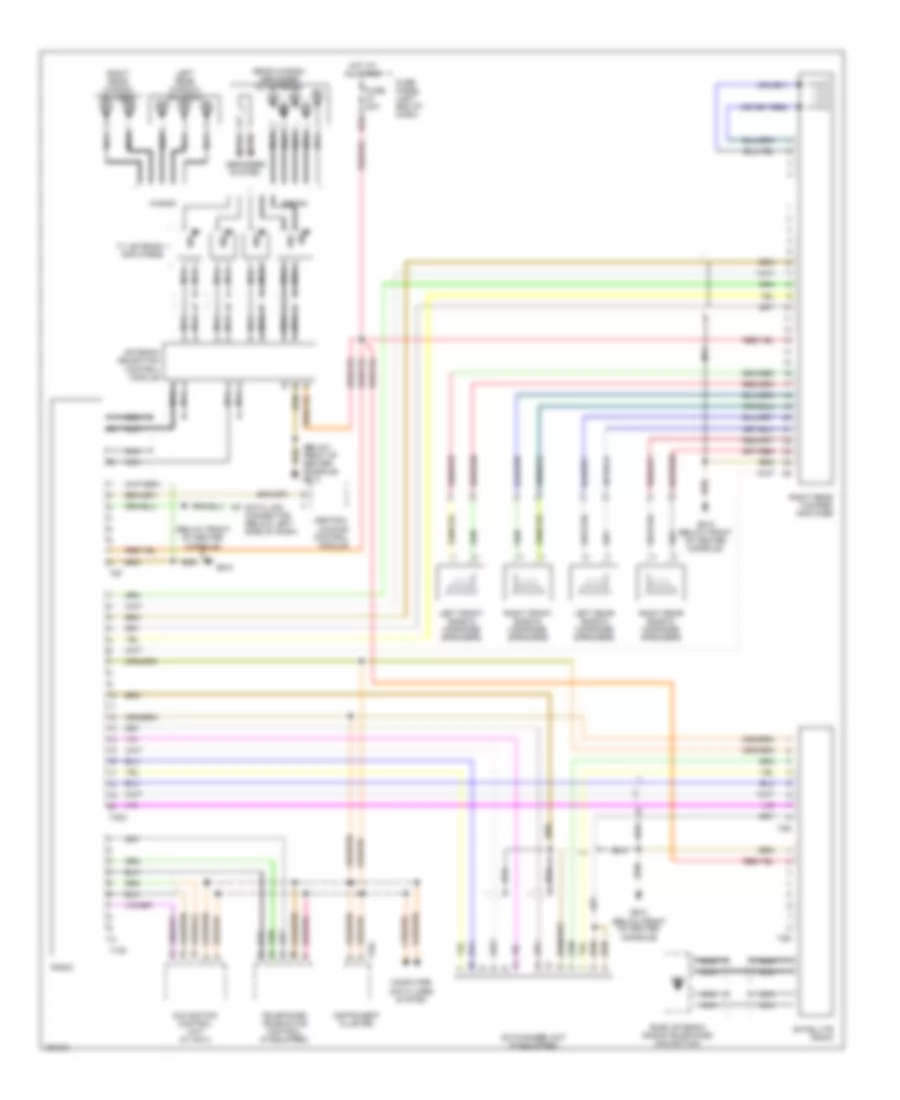

Электросхема магнитолы, Bose С спутник для Audi A6 Avant Quattro 2004

Электросхема магнитолы, Bose С спутник для Audi A6 Avant Quattro 2004 - Список элементов:

• (below front of center console)
• (below front of center console) g610
• 37a
• Antenna selection control module
• Cd changer unit (if equipped)
• Central locking control module
• Computer data lines system
• Data link connector (below left side of dash)
• Defogger system
• Fm1
• Fm2
• Fm3
• Fm4
• Fuse 20a
• Fuse panel (left end of dash)
• G610
• G610 (below front of center console)
• Hot at all times
• Instrument cluster
• Left front bass & midrange speakers
• Left rear bass & midrange speakers
• Left rear window antenna fm4
• Navigation control unit (w/ navi)
• Nca
• Radio
• Rear window defogger w/ antenna
• Right front bass & midrange speakers
• Right rear bass & midrange speakers
• Right rear window antenna
• Right rear woofer/ amplifier
• Roof antenna (radio/telephone/ navigation)
• Satellite radio
• Sedan
• T10z
• T20c
• T32c
• T8f
• T8r
• T8s
• Telephone/ telematics control (if equipped)
• Tv antenna amplifiers
• Wagon

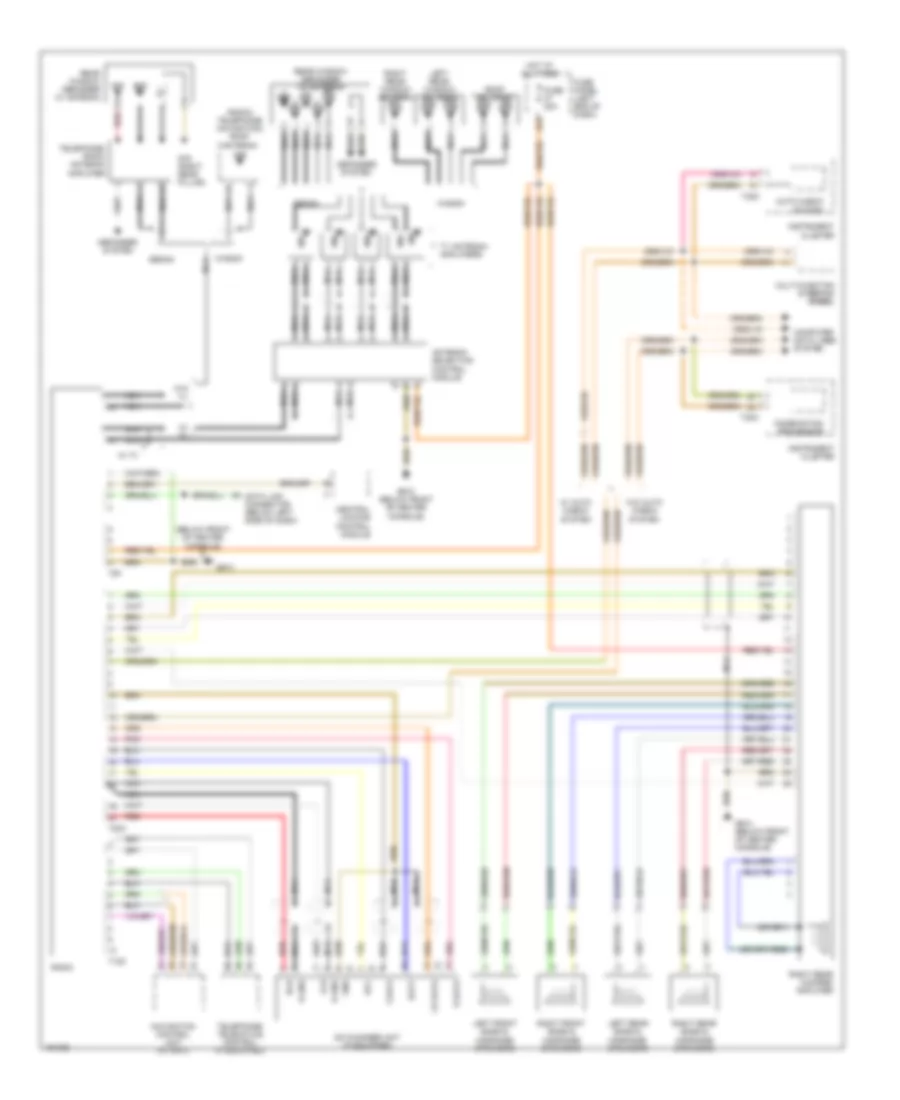

Электросхема магнитолы, Bose без спутник для Audi A6 Avant Quattro 2004

Электросхема магнитолы, Bose без спутник для Audi A6 Avant Quattro 2004 - Список элементов:

• (below front of center console)
• (radio/ telephone/ navigation) roof antenna
• 37a
• Acc
• Antenna selection control module
• Auto check system
• Batt
• Cd changer unit (if equipped)
• Central locking control module
• Ch data
• Clock
• Combination processor
• Computer data lines system
• Data link connector (below left side of dash)
• Defogger system
• Fm1
• Fm2
• Fm3
• Fm4
• Fuse 20a
• Fuse panel (left end of dash)
• G610
• G610 (below front of center console)
• G75 (right rear pillar)
• Gnd
• Hot at all times
• Instrument cluster
• Lch
• Left front bass & midrange speakers
• Left rear bass & midrange speakers
• Left rear window antenna
• Multi-function steering wheel wheel
• Navigation control unit (w/ navi)
• Nca
• Pnk
• R data
• Radio
• Rch
• Rear window defogger w/ antenna
• Red
• Right front bass & midrange speakers
• Right rear bass & midrange speakers
• Right rear window antenna fm1
• Right rear woofer/ amplifier
• Roof antenna
• S gnd
• Sedan
• T10z
• T20c
• T32a
• T32c
• T8f
• Telephone/ radio antenna amplifier
• Telephone/ telematics control (if equipped)
• Tv antenna amplifiers
• W/ auto check system
• W/ tv
• W/o auto check system
• W/o tv
• Wagon
