Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Audi A6 Avant Quattro 2004

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

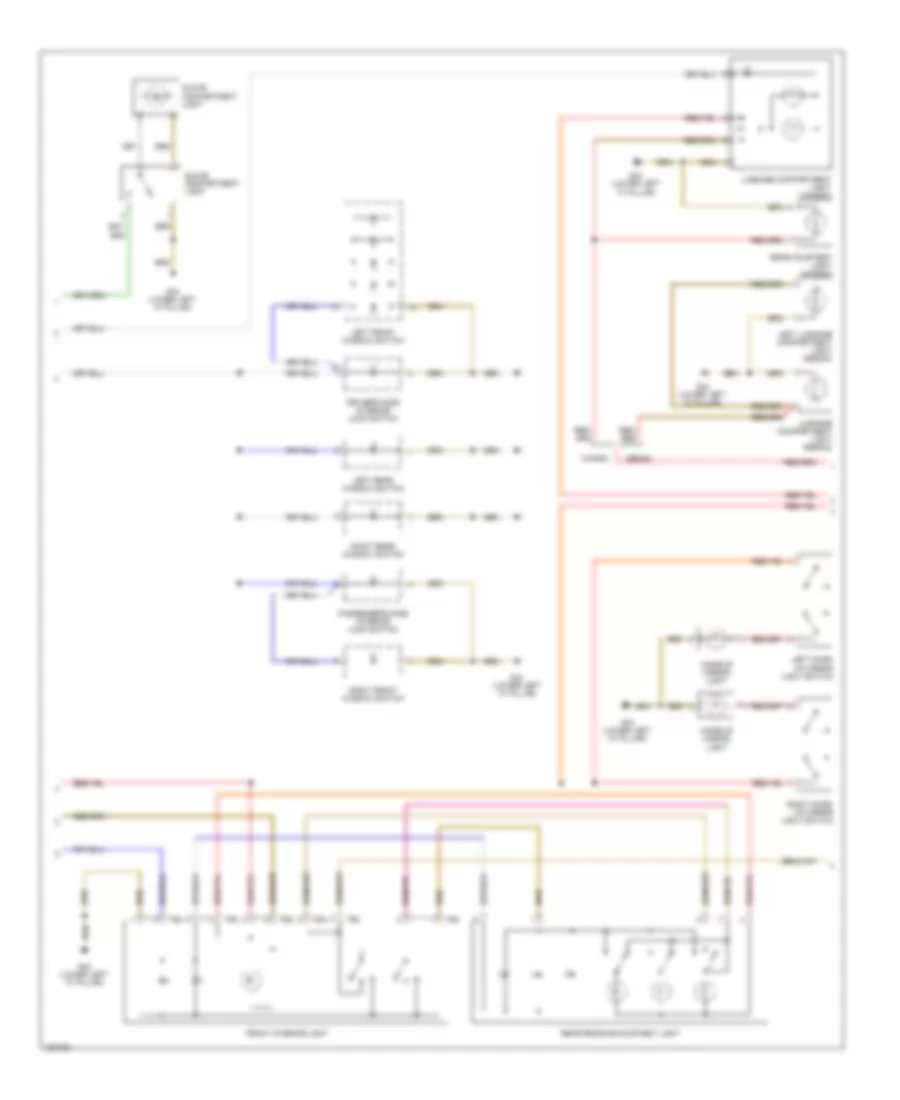

Электросхема освещения салона (1 из 3) для Audi A6 Avant Quattro 2004

Электросхема освещения салона (1 из 3) для Audi A6 Avant Quattro 2004 - Список элементов:

• 3 bulbs
• A/c control head
• Asr/esp button
• Board computer function selector switch
• Center instrument panel vent illumination
• Cigarette lighter
• Combination processor
• Cup holder illumination
• Driver's heated seat adjuster
• Driver's memory program switch
• Emergency flasher switch
• Exterior lights
• Exterior lights system
• Fuse 3 5a
• Fuse panel (left end of dash)
• G44 (lower left "a" pillar)
• Head
• Hot at all times
• Instrument cluster
• Instrument panel light dimmer switch
• Left instrument panel vent illumination
• Left rear heated seat regulating switch
• Level control system control module
• Light switch
• Mirror adjustment switch
• Multi- function steering wheel control module
• Off
• Park
• Parking aid switch
• Passenger's heated seat adjuster
• Passenger's memory program switch
• Radio
• Rear cigarette lighter
• Rear seat center outlet light
• Rear window shade switch
• Right front map/reading light and left front reading light
• Right instrument panel vent illumination
• Right rear heated seat regulating switch
• Steering wheel control unit
• Storage tray illumination
• Sunroof regulator
• T32
• T32a
• T3p
• T4e
• Telematic control head

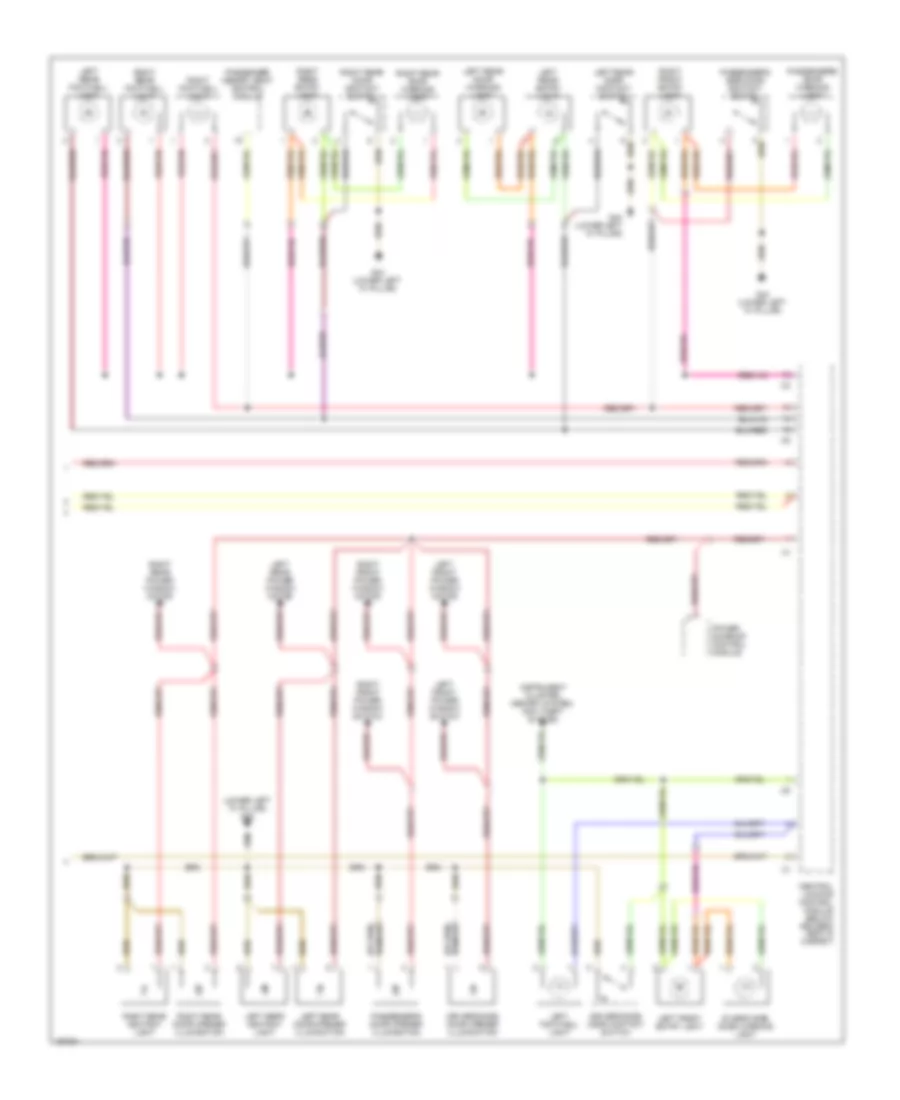

Электросхема освещения салона (2 из 3) для Audi A6 Avant Quattro 2004

Электросхема освещения салона (2 из 3) для Audi A6 Avant Quattro 2004 - Список элементов:

• Driver's side interior lock switch
• Front interior light
• G44 (lower left "a" pillar)
• Glove compartment light
• Left front window switch
• Left luggage compartment light (sedan)
• Left make- up mirror light switch
• Left rear window switch
• Luggage compartment light (sedan)
• Luggage compartment light (wagon)
• Make-up mirror light
• Passenger's side interior lock switch
• Rear courtesy light (wagon)
• Rear reading/courtesy light
• Right front window switch
• Right make- up mirror light switch
• Right rear window switch
• Sedan
• T6m
• T6n
• Wagon

Электросхема освещения салона (3 из 3) для Audi A6 Avant Quattro 2004

Электросхема освещения салона (3 из 3) для Audi A6 Avant Quattro 2004 - Список элементов:

• (lower left "a" pillar) g44
• Central locking control module (below driver's seat & carpet)
• Diver's side door warning light
• Driver's side door contact switch
• Driver's side door opener illumination
• G44 (lower left "a" pillar)
• Instrument cluster, memory system, anti-theft system
• Left footwell light
• Left front entry light
• Left front power window motor
• Left front power window switch
• Left rear ashtray light
• Left rear door contact switch
• Left rear door opener illumination
• Left rear door warning light
• Left rear entry light
• Left rear footwell light
• Left rear power window motor
• Passenger memory seat control module
• Passenger's door opener illumination
• Passenger's door warning light
• Passenger's side door contact switch
• Power sunroof control module
• Right footwell light
• Right front entry light
• Right front power window motor
• Right front power window switch
• Right rear ashtray light
• Right rear door contact switch
• Right rear door opener illumination
• Right rear door warning light
• Right rear entry light
• Right rear footwell light
• Right rear power window motor
