Электросхема навигации GPS для Audi A6 Avant Quattro 2004

Электросхема навигации GPS для Audi A6 Avant Quattro 2004 - Список элементов:

• (left end of dash)
• 15a
• 31a
• Auto check system
• Back-up light switch
• Board computer function selector switch
• Combination processor
• Computer data lines system
• Data link connector (below left side of dash)
• Exterior lights system
• Fuse 10a
• Fuse 15a
• Fuse panel
• G44 (lower left "a" pillar)
• Hot at all times
• Hot in run or start
• Instrument cluster
• Interior lights system
• Multi- function transmission range switch (closed in reverse)
• Navigation control unit
• Navigation system antenna
• Nca
• Park/ neutral position relay
• Radio
• Shift lock solenoid
• T10z
• T20b
• T32
• T32c
• T8m
• Telephone/ telematic control module
• Transmission control module
• W/ cvt auto trans
• W/ manual trans
• W/ non-cvt auto trans

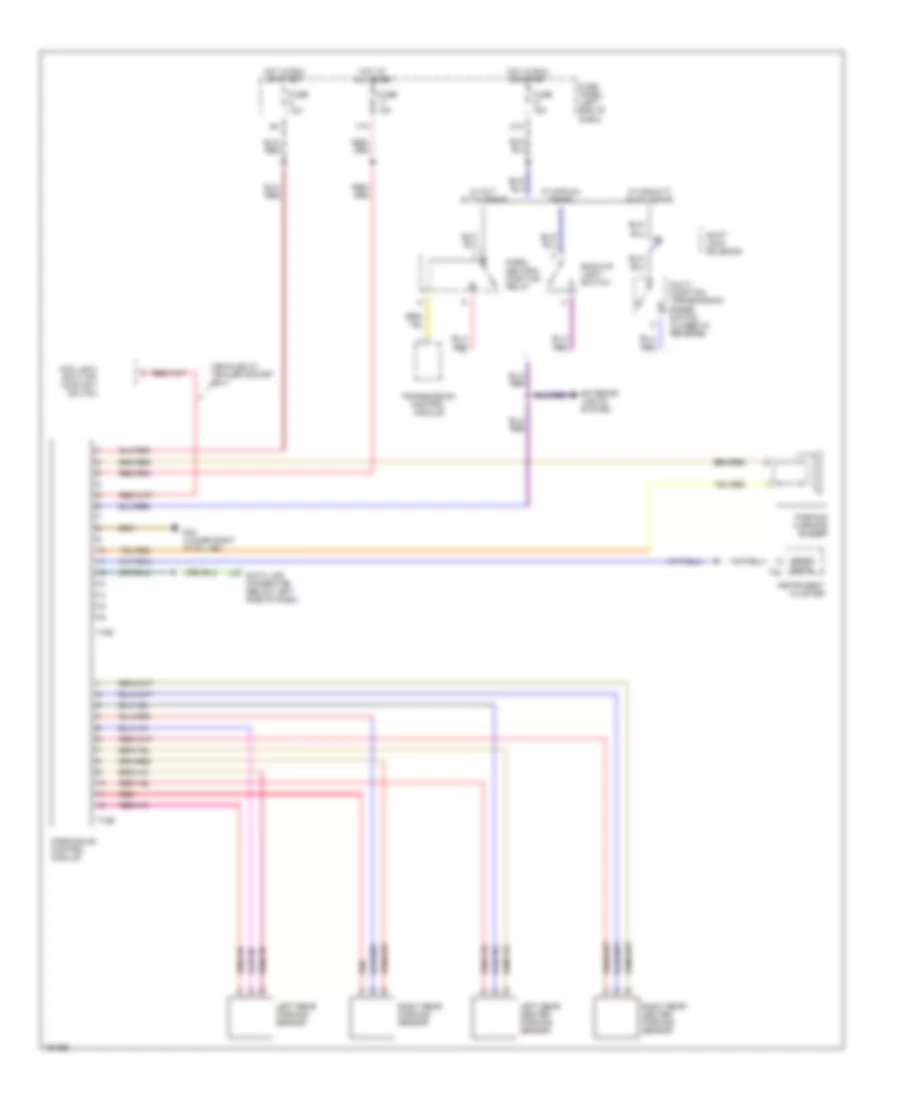

Электросхема парктроников для Audi A6 Avant Quattro 2004

Электросхема парктроников для Audi A6 Avant Quattro 2004 - Список элементов:

• 17a
• 31a
• Back-up light switch
• Data link connector (below left side of dash)
• Exterior lights system
• Fog light shut off contact switch
• Fuse 10a
• Fuse 15a
• Fuse panel (left end of dash)
• G43 (lower right "a" pillar)
• Hot at all times
• Hot in run or start
• Instrument cluster
• Left rear center parking sensor
• Left rear parking sensor
• Multi- function transmission range switch (closed in reverse)
• Park/ neutral position relay
• Parking aid control module
• Parking warning buzzer
• Red
• Right rear center parking sensor
• Right rear parking sensor
• Shift lock solenoid
• Signal
• Speed
• T12b
• T16c
• T32
• Transmission control module
• Vehicles w/ trailer socket only
• W/ cvt auto trans
• W/ manual trans
• W/ non-cvt auto trans
