Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Audi Q5 Prestige 2014

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

Электросхема линии передачи данных CAN (1 из 3) для Audi Q5 Prestige 2014

Электросхема линии передачи данных CAN (1 из 3) для Audi Q5 Prestige 2014 - Список элементов:

• (right center of dash) data bus on board diagnostic interface
• (under left front of center console) g687
• 11a
• 3.0l sc
• 3.0l sc & 2.0l turbo
• 3.0l turbo diesel
• 3.0l turbo diesel & 2.0l turbo hybrid
• Abs control module (integral to abs hydraulic control unit)
• Active steering control module (driver's foot well)
• Air bag control module (below rear of center console)
• All wheel drive control module (in spare tire well, behind battery)
• Automatic dimming interior rearview mirror
• Battery monitoring control module (left side of luggage compt)
• Battery monitoring control module 2
• Data link connector (under left side of dash)
• Directional stabilization assistance control module (integral to interior rearview mirror)
• Distance regulation control module (if equipped) (right side of front bumper)
• Electric drive power & control electronics module (2.0l turbo hybrid) (right plenum chamber)
• Electronic damping control module (right side of luggage compt)
• Engine control module (diesel: left rear of engine) (except diesel: in left plenum chamber)
• Esp sensor unit
• Esp sensor unit 2
• Fuse 10a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel d (right end of dash)
• G687 (under left front of center console)
• Generator & voltage regulator
• Hot at all times
• Lane change assistance control module (if equipped) (left side of rear bumper)
• Lane change assistance control module 2 (right side of rear bumper)
• Nca
• Nox sensor control module (under vehicle, near nox sensor)
• Nox sensor control module 2 (under vehicle, near nox sensor 2)
• Reducing agent metering system control module (if equipped)
• Sound systems
• Structure borne sound control module (in plenum chamber, center of cowl)
• T10h
• T16v
• T17b
• T17c
• T17e
• T17f
• T17q
• T17r
• T20d
• T28jx
• T2dl
• T5l
• T91
• T94
• Transmission control module (tcm) (left side of transmission)
• Voltage stabilizer (w/ stop/ start system) (right side of luggage compt)

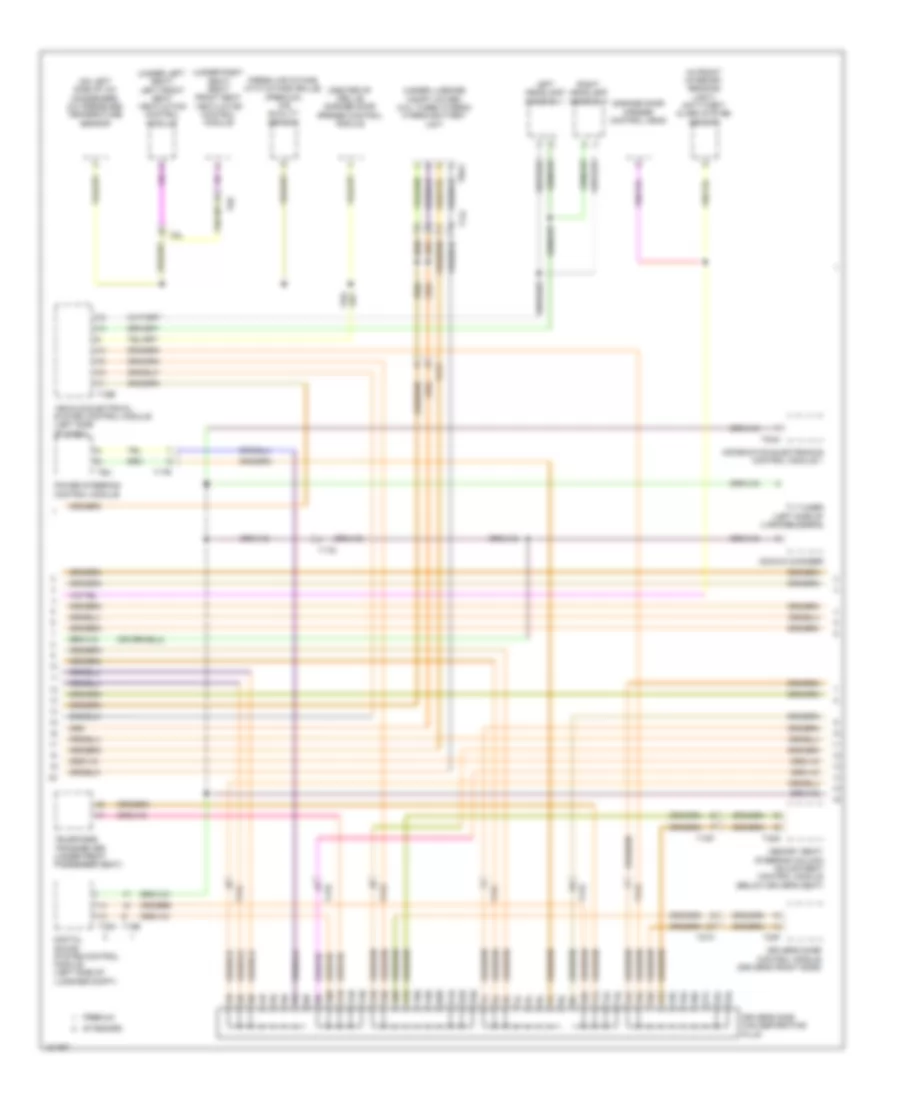

Электросхема линии передачи данных CAN (2 из 3) для Audi Q5 Prestige 2014

Электросхема линии передачи данных CAN (2 из 3) для Audi Q5 Prestige 2014 - Список элементов:

• (center of grille) garage door opener control module
• (fresh air intake with intake grille) (premium) air quality sensor
• (in front interior/ reading light) anti-theft alarm system sensor
• (on left side of a/c condenser) a/c pressure/ temperature sensor
• (under left seat) left front seat ventilation control module
• (under luggage compt cover) (2.0l turbo hybrid) hybrid battery unit
• (under right seat) right front seat ventilation control module
• 10h
• 10l
• 11h
• 11l
• 12h
• 12l
• 13h
• 13l
• 14h
• 14l
• 15h
• 15l
• 16h
• 16l
• 17h
• 17l
• 18h
• 18l
• 19h
• 19l
• 20h
• 20l
• 21h
• 21l
• 22h
• 22l
• 23h
• 23l
• Cd/dvd changer
• Digital sound system control module (left side of luggage compt)
• Driver's door control module (driver's front door)
• Driver's side can separating plug
• Garage door opener control head
• Information electronics control module 1
• Left headlamp assembly
• Memory seat/ steering column adjustment control module (below driver's seat)
• Power steering control module
• Premium
• Right headlamp assembly
• Standard
• T10p
• T14l
• T16b
• T17b
• T17c
• T17d
• T17e
• T17r
• T17t
• T18b
• T20f
• T27a
• T32g
• T32h
• T6h
• T6k
• T6l
• T8ah
• T8ax
• Telephone transceiver (under front passenger seat)
• Tv tuner (left side of luggage compt)
• Vehicle electrical system control module (left side of dash)

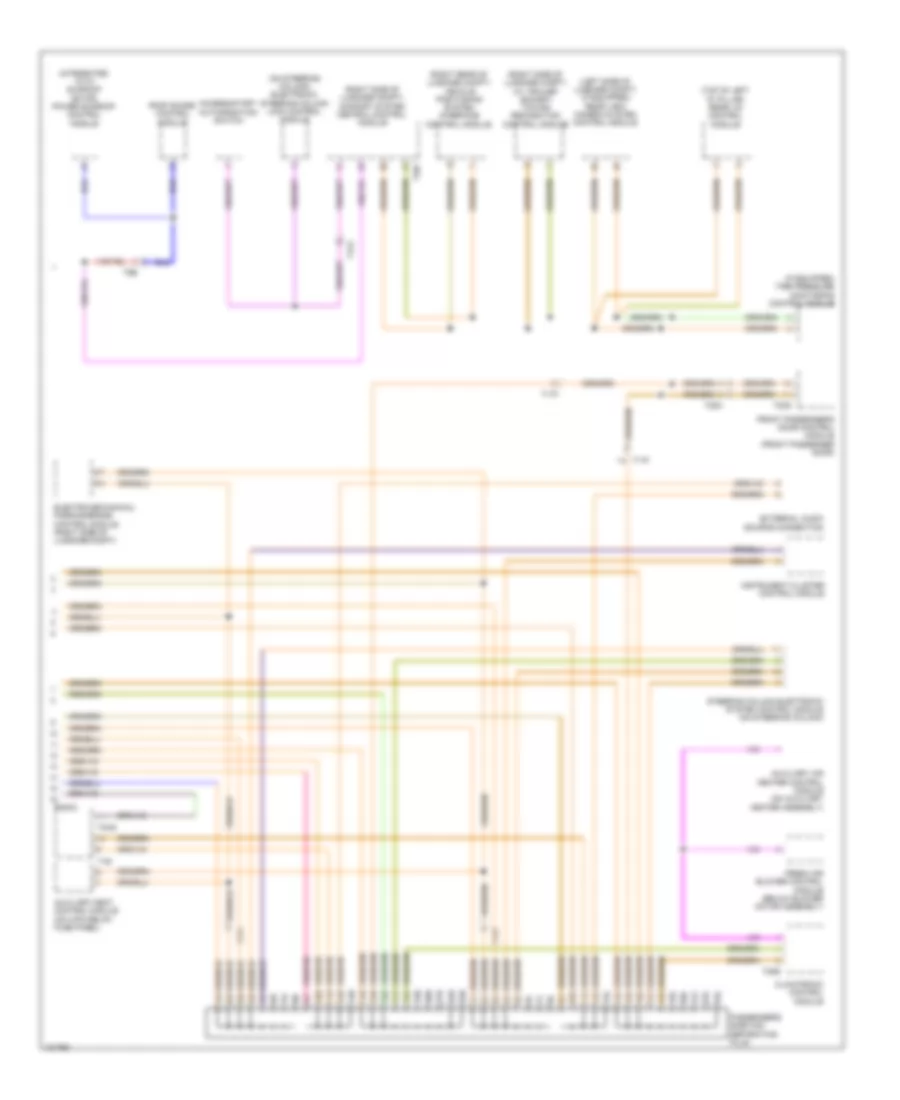

Электросхема линии передачи данных CAN (3 из 3) для Audi Q5 Prestige 2014

Электросхема линии передачи данных CAN (3 из 3) для Audi Q5 Prestige 2014 - Список элементов:

• (if equipped) tire pressure monitoring control module
• (integrated with sunroof motor) power sunroof control module
• (left side of luggage compt) (if equipped) rear view camera system control module
• (on steering column) electronic steering column lock control module
• (right rear of luggage compt) vehicle positioning system interface control module
• (right side of luggage compt) (w/ trailer socket) towing recognition control module
• (right side of luggage compt) comfort system central control module
• (top of left "d" pillar) rear lid control module
• 10h
• 10l
• 11h
• 11l
• 12h
• 12l
• 13h
• 13l
• 14h
• 14l
• 15h
• 15l
• 16h
• 16l
• 17h
• 17l
• 18h
• 18l
• 19h
• 19l
• 20h
• 20l
• 21h
• 21l
• 22h
• 22l
• 23h
• 23l
• Access/start authorization switch
• Auxiliary air heater control module (on auxiliary heater assembly)
• Auxiliary heat control module (on 3-pin relay/ fuse panel)
• Climatronic control module
• Electro mechanical parking brake control module (right side of luggage compt)
• External audio source connection
• Fresh air blower control module (below blower motor assembly)
• Front passenger's door control module (front passenger door)
• Instrument cluster control module
• Passenger's side can separating plug
• Radio
• Roof shade control module
• Steering column electronic system control module (on steering column)
• T0ag
• T16i
• T17f
• T17g
• T20e
• T20g
• T20m
• T32c
• T6e
