Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Audi Q5 Prestige 2014

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

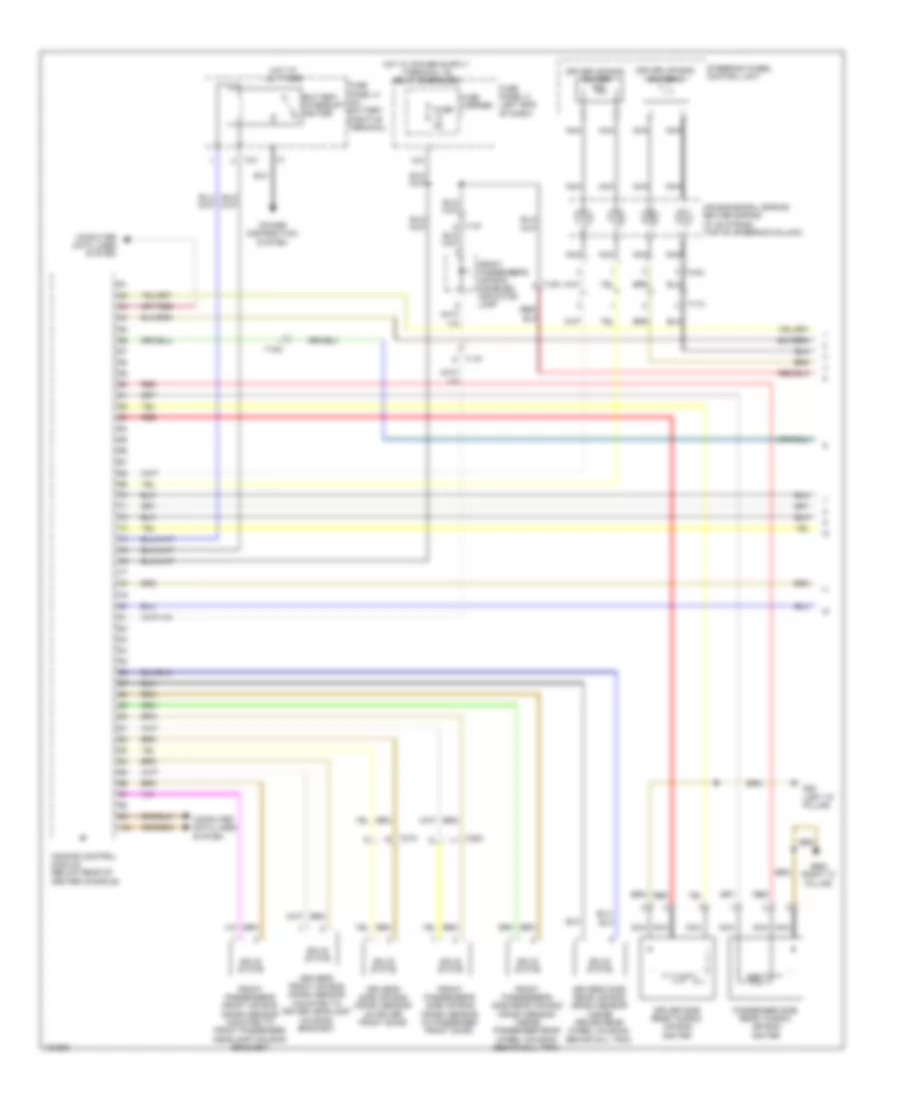

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi Q5 Prestige 2014

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi Q5 Prestige 2014 - Список элементов:

• 13a
• Air bag control module (below rear of center console)
• Air bag spiral spring/ return spring (w/ slip ring) (top of steering column)
• Battery interrupt igniter
• Computer data lines system
• Driver air bag igniter
• Driver air bag igniter 2
• Driver side rear thorax air bag igniter
• Driver's front air bag crash sensor (mounted to driver headlamp housing bracket)
• Driver's side air bag crash sensor (in driver front door)
• Driver's side rear air bag crash sensor (inside driver rear wheel housing, behind sill trim)
• Front passenger's air bag disabled indicator lamp
• Front passenger's front air bag crash sensor (mounted to front passenger headlamp housing bracket)
• Front passenger's side air bag crash sensor (in passenger front door)
• Front passenger's side rear air bag crash sensor (inside passenger rear wheel housing, behind sill trim)
• Fuse 5a
• Fuse carrier
• Fuse panel a (on battery positive terminal)
• Fuse panel c (left end of dash)
• G50 (left "d" pillar)
• G663 (right "c" pillar)
• Hot at all times
• Nca
• Passenger side rear thorax air bag igniter
• Power distribution system
• Red
• Solid state
• Steering wheel control unit
• T10n
• T17f
• T17x
• T20m
• T27a
• T2y
• T4ac

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi Q5 Prestige 2014

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi Q5 Prestige 2014 - Список элементов:

• Air bag indicator lamp
• Computer data lines system
• Data bus on board diagnostic interface (right center of dash)
• Driver thorax air bag igniter
• Driver's seat belt tensioner & driver's belt force limiter (base of driver "b" pillar)
• Force limiter
• Front passenger thorax air bag igniter
• Front passenger's seat belt switch & seat occupied recognition seat belt force sensor (special equipment) (integrated w/ front passenger seat belt switch)
• Front passenger's seat belt tensioner & front passenger's belt force limiter (base of front passenger "b" pillar)
• Fuse 5a
• Fuse carrier
• Fuse panel d (right end of dash)
• G639 (left kick panel)
• G663 (right "c" pillar)
• G687 (under left front of center console)
• Hot at all times
• Igniter
• Instrument cluster
• Instrument cluster control module
• Nca
• Passenger occupant detection system control module (special equipment)
• Passenger occupant detection system pressure sensor (special equipment)
• Red
• Solid state
• T10n
• T20d
• T2ai
• T2ca
• T2cd
• T2ce

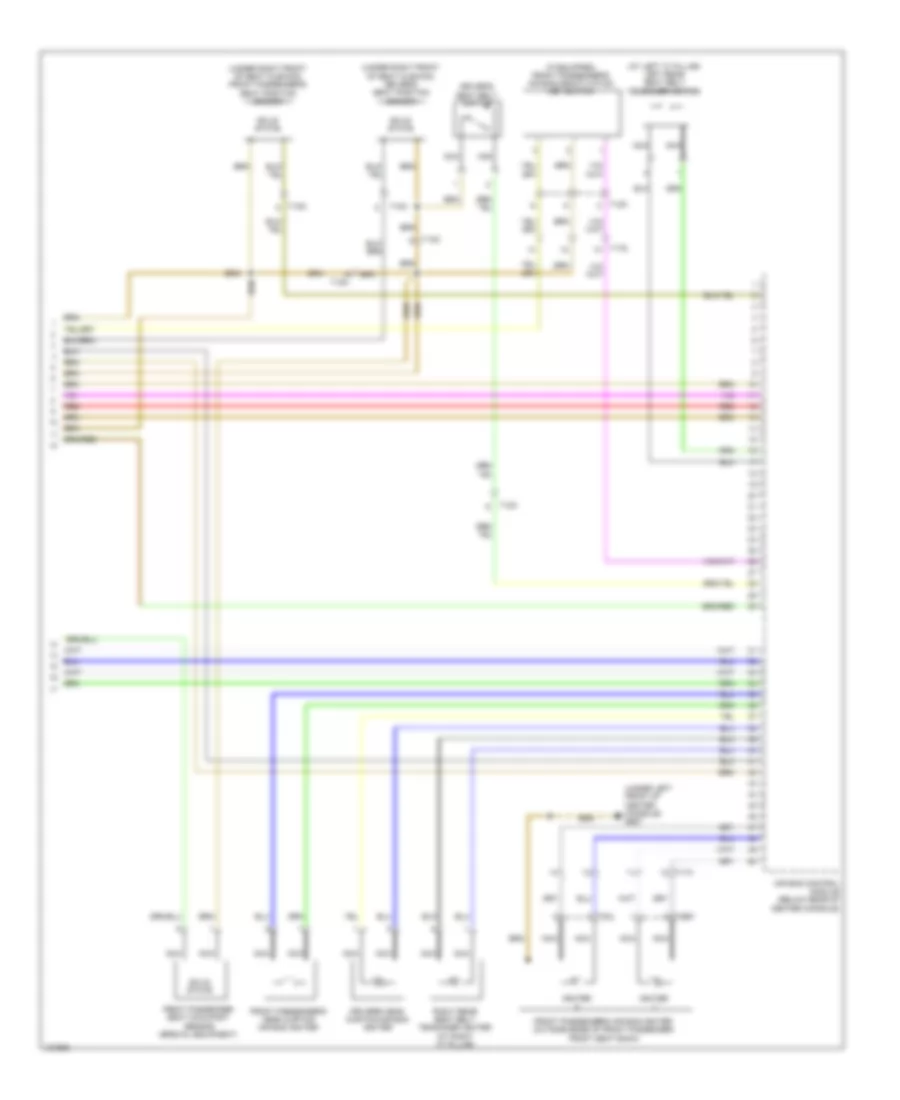

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi Q5 Prestige 2014

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi Q5 Prestige 2014 - Список элементов:

• (at left "c" pillar) left rear seat belt tensioner igniter
• (if equipped) front passenger's air bag deactivation key switch
• (under left front of center console) g687
• (under right front of seat cushion) driver's seat position sensor
• (under right front of seat cushion) front passenger's seat position sensor
• Air bag control module (below rear of center console)
• Driver's head curtain air bag igniter
• Driver's seat belt switch
• Front passenger seat occupant sensor (special equipment)
• Front passenger's air bag igniter (outside edge of front passenger front seat back)
• Front passenger's head curtain air bag igniter
• Igniter
• Nca
• Red
• Right rear seat belt tensioner igniter (at right "c" pillar)
• Solid state
• T10n
• T10o
• T12k
• T17g
• T17x
• T2bh
• T2cl
