Электросхемы СИСТЕМЫ ПАМЯТИ Audi A6 Premium 2013

СИСТЕМЫ ПАМЯТИ

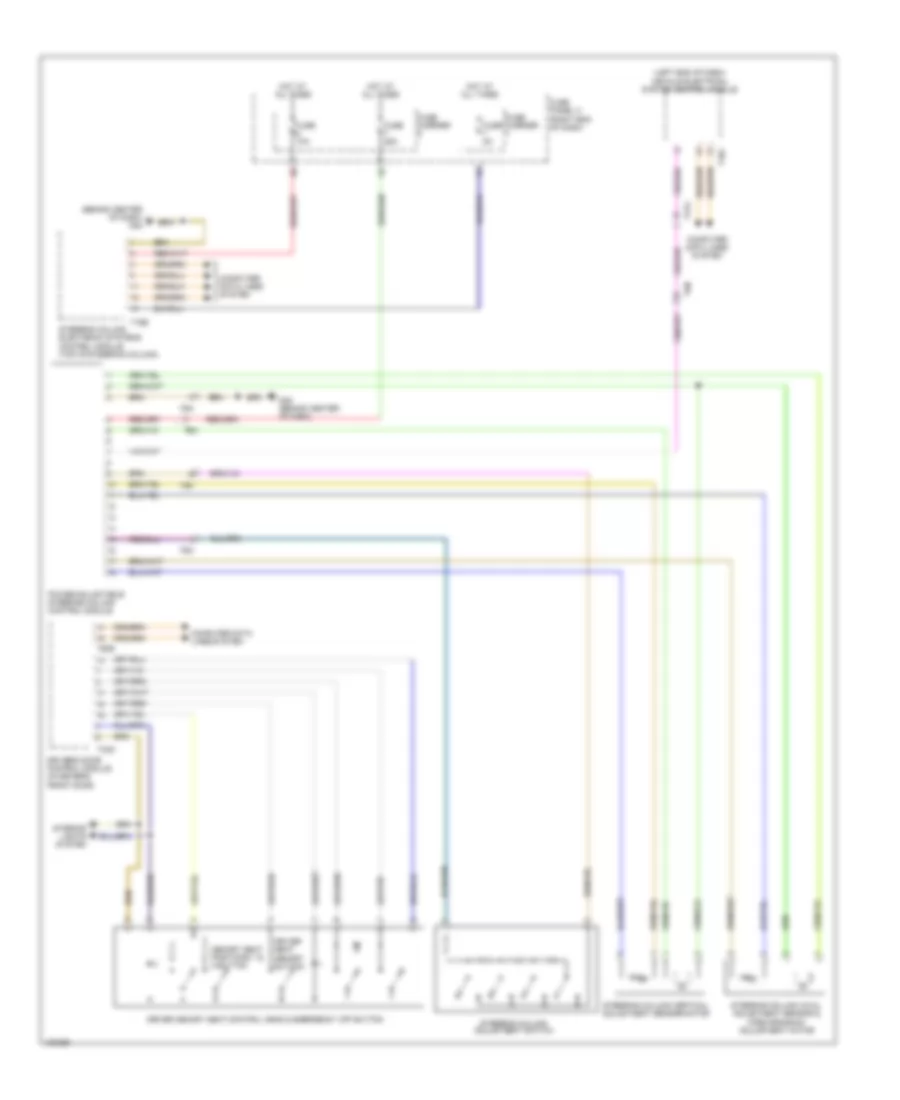

Электросхем памяти регулировки зеркал заднего вида (1 из 2) для Audi A6 Premium 2013

Электросхем памяти регулировки зеркал заднего вида (1 из 2) для Audi A6 Premium 2013 - Список элементов:

• Adjustment switch
• Computer data lines system
• Driver memory seat control head & emergency off button
• Driver's door control module (in driver's front door)
• Folding mirror adjustment switch
• Front passenger's door control module (in front passenger's front door)
• G34 (under driver's seat)
• G35 (under front passenger's seat)
• Interior lights system
• Mirror adjustment switch
• Pnk
• Red
• Selector switch
• T16l
• T16m
• T20e
• T20f
• T32k
• T4bk

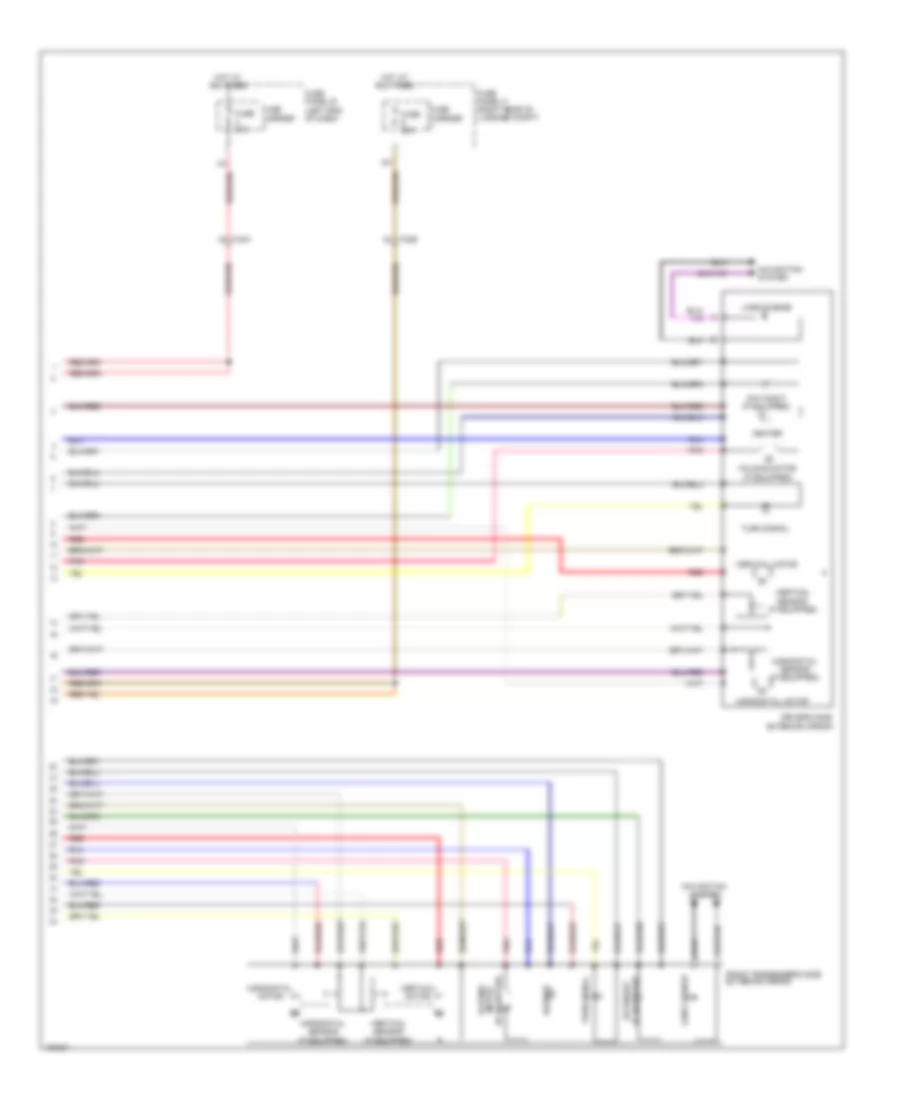

Электросхем памяти регулировки зеркал заднего вида (2 из 2) для Audi A6 Premium 2013

Электросхем памяти регулировки зеркал заднего вида (2 из 2) для Audi A6 Premium 2013 - Список элементов:

• (if equipped) day/night
• (if equipped) motor folding
• Day/night (if equipped)
• Driver's side exterior mirror
• Folding motor (if equipped)
• Front passenger's side exterior mirror
• Fuse 30a
• Fuse carrier
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• Heater
• Horizontal motor
• Horizontal sensor (if equipped)
• Hot at all times
• Lane change
• Navigation system
• Pnk
• Red
• T23a
• T23b
• Turn signal
• Vertical motor
• Vertical sensor (if equipped)

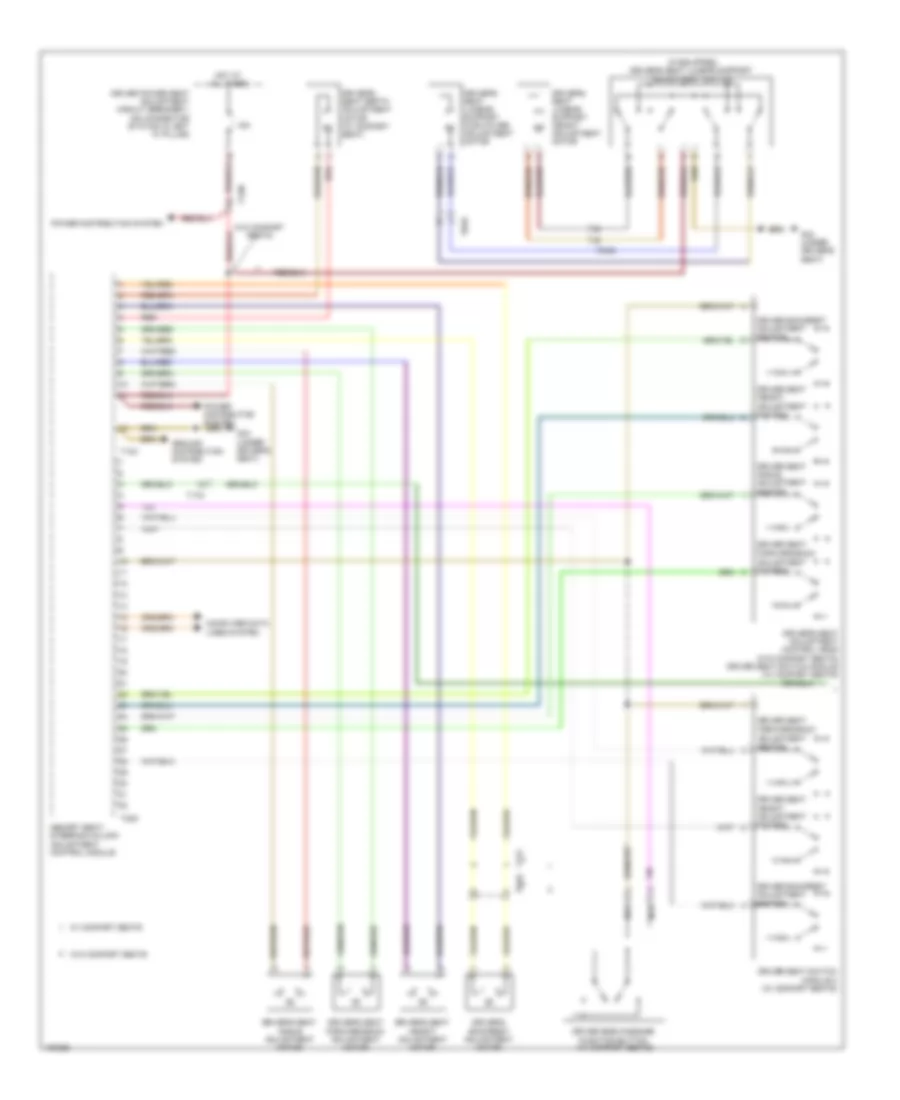

Электросхема памяти сидений (1 из 4) для Audi A6 Premium 2013

Электросхема памяти сидений (1 из 4) для Audi A6 Premium 2013 - Список элементов:

• (if equipped) driver's seat lumbar support adjustment switch
• (w/ comfort seats)
• 15a
• Computer data lines system
• Driver backrest adjustment switch
• Driver power seat adjustment circuit breaker 1 (on connector station in left "a" pillar)
• Driver seat
• Driver seat angle adjustment switch
• Driver seat height adjustment switch
• Driver seat switch module 2 (w/ comfort seats)
• Driver side massage function button
• Driver's backrest adjustment motor
• Driver's seat adjustment control head (w/o comfort seats) driver seat switch module (w/ comfort seats)
• Driver's seat angle adjustment motor
• Driver's seat depth adjustment motor (w/ comfort seat)
• Driver's seat forward/back adjustment motor
• Driver's seat height adjustment motor
• Driver's seat lumbar support curvature adjustment motor
• Driver's seat lumbar support height adjustment motor
• Forward/back adjustment switch
• G34 (under driver's seat)
• Ground distribution system
• Hot at all times
• Memory seat/ steering column adjustment control module
• Nca
• Power distribution system
• Red
• T12x
• T12y
• T17m
• T32m
• T8ad
• W/ comfort seats
• W/o comfort seats

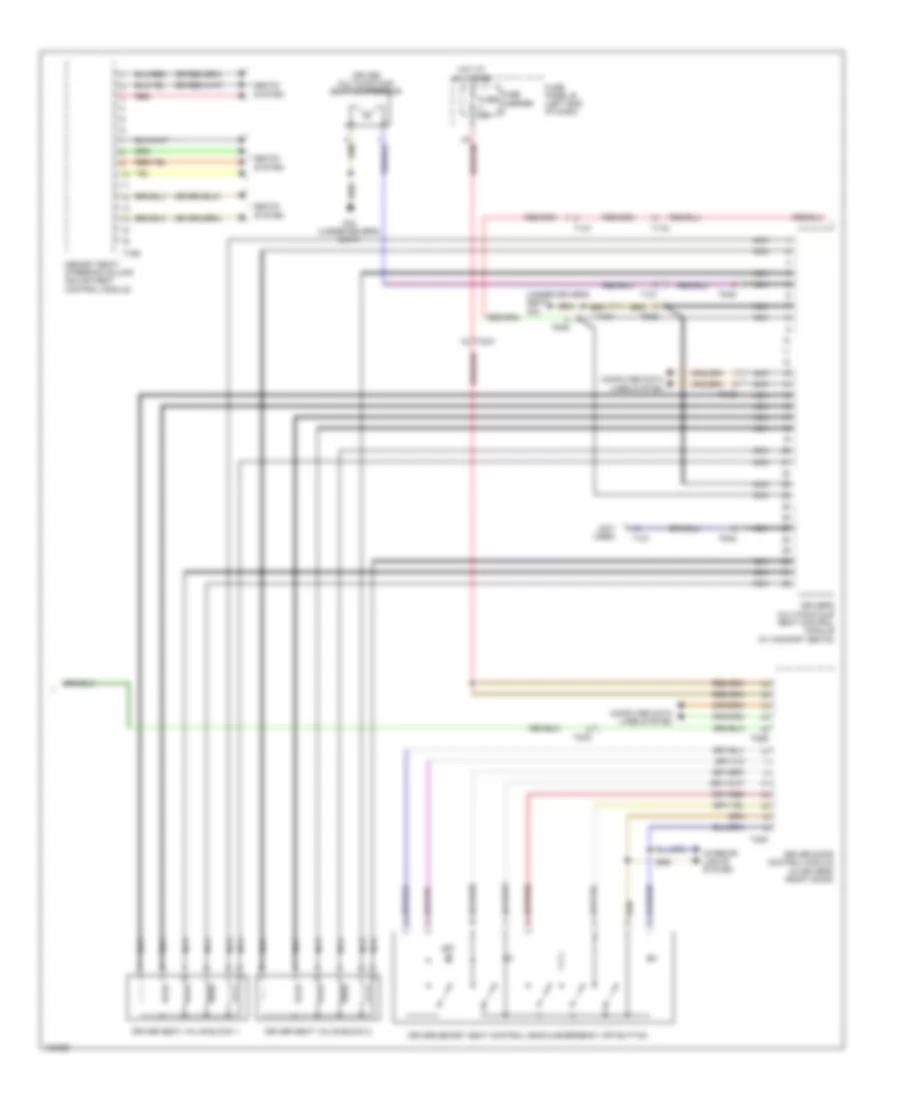

Электросхема памяти сидений (2 из 4) для Audi A6 Premium 2013

Электросхема памяти сидений (2 из 4) для Audi A6 Premium 2013 - Список элементов:

• (not used)
• (under driver's seat) g34
• Computer data
• Computer data lines system
• Driver door control module (in driver's front door)
• Driver memory seat control head & emergency off button
• Driver multicontour seat compressor
• Driver seat valve block 1
• Driver seat valve block 2
• Driver's multicontour seat control module (w/ comfort seats)
• Fuse 30a
• Fuse carrier
• Fuse panel b (left end of dash)
• G34 (under driver's seat)
• Hot at all times
• Interior lights system
• Lines system
• Memory seat/ steering column adjustment control module
• Nca
• Off
• Red
• Seats
• System
• T12y
• T16q
• T17m
• T20e
• T23a
• T32k
• T6az

Электросхема памяти сидений (3 из 4) для Audi A6 Premium 2013

Электросхема памяти сидений (3 из 4) для Audi A6 Premium 2013 - Список элементов:

• (if equipped) front passenger seat lumbar support adjustment switch
• (w/ comfort seats) front passenger seat depth adjustment motor
• 15a
• Backrest adjustment switch
• Computer data lines system
• Driver backrest adjustment switch
• Forward/back adjustment switch
• Front passenger massage function button (w/ comfort seats)
• Front passenger memory seat control module
• Front passenger seat lumbar support curvature adjustment motor
• Front passenger seat lumbar support height adjustment motor
• Front passenger seat switch module 2 (w/ comfort seats)
• Front passenger's
• Front passenger's angle adjustment motor
• Front passenger's backrest adjustment motor
• Front passenger's power seat adjustment circuit breaker 1
• Front passenger's seat adjustment control head (w/o comfort seats) front passenger seat switch module (w/ comfort seats)
• Front passenger's seat angle adjustment switch
• Front passenger's seat forward/back adjustment motor
• Front passenger's seat height adjustment motor
• Front passenger's seat height adjustment switch
• Fuse 7.5a
• Fuse carrier 2
• Fuse panel b (left end of dash)
• G35 (under front passenger's seat)
• Ground distribution system
• Hot at all times
• Power distribution system
• Red
• Seat forward/back adjustment switch
• Seat height adjustment switch
• T12aa
• T12ab
• T17n
• T32n
• T8ae
• W/ comfort seats
• W/o comfort seats

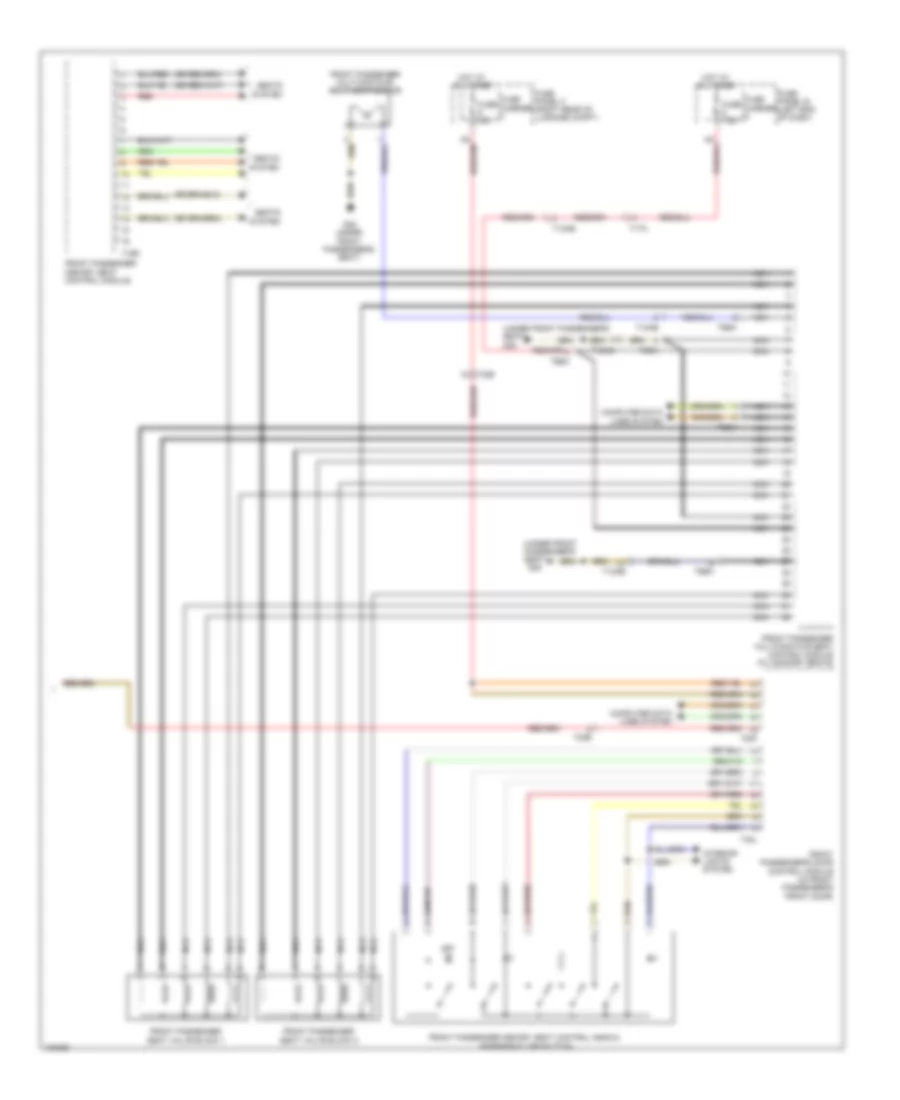

Электросхема памяти сидений (4 из 4) для Audi A6 Premium 2013

Электросхема памяти сидений (4 из 4) для Audi A6 Premium 2013 - Список элементов:

• (under front passenger's seat)
• (under front passenger's seat) g35
• Computer data
• Computer data lines system
• Front passenger memory seat control head & emergency off button
• Front passenger memory seat control module
• Front passenger multicontour seat compressor
• Front passenger multicontour seat control module (w/ comfort seats)
• Front passenger seat valve block 1
• Front passenger seat valve block 2
• Front passenger's door control module (in front passenger's front door)
• Fuse 30a
• Fuse 7.5a
• Fuse carrier
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G35
• G35 (under front passenger's seat)
• Hot at all times
• Interior lights system
• Lines system
• Nca
• Off
• Red
• Seats
• System
• T12ab
• T16r
• T17n
• T20f
• T23b
• T32l
• T6ba

Электросхема памяти рулевой колонки для Audi A6 Premium 2013

Электросхема памяти рулевой колонки для Audi A6 Premium 2013 - Список элементов:

• (behind center of dash) g45
• (left end of dash) vehicle electrical system control module
• Computer data lines system
• Driver memory seat control head & emergency off button
• Driver seat memory button
• Driver's door control module (in driver's front door)
• Fuse 10a
• Fuse 25a
• Fuse 5a
• Fuse carrier
• Fuse panel c (right end of dash)
• G45 (behind center of dash)
• Hot at all times
• Interior lights system
• Memory seat positions 1 & 2 button
• Power adjustable steering column control module
• Steering column adjustment switch
• Steering column axial adjustment sensor & forward/back adjustment motor
• Steering column electronic systems control module (top of steering column)
• Steering column vertical adjustment sensor/motor
• T16c
• T16e
• T17g
• T20e
• T32k
• T6n
