СИСТЕМЫ СИДЕНИЙ

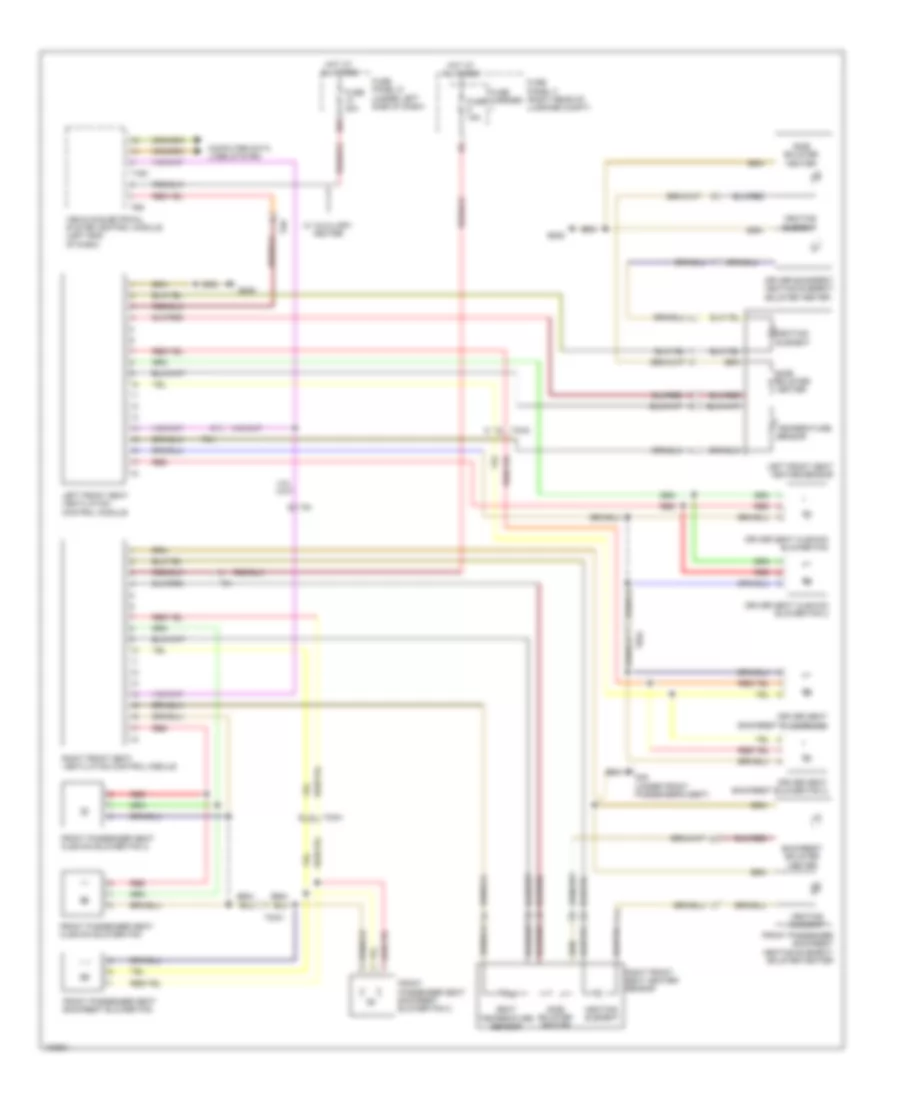

Электросхема подогрева сидений, С память для Audi A6 Premium 2013
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
Электросхема подогрева сидений, С память для Audi A6 Premium 2013 - Список элементов:
- 15a
- Backrest bolster heater
- Backrest heating element
- Computer data lines system
- Driver power seat adjustment circuit breaker 1 (on connector station in left "a" pillar)
- Driver's backrest heating element & bolster heater
- Driver's seat backrest blower fan
- Driver's seat backrest blower fan 2
- Driver's seat cushion blower fan
- Driver's seat cushion blower fan 2
- Driver's seat heater
- Front passenger memory seat control module
- Front passenger power seat adjustment circuit breaker 1
- Front passenger's backrest heating element & bolster heater
- Front passenger's seat backrest blower fan
- Front passenger's seat backrest blower fan 2
- Front passenger's seat cushion blower fan
- Front passenger's seat cushion blower fan 2
- Front passenger's seat heater
- G34 (under driver's seat)
- G35 (under front passenger's seat)
- Ground distribution system
- Hot at all times
- Left front seat temp sensor
- Memory seat/steering column adjustment control module
- Power distribution system
- Red
- Right front seat temp sensor
- Seat bolster heater
- Seat heater
- T12aa
- T12x
- T16q
- T16r
- T17m
- T17n
- T32m
- T32n
- T8ac
- T8ah
- W/ comfort seats
- W/o comfort seats

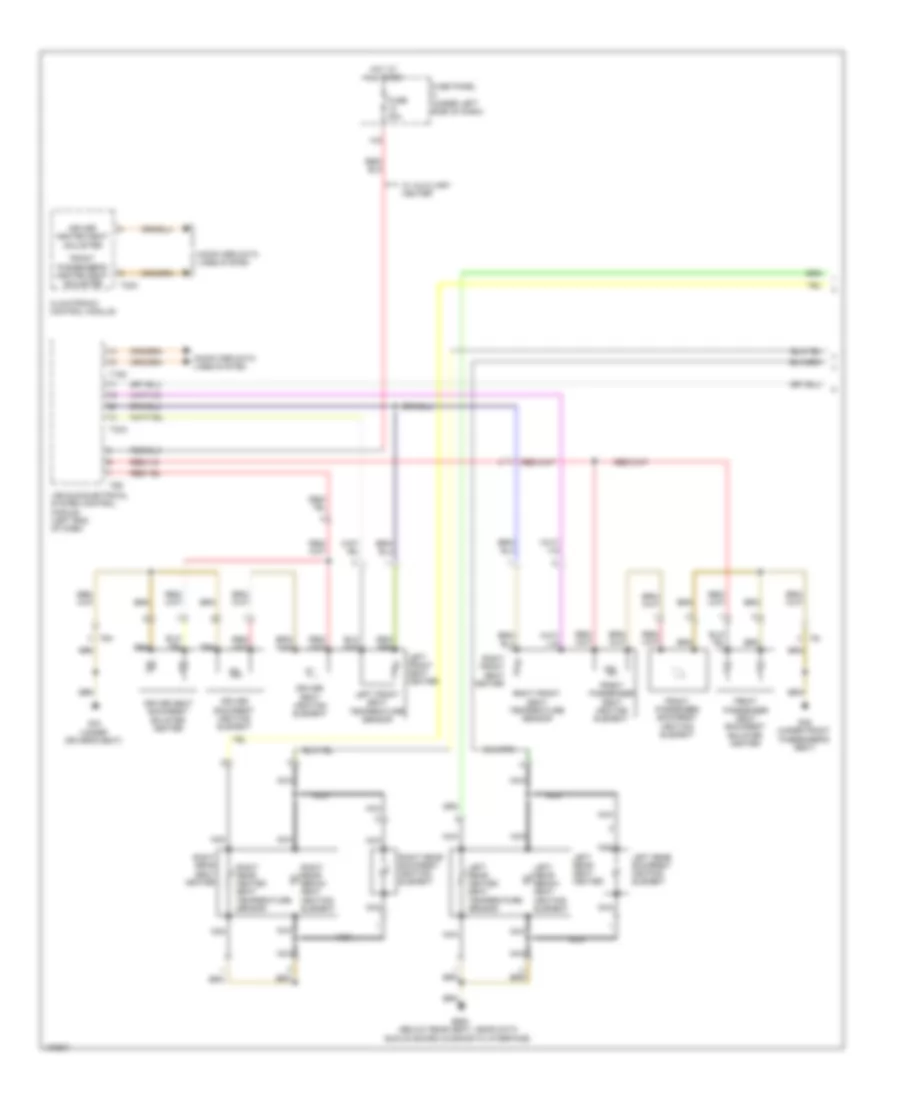

Электросхема подогрева сидений, без Память (1 из 2) для Audi A6 Premium 2013
Электросхема подогрева сидений, без Память (1 из 2) для Audi A6 Premium 2013 - Список элементов:
- 10a
- Climatronic control module
- Computer data lines system
- Driver backrest heating element
- Driver heated seat adjuster
- Driver seat backrest bolster heater
- Driver seat heating element
- Front passenger backrest heating element
- Front passenger seat backrest bolster heater
- Front passenger seat heating element
- Front passenger's heated seat adjuster
- Fuse 30a
- Fuse panel d (under left side of dash)
- G34 (under driver's seat)
- G35 (under front passenger's seat)
- G688 (below rear seat, near data bus on board diagnostic interface)
- Hot at all times
- Left front seat heater
- Left front seat temperature sensor
- Left rear backrest heating element
- Left rear bench seat heating element
- Left rear heated seat temperature sensor
- Left rear seat heater
- Nca
- Right front seat heater
- Right front seat temperature sensor
- Right rear backrest heating element
- Right rear bench seat heating element
- Right rear heated seat temperature sensor
- Right rear seat heater
- T16c
- T20c
- T32a
- T6d
- T6h
- T6i
- Vehicle electrical system control module (left end of dash)
- W/ auxiliary heater

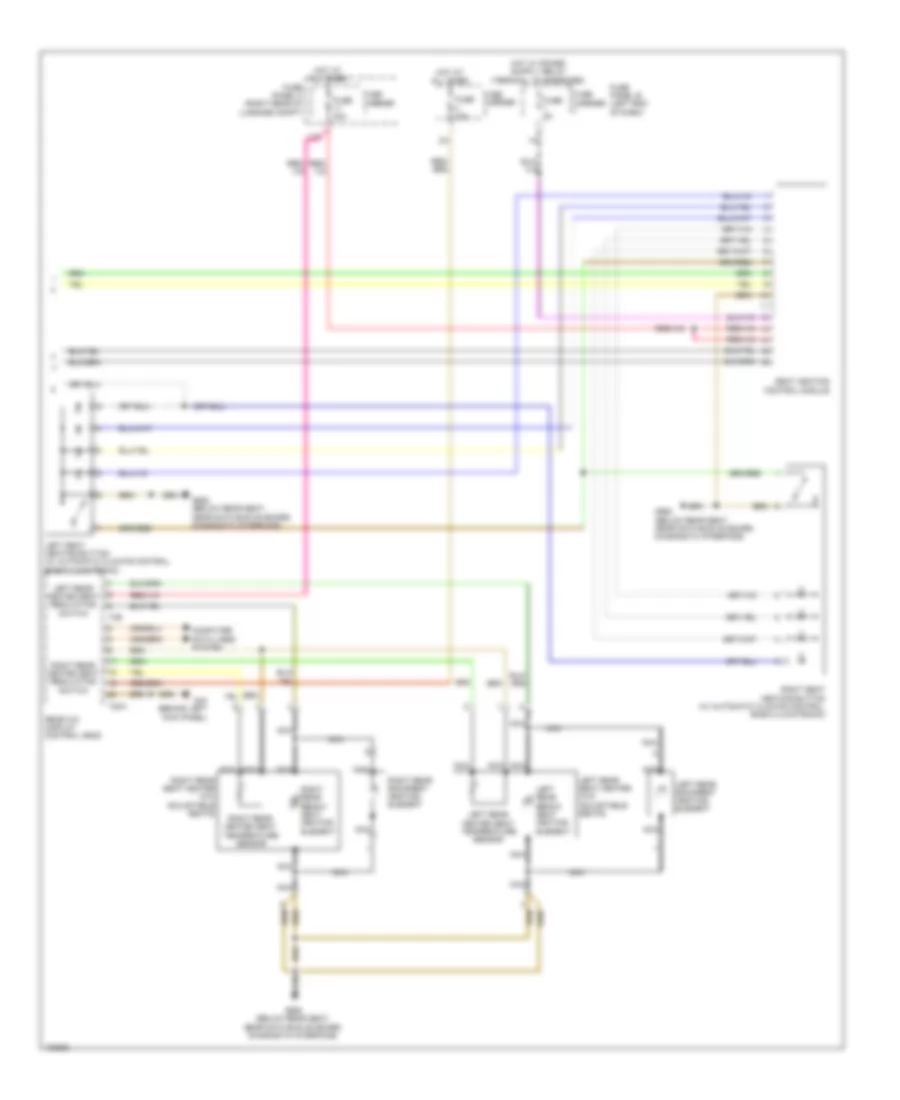

Электросхема подогрева сидений, без Память (2 из 2) для Audi A6 Premium 2013
Электросхема подогрева сидений, без Память (2 из 2) для Audi A6 Premium 2013 - Список элементов:
- 11a
- Computer data lines system
- Fuse 10a
- Fuse 30a
- Fuse 5a
- Fuse carrier
- Fuse panel b (left end of dash)
- Fuse panel f (right rear of luggage compt)
- G44 (behind left kick panel)
- G688 (below rear seat, near data bus on board diagnostic interface)
- Hot at all times
- Left rear backrest heating element
- Left rear bench seat heating element
- Left rear heated seat regulating switch
- Left rear heated seat temperature sensor
- Left rear seat heater (w/o adjustable seats)
- Left seat heating button (w/ automatic climate control, basic climatronic)
- Nca
- Rear a/c display control head
- Right rear backrest heating element
- Right rear bench seat heating element
- Right rear heated seat regulating switch
- Right rear heated seat temperature sensor
- Right rear seat heater (w/o adjustable seats)
- Right seat heating button (w/ automatic climate control, basic climatronic)
- Seat heating control module
- T20a
- T3r

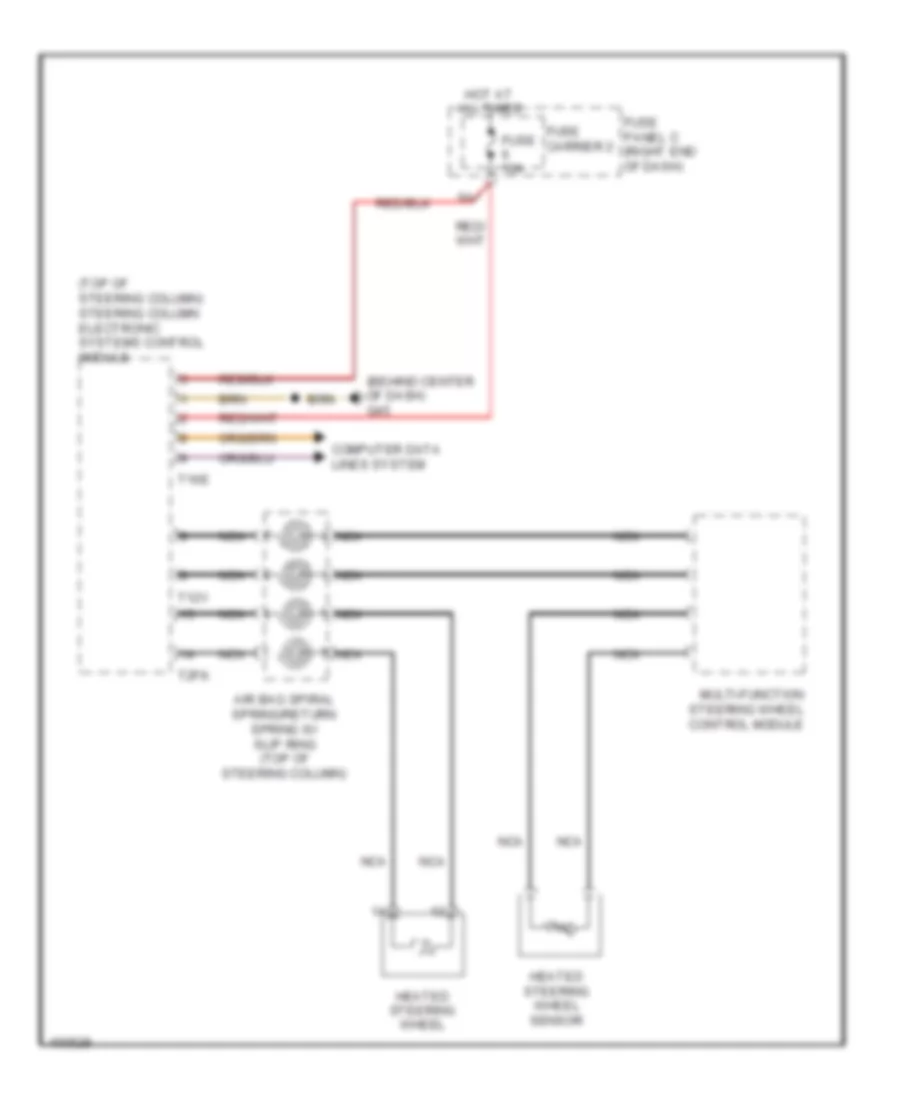

Электросхема подогрева руля для Audi A6 Premium 2013
Электросхема подогрева руля для Audi A6 Premium 2013 - Список элементов:
- (behind center of dash) g45
- (top of steering column) steering column electronic systems control module
- Air bag spiral spring/return spring w/ slip ring (top of steering column)
- Computer data lines system
- Fuse 10a
- Fuse carrier 2
- Fuse panel c (right end of dash)
- Heated steering wheel
- Heated steering wheel sensor
- Hot at all times
- Multi-function steering wheel control module
- Nca
- T12v
- T16e
- T2fk

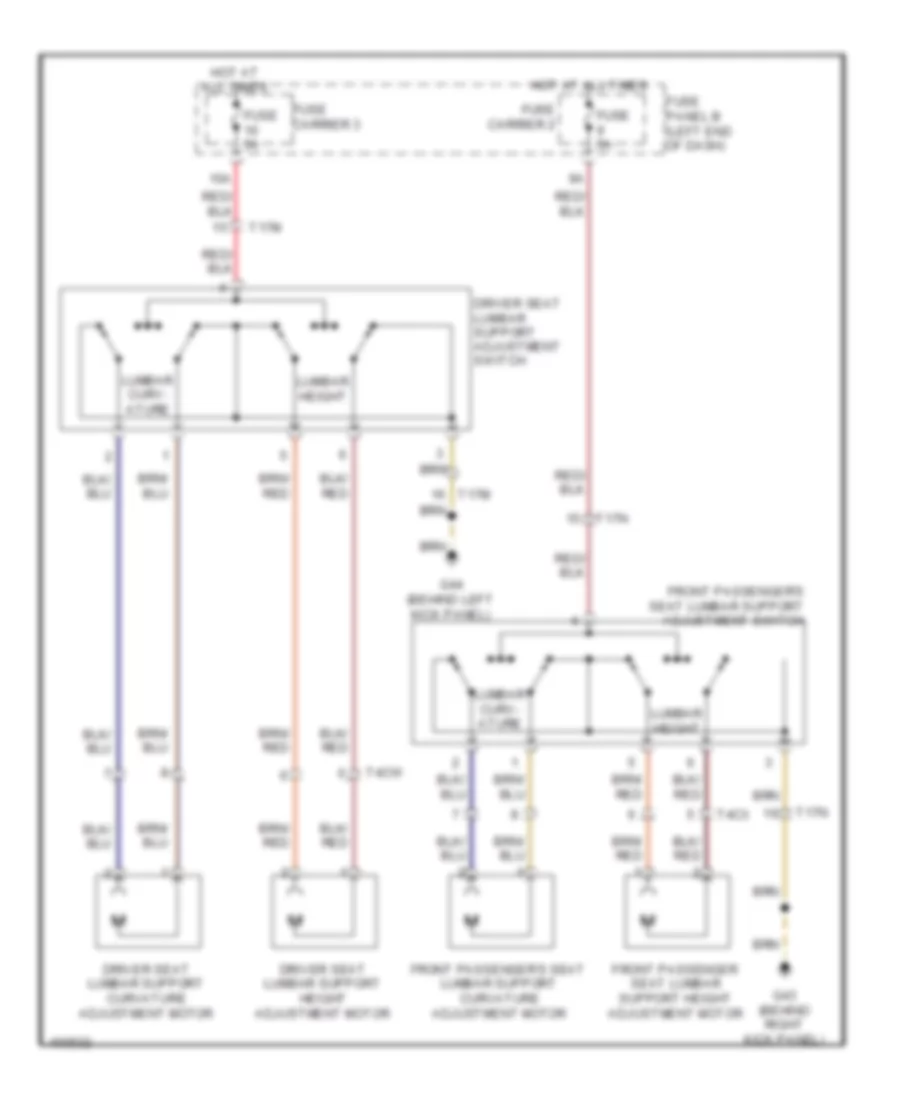

Электросхема регулировки поясницы для Audi A6 Premium 2013
Электросхема регулировки поясницы для Audi A6 Premium 2013 - Список элементов:
- 10a
- Driver seat lumbar support adjustment switch
- Driver seat lumbar support curvature adjustment motor
- Driver seat lumbar support height adjustment motor
- Front passenger seat lumbar support height adjustment motor
- Front passenger's seat lumbar support adjustment switch
- Front passenger's seat lumbar support curvature adjustment motor
- Fuse 5a
- Fuse carrier 2
- Fuse carrier 3
- Fuse panel b (left end of dash)
- G43 (behind right kick panel)
- G44 (behind left kick panel)
- Hot at all times
- Lumbar curv- ature
- Lumbar height
- T17m
- T17n
- T4cw
- T4cx

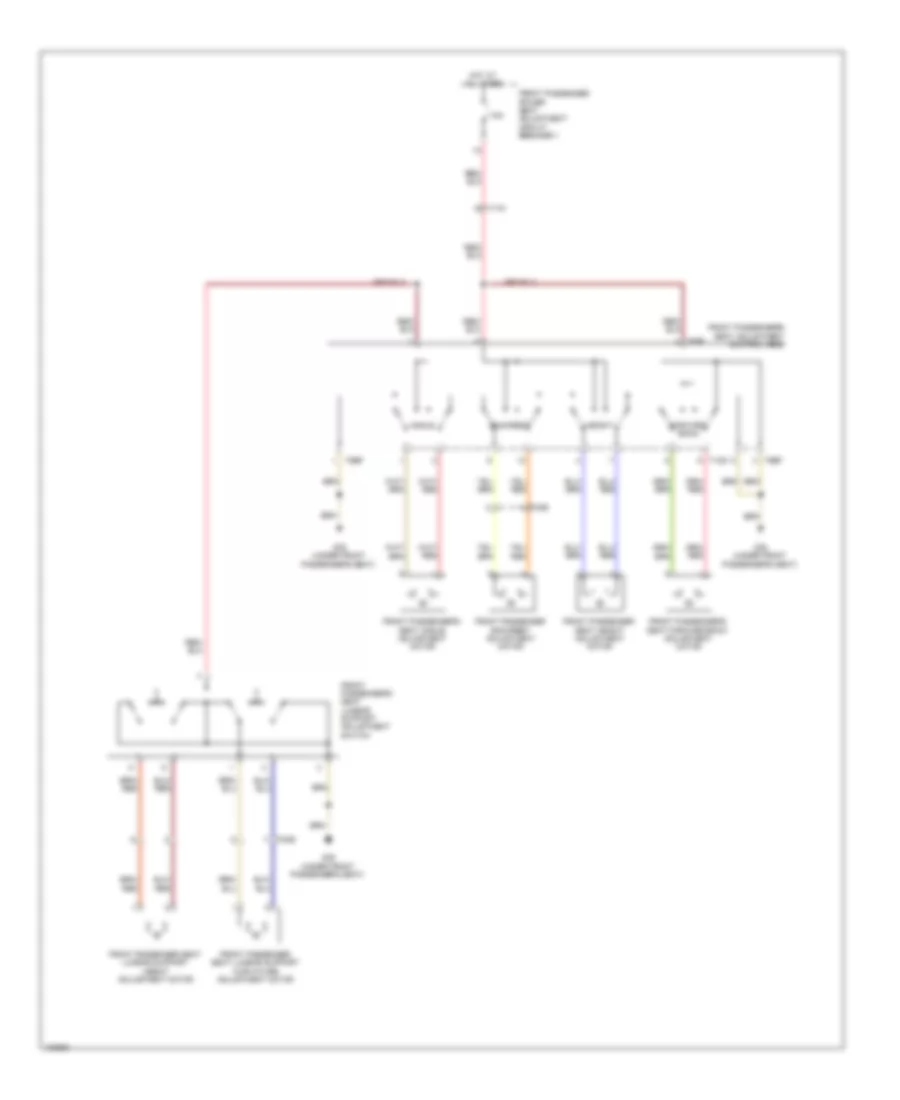

Электросхема привода сидений для Audi A6 Premium 2013
Электросхема привода сидений для Audi A6 Premium 2013 - Список элементов:
- 15a
- Angle
- Backrest
- Forward /back
- Front passenger backrest adjustment motor
- Front passenger power seat adjustment circuit breaker 1
- Front passenger seat height adjustment motor
- Front passenger seat lumbar support curvature adjustment motor
- Front passenger seat lumbar support height adjustment motor
- Front passenger's seat adjustment control head
- Front passenger's seat angle adjustment motor
- Front passenger's seat forward/back adjustment motor
- Front passenger's seat lumbar support adjustment switch
- G35 (under front passenger's seat)
- Height
- Hot at all times
- T10s
- T17n
- T6bf
- T8ae
схема вентиляции места для Audi A6 Premium 2013
схема вентиляции места для Audi A6 Premium 2013 - Список элементов:
- 10a
- Backrest bolster heater
- Computer data lines system
- Driver backrest heating element/ bolster heater
- Driver seat backrest blower fan
- Driver seat backrest blower fan 2
- Driver seat cushion blower fan
- Driver seat cushion blower fan 2
- Front passenger backrest heating element/ bolster heater
- Front passenger seat backrest blower fan
- Front passenger seat backrest blower fan 2
- Front passenger seat cushion blower fan
- Front passenger seat cushion blower fan 2
- Fuse 15a
- Fuse 30a
- Fuse carrier
- Fuse panel d (under left side of dash)
- Fuse panel f (right rear of luggage compt)
- G35 (under front passenger's seat)
- G639
- Heating element
- Hot at all times
- Left front seat heater/sensor
- Left front seat ventilation control module
- Red
- Right front seat heater/ sensor
- Right front seat ventilation control module
- Seat temperature sensor
- Side bolster heater
- T16c
- T6d
- T6h
- T6i
- T8ac
- T8ah
- Temperature sensor
- Vehicle electrical system control module (left end of dash)
- W/ auxiliary heater
