схема помощи изменения переулка для Audi A6 Premium 2013

схема помощи изменения переулка для Audi A6 Premium 2013 - Список элементов:

• Computer data lines system
• Directional stabilization assistance button
• Driver door control module (in driver's front door)
• Driver's exterior rearview mirror
• Fuse 5a
• Fuse carrier 4
• Fuse panel f (right rear of luggage compt)
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• Lane change assistance button
• Lane change assistance control module (behind right end of rear bumper trim)
• Lane change assistance control module 2 (behind left end of rear bumper trim)
• Nca
• Passenger exterior rearview mirror
• Relay (terminal 15) energized
• Steering column electronics systems control module (top of steering column)
• T16e
• T20e
• T23a
• T23b
• T2et
• T2eu
• T2ev
• T2ew
• T32k
• T5aa
• Warning lamp assistance lane change

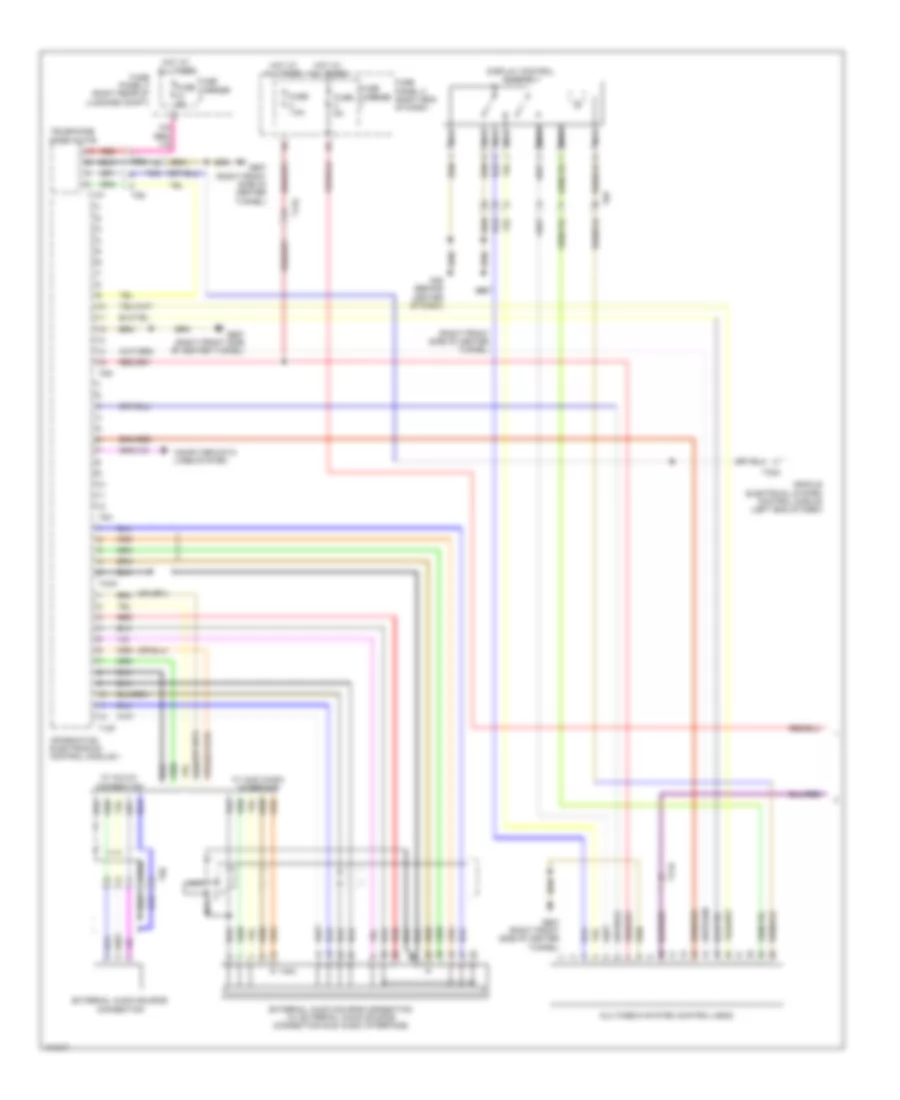

Электросхема навигации GPS, С Навигация Плюс (1 из 2) для Audi A6 Premium 2013

Электросхема навигации GPS, С Навигация Плюс (1 из 2) для Audi A6 Premium 2013 - Список элементов:

• (right front side of center tunnel)
• 10a
• Computer data lines system
• Display control assembly
• External audio source connection
• External audio source connection (w/ external audio source connection-audi music interface)
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• Fuse panel c (right end of dash)
• Fuse panel f (right rear of luggage compt)
• G45 (behind center of dash)
• G687
• G687 (right front side of center tunnel)
• Hot at all times
• Information electronics control module 1
• Multimedia system control head
• Nca
• Red
• T10t
• T12f
• T17h
• T17o
• T32a
• T4aa
• T5g
• T5q
• T8g
• T8h
• T8p
• Telephone base plate
• Vehicle electrical system control module (left end of dash)
• W/ audi music interface
• W/ aux-in connection

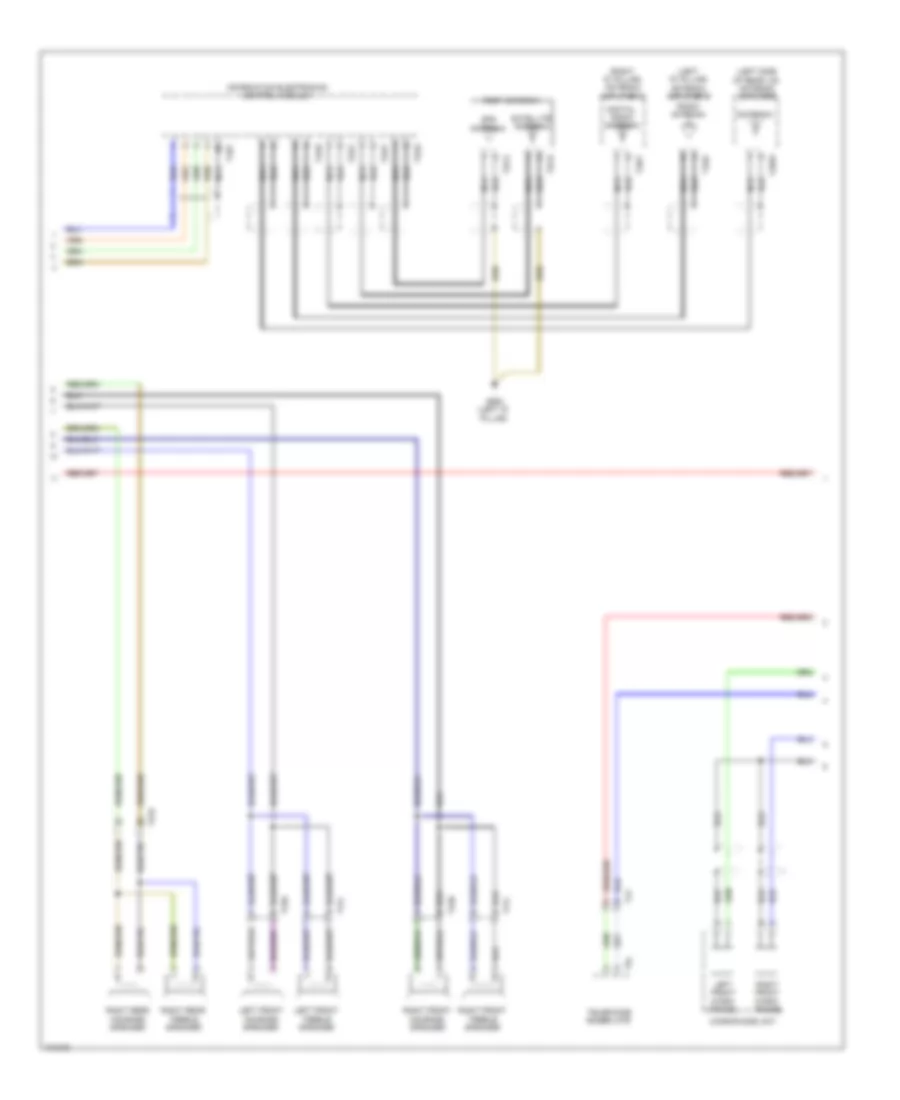

Электросхема навигации GPS, С Навигация Плюс (2 из 2) для Audi A6 Premium 2013

Электросхема навигации GPS, С Навигация Плюс (2 из 2) для Audi A6 Premium 2013 - Список элементов:

• (left side of luggage compt) (w/ cd changer) digital tv tuner
• (right side of luggage compt) (if equipped) rearview camera system control module
• Display unit button
• Dvd changer
• Fiber optic
• Front information display control head
• G45 (behind center of dash)
• G653 (left "d" pillar)
• G654 (right "d" pillar)
• Gps antenna
• Information electronics control module 1
• Instrument cluster control module
• Interior lights system
• Left front microphone
• Microphone unit
• Most data bus circuit
• Nca
• Radio
• Right front microphone
• Roof antenna
• Satellite antenna
• T12g
• T2as
• T2at
• T2au
• T2aw
• T2bn
• T2bo
• T2cg
• T2ch
• T2ck
• T2df
• T2dl
• T2lr
• T32
• T4dc
• T4dd
• T8ag
• Telephone antenna

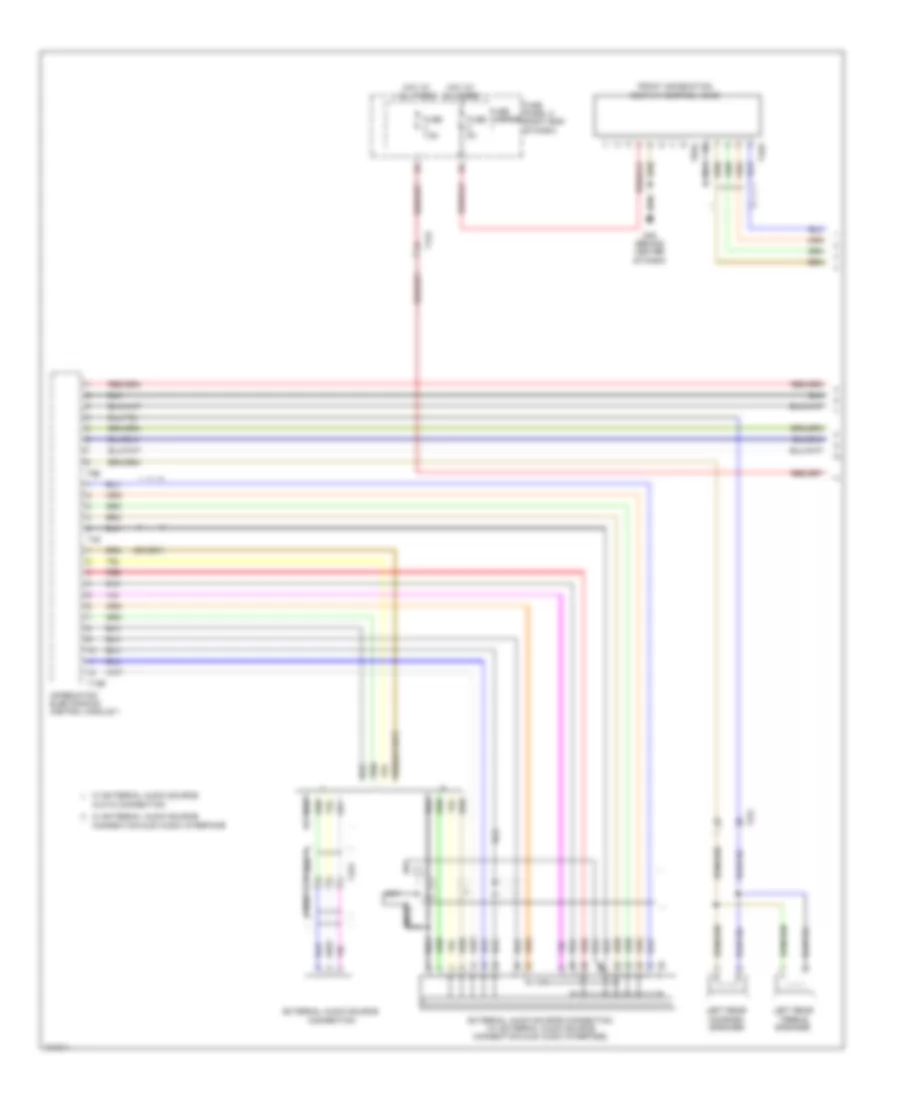

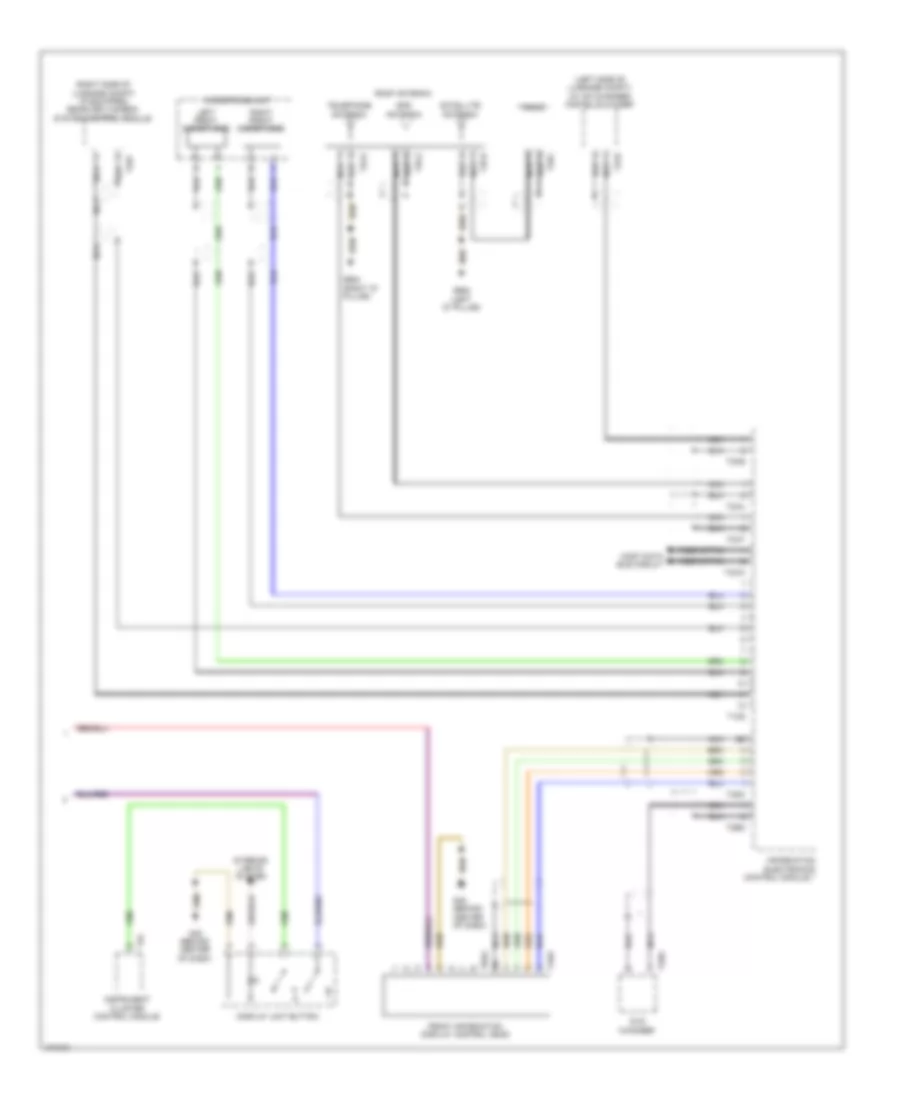

Электросхема навигации GPS, С Радио Плюс (1 из 3) для Audi A6 Premium 2013

Электросхема навигации GPS, С Радио Плюс (1 из 3) для Audi A6 Premium 2013 - Список элементов:

• Aux-in connection
• External audio source connection
• External audio source connection (w/ external audio source connection-audi music interface)
• Front information display control head
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• Fuse panel c (right end of dash)
• G45 (behind center of dash)
• Hot at all times
• Information electronics control module 1
• Left rear mid-bass speaker
• Left rear treble speaker
• Nca
• Red
• T12e
• T17o
• T27c
• T4de
• T4ey
• T4z
• T8ag
• T8e
• W/ external audio source
• W/ external audio source connection-audi music interface

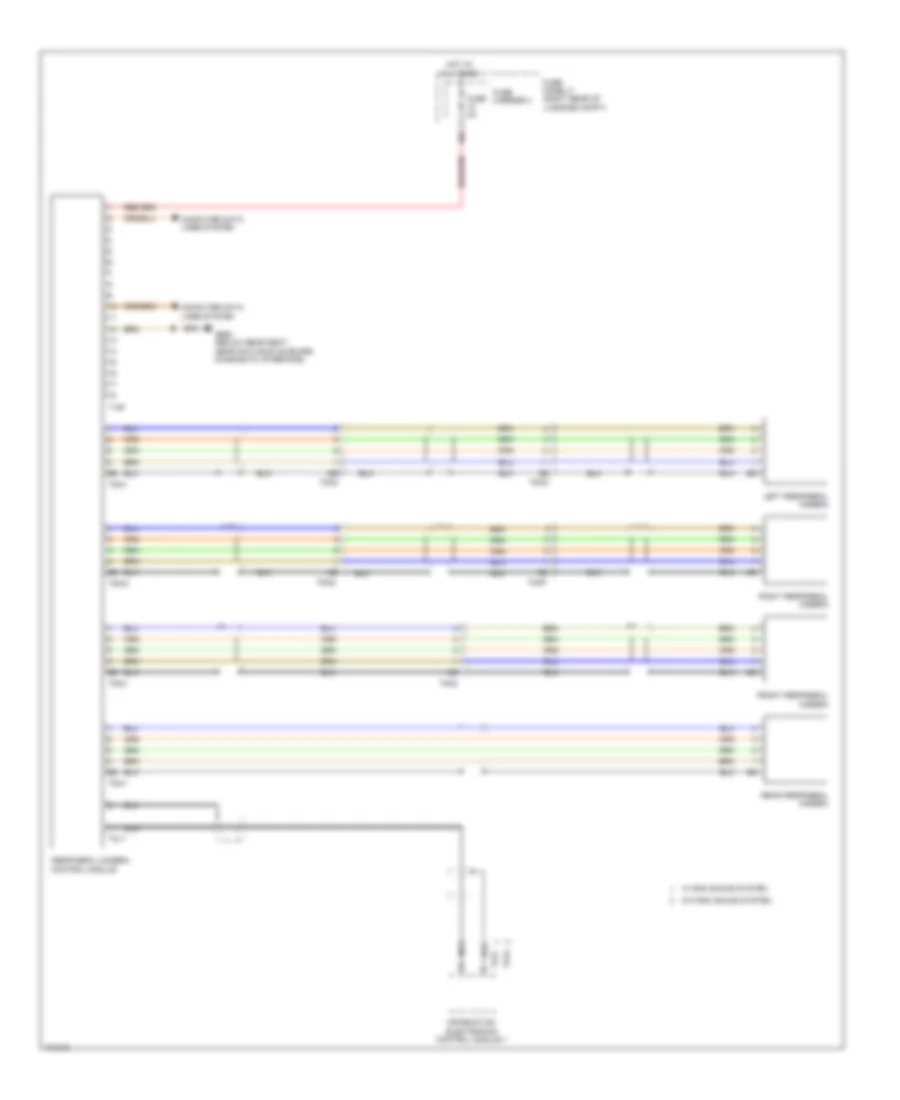

Электросхема навигации GPS, С Радио Плюс (2 из 3) для Audi A6 Premium 2013

Электросхема навигации GPS, С Радио Плюс (2 из 3) для Audi A6 Premium 2013 - Список элементов:

• (left "d" pillar) antenna amplifier 2
• (left side of rear lid) antenna amplifier
• (right "d" pillar) antenna amplifier 3
• Antenna
• Digital radio antenna
• G653 (left "d" pillar)
• Gps antenna
• Information electronics control module 1
• Left front micro- phone
• Left front mid-bass speaker
• Left front treble speaker
• Microphone unit
• Nca
• Radio antenna
• Right front micro- phone
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid-bass speaker
• Right rear treble speaker
• Roof antenna
• Satellite antenna
• T17l
• T23a
• T23b
• T27d
• T2au
• T2av
• T2ax
• T2bt
• T2bw
• T2cg
• T2ch
• T4ab
• T4aq
• T4df
• T4y
• T5l
• Telephone baseplate

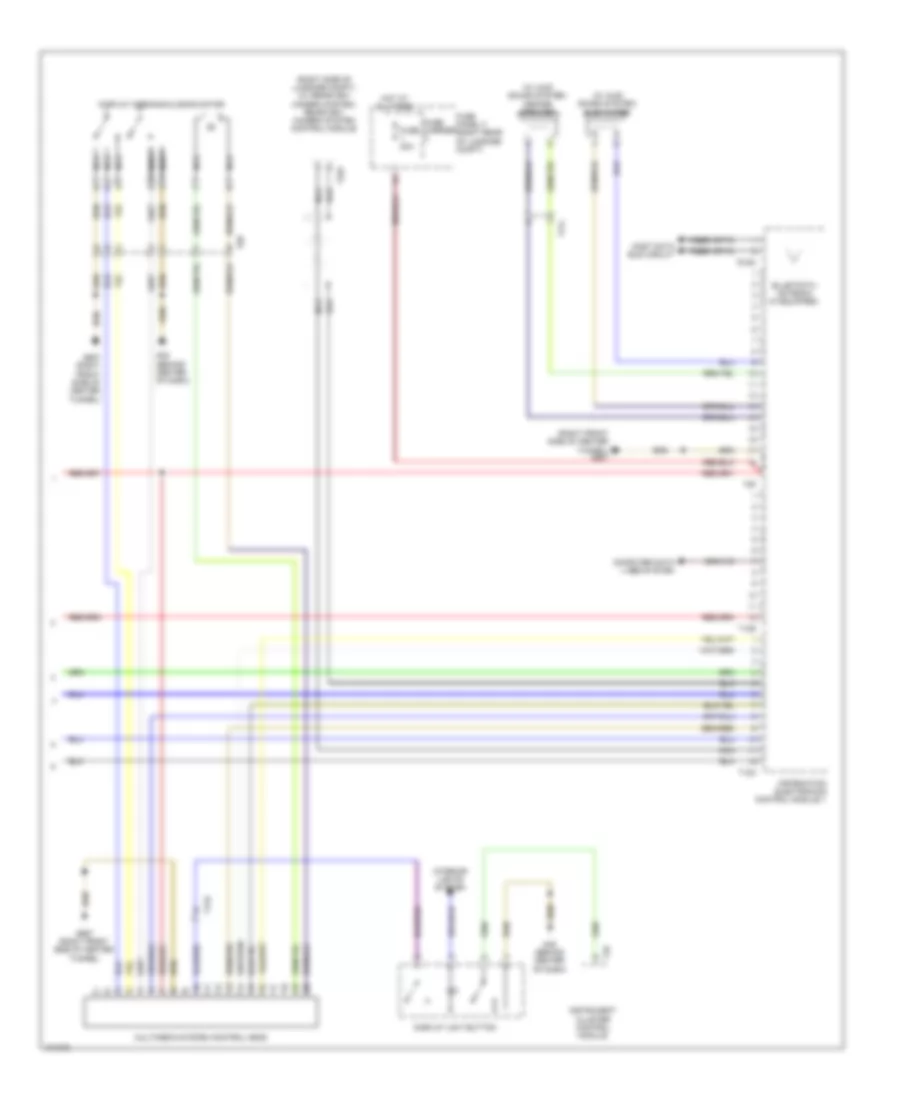

Электросхема навигации GPS, С Радио Плюс (3 из 3) для Audi A6 Premium 2013

Электросхема навигации GPS, С Радио Плюс (3 из 3) для Audi A6 Premium 2013 - Список элементов:

• (right front side of center tunnel) g687
• (right side of luggage compt) (w/ rearview camera system) rearview camera system control module
• (w/ audi sound system) center speaker
• (w/ audi sound system) subwoofer
• Computer data lines system
• Display opening/closing motor
• Display unit button
• Fiber optic
• Fuse 20a
• Fuse carrier
• Fuse panel f (right rear of luggage compt)
• G45 (behind center of dash)
• G687 (right front side of center tunnel)
• Hot at all times
• Information electronics control module 1
• Instrument cluster control module
• Interior lights system
• Most data bus circuit
• Multimedia system control head
• Nca
• T12c
• T12d
• T17h
• T17l
• T2aw
• T2df
• T32
• T8f
• T8p

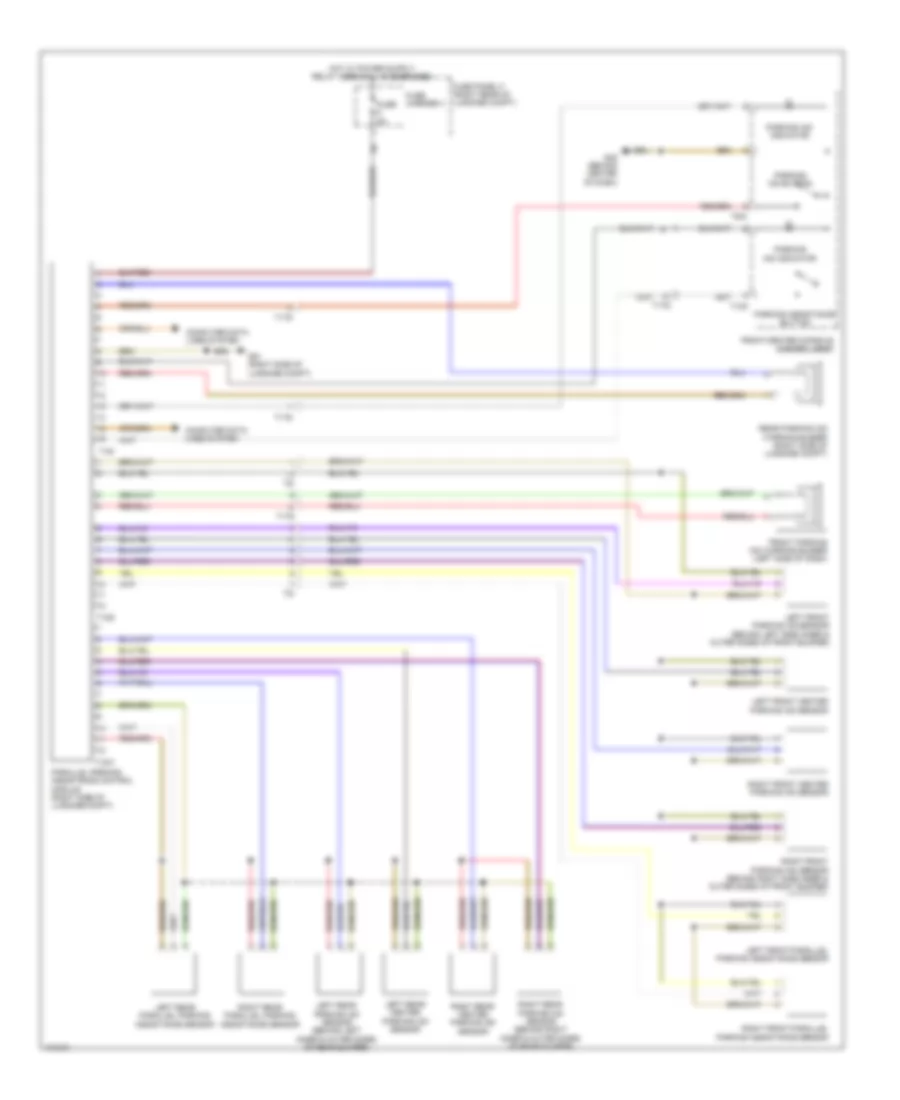

Электросхема парктроников для Audi A6 Premium 2013

Электросхема парктроников для Audi A6 Premium 2013 - Список элементов:

• Computer data lines system
• Front parking aid warning buzzer (left side of dash)
• Front/center console control head
• Fuse 5a
• Fuse carrier 4
• Fuse panel f (right rear of luggage compt)
• G45 (behind center of dash)
• G51 (right side of luggage compt)
• Left front center parking aid sensor
• Left front parallel parking assistance sensor
• Left front parking aid sensor (behind left side inner & outer sides of front bumper)
• Left rear center parking aid sensor
• Left rear parallel parking assistance sensor
• Left rear parking aid sensor (behind left inner & outer sides of rear bumper)
• Parallel parking assistance control module (right side of luggage compt)
• Parking aid button
• Parking aid indicator
• Parking assistance button
• Rear parking aid warning buzzer (right side of luggage compt)
• Right front center parking aid sensor
• Right front parallel parking assistance sensor
• Right front parking aid sensor (behind right side inner & outer sides of front bumper)
• Right rear center parking aid sensor
• Right rear parallel parking assistance sensor
• Right rear parking aid sensor (behind right inner & outer sides of rear bumper)
• T10k
• T12q
• T12w
• T16i
• T17g
• T17q
• T6ai
• T8i

периферийная схема камеры для Audi A6 Premium 2013

периферийная схема камеры для Audi A6 Premium 2013 - Список элементов:

• 10a
• Computer data lines system
• Front peripheral camera
• Fuse 5a
• Fuse carrier 3
• Fuse panel f (right rear of luggage compt)
• G688 (below rear seat, near data bus on board diagnostic interface)
• Hot at all times
• Information electronics control module 1
• Left peripheral camera
• Nca
• Peripheral camera control module
• Rear peripheral camera
• Right peripheral camera
• T12c
• T12g
• T18f
• T2lt
• T5an
• T5ao
• T5ap
• T5aq
• T5av
• T5aw
• T5ax
• T5ay
• T5az
• W/ rmc sound system
• W/o rmc sound system

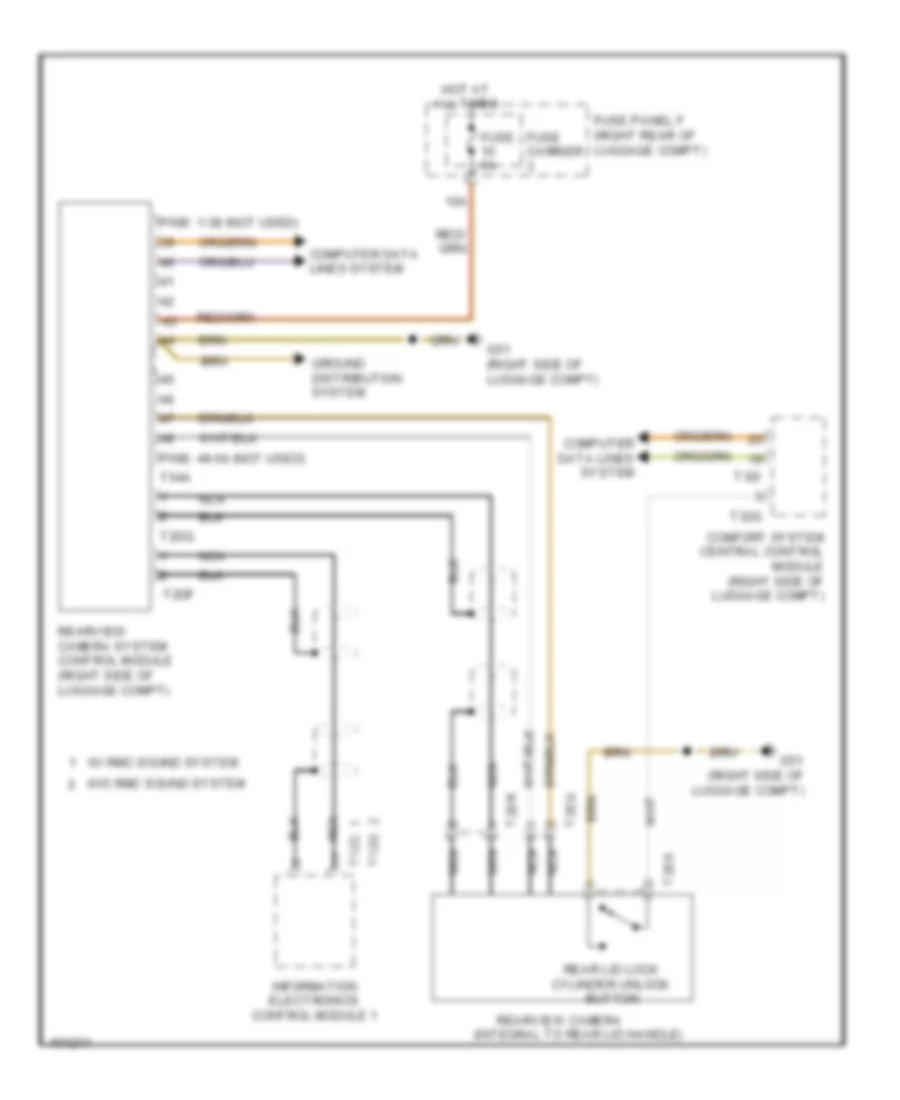

Электросхема камеры заднего вида для Audi A6 Premium 2013

Электросхема камеры заднего вида для Audi A6 Premium 2013 - Список элементов:

• (integral to rear lid handle)
• 10a
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Fuse 5a
• Fuse carrier
• Fuse panel f (right rear of luggage compt)
• G51 (right side of luggage compt)
• Ground distribution system
• Hot at all times
• Information electronics control module 1
• Nca
• Pins: 1-38 (not used)
• Pins: 49-54 (not used)
• Rear lid lock cylinder unlock button
• Rearview camera
• Rearview camera system control module (right side of luggage compt)
• T12c
• T12g
• T2df
• T2dg
• T2eq
• T2er
• T2es
• T32g
• T32i
• T54a
• W/ rmc sound system
• W/o rmc sound system
