ACTIVE BODYWORKS

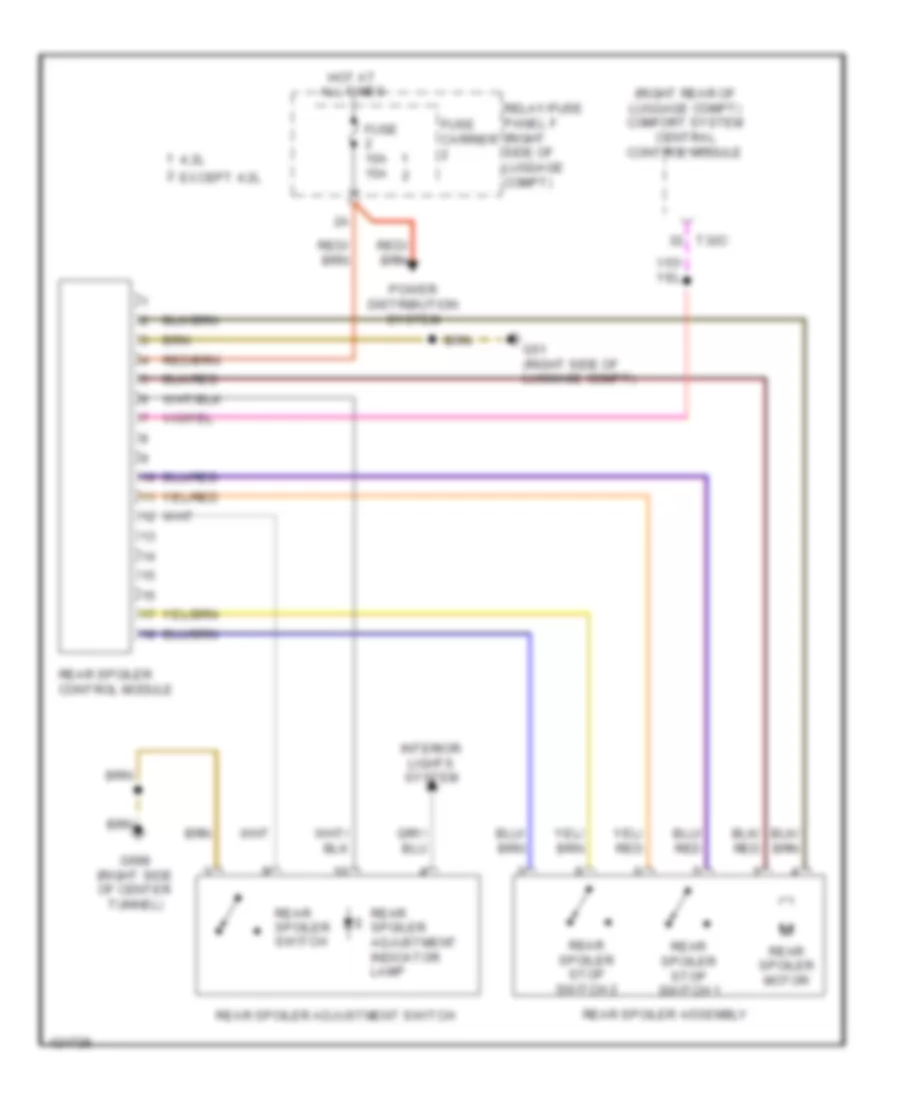

Active Bodyworks Wiring Diagram for Audi A5 Quattro Cabriolet 2014

Active Bodyworks Wiring Diagram for Audi A5 Quattro Cabriolet 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Active Bodyworks Wiring Diagram for Audi A5 Quattro Cabriolet 2014:

  • (right rear of luggage compt) comfort system central control module
  • 4.2l
  • Except 4.2l
  • Fuse 10a 15a
  • Fuse carrier
  • G51 (right side of luggage compt)
  • G688 (right side of center tunnel)
  • Hot at all times
  • Interior lights system
  • Power distribution system
  • Rear spoiler adjustment indicator lamp
  • Rear spoiler adjustment switch
  • Rear spoiler assembly
  • Rear spoiler control module
  • Rear spoiler motor
  • Rear spoiler stop switch 1
  • Rear spoiler stop switch 2
  • Rear spoiler switch
  • Relay/fuse panel f (right side of luggage compt)
  • T32c
