AIR CONDITIONING

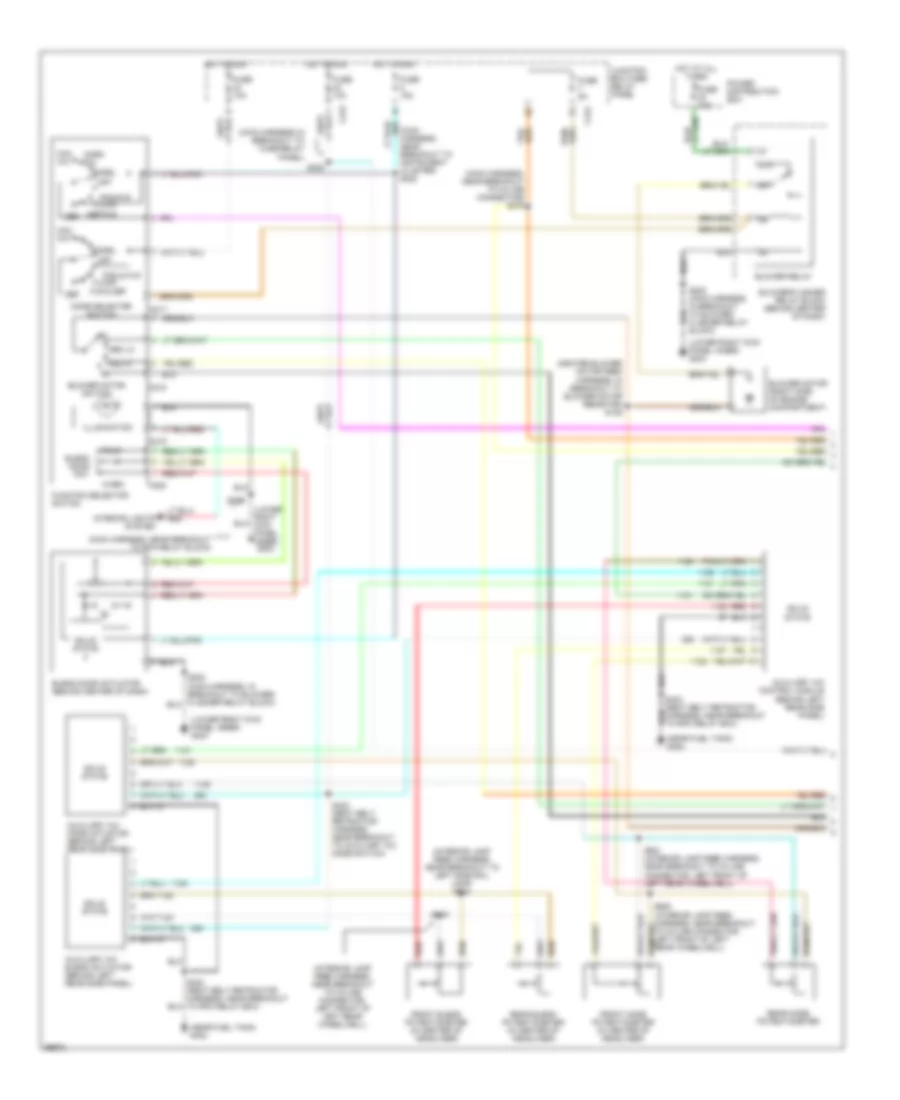

Air Conditioning Wiring Diagrams (1 of 2) for Ford Expedition 1998
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Air Conditioning Wiring Diagrams (1 of 2) for Ford Expedition 1998:
- (heater blower motor feed harness, in breakout to blower motor resistor) s125
- (interior lamp feed harness, near breakout to in-line connector, left front of left rear wheelwell)
- (interior lamp feed harness, near breakout to left side rail lamp) s918
- (lower right kick panel inner) g203
- (main harness in breakout to fuse/relay panel)
- (main harness, near breakout to in-line connector) s279
- (main harness, near breakout to instrument cluster) s222
- (main harness, near breakout to rpo relay block)
- (near fuel tank) g402
- 87a
- Auxiliary a/c blend actuator (behind left rear side panel)
- Auxiliary a/c control module (behind left rear side panel)
- Auxiliary a/c mode actuator (behind left rear side panel)
- Blend door actuator (behind center of dash)
- Blend door pot
- Blower motor (right side of engine compartment)
- Blower motor switch
- Blower relay
- Blower/flasher relay block (behind center of dash)
- C217
- C218
- C219
- C220
- C242
- C243
- Cold
- Def
- Def/flr
- Floor
- Flr & def
- Front blend potentiometer (in center of headliner)
- Front mode potentiometer (in center of headliner)
- Function selector switch
- Fuse 10a
- Fuse 15a
- Fuse 40a
- Fuse 5a
- Hot at all times
- Hot in run
- Illumination
- Interior lights system
- Junction box fuse/ relay panel
- Max a/c
- Med hi
- Med lo
- Mode selector switch
- Norm a/c
- Off
- Pan & flr
- Pan/flr
- Panel
- Power distribution box
- Rear blend potentiometer (in center of headliner)
- Rear mode potentiometer
- Red
- S202 (main harness, in breakout to blower/ flasher relay block)
- S203
- S228
- S422 (seat belt retractor harness, near breakout to auxiliary a/c mode switch)
- S424 (seat belt retractor harness, near breakout to rpo relay box)
- S919
- S920 (interior lamp feed harness, near breakout to in-line connector, left front of left rear wheelwell)
- S921 (interior lamp feed harness, near breakout to in-line connector, left front of left rear wheelwell)
- Solid state
- Warm
Air Conditioning Wiring Diagrams (2 of 2) for Ford Expedition 1998
List of elements for Air Conditioning Wiring Diagrams (2 of 2) for Ford Expedition 1998:
- (engine control sensor harness, near breakout to octane adjust)
- (lower right kick panel inner) g203
- (near fuel tank) g414
- (near fuel tank) g415
- .6 ohms
- 0.6 ohms
- 0ff
- 2.7 ohms
- 3.8 ohms
- 87a
- A/c clutch cycling pressure switch (right rear corner of engine compartment)
- A/c clutch diode (taped in harness, near a/c compressor clutch)
- A/c compressor clutch solenoid (right side of engine compartment)
- A/c pressure cut off switch (right side of engine compartment)
- Accs
- Auxiliary a/c blower motor (rear floor panel)
- Auxiliary a/c blower motor resistor (behind left rear side panel)
- Auxiliary a/c relay
- Blower motor resistor (near blower motor)
- Console blend door actuator (left center of floor console)
- Console blower motor (inside center of floor console)
- Console blower motor resistor (inside center of floor console)
- Front blower motor switch
- Fuse 30a
- G105 (rear of right fender apron)
- Hot at all times
- Med
- Nca
- Off
- Ohms
- Power distribution box
- Powertrain control module (pcm) (right side of engine compartment)
- Rear
- Rear blower motor switch
- Rear integrated control panel (ricp) (rear blower switch)
- Red/pnk
- Rpo relay box no.2 (in dash, above passenger airbag)
- S126
- S200 (main harness, near breakout to in-line connector, behind right side of dash)
- S322 (console panel harness, near breakout to console blower motor)
- S423 (seat belt retractor harness, near breakout to auxiliary a/c mode blower resistor assembly)
- S424 (seat belt retractor harness, near breakout to rpo relay box)
- S916 (interior lamp feed harness, near breakout to left side rail lamp)
