POWER TOP/SUNROOF – Suzuki Esteem GLX+ 1999 – SYSTEM WIRING DIAGRAMS

POWER TOP/SUNROOF

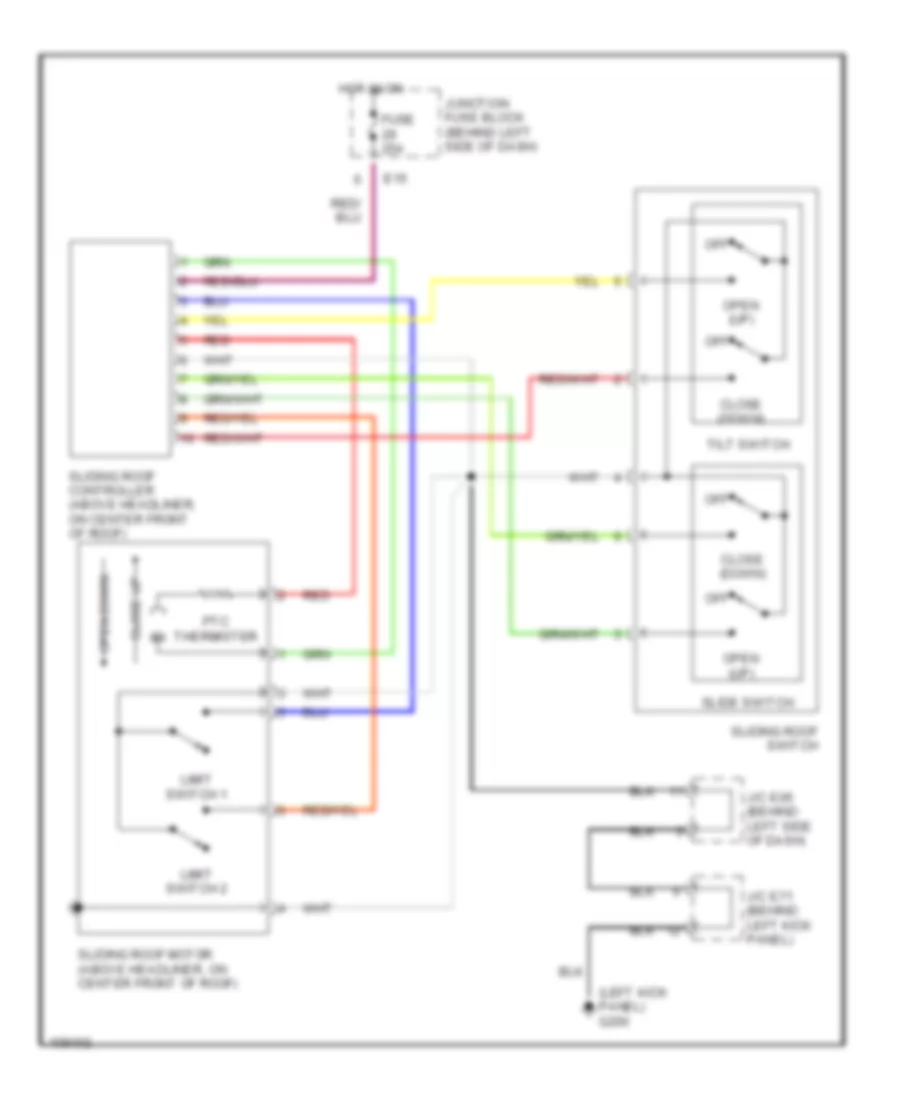

Power Top/Sunroof Wiring Diagrams for Suzuki Esteem GLX+ 1999

List of elements for Power Top/Sunroof Wiring Diagrams for Suzuki Esteem GLX+ 1999:

• (left kick panel) g200
• Close (down)
• Close up
• E15
• Fuse 25a
• Hot in on
• J/c e06 (behind left side of dash)
• J/c e71 (behind left kick panel)
• Junction fuse block (behind left side of dash)
• Limit switch 1
• Limit switch 2
• Off
• Open (up)
• Open down
• Ptc thermister
• Red
• Slide switch
• Sliding roof controller (above headliner, on center front of roof)
• Sliding roof motor (above headliner, on center front of roof)
• Sliding roof switch
• Tilt switch
