POWER DOOR LOCKS

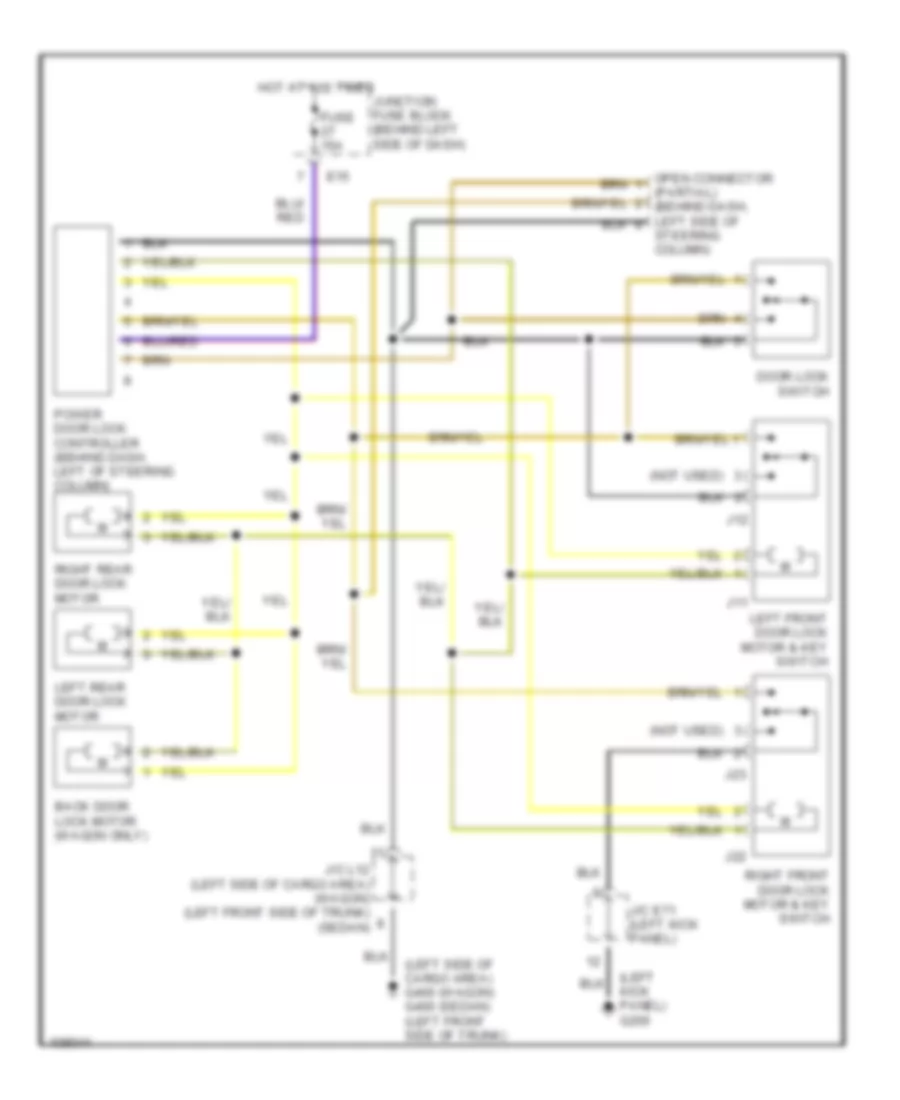

Power Door Lock Wiring Diagram for Suzuki Esteem GLX 1999

Power Door Lock Wiring Diagram for Suzuki Esteem GLX 1999 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Power Door Lock Wiring Diagram for Suzuki Esteem GLX 1999:

  • (left kick panel) g200
  • (left side of cargo area) g400 (wagon) g400 (sedan) (left front side of trunk)
  • (not used)
  • Back door lock motor (wagon only)
  • Door lock switch
  • E15
  • Fuse 15a
  • Hot at all times
  • J/c e71 (left kick panel)
  • J/c l12 (left side of cargo area) (wagon) (left front side of trunk) (sedan)
  • J11
  • J12
  • J22
  • J23
  • Junction fuse block (behind left side of dash)
  • Left front door lock motor & key switch
  • Left rear door lock motor
  • Power door lock controller (behind dash, left of steering column)
  • Right front door lock motor & key switch
  • Right rear door lock motor
  • Steering column)
