HORN – Suzuki Esteem GLX 1999 – SYSTEM WIRING DIAGRAMS

  1. Home
  2. >SUZUKI
  3. >Suzuki 1999
  4. >Suzuki Esteem GLX 1999
  5. >Suzuki Esteem GLX 1999 - ALL WIRING DIAGRAMS

Download PDF file

HORN

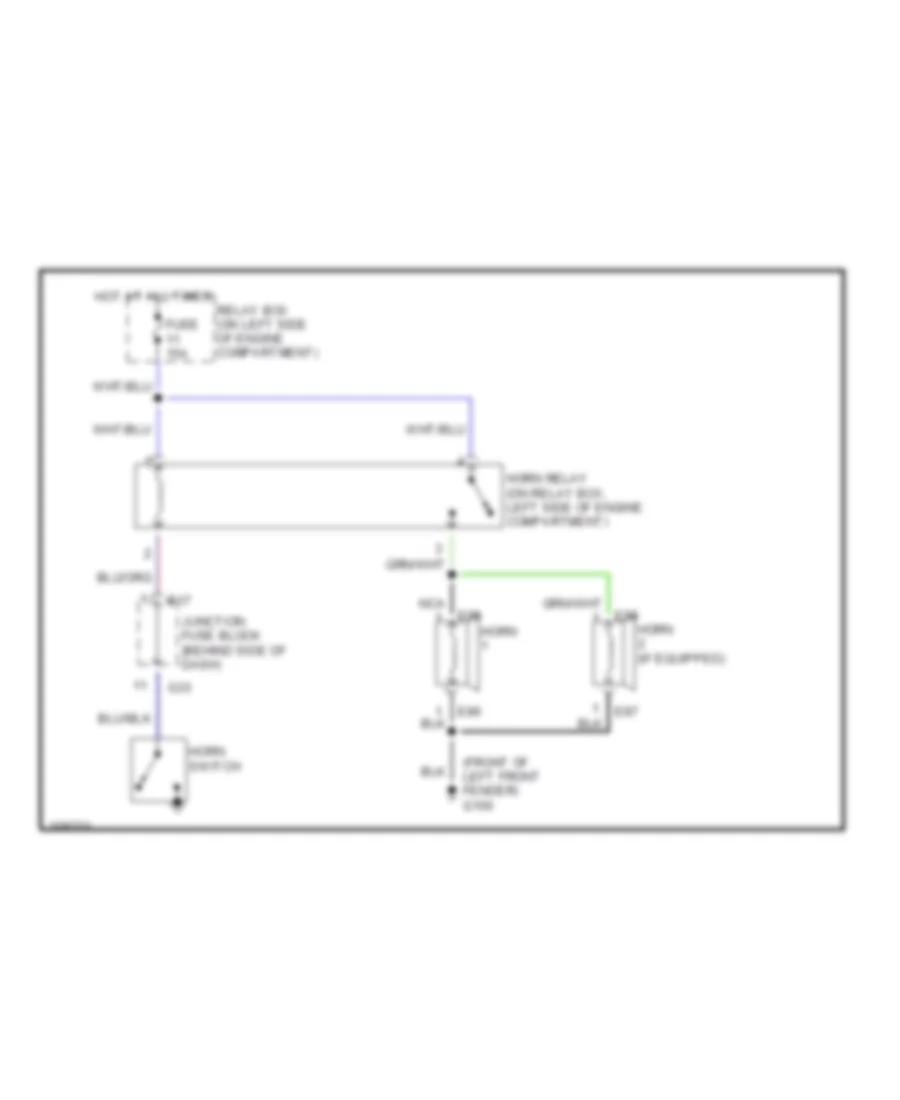

Horn Wiring Diagram for Suzuki Esteem GLX 1999

Horn Wiring Diagram for Suzuki Esteem GLX 1999 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Horn Wiring Diagram for Suzuki Esteem GLX 1999:

  • (front of left front fender) g100
  • E17
  • E85
  • E86
  • E87
  • E88
  • Fuse 15a
  • G33
  • Horn
  • Horn (if equipped)
  • Horn relay (on relay box, left side of engine compartment)
  • Horn switch
  • Hot at all times
  • Junction fuse block (behind side of dash)
  • Nca
  • Relay box (on left side of engine compartment)
