SUPPLEMENTAL RESTRAINTS

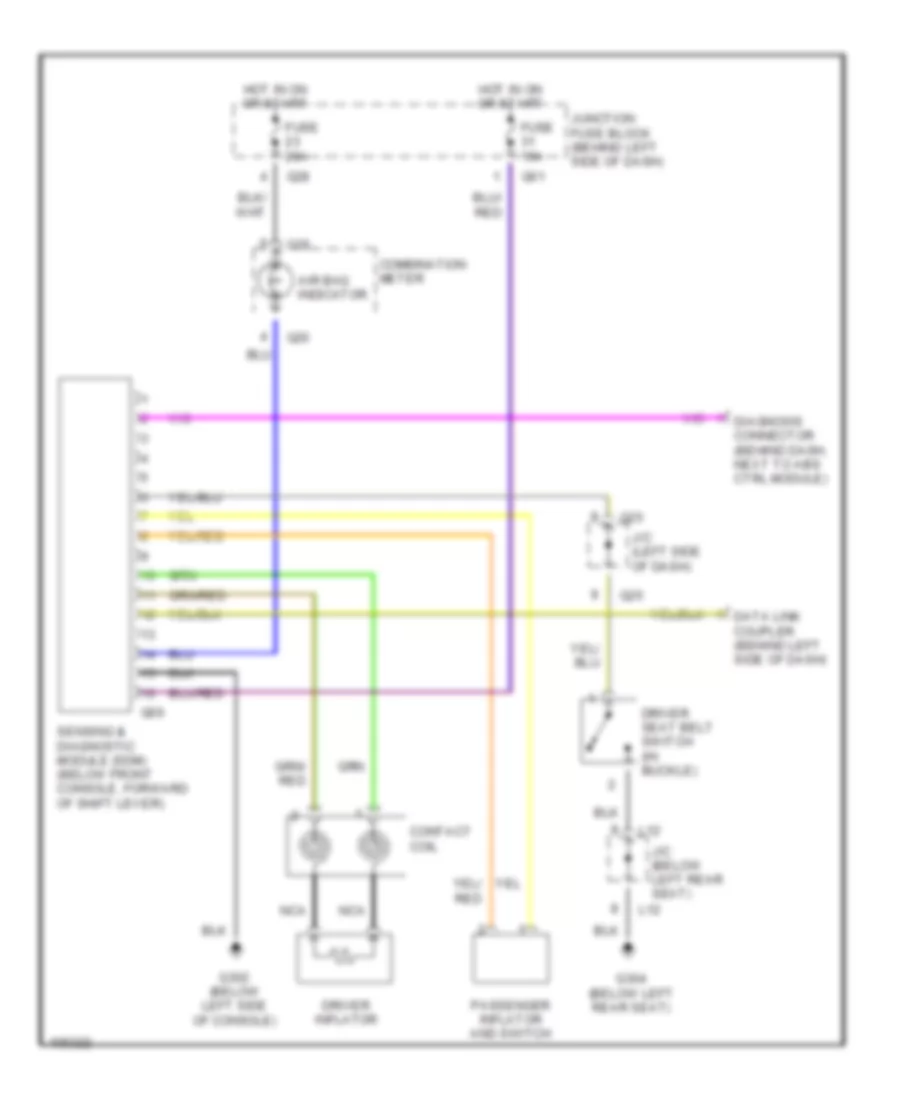

Supplemental Restraint Wiring Diagram for Suzuki Esteem GLX 1999

Supplemental Restraint Wiring Diagram for Suzuki Esteem GLX 1999 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Supplemental Restraint Wiring Diagram for Suzuki Esteem GLX 1999:

  • Air bag indicator
  • Combination meter
  • Contact coil
  • Data link coupler (behind left side of dash)
  • Diagnosis connector (behind dash, next to abs ctrl module)
  • Driver inflator
  • Driver seat belt switch (in buckle)
  • Fuse 15a
  • Fuse 20a
  • G19
  • G20
  • G25
  • G28
  • G302 (below left side of console)
  • G304 (below left rear seat)
  • Hot in on or start
  • J/c (below left rear seat)
  • J/c (left side of dash)
  • Junction fuse block (behind left side of dash)
  • L12
  • Nca
  • Passenger inflator and switch
  • Q01
  • Q06
  • Sensing & diagnostic module (sdm) (below front console, forward of shift lever)
