WARNING SYSTEMS – Suzuki Esteem GLX+ 1999 – SYSTEM WIRING DIAGRAMS

WARNING SYSTEMS

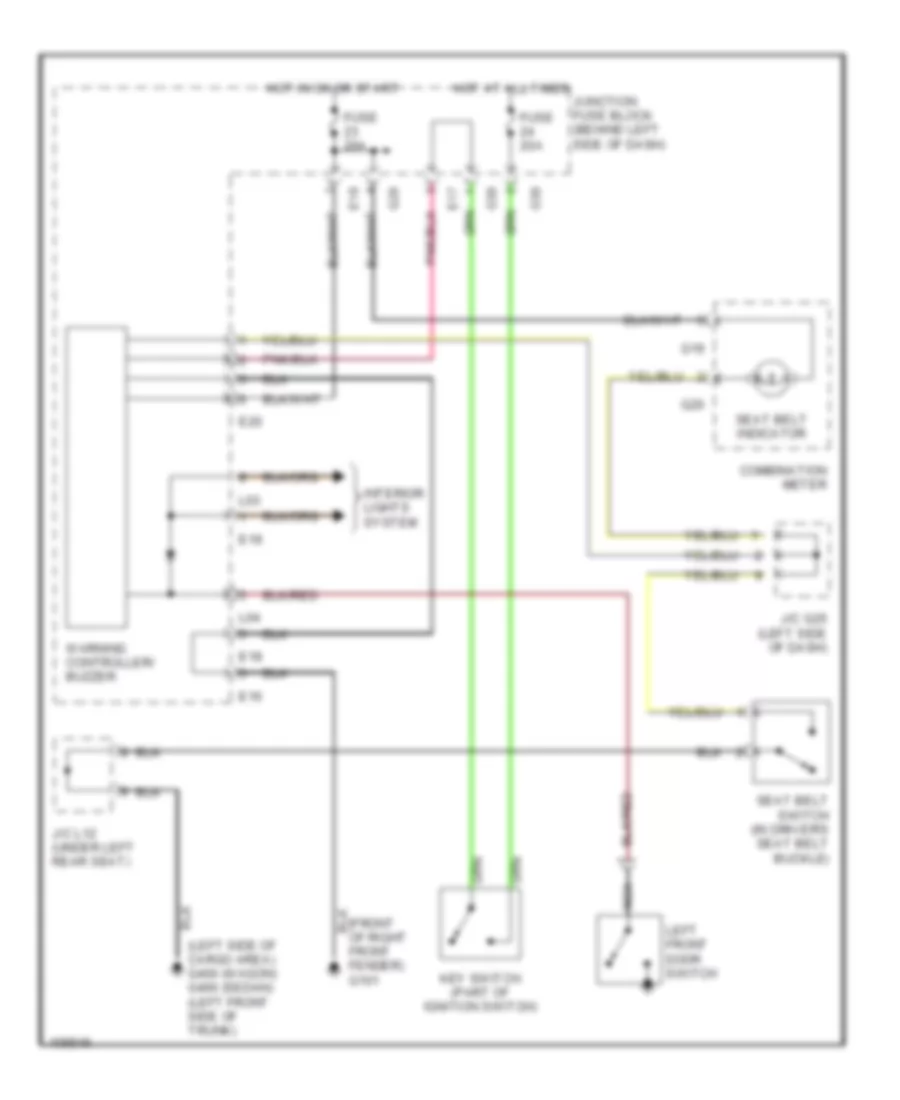

Warning System Wiring Diagrams for Suzuki Esteem GLX+ 1999

List of elements for Warning System Wiring Diagrams for Suzuki Esteem GLX+ 1999:

• (front of right front fender) g101
• (left side of cargo area) g400 (wagon) g400 (sedan) (left front side of trunk)
• Combination meter
• E16
• E17
• E18
• E19
• E20
• Fuse 20a
• G19
• G20
• G28
• G30
• Hot at all times
• Hot in on or start
• Interior lights system
• J/c g25 (left side of dash)
• J/c l12 (under left rear seat)
• Junction fuse block (behind left side of dash)
• Key switch (part of ignition switch)
• L03
• L04
• Left front door switch
• Nca
• Seat belt indicator
• Seat belt switch (in driver's seat belt buckle)
• Warning controller/ buzzer
