AIR CONDITIONING – Toyota Corolla LE 1998 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

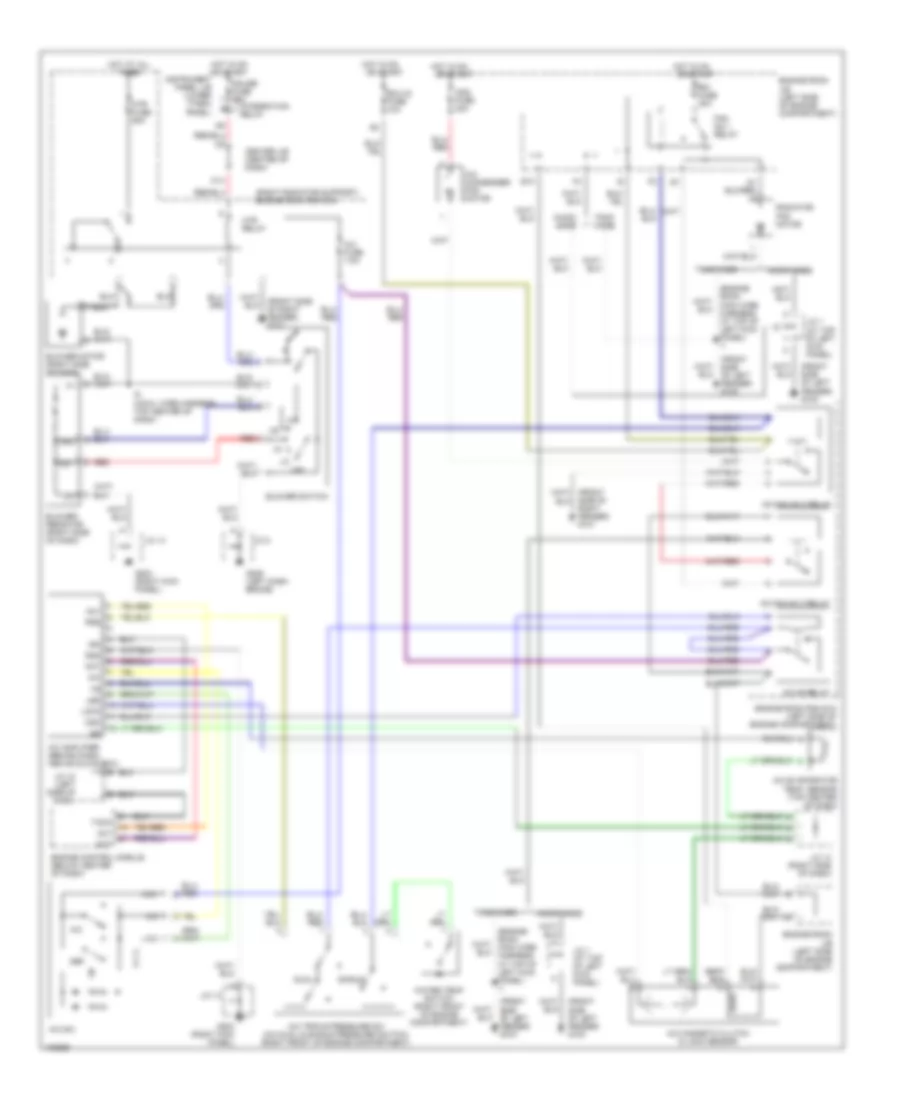

A/C Wiring Diagram for Toyota Corolla LE 1998

AC Wiring Diagram for Toyota Corolla LE 1998 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for A/C Wiring Diagram for Toyota Corolla LE 1998:

  • (engine room main wire harness, at top of left kick panel) i1
  • (front side of left fender) g100
  • (right radiator support) engine room r/b no.6
  • A/c
  • A/c amplifier (behind dash, above glove box)
  • A/c condenser fan motor
  • A/c evaporator temp. sensor (top center of dash)
  • A/c fuse 7.5a
  • A/c magnetic clutch & lock sensor
  • A/c sw
  • A/c triple pressure sw (a/c dual & single pressure switch) (right front of engine compartment)
  • A/c+
  • Ac fan no.2 relay
  • Ac fan no.3 relay
  • Ac mg relay
  • Ac1
  • Act
  • Blower motor (right side of dash)
  • Blower resistor (right side of dash)
  • Blower switch
  • C14
  • Cds fuse 30a
  • Center j/b (center of dash)
  • Def
  • Dual
  • E10
  • Ecu-ig fuse 10a
  • Engine control module (below center of dash)
  • Engine room j/b (left side of engine compartment)
  • Engine room r/b no.5 (left side of engine compartment)
  • Fan no.1 relay
  • G203 (right kick panel)
  • G206 (left dash brace)
  • Gauge fuse 10a
  • Gnd
  • Hot at all times
  • Hot in on
  • Hot in on or start
  • Htr fuse 50a
  • Htr relay
  • I6 (cowl wire harness, top center of dash)
  • Ign
  • Instrument panel j/b (lower finish panel)
  • Integration relay
  • J/c 1 (at top of left kick panel)
  • J/c 10 (left side of dash)
  • J/c 13 (right side of dash)
  • J/c 14
  • J/c 8
  • La/c
  • Led
  • Lock
  • Me1
  • Me2
  • Mgc
  • Nummi made
  • Off
  • Or start
  • Prs
  • Radiator fan motor
  • Rdi fuse 30a
  • Red
  • Side of right fender) g101
  • Single
  • Tach
  • Tmmc made
  • Water temp switch (right front of engine compartment)

Heater Wiring Diagram for Toyota Corolla LE 1998

Heater Wiring Diagram for Toyota Corolla LE 1998 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Heater Wiring Diagram for Toyota Corolla LE 1998:

  • (front side of right fender) g101
  • Blower motor (right side of dash)
  • Blower resistor (right side of dash)
  • Blower switch
  • C14
  • Center j/b (behind center of dash)
  • Engine room r/b no.6 (right radiator support)
  • G203 (right kick panel)
  • G206 (left dash brace)
  • Gauge fuse 10a
  • Hot at all times
  • Hot in on or start
  • Htr fuse 50a
  • Htr relay
  • I6 (cowl wire harness, top center of dash)
  • Instrument panel j/b (lower finish panel)
  • Integration relay
  • J/c 14
  • J/c 8
  • Me1
  • Me2
  • Off
  • Red
