VW PASSAT 2016 – Preparation for multimedia system, (9WM) . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW PASSAT
  4. >VW PASSAT 2016
  5. >VW PASSAT 2016 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

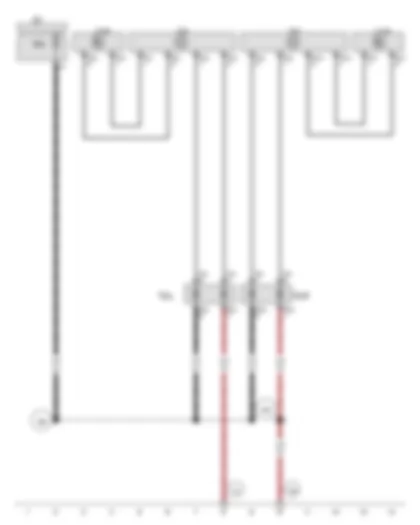

Wiring Diagram VW PASSAT 2016 - Control unit for iPad - Control unit 2 for iPad - Fuse holder H - Video socket - Video socket 2



Wiring Diagram VW PASSAT 2016 - Control unit for iPad - Control unit 2 for iPad - Fuse holder H - Video socket - Video socket 2 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
J1038 Control unit for iPad
J1109 Control unit 2 for iPad
SH Fuse holder H
SH5 Fuse 5 in fuse holder H
T2hk 2-pin connector, blue
T2hl 2-pin connector, blue
T2ri 2-pin connector, blue
T2rj 2-pin connector, black
T2rk 2-pin connector, black
T2rl 2-pin connector, blue
T2rm 2-pin connector, black
T2rn 2-pin connector, black
T4io 4-pin connector, black
T4ip 4-pin connector, black
TSVL Coupling point for front left seat
TSVR Coupling point for front right seat
U22 Video socket
U43 Video socket 2
  409 Earth connection 3, in rear right door wiring harness
  V66 Positive connection, in audio wiring harness


VW PASSAT 2016 Overview of fuse holders

Overview of fuse holders, estate

Overview of fuse holders, saloon
  Note:
The fitting locations are identical on LHD and RHD models.
VW PASSAT 2016 Overview of fuse holders https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
q   Fuse assignment, from April 2015
q   Fuse assignment, from April 2015
q   Fuse assignment, from September 2014
  Note:
Only models with hybrid drive system
q   Fitting location
q   Fuse assignment, from August 2015
q   Fuse assignment, from August 2015
q   Fuse assignment, from April 2015
q   Fitting location right-hand drive
q   Fuse assignment, from September 2014
q   Fuse assignment, from May 2015
q   Fitting location right-hand drive
q   Fuse assignment, from September 2014
q   Fuse assignment, from April 2015
q   Fuse assignment, from September 2014
q   Fuse assignment, from February 2015
q   Fitting location, only models with hybrid drive system
q   Fuse assignment, from September 2014
q   Fuse assignment, from August 2015, only models with hybrid drive system
q   Fuse assignment, from August 2015


Overview of fuse holders, estate
  Note:
The fitting locations are identical on LHD and RHD models.
VW PASSAT 2016 Overview of fuse holders https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder F -SF-
  Note:
Only for special vehicles
q   Fitting location
q   Fuse assignment, from April 2015
2 -  Fuse holder D -SD-
  Note:
Only models with battery at rear
q   Fitting location
q   Fuse assignment, from September 2014
3 -  Fuse holder J -SJ-
  Note:
Only for special vehicles
q   Fitting location
q   Fuse assignment, from April 2015
4 -  Fuse holder K -SK-
  Note:
Only for special vehicles
q   Fitting location
q   Fuse assignment, from April 2015
5 -  Fuse holder C -SC-
q   Fitting location left-hand drive
q   Fitting location right-hand drive
q   Fuse assignment, from September 2014
q   Fuse assignment, from May 2015
5 -  Front passenger seat adjustment thermal fuse 1 -S46-
q   Fitting location left-hand drive
q   Fitting location right-hand drive
q   Fuse assignment, from September 2014
6 -  Fuse holder H -SH-
q   Fitting location
q   Fuse assignment, from April 2015
7 -  Fuse holder B -SB-
q   Fitting location
q   Fuse assignment, from September 2014
q   Fuse assignment, from February 2015
8 -  Fuse holder A -SA-
q   Fitting location
q   Fuse assignment, from September 2014



VW PASSAT 2016 Fitting location, fuse holder F SF

Fitting location, fuse holder F -SF-
Fitting location of fuse holder F -SF- , only for special vehicles
  Note:
The fitting locations are identical on saloon and estate models.

VW PASSAT 2016 Fitting location, fuse holder F SF https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder F -SF-
Fuse colours for J-Case fuse:
t  50 A - red
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black
Fuse colours, for mini fuses:
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview



VW PASSAT 2016 Fuse assignment on fuse holder F SF

Fuse assignment on fuse holder F -SF-
Fuse assignment of fuse holder F -SF- , from April 2015, only for special vehicles
Slot Current flow diagram designation Nominal value Function/component Terminal
SF1 Fuse 1 on fuse holder F -SF1- 2) only Special vehicle fuse 1) 30
SF2 Fuse 2 on fuse holder F -SF2- 2) only Special vehicle fuse 1) 30
SF3 Fuse 3 on fuse holder F -SF3- 2) only Special vehicle fuse 1) 30
SF4 Fuse 4 on fuse holder F -SF4- 2) only Special vehicle fuse 1) 30
SF5 Fuse 5 on fuse holder F -SF5- 2) only Special vehicle fuse 1) 30
SF6 Fuse 6 on fuse holder F -SF6- 2) only Special vehicle fuse 1) 30
SF7 Fuse 7 on fuse holder F -SF7- 2) only Special vehicle fuse 1) 30
SF8 Fuse 8 on fuse holder F -SF8- 2) only Special vehicle fuse 1) 30
SF9 Fuse 9 on fuse holder F -SF9- 2) only Special vehicle fuse 1) 30
SF10 Fuse 10 on fuse holder F -SF10- 2) only Special vehicle fuse 1) 30
SF11 Fuse 11 on fuse holder F -SF11- 2) only Special vehicle fuse 1) 30
SF12 Fuse 12 on fuse holder F -SF12- 2) only Special vehicle fuse 1) 30
SF13 Fuse 13 on fuse holder F -SF13- 2) only Special vehicle fuse 1) 30
SF14 Fuse 14 on fuse holder F -SF14- 2) only Special vehicle fuse 1) 30
SF15 Fuse 15 on fuse holder F -SF15- 2) only Special vehicle fuse 1) 30

1) According to equipment
2) Fuse rating, see installation description for special installations
Back to overview



VW PASSAT 2016 Fitting location, fuse holder D SD

Fitting location, fuse holder D -SD-
Fitting location of fuse holder D -SD- , saloon, only models with battery at rear
VW PASSAT 2016 Fitting location, fuse holder D SD https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder D -SD-
A -  Supply 508 Threaded connection (30), on E-box

Back to overview

Fitting location of fuse holder D -SD- , estate, only models with battery at rear
VW PASSAT 2016 Fitting location, fuse holder D SD https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder D -SD-
A -  Supply 508 Threaded connection (30), on E-box

Back to overview

Fitting location of fuse holder D -SD- , only models with hybrid drive system
VW PASSAT 2016 Fitting location, fuse holder D SD https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder D -SD-

Back to overview



VW PASSAT 2016 Fuse assignment on fuse holder D SD

Fuse assignment on fuse holder D -SD-
Fuse assignment of fuse holder D -SD- , from September 2014, only models with battery at rear
Slot Current flow diagram designation Nominal value Function/component Terminal
SD1 Fuse 1 on fuse holder D -SD1- 80 A Supply for fuse 4 on fuse holder A -SA4-
t  Terminal 30
30
SD2 Fuse 2 on fuse holder D -SD2- 110 A Supply for fuse holder C -SC-
t  Terminal 30_2
t  Fuse 1 on fuse holder C -SC1-
t  Fuse 3 on fuse holder C -SC3-
t  Fuse 15 on fuse holder C -SC15- - Fuse 21 on fuse holder C -SC21-
t  Fuse 23 on fuse holder C -SC23- - Fuse 28 on fuse holder C -SC28-
t  Fuse 43 on fuse holder C -SC43- - Fuse 45 on fuse holder C -SC45-
t  Fuse 50 on fuse holder C -SC50-
30
SD3 Fuse 3 on fuse holder D -SD3- 110 A Supply for fuse holder C -SC-
t  Terminal 30_1
t  Fuse 2 on fuse holder C -SC2-
t  Fuse 4 on fuse holder C -SC4- - Fuse 14 on fuse holder C -SC14-
t  Fuse 22 on fuse holder C -SC22-
t  Fuse 31 on fuse holder C -SC31-
t  Fuse 38 on fuse holder C -SC38- - Fuse 39 on fuse holder C -SC39-
t  Fuse 41 on fuse holder C -SC41- - Fuse 42 on fuse holder C -SC42-
t  Fuse 46 on fuse holder C -SC46-
t  Fuse 51 on fuse holder C -SC51-
t  Fuse 53 on fuse holder C -SC53-
t  Relay for power sockets -J807-
t  Terminal 15 voltage supply relay -J329-
30

Back to overview

Fuse assignment of fuse holder D -SD- , from July 2014, only models with hybrid drive system
Slot Current flow diagram designation Nominal value Function/component Terminal
SD1 Fuse 1 on fuse holder D -SD1- 200 A 508 Threaded connection (30), on E-box 30
SD2 Not assigned -   -

Back to overview



VW PASSAT 2016 Fitting location of fuse holder J SJ

Fitting location of fuse holder J -SJ-
Fitting location of fuse holder J -SJ- , only for special vehicles
  Note:
The fitting locations are identical on saloon and estate models.
VW PASSAT 2016 Fitting location of fuse holder J SJ https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder J -SJ-
Fuse colours for J-Case fuse:
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
Fuse colours, for mini fuses:
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview



VW PASSAT 2016 Fuse assignment of fuse holder J SJ

Fuse assignment of fuse holder J -SJ-
Fuse assignment of fuse holder J -SJ- , from April 2015, only for special vehicles
Slot Current flow diagram designation Nominal value Function/component Terminal
SJ1 Fuse 1 on fuse holder J -SJ1- 2) only Special vehicle fuse 1) 30
SJ2 Fuse 2 on fuse holder J -SJ2- 2) only Special vehicle fuse 1) 30
SJ3 Fuse 3 on fuse holder J -SJ3- 2) only Special vehicle fuse 1) 30

1) According to equipment
2) Fuse rating, see installation description for special installations
Back to overview



VW PASSAT 2016 Fitting location of fuse holder in switching unit for high-voltage battery SX6

Fitting location of fuse holder in switching unit for high-voltage battery -SX6-
Fitting location of fuse holder in switching unit for high-voltage battery -SX6- , only models with hybrid drive system
VW PASSAT 2016 Fitting location of fuse holder in switching unit for high-voltage battery SX6 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Switching unit for high-voltage battery -SX6-
A -  High-voltage system fuse 1 -S350- , in switching unit for high-voltage battery -SX6-

Back to overview



VW PASSAT 2016 Fuse assignment of high-voltage system fuse 1 S350

Fuse assignment of high-voltage system fuse 1 -S350-
Fuse assignment of high-voltage system fuse 1 -S350- , from August 2015, only models with hybrid drive system
Screw location Current flow diagram designation Nominal value Function/component Terminal
1 High-voltage system fuse 1 -S350- 350 A High-voltage battery power contactor 1 -J1057- 30

Back to overview



VW PASSAT 2016 Fitting location of fuse holder K SK

Fitting location of fuse holder K -SK-
Fitting location of fuse holder K -SK- , only for special vehicles
  Note:
The fitting locations are identical on saloon and estate models.
VW PASSAT 2016 Fitting location of fuse holder K SK https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder K -SK-
Fuse colours for J-Case fuse:
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
Fuse colours, for mini fuses:
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview


VW PASSAT 2016 Fuse assignment of fuse holder K SK

Fuse assignment of fuse holder K -SK-
Fuse assignment of fuse holder K -SK- , from April 2015, only for special vehicles

Slot Current flow diagram designation Nominal value Function/component Terminal
SK1 Fuse 1 on fuse holder K -SK1- 2) only Special vehicle fuse 1) 30
SK2 Fuse 2 on fuse holder K -SK2- 2) only Special vehicle fuse 1) 30
SK3 Fuse 3 on fuse holder K -SK3- 2) only Special vehicle fuse 1) 30
SK4 Fuse 4 on fuse holder K -SK4- 2) only Special vehicle fuse 1) 30
SK5 Fuse 5 on fuse holder K -SK5- 2) only Special vehicle fuse 1) 30
SK6 Fuse 6 on fuse holder K -SK6- 2) only Special vehicle fuse 1) 30
SK7 Fuse 7 on fuse holder K -SK7- 2) only Special vehicle fuse 1) 30

1) According to equipment
2) Fuse rating, see installation description for special installations
Back to overview



VW PASSAT 2016 Fitting location of fuse holder C SC

Fitting location of fuse holder C -SC-
Fitting location of fuse holder C -SC- , left-hand drive models
VW PASSAT 2016 Fitting location of fuse holder C SC https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder C -SC-
Fuse colours for J-Case fuse:
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
Fuse colours, for mini fuses:
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview

Fitting location, fuse holder C -SC- , right-hand drive
VW PASSAT 2016 Fitting location of fuse holder C SC https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder C -SC-
Fuse colours for J-Case fuse:
t  50 A - red
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black
Fuse colours, for mini fuses:
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview

Fuse assignment of fuse holder C -SC-
Fuse assignment of fuse holder C -SC- , from September 2014
Slot Current flow diagram designation Nominal value Function/component Terminal
SC1 Fuse 1 on fuse holder C -SC1- 30 A Control unit for reducing-agent heater -J891- 30
SC2 Fuse 2 on fuse holder C -SC2- 10 A Steering column electronics control unit -J527-4) 30
SC3 Not assigned - -
SC4 Not assigned - -
SC5 Fuse 5 on fuse holder C -SC5- 5 A Data bus diagnostic interface -J533- 30
SC6 Fuse 6 on fuse holder C -SC6- 5 A Anti-theft alarm sensor -G578- 30
SC7 Fuse 7 on fuse holder C -SC7- 10 A Heater and air conditioning controls -EX21- 30
    Selector lever -E313-
    Remote control receiver for auxiliary coolant heater -R149-
    Heated rear window relay -J9-
    Analogue clock -Y-
    Operating and display unit for rear air conditioning system -E265-
      Tyre Pressure Monitoring System control unit -J502-
SC8 Fuse 8 on fuse holder C -SC8- 10 A Rotary light switch -EX1- 30
    Electromechanical parking brake button -E538-
    Rain and light sensor -G397-
    Diagnostic connection -U31-
    Front interior light -WX1-3)
    Light for left dashboard ambient lighting -L229-3)
    Light for right dashboard ambient lighting -L230-3)
    Light for front left door contour lighting -L251-3)
    Light for front right door contour lighting -L252-3)
    Light for rear left door contour lighting -L253-3)
      Light for rear right door contour lighting -L254-3)
SC9 Fuse 9 on fuse holder C -SC9- 1 A Steering column electronics control unit -J527- 30
SC10 Fuse 10 on fuse holder C -SC10- 10 A Display unit for front information display and operating unit control unit -J685- 30
      TV tuner -RX6-
SC11 Fuse 11 on fuse holder C -SC11- 25 A Control unit for front left belt tensioner -J854- 30
SC12 Fuse 12 on fuse holder C -SC12- 20 A Control unit 1 for information electronics -J794- 30
SC13 Fuse 13 on fuse holder C -SC13- 15 A Electronically controlled damping control unit -J250- 30
SC14 Fuse 14 on fuse holder C -SC14- 30 A Fresh air blower control unit -J126- 30
SC15 Fuse 15 on fuse holder C -SC15- 10 A Control unit for electronic steering column lock -J764- 30
SC16 Fuse 16 on fuse holder C -SC16- 7.5 A Two-way signal amplifier for mobile telephone/data services -J984- 30
    Storage compartment with interface for mobile telephone -R265-
    USB hub -R293-
      Chip card reader -D8-
SC17 Fuse 17 on fuse holder C -SC17- 5 A Dash panel insert -KX2- 30
SC18 Fuse 18 on fuse holder C -SC18- 7.5 A Reversing camera -R189- 30
    Rear lid handle release button -E234-
    Control unit for overhead view camera -J928-
      Rear overhead view camera -R246-
SC19 Fuse 19 on fuse holder C -SC19- 7.5 A Interface for entry and start system -J965- 30
SC20 Fuse 20 on fuse holder C -SC20- 7.5 A Relay for reducing agent metering system -J963- 30
SC21 Fuse 21 on fuse holder C -SC21- 15 A All-wheel drive control unit -J492- 30
SC22 Fuse 22 on fuse holder C -SC22- 15 A Trailer detector control unit -J345- 30
SC23 Fuse 23 on fuse holder C -SC23- 40 A Onboard supply control unit -J519-
t  Front right headlight -MX2-
30
SC24 Fuse 24 on fuse holder C -SC24- 30 A Sliding sunroof adjustment control unit -J245- 30
SC25 Fuse 25 on fuse holder C -SC25- 30 A Driver door control unit -J386- 1) 30
    Front passenger door control unit -J387-2) 30
    Rear left door control unit -J388-
    Rear left window regulator motor -V26-
SC26 Fuse 26 on fuse holder C -SC26- 30 A Onboard supply control unit -J519-
t  Seat heating
30
SC27 Fuse 27 on fuse holder C -SC27- 30 A Digital sound package control unit -J525- 30
SC28 Fuse 28 on fuse holder C -SC28- 20 A Trailer detector control unit -J345- 30
SC29 Not assigned - -
SC30 Not assigned - -
SC31 Fuse 31 on fuse holder C -SC31- 40 A Onboard supply control unit -J519-
t  Front left headlight -MX1-
30
SC32 Fuse 32 on fuse holder C -SC32- 7.5 A Front camera for driver assist systems -R242- 15
  10 A 5) Adaptive cruise control unit -J428-
    Parking aid control unit -J446-
    Park assist steering control unit -J791-
    Blind Spot Monitor control unit -J1086-
      Blind Spot Monitor control unit 2 -J1087-
SC33 Fuse 33 on fuse holder C -SC33- 5 A Airbag control unit -J234- 15
      Front passenger airbag deactivated warning lamp -K145-
SC34 Fuse 34 on fuse holder C -SC34- 7.5 A Electromechanical parking brake button -E538- 15
    Interior mirror -EX5-
    Relay for power sockets -J807-
    Pedestrian protection warning lamp -K288-
    Switch module 2 in centre console -EX30-
    Pressure sender for refrigerant circuit -G805-
    Air quality sensor -G238-
SC35 Fuse 35 on fuse holder C -SC35- 10 A Diagnostic connection -U31- 15
    Headlight range control and instrument illumination regulator -EX14-
    Control unit for cornering light and headlight range control -J745-
    Front left headlight -MX1-
t  Left headlight range control motor -V48-
      Front right headlight -MX2-
t  Right headlight range control motor -V49-

SC36 Fuse 36 on fuse holder C -SC36- 5 A Front left headlight -MX1-
t  Output module 1 for left LED headlight -A31-
15
SC37 Fuse 37 on fuse holder C -SC37- 5 A Front right headlight -MX2-
t  Output module 1 for right LED headlight -A27-
15
SC38 Fuse 38 on fuse holder C -SC38- 25 A Trailer detector control unit -J345- 30
SC39 Fuse 39 on fuse holder C -SC39- 30 A Front passenger door control unit -J387-1) 30
    Driver door control unit -J386- 2)
    Rear right door control unit -J389- 30
      Rear right window regulator motor -V27-
SC40 6) , 7) Fuse 40 on fuse holder C -SC40- 20 A Cigarette lighter -U1- 3) 15 6) / 30 7)
    12 V socket -U5- 3)
    12 V socket 2 -U18-
      12 V socket 3 -U19-
SC41 Fuse 41 on fuse holder C -SC41- 25 A Control unit for front right belt tensioner -J855- 30
SC42 Fuse 42 on fuse holder C -SC42- 40 A Onboard supply control unit -J519-
t  Central locking
30
SC43 Fuse 43 on fuse holder C -SC43- 30 A Onboard supply control unit -J519- 30
SC44 Fuse 44 on fuse holder C -SC44- 15 A Trailer detector control unit -J345- 30
SC45 Fuse 45 on fuse holder C -SC45- 15 A Driver seat lumbar support adjustment switch -E176- 30
    Driver seat adjustment operating unit -E470-
    Driver seat adjustment control unit -J810-
    Operating unit for front left seat adjustment -EX33-
    Massage control unit -J740-
    Front left seat cushion fan 1 -V514-
      Front left seat backrest fan 1 -V512-
SC46 Fuse 46 on fuse holder C -SC46- 30 A DC/AC converter with socket, 12 V - 230 V -U13- 30
SC47 Fuse 47 on fuse holder C -SC47- 15 A Rear window wiper motor -V12- 15
    7.5 A Rear roller blind control unit -J262-
SC48 Not assigned - -
SC49 Fuse 49 on fuse holder C -SC49- 5 A Clutch position sender -G476- 15
    Starter relay 1 -J906-
      Starter relay 2 -J907-
SC50 Fuse 50 on fuse holder C -SC50- 40 A Rear lid control unit -J605- 30
SC51 Fuse 51 on fuse holder C -SC51- 25 A Operating and display unit for rear air conditioning system -E265- 30
SC52 Not assigned -
SC53 Fuse 53 on fuse holder C -SC53- 30 A Heated rear window relay -J9- 15

1) Only left-hand drive models
2) Only right-hand drive models
3) Depending on equipment
4) Only models with heated steering wheel
5) Only models with blind spot monitor
6) Factory fitted with power supply from terminal 15
7) Power supply via terminal 30 possible
  Note:
The fuse SC40 is supplied via terminal 15 from the factory and can be supplied via terminal 30 by reconnecting. If a consumer is connected to the electric socket or to the cigarette lighter, ensure that the consumer is disconnected from the voltage supply when the engine is switched off to prevent the drive battery being discharged.
Back to overview

Fuse assignment of fuse holder C -SC- , from May 2015
Slot Current flow diagram designation Nominal value Function/component Terminal
SC1 Fuse 1 on fuse holder C -SC1- 30 A Control unit for reducing-agent heater -J891- 30
SC2 Fuse 2 on fuse holder C -SC2- 10 A Steering column electronics control unit -J527-4) 30
SC3 Fuse 3 on fuse holder C -SC3- 8) only Special vehicle fuse -
SC4 Not assigned - -
SC5 Fuse 5 on fuse holder C -SC5- 5 A Data bus diagnostic interface -J533- 30
SC6 Fuse 6 on fuse holder C -SC6- 5 A Selector lever -E313- 30
SC7 Fuse 7 on fuse holder C -SC7- 10 A Heater and air conditioning controls -EX21- 30
    Remote control receiver for auxiliary coolant heater -R149-
    Heated rear window relay -J9-
    Analogue clock -Y-
    Operating and display unit for rear air conditioning system -E265-
      Tyre Pressure Monitoring System control unit -J502-
SC8 Fuse 8 on fuse holder C -SC8- 10 A Rotary light switch -EX1- 30
    Electromechanical parking brake button -E538-
    Rain and light sensor -G397-
    Diagnostic connection -U31-
    Anti-theft alarm sensor -G578-
    Front interior light -WX1-3)
    Light for left dashboard ambient lighting -L229-3)
    Light for right dashboard ambient lighting -L230-3)
    Light for front left door contour lighting -L251-3)
    Light for front right door contour lighting -L252-3)
    Light for rear left door contour lighting -L253-3)
      Light for rear right door contour lighting -L254-3)
SC9 Fuse 9 on fuse holder C -SC9- 5 A Steering column electronics control unit -J527- 30
SC10 Fuse 10 on fuse holder C -SC10- 10 A Display unit for front information display and operating unit control unit -J685- 30
    TV tuner -RX6-
    8) only Special vehicle fuse
SC11 Fuse 11 on fuse holder C -SC11- 25 A Control unit for front left belt tensioner -J854- 30
SC12 Fuse 12 on fuse holder C -SC12- 20 A Control unit 1 for information electronics -J794- 30
SC13 Fuse 13 on fuse holder C -SC13- 15 A Electronically controlled damping control unit -J250- 30
SC14 Fuse 14 on fuse holder C -SC14- 30 A Fresh air blower control unit -J126- 30
SC15 Fuse 15 on fuse holder C -SC15- 10 A Control unit for electronic steering column lock -J764- 30
SC16 Fuse 16 on fuse holder C -SC16- 7.5 A Two-way signal amplifier for mobile telephone/data services -J984- 30
    Storage compartment with interface for mobile telephone -R265-
    USB hub -R293-
    Chip card reader -D8-
      Control unit for heads-up display -J898-
SC17 Fuse 17 on fuse holder C -SC17- 5 A
7.5A9)		 Dash panel insert -KX2- 30
      Emergency call module control unit and communication unit -J949-9)
SC18 Fuse 18 on fuse holder C -SC18- 7.5 A Reversing camera -R189- 30
    Rear lid handle release button -E234-
    Control unit for overhead view camera -J928-
      Rear overhead view camera -R246-
SC19 Fuse 19 on fuse holder C -SC19- 7.5 A Interface for entry and start system -J965- 30
SC20 Fuse 20 on fuse holder C -SC20- 7.5 A Relay for reducing agent metering system -J963- 30
SC21 Fuse 21 on fuse holder C -SC21- 15 A All-wheel drive control unit -J492- 30
SC22 Fuse 22 on fuse holder C -SC22- 15 A Trailer detector control unit -J345- 30
SC23 Fuse 23 on fuse holder C -SC23- 40 A Onboard supply control unit -J519-
t  Front right headlight -MX2-
30
SC24 Fuse 24 on fuse holder C -SC24- 30 A Sliding sunroof adjustment control unit -J245- 30
SC25 Fuse 25 on fuse holder C -SC25- 30 A Driver door control unit -J386- 1) 30
    Front passenger door control unit -J387-2) 30
    Rear left door control unit -J388-
    Rear left window regulator motor -V26-
SC26 Fuse 26 on fuse holder C -SC26- 30 A Onboard supply control unit -J519-
t  Seat heating
30
SC27 Fuse 27 on fuse holder C -SC27- 30 A Digital sound package control unit -J525- 30
SC28 Fuse 28 on fuse holder C -SC28- 25 A Trailer detector control unit -J345- 30
SC29 Fuse 29 on fuse holder C -SC29- 8) only Special vehicle fuse -
SC30 Fuse 30 on fuse holder C -SC30- 10A High-voltage battery 1 -AX2-9) -
      Maintenance connector for high-voltage system -TW-9)
SC31 Fuse 31 on fuse holder C -SC31- 40 A Onboard supply control unit -J519-
t  Front left headlight -MX1-
30
SC32 Fuse 32 on fuse holder C -SC32- 7.5 A Front camera for driver assist systems -R242- 15
  10 A 5) Adaptive cruise control unit -J428-
    Parking aid control unit -J446-
    Park assist steering control unit -J791-
    Blind Spot Monitor control unit -J1086-
      Blind Spot Monitor control unit 2 -J1087-
SC33 Fuse 33 on fuse holder C -SC33- 5 A Airbag control unit -J234- 15
      Front passenger airbag deactivated warning lamp -K145-
SC34 Fuse 34 on fuse holder C -SC34- 7.5 A Electromechanical parking brake button -E538- 15
    Interior mirror -EX5-
    Relay for power sockets -J807-
    Pedestrian protection warning lamp -K288-
    Switch module 2 in centre console -EX30-
    Pressure sender for refrigerant circuit -G805-
    Air quality sensor -G238-
SC35 Fuse 35 on fuse holder C -SC35- 10 A Diagnostic connection -U31- 15
    Headlight range control and instrument illumination regulator -EX14-
    Control unit for cornering light and headlight range control -J745-
    Front left headlight -MX1-
t  Left headlight range control motor -V48-
      Front right headlight -MX2-
t  Right headlight range control motor -V49-

SC36 Fuse 36 on fuse holder C -SC36- 5 A Front left headlight -MX1-
t  Output module 1 for left LED headlight -A31-
15
SC37 Fuse 37 on fuse holder C -SC37- 5 A Front right headlight -MX2-
t  Output module 1 for right LED headlight -A27-
15
SC38 Fuse 38 on fuse holder C -SC38- 25 A Trailer detector control unit -J345- 30
SC39 Fuse 39 on fuse holder C -SC39- 30 A Front passenger door control unit -J387-1) 30
    Driver door control unit -J386- 2)
    Rear right door control unit -J389- 30
      Rear right window regulator motor -V27-
SC40 6) , 7) Fuse 40 on fuse holder C -SC40- 20 A Cigarette lighter -U1- 3) 15 6) / 30 7)
    12 V socket -U5- 3)
    12 V socket 2 -U18-
      12 V socket 3 -U19-
SC41 Fuse 41 on fuse holder C -SC41- 25 A Control unit for front right belt tensioner -J855- 30
SC42 Fuse 42 on fuse holder C -SC42- 40 A Onboard supply control unit -J519-
t  Central locking
30
SC43 Fuse 43 on fuse holder C -SC43- 30 A Onboard supply control unit -J519- 30
SC44 Fuse 44 on fuse holder C -SC44- 15 A Trailer detector control unit -J345- 30
SC45 Fuse 45 on fuse holder C -SC45- 15 A Driver seat lumbar support adjustment switch -E176- 30
    Driver seat adjustment operating unit -E470-
    Driver seat adjustment control unit -J810-
    Operating unit for front left seat adjustment -EX33-
    Massage control unit -J740-
    Front left seat cushion fan 1 -V514-
      Front left seat backrest fan 1 -V512-
SC46 Fuse 46 on fuse holder C -SC46- 30 A DC/AC converter with socket, 12 V - 230 V -U13- 30
SC47 Fuse 47 on fuse holder C -SC47- 15 A Rear window wiper motor -V12- 15
    7.5 A Rear roller blind control unit -J262-3)
SC48 Fuse 48 on fuse holder C -SC48- 7.5A Engine sound generator control unit -J943-9) -
SC49 Fuse 49 on fuse holder C -SC49- 5 A Clutch position sender -G476- 15
    Starter relay 1 -J906-
    Starter relay 2 -J907-
      High-voltage battery 1 -AX2-9)
SC50 Fuse 50 on fuse holder C -SC50- 40 A Rear lid control unit -J605- 30
SC51 Fuse 51 on fuse holder C -SC51- 25 A Operating and display unit for rear air conditioning system -E265- 30
SC52 Not assigned -
SC53 Fuse 53 on fuse holder C -SC53- 30 A Heated rear window relay -J9- 15

1) Only left-hand drive models
2) Only right-hand drive models
3) Depending on equipment
4) Only models with heated steering wheel
5) Only models with blind spot monitor
6) Factory fitted with power supply from terminal 15
7) Power supply via terminal 30 possible
8) Fuse rating, see installation description for special equipment
9) Only models with hybrid drive system
  Note:
The fuse SC40 is supplied via terminal 15 from the factory and can be supplied via terminal 30 by reconnecting. If a consumer is connected to the electric socket or to the cigarette lighter, ensure that the consumer is disconnected from the voltage supply when the engine is switched off to prevent the drive battery being discharged.
Back to overview



VW PASSAT 2016 Fitting location of front passenger seat adjustment thermal fuse 1 S46

Fitting location of front passenger seat adjustment thermal fuse 1 -S46-
Fitting location of front passenger seat adjustment thermal fuse 1 -S46- , left-hand drive models
VW PASSAT 2016 Fitting location of front passenger seat adjustment thermal fuse 1 S46 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder for front passenger seat adjustment thermal fuse 1 -S46-
q   behind fuse holder C -SC-
2 -  Not assigned
q   behind fuse holder C -SC-
A -  Front passenger seat adjustment thermal fuse 1 -S46-
B -  Not assigned

Back to overview

Fitting location of front passenger seat adjustment thermal fuse 1 -S46- , right-hand drive models
VW PASSAT 2016 Fitting location of front passenger seat adjustment thermal fuse 1 S46 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder for front passenger seat adjustment thermal fuse 1 -S46-
q   behind fuse holder C -SC-
2 -  Not assigned
q   behind fuse holder C -SC-
A -  Front passenger seat adjustment thermal fuse 1 -S46-
B -  Not assigned

Back to overview

Fuse assignment of front passenger seat adjustment thermal fuse 1 -S46-
Fuse assignment of front passenger seat adjustment thermal fuse 1 -S46- , from September 2014
Slot Current flow diagram designation Nominal value Function/component Terminal
A Front passenger seat adjustment thermal fuse 1 -S46- 15 A Operating unit for front right seat adjustment -EX34- 30
      Front right lumbar support adjustment switch -E753-
      Front right seat cushion fan 1 -V518-
      Front right seat backrest fan 1 -V516-
B Not assigned -   -

Back to overview



VW PASSAT 2016 Fitting location of fuse holder H SH

Fitting location of fuse holder H -SH-
Fitting location of fuse holder H -SH-
  Note:
The fitting locations are identical on saloon and estate models.
VW PASSAT 2016 Fitting location of fuse holder H SH https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder H -SH-
Fuse colours for J-Case fuse:
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
Fuse colours, for mini fuses:
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview


VW PASSAT 2016 Fuse assignment on fuse holder H SH

Fuse assignment on fuse holder H -SH-
Fuse assignment of fuse holder H -SH- , from April 2015

Slot Current flow diagram designation Nominal value Function/component Terminal
SH1 Fuse 1 in fuse holder H -SH1- 2) only Special vehicle fuse 1) 30
SH2 Fuse 2 in fuse holder H -SH2- 2) only Special vehicle fuse 1) 30
SH3 Fuse 3 in fuse holder H -SH3- 2) only Special vehicle fuse 1) 30
SH4 Fuse 4 in fuse holder H -SH4- 2) only Special vehicle fuse 1) 30
SH5 Fuse 5 in fuse holder H -SH5- 7.5 A Video socket -U22- 30
      Video socket 2 -U43-
SH6 Not assigned
SH7 Not assigned
SH8 Not assigned
SH9 Not assigned
SH10 Not assigned
SH11 Not assigned
SH12 Not assigned

1) According to equipment
2) Fuse rating, see installation description for special installations
Back to overview


VW PASSAT 2016 Fitting location of fuse holder B SB

Fitting location of fuse holder B -SB-
Fitting location of fuse holder B -SB-
  Note:
The fitting locations are identical on LHD and RHD models.

VW PASSAT 2016 Fitting location of fuse holder B SB https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder B -SB-
Fuse colours for J-Case fuse:
t  50 A - red
t  40 A - green
t  30 A - pink
Fuse colours for ATO flat fuse:
t  40 A - orange
t  30 A - light green
t  25 A - natural (white)
t  20 A - yellow
t  15 A - light blue
t  10 A - red
t  7.5 A - brown
t  5 A - light brown
t  1A - black

Back to overview



VW PASSAT 2016 Fuse assignment on fuse holder B SB

Fuse assignment on fuse holder B -SB-
Fuse assignment of fuse holder B -SB- , from September 2014
Slot Current flow diagram designation Nominal value Function/component Terminal
SB1 Fuse 1 on fuse holder B -SB1- 40 A ABS control unit -J104- 30
SB2 Fuse 2 on fuse holder B -SB2- 40 A ABS control unit -J104-
t  ABS hydraulic pump -V64-
30
SB3 Fuse 3 on fuse holder B -SB3- 15 A1)
30 A3)		 Engine control unit -J623- 87
SB4 Fuse 4 on fuse holder B -SB4- 10 A2)
5 A3)		 Radiator fan -VX57- 87
    Oil level and oil temperature sender -G266-
    Relay for reducing agent metering system -J963-4)
    High heat output relay -J360-3)
    Low heat output relay -J359-3)
    Charge pressure positioner -V465-1)
    Activated charcoal filter solenoid valve 1 -N80-1)
    Exhaust camshaft control valve 1 -N318-1)
    Camshaft control valve 1 -N205-1)
    Valve for oil pressure control -N428-
    Inlet cam actuator for cylinder 2 -N583-2)
    Exhaust cam actuator for cylinder 2 -N587-2)
    Inlet cam actuator for cylinder 3 -N591-2)
    Exhaust cam actuator for cylinder 3 -N595-2)
    Fuel cooling valve -N289-3)
    Exhaust gas recirculation cooler changeover valve -N345-3)
    Charge pressure control solenoid valve -N75-3)
SB5 Fuse 5 on fuse holder B -SB5- 10 A Fuel pressure regulating valve -N276-3) 87
    Fuel metering valve -N290-3)
    Camshaft control valve 1 -N205-3)
SB6 Fuse 6 on fuse holder B -SB6- 5 A Brake light switch -F- 87
SB7 Fuse 7 on fuse holder B -SB7- 10 A1),3)
15 A4)		 Fuel metering valve -N290-1) 87
    Circulation pump -V55-1)
    Radiator blind control motor -V544-3)
    Coolant valve for cylinder head -N489-3)
    Valve for oil pressure control -N428-3)
    Exhaust gas recirculation cooler changeover valve -N345-3)
    Charge pressure positioner -V465-4)
    Charge air cooling pump -V188-4)
      Auxiliary pump for heating -V488-4)
SB8 Fuse 8 on fuse holder B -SB8- 10 A1)
15 A3) 		Lambda probe 1 before catalytic converter -GX10-
t  Lambda probe heater -Z19-
87
    Lambda probe 1 after catalytic converter -GX7-
t  Lambda probe 1 heater after catalytic converter -Z29-

      NOx sender -G295-4)
SB9 Fuse 9 on fuse holder B -SB9- 20 A1)
5 A3)		 Ignition coil 1 with output stage -N70-1) 87
    Ignition coil 2 with output stage -N127-1)
    Ignition coil 3 with output stage -N291-1)
    Ignition coil 4 with output stage -N292-1)
    Heater element for crankcase breather -N79-
    Automatic glow period control unit -J179-
    Air mass meter -G70-
SB10 Fuse 10 on fuse holder B -SB10- 20 A 7)
10 A 7)		 Fuel pump control unit -J538- 87
SB11 Fuse 11 on fuse holder B -SB11- 40 A Auxiliary air heater element -Z35- 87
SB12 Fuse 12 on fuse holder B -SB12- 40 A Auxiliary air heater element -Z35- 87
SB13 Fuse 13 on fuse holder B -SB13- 30 A Mechatronic unit for dual clutch gearbox -J743- 7)
t  Dual clutch gearbox 0CW
30
  15 A Mechatronic unit for dual clutch gearbox -J743- 7)
t  Dual clutch gearbox 0D9
SB14 Fuse 14 on fuse holder B -SB14- 40 A Heated windscreen relay -J47- 30
SB15 Fuse 15 on fuse holder B -SB15- 15 A Horn relay -J413- 30
SB16 Not assigned - -
SB17 Fuse 17 on fuse holder B -SB17- 7.5 A Main relay -J271- 1) 30
    Terminal 30 voltage supply relay -J317- 3)
    Engine control unit -J623-
    ABS control unit -J104-
      Heated windscreen relay -J47-
SB18 Fuse 18 on fuse holder B -SB18- 5 A Battery monitor control unit -J367-5) 30
      Data bus diagnostic interface -J533- 7)
SB19 Fuse 19 on fuse holder B -SB19- 30 A Wiper motor control unit -J400-5) 30
SB20 Fuse 20 on fuse holder B -SB20- 10 A Alarm horn -H12- 30
SB21 Not assigned - -
SB22 Fuse 22 on fuse holder B -SB22- 5 A Engine control unit -J623- 50
SB23 Fuse 23 on fuse holder B -SB23- 30 A Starter -B- 50
SB24 Fuse 24 on fuse holder B -SB24- 40 A Auxiliary air heater element -Z35- 87
SB25 Not assigned - -
SB26 Not assigned - -
SB27 Not assigned - -
SB28 Not assigned - -
SB29 Not assigned - -
SB30 Not assigned - -
SB31 Not assigned - -
SB32 Not assigned - -
SB33 Fuse 33 on fuse holder B -SB33- 15 A Mechatronic unit for dual clutch gearbox -J743- 7)
t  Dual clutch gearbox 0DL
30
SB34 Not assigned - -
SB35 Fuse 35 on fuse holder B -SB35- 30 A Wiper motor control unit -J400-6) 30
SB36 Not assigned - -
SB37 Fuse 37 on fuse holder B -SB37- 20 A Auxiliary heater control unit -J364- 30
SB38 Not assigned - -

1) Only models with petrol engine
2) Only models with petrol engine and active cylinder management (ACT)
3) Only models with diesel engine
4) Only models with diesel engine and reducing agent metering system (SCR)
5) Only models with battery at front
6) Only models with battery at rear
7) Depending on equipment
Back to overview

Fuse assignment of fuse holder B -SB- , from February 2015
Slot Current flow diagram designation Nominal value Function/component Terminal
SB1 Fuse 1 on fuse holder B -SB1- 40 A ABS control unit -J104- 30
SB2 Fuse 2 on fuse holder B -SB2- 40 A ABS control unit -J104-
t  ABS hydraulic pump -V64-
30
SB3 Fuse 3 on fuse holder B -SB3- 15 A1), 10)
30 A3)		 Engine control unit -J623- 87
SB4 Fuse 4 on fuse holder B -SB4- 10 A2), 8), 10)
5 A3)		 Radiator fan -VX57- 87
    Oil level and oil temperature sender -G266-
    Relay for reducing agent metering system -J963-4)
    High heat output relay -J360-3)
    Low heat output relay -J359-3)
    Charge pressure positioner -V465-1)
    Activated charcoal filter solenoid valve 1 -N80-1)
    Exhaust camshaft control valve 1 -N318-1)
    Camshaft control valve 1 -N205-1)
    Valve for oil pressure control -N428-
    Inlet cam actuator for cylinder 2 -N583-2)
    Exhaust cam actuator for cylinder 2 -N587-2)
    Inlet cam actuator for cylinder 3 -N591-2)
    Exhaust cam actuator for cylinder 3 -N595-2)
    Fuel cooling valve -N289-3)
    Exhaust gas recirculation cooler changeover valve -N345-3)
    Intake manifold flap valve -N316-8)
    Charge pressure control solenoid valve -N75-3)
    Turbocharger air recirculation valve -N249-8)
      Power steering control unit -J500-8)
SB5 Fuse 5 on fuse holder B -SB5- 10 A Fuel pressure regulating valve -N276-3) 87
    Fuel metering valve -N290-3)
    Camshaft control valve 1 -N205-3)
    Exhaust cam actuator A for cylinder 1 -N580-8)
    Exhaust cam actuator B for cylinder 1 -N581-8)
    Exhaust cam actuator A for cylinder 2 -N588-8)
    Exhaust cam actuator B for cylinder 2 -N589-8)
    Exhaust cam actuator A for cylinder 3 -N596-8)
    Exhaust cam actuator B for cylinder 3 -N597-8)
    Exhaust cam actuator A for cylinder 4 -N604-8)
    Exhaust cam actuator B for cylinder 4 -N605-8)
    Injector, cylinder 1 -N30-8)
    Injector, cylinder 2 -N31-8)
    Injector, cylinder 3 -N32-8)
    Injector, cylinder 4 -N33-8)
    Engine component current supply relay -J757-8)
      Coolant valve for gearbox -N488-10)
    Coolant pump for high-voltage battery -V590-10)
    Coolant pump for high-temperature circuit -V467-10)
SB6 Fuse 6 on fuse holder B -SB6- 5 A Brake light switch -F- 87
SB7 Fuse 7 on fuse holder B -SB7- 10 A1),3)
15 A4), 10)
7.5 A8)		 Fuel metering valve -N290-1) 87
    Circulation pump -V55-1)
    Radiator blind control motor -V544-3)
    Coolant valve for cylinder head -N489-3)
    Valve for oil pressure control -N428-3)
    Exhaust gas recirculation cooler changeover valve -N345-3)
    Charge pressure positioner -V465-4)
    Coolant pump for high-temperature circuit -V467-4)
    Charge air cooling pump -V188-4)
    Coolant valve for gearbox -N488-7), 8)
    Coolant shut-off valve -N82-7), 8)
    Gearbox oil cooling pump -V478-7), 8)
      Fuel pressure regulating valve -N276-10)
      Coolant changeover valve 2 -N633-10)
      Coolant changeover valve 1 -N632-10)
      Coolant pump for low-temperature circuit -V468-10)
SB8 Fuse 8 on fuse holder B -SB8- 10 A1)
15 A3), 8), 10)		 Lambda probe 1 before catalytic converter -GX10-
t  Lambda probe heater -Z19-
87
    Lambda probe 1 after catalytic converter -GX7-
t  Lambda probe 1 heater after catalytic converter -Z29-

      NOx sender -G295-4)
SB9 Fuse 9 on fuse holder B -SB9- 20 A1), 10)
5 A3)
10 A 8)		 Ignition coil 1 with output stage -N70-1), 10) 87
    Ignition coil 2 with output stage -N127-1), 10)
    Ignition coil 3 with output stage -N291-1), 10)
    Ignition coil 4 with output stage -N292-1), 10)
    Heater element for crankcase breather -N79-
    Automatic glow period control unit -J179-3)
    Air mass meter -G70-
    Charge air cooling pump -V188-8)
    Activated charcoal filter solenoid valve 1 -N80-8)
    Exhaust camshaft control valve 1 -N318-8)
      Camshaft control valve 1 -N205-8)
SB10 Fuse 10 on fuse holder B -SB10- 20 A7)
15 A7), 10)		 Fuel pump control unit -J538- 87
SB11 Fuse 11 on fuse holder B -SB11- 40 A Auxiliary air heater element -Z35- 87
SB12 Fuse 12 on fuse holder B -SB12- 40 A Auxiliary air heater element -Z35- 87
SB13 Fuse 13 on fuse holder B -SB13- 30 A Mechatronic unit for dual clutch gearbox -J743- 7)
t  Dual clutch gearbox 0CW
30
  15 A Mechatronic unit for dual clutch gearbox -J743- 7)
t  Dual clutch gearbox 0D9
SB14 Fuse 14 on fuse holder B -SB14- 40 A Heated windscreen relay -J47- 30
SB15 Fuse 15 on fuse holder B -SB15- 15 A Horn relay -J413- 30
SB16 Fuse 16 on fuse holder B -SB16- 20 A8)
10A10)		 Engine component current supply relay -J757-8) 30
    Power and control electronics for electric drive -JX1-10)
      Charging unit 1 for high-voltage battery -AX4-10)
SB17 Fuse 17 on fuse holder B -SB17- 7.5 A Main relay -J271- 1) 30
    Terminal 30 voltage supply relay -J317- 3)
    Engine control unit -J623-
    ABS control unit -J104-
      Heated windscreen relay -J47-
SB18 Fuse 18 on fuse holder B -SB18- 5 A Battery monitor control unit -J367-5) 30
      Data bus diagnostic interface -J533- 7)
SB19 Fuse 19 on fuse holder B -SB19- 30 A Wiper motor control unit -J400-5) 30
SB20 Fuse 20 on fuse holder B -SB20- 10 A Alarm horn -H12- 30
SB21 Not assigned - -
SB22 Fuse 22 on fuse holder B -SB22- 5 A Engine control unit -J623- 50
    9) only Special vehicle fuse
SB23 Fuse 23 on fuse holder B -SB23- 30 A Starter -B- 50
SB24 Fuse 24 on fuse holder B -SB24- 40 A Auxiliary air heater element -Z35-3) 87
      Brake servo -NX6-10)
SB25 Not assigned - -
SB26 Not assigned - -
SB27 Not assigned - -
SB28 Not assigned - -
SB29 Not assigned - -
SB30 Not assigned - -
SB31 Not assigned - -
SB32 Not assigned - -
SB33 Fuse 33 on fuse holder B -SB33- 15 A
30A10)		 Mechatronic unit for dual clutch gearbox -J743- 7)
t  Dual clutch gearbox 0DL
30
      Brake system pressure accumulator -VX70-10)
SB34 Fuse 34 on fuse holder B -SB34- 5A Brake servo -NX6-10) -
SB35 Fuse 35 on fuse holder B -SB35- 30 A
7.5A10)		 Wiper motor control unit -J400-6) 30
      Air conditioning system relay -J32-10)
SB36 Not assigned - -
SB37 Fuse 37 on fuse holder B -SB37- 20 A Auxiliary heater control unit -J364- 30
SB38 Not assigned - -

1) Only models with petrol engine
2) Only models with petrol engine and active cylinder management (ACT)
3) Only models with diesel engine
4) Only models with diesel engine and reducing agent metering system (SCR)
5) Only models with battery at front
6) Only models with battery at rear
7) Depending on equipment
8) Only models with a 1.8–2.0l petrol engine
9) Fuse rating, see installation description for special installations
10) Only models with hybrid drive system
Back to overview



VW PASSAT 2016 Fitting location, fuse holder A SA

Fitting location, fuse holder A -SA-
Fitting location, fuse holder A -SA-
VW PASSAT 2016 Fitting location, fuse holder A SA https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder A -SA-
508 -  Threaded connection (30) on E-box
q   Connection for battery -A-

Multifuse strip fuse
→ Repair Group  97
  Note:
The fuse strip (multifuse) must be replaced as a complete unit.
Back to overview

Fitting location of fuse holder A -SA- , only models with hybrid drive system
VW PASSAT 2016 Fitting location, fuse holder A SA https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Fuse holder A -SA-
508 -  Threaded connection (30) on E-box

Multifuse strip fuse
→ Repair Group  97
  Note:
The fuse strip (multifuse) must be replaced as a complete unit.
Back to overview



VW PASSAT 2016 Fuse assignment on fuse holder A SA

Fuse assignment on fuse holder A -SA-
Fuse assignment of fuse holder A -SA- , from September 2014
Screw location Current flow diagram designation Nominal value Function/component Terminal
SA1 Fuse 1 on fuse holder A -SA1- 125 A1) Supply for fuse holder C -SC-1)
t  Terminal 30_1
t  Fuse 2 on fuse holder C -SC2-
t  Fuse 4 on fuse holder C -SC4- - Fuse 14 on fuse holder C -SC14-
t  Fuse 22 on fuse holder C -SC22-
t  Fuse 31 on fuse holder C -SC31-
t  Fuse 38 on fuse holder C -SC38- - Fuse 39 on fuse holder C -SC39-
t  Fuse 41 on fuse holder C -SC41- - Fuse 42 on fuse holder C -SC42-
t  Fuse 46 on fuse holder C -SC46-
t  Fuse 51 on fuse holder C -SC51-
t  Fuse 53 on fuse holder C -SC53-
t  Relay for power sockets -J807-
t  Terminal 15 voltage supply relay -J329-
30
    80 A2) Radiator fan -VX57-2)
SA2 Fuse 2 on fuse holder A -SA2- 400 A Alternator -C- 30
SA3 Fuse 3 on fuse holder A -SA3- 80 A1) Power steering control unit -J500-1) 30
SA4 Fuse 4 on fuse holder A -SA4- 80 A1) Supply for fuse holder C -SC-1)
t  Terminal 30_2
t  Fuse 1 on fuse holder C -SC1-
t  Fuse 3 on fuse holder C -SC3-
t  Fuse 15 on fuse holder C -SC15- - Fuse 21 on fuse holder C -SC21-
t  Fuse 23 on fuse holder C -SC23- - Fuse 28 on fuse holder C -SC28-
t  Fuse 43 on fuse holder C -SC43- - Fuse 45 on fuse holder C -SC45-
t  Fuse 50 on fuse holder C -SC50-
30
    80 A2) Power steering control unit -J500-2)
SA5 Fuse 5 on fuse holder A -SA5- 50 A1) Radiator fan -VX57-1) 30
    -2) Supply for fuse 4 on fuse holder A -SA4-
t  Power steering control unit -J500-2)


1) Only models with battery at front
2) Only models with battery at rear
Back to overview

Fuse assignment of fuse holder A -SA- , from August 2015, only models with hybrid drive system
Screw location Current flow diagram designation Nominal value Function/component Terminal
SA1 Fuse 1 on fuse holder A -SA1- 125 A Supply for fuse holder C -SC-
t  Terminal 30_1
t  Fuse 2 on fuse holder C -SC2-
t  Fuse 4 on fuse holder C -SC4- - Fuse 14 on fuse holder C -SC14-
t  Fuse 22 on fuse holder C -SC22-
t  Fuse 31 on fuse holder C -SC31-
t  Fuse 38 on fuse holder C -SC38- - Fuse 39 on fuse holder C -SC39-
t  Fuse 41 on fuse holder C -SC41- - Fuse 42 on fuse holder C -SC42-
t  Fuse 46 on fuse holder C -SC46-
t  Fuse 51 on fuse holder C -SC51-
t  Fuse 53 on fuse holder C -SC53-
t  Relay for power sockets -J807-
t  Terminal 15 voltage supply relay -J329-
30
SA2 Fuse 2 on fuse holder A -SA2- 400 A Alternator -C- 30
      Power and control electronics for electric drive -JX1-
SA3 Fuse 3 on fuse holder A -SA3- 80 A Power steering control unit -J500- 30
SA4 Fuse 4 on fuse holder A -SA4- 80 A Supply for fuse holder C -SC-
t  Terminal 30_2
t  Fuse 1 on fuse holder C -SC1-
t  Fuse 3 on fuse holder C -SC3-
t  Fuse 15 on fuse holder C -SC15- - Fuse 21 on fuse holder C -SC21-
t  Fuse 23 on fuse holder C -SC23- - Fuse 28 on fuse holder C -SC28-
t  Fuse 43 on fuse holder C -SC43- - Fuse 45 on fuse holder C -SC45-
t  Fuse 50 on fuse holder C -SC50-
30
SA5 Fuse 5 on fuse holder A -SA5- 80 A Radiator fan -VX57- 30
SA6 Fuse 6 on fuse holder A -SA6- 50A Mechatronic unit for dual clutch gearbox -J743-
t  Dual clutch gearbox 0DD
30

Back to overview



VW PASSAT 2016 Fitting location of fuse holder in the power and control electronics for electric drive JX1

Fitting location of fuse holder in the power and control electronics for electric drive -JX1-
Fitting location of fuse holder in the power and control electronics for electric drive -JX1- , only models with hybrid drive system
VW PASSAT 2016 Fitting location of fuse holder in the power and control electronics for electric drive JX1 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
1 -  Power and control electronics for electric drive -JX1-
A -  High-voltage system fuse 3 -S353- in the power and control electronics for electric drive -JX1-

Back to overview



VW PASSAT 2016 Fuse assignment of high-voltage system fuse 3 S353

Fuse assignment of high-voltage system fuse 3 -S353-
Fuse assignment of high-voltage system fuse 3 -S353- , from August 2015, only models with hybrid drive system
Screw location Current flow diagram designation Nominal value Function/component Terminal
1 High-voltage system fuse 3 -S353- 80 A Power and control electronics for electric drive -JX1- 30

Back to overview



VW PASSAT 2016 Earth points in front part of vehicle

Earth points in front part of vehicle
Earth points in front part of vehicle
VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   12 Earth point, on left in engine compartment
q   Specified torque 20 Nm
   15 Earth point on cylinder head
q   Specified torque 9 Nm
   652 Earth point, engine and gearbox earth
q   Specified torque 20 Nm
   656 Earth point on right headlight
q   Specified torque 9 Nm
   671 Earth point 1 on front of left longitudinal member
q   Specified torque 9 Nm
   673 Earth point 3 on front of left longitudinal member
q   Specified torque 9 Nm
   789 Earth point on alternator
q   Specified torque 20 Nm


VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   672 Earth point 2 on front of left longitudinal member
q   Specified torque 20 Nm
   685 Earth point 1 on front of right longitudinal member
q   Specified torque 9 Nm


Earth points in middle part of vehicle
Earth points in middle part of vehicle
VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   43 Earth point, lower part of right A-pillar
q   Specified torque 9 Nm
   44 Earth point on lower part of left A-pillar
q   Specified torque 9 Nm
   79 Earth point on left B-pillar
q   Specified torque 9 Nm
   638 Earth point on right A-pillar
q   Specified torque 9 Nm
   689 Earth point, at front, central in roof
q   Specified torque 9 Nm
   720 Earth point on right B-pillar
q   Specified torque 9 Nm
   741 Earth point under seat on front left
q   Specified torque 9 Nm
   810 Earth point on central tube for dash panel, centre left
q   Specified torque 9 Nm
q   Only left-hand drive models


VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   811 Earth point on central tube for dash panel, centre right
q   Specified torque 9 Nm
q   Only right-hand drive models


Earth points in rear part of vehicle
Earth points in rear part of vehicle, saloon
VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   730 Earth point 1, on right rear wheel housing
q   Specified torque 9 Nm
q   Figure 730 Earth point 1, on right rear wheel housing in Passat estate


VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   729 Earth point, on left rear wheel housing
q   Specified torque 9 Nm
q   Figure 729 Earth point, on left rear wheel housing in Passat estate
   50 Earth point, on left in luggage compartment
q   Specified torque 20 Nm
q   Figure 50 Earth point, on left in luggage compartment in Passat estate
q   Only models with battery at rear


Earth points in rear part of vehicle, estate
VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   730 Earth point 1, on right rear wheel housing
q   Specified torque 9 Nm


VW PASSAT 2016 Earth points in front part of vehicle https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   729 Earth point, on left rear wheel housing
q   Specified torque 9 Nm
   50 Earth point, on left in luggage compartment
q   Specified torque 20 Nm
q   Only models with battery at rear
