VW SURAN 2011 – Radio from March 2010 . Wiring diagrams, Pin Connector, Location

Wiring Diagram VW SURAN 2011 - Battery Starter Generator Alternator Voltage regulator

A	Battery
B	Starter
C	Generator Alternator
C1	Voltage regulator
J623	Engine control unit
S162	Fuse 1 30 in battery fuse holder
S163	Fuse 2 30 in battery fuse holder
T1j	Fitting connector single on starter
T2ak	Fitting connector 2pin on engine compartment
T2ar	Fitting connector 2pin on generator alternator
1	Earth strap battery body
49	Earth point near the battery
507	Screw connection 30 battery fuse holder

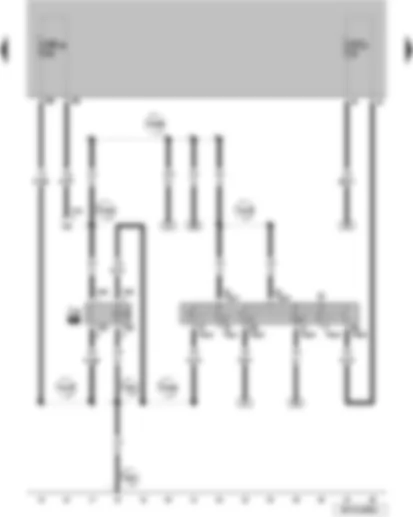

Wiring Diagram VW SURAN 2011 - Ignition switch Xcontact relief relay

D	Ignition switch
J59	Xcontact relief relay
SB48	Fuse 48 on fuse holder B
SC2	Fuse 2 on fuse holder C
T3c	Fitting connector 3pin on 12volt socket
T6d	Fitting connector 6pin in Xcontact relief relay
T8a	Fitting connector 8pin on ignition switch
U5	12volt socket
366	Earth connection 1 in main harness
606	Earth point under the centre console near the selection lever
B272	Positive connection 30 on main harness
B275	Positive connection 87 on main harness
B298	Positive connection 2 30 on main harness
B300	Positive connection 4 30 on main harness
B346	Connection 1 75 on main harness

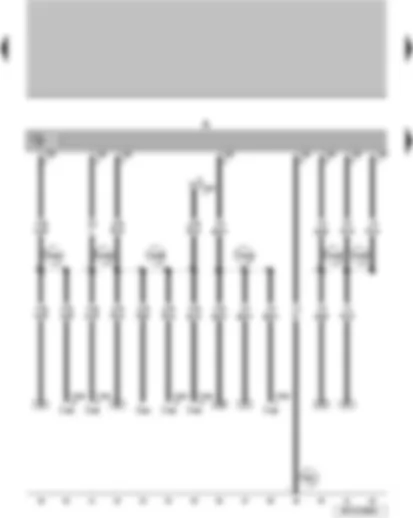

Wiring Diagram VW SURAN 2011 - Radio

J393	Central control unit for the convenience system
J446	Control unit for parking aid
J623	Engine control unit
R	Radio
T8f	Fitting connector 8pin on radio
T16a	Fitting connector 16 poles in diagnosis
T16e	Fitting connector 16 poles on control unit for parking aid
T23a	Fitting connector 23 poles on central control unit for the convenience system
606	Earth point under the centre console near the selection lever
B324	Positive connection 10 30a on main harness
B336	Connection 2 54 on main harness
B340	Connection 2 54 on main harness
B464	Connection speed signal on main harness
B518	Connection 86s on main harness
B625	Connection diagnostic cable K on main harness

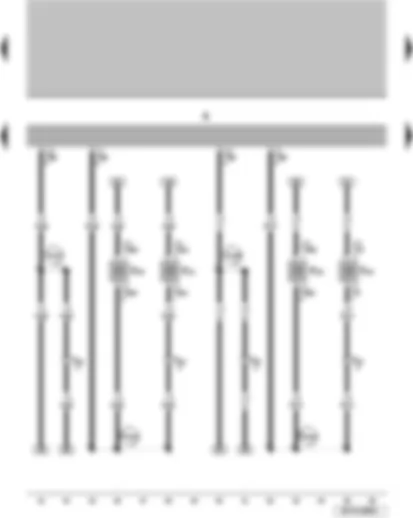

Wiring Diagram VW SURAN 2011 - Radio Front left loudspeaker for treble sounds Front left loudspeaker for bass sounds Front right loudspeaker for treble sounds Front right loudspeaker for bass sounds

R	Radio
R20	Front left loudspeaker for treble sounds
R21	Front left loudspeaker for bass sounds
R22	Front right loudspeaker for treble sounds
R23	Front right loudspeaker for bass sounds
T2bb	Fitting connector 2pin on front right loudspeaker for treble sounds
T2bc	Fitting connector 2pin on front left loudspeaker for bass sounds
T2bd	Fitting connector 2pin on front left loudspeaker for treble sounds
T2t	Fitting connector 2pin on front right loudspeaker for bass sounds
T5s	Fitting connector 5pin driver door
T5t	Fitting connector 5pin passenger's door
T8g	Fitting connector 8pin on radio
B101	Connection front left loudspeaker on main harness
B102	Connection front left loudspeaker on main harness
B103	Connection front right loudspeaker on main harness
B104	Connection front right loudspeaker on main harness

Wiring Diagram VW SURAN 2011 - Radio Antenna Left rear loudspeaker for bas sounds Right rear loudspeaker for bass sounds Aerial amplifier

J879	Control unit for interactive system
R	Radio
R11	Antenna
R15	Left rear speaker for bass sounds
R17	Right rear speaker for bass sounds
R24	Aerial amplifier
T2cb	Fitting connector 2pin on rear right loudspeaker for bass sounds
T2cc	Fitting connector 2pin on rear left loudspeaker for bass sounds
T4y	Fitting connector 4pin for rear right door
T4z	Fitting connector 4pin for rear left door
T8g	Fitting connector 8pin on radio
T10d	Fitting connector 20 poles on control unit for interactive system
T20a	Fitting connector 20 poles in radio
	From July 2010

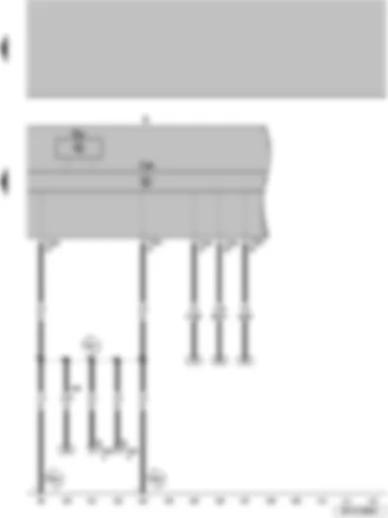

Wiring Diagram VW SURAN 2011 - Control unit on the steering wheel Multifunction controls on the left side of the steering wheel Airbag coil connector and return ring with slip ring Horn activator

E221	Control unit on the steering wheel
E440	Multifunction controls on the left side of the steering wheel
F138	Airbag coil connector and return ring with slip ring
H	Horn activator
J4	Dual tone horn relay
SC21	Fuse 21 on fuse holder C
T5g	Fitting connector 5pin on airbag coil connector and return ring with slip ring
T5k	Fitting connector 5pin on airbag coil connector and return ring with slip ring
T6ai	Fitting connector 6pin in steering wheel
T9h	Fitting connector 9pin in dual tone horn relay
109	Earth connection in the airbag wiring harness
B273	Positive connection 15 on main harness
	Only for vehicles with multifunction steering wheel or driver's and passenger's airbag
	Only for vehicles with interactive system
	Only for vehicles with buttons on steering wheel for radio command

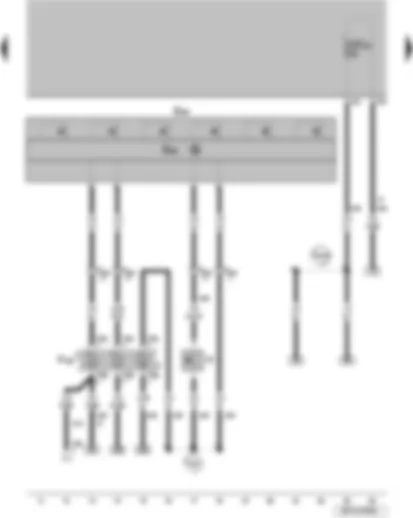

Wiring Diagram VW SURAN 2011 - Tachometer Control unit w indicator on the combined instrument Combined instrument Alternator control light

G5	Tachometer
J285	Control unit w indicator on the combined instrument
J446	Control unit for parking aid
K	Combined instrument
K2	Alternator control light
SB28	Fuse 28 on fuse holder B
SB38	Fuse 38 on fuse holder B
SC5	Fuse 5 on fuse holder C
T16e	Fitting connector 16 poles on control unit for parking aid
T32a	Fitting connector 32 poles in combined instrument
B277	Positive connection 1 15a on main harness
B299	Positive connection 3 30 on main harness

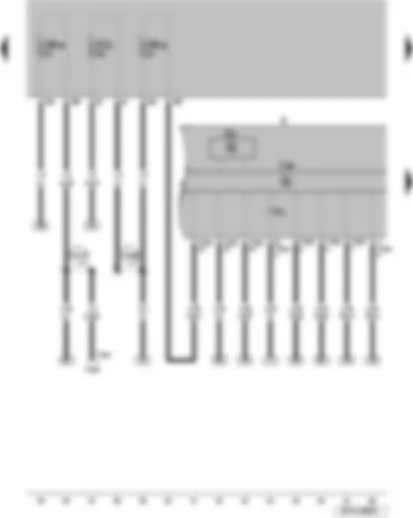

Wiring Diagram VW SURAN 2011 - Speedometer Control unit w indicator on the combined instrument Combined instrument

G21	Speedometer
J285	Control unit w indicator on the combined instrument
K	Combined instrument
T16a	Fitting connector 16 poles in diagnosis
T32a	Fitting connector 32 poles in combined instrument
367	Earth connection 2 in main harness
605	Earth point in upper steering column area
606	Earth point under the centre console near the selection lever
	Only for vehicles with buttons on steering wheel for radio command
