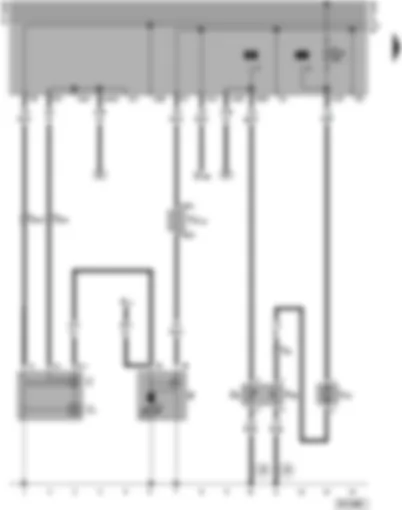

Wiring Diagram VW TRANSPORTER 1998 - Alternator - starter - continued coolant circulation
A | Battery |
B | Starter |
C | Alternator |
C1 | Voltage regulator |
D | Ignition/starter switch |
F95 | Thermo-switch for coolant circulation run-on |
G2 | Coolant temperature sender |
T1b | Single connector, behind relay plate |
T2b | 2-pin connector, behind relay plate |
T2e | 2-pin connector, near starter |
TV15 | Wiring connector, behind relay plate |
V51 | Continued coolant circulation pump |
85 | Earth connection -1-, in engine compartment wiring harness |
Wiring Diagram VW TRANSPORTER 1998 - Pre-glow system - fuel gauge sender - engine temperature sender - coolant shortage indicator sender
G | Fuel gauge sender |
G27 | Engine temperature sender |
G32 | Coolant shortage indicator sender |
J52 | Glow plug relay |
Q6 | Glow plugs - (engine) |
S39 | Glow plug motor strip fuse, front left in engine compartment |
T5 | 5-pin connector, near cylinder head cover |
TV2 | Terminal 30 junction box |
16 | Earth point -1-, on cylinder head cover |
85 | Earth connection -1-, in engine compartment wiring harness |
D98 | Connection (glow plugs), in engine compartment wiring harness |
Wiring Diagram VW TRANSPORTER 1998 - Dash panel insert - oil pressure switch - speedometer sender - fuel shut-off valve - heater element
F1 | Oil pressure switch |
F22 | Oil pressure switch (0.3 bar) |
G22 | Speedometer sender (Hall sender on gearbox) |
J285 | Control unit with display in dash panel insert |
J362 | Immobilizer control unit, behind dash panel insert |
J366 | Fuel shut-off valve control unit |
K3 | Oil pressure warning lamp |
K28 | Coolant temperature/coolant shortage warning lamp |
N79 | Heater element (crankcase breather) |
N109 | Fuel shut-off valve |
T1c | Single connector, behind relay plate |
T2 | 2-pin connecctor, near fuel shut-off valve |
T6 | 6-pin connector, on immobilizer control unit |
T28 | 28-pin connector, on dash panel insert |
85 | Earth connection -1-, in engine compartment wiring harness |
D52 | Positive connection (15a), in engine compartment wiring harness |
* | Cold climates only |
Wiring Diagram VW TRANSPORTER 1998 - Dash panel insert - fuel gauge - coolant temperature gauge - glow period warning lamp - speedometer - odometer display
G1 | Fuel gauge |
G3 | Coolant temperature gauge |
G21 | Speedometer |
H11 | Oil pressure warning buzzer |
J285 | Control unit with display in dash panel insert |
K2 | Alternator warning lamp |
K29 | Glow period warning lamp |
L75 | Digital display illumination |
R | Radio |
T2x | 2-pin connector, behind relay plate |
T8 | 8-pin connector, on radio |
T16 | 16-pin connector, centre in dash panel -self-diagnosis connection for V.A.G. 1551- |
T28 | 28-pin connector, on dash panel insert |
Y4 | Odometer display |
R6 | Positive connection -1-, in interior light wiring harness |
