Электросхемы Магнитола Мультимедия Dodge Grand Caravan SXT 2007

Магнитола Мультимедия

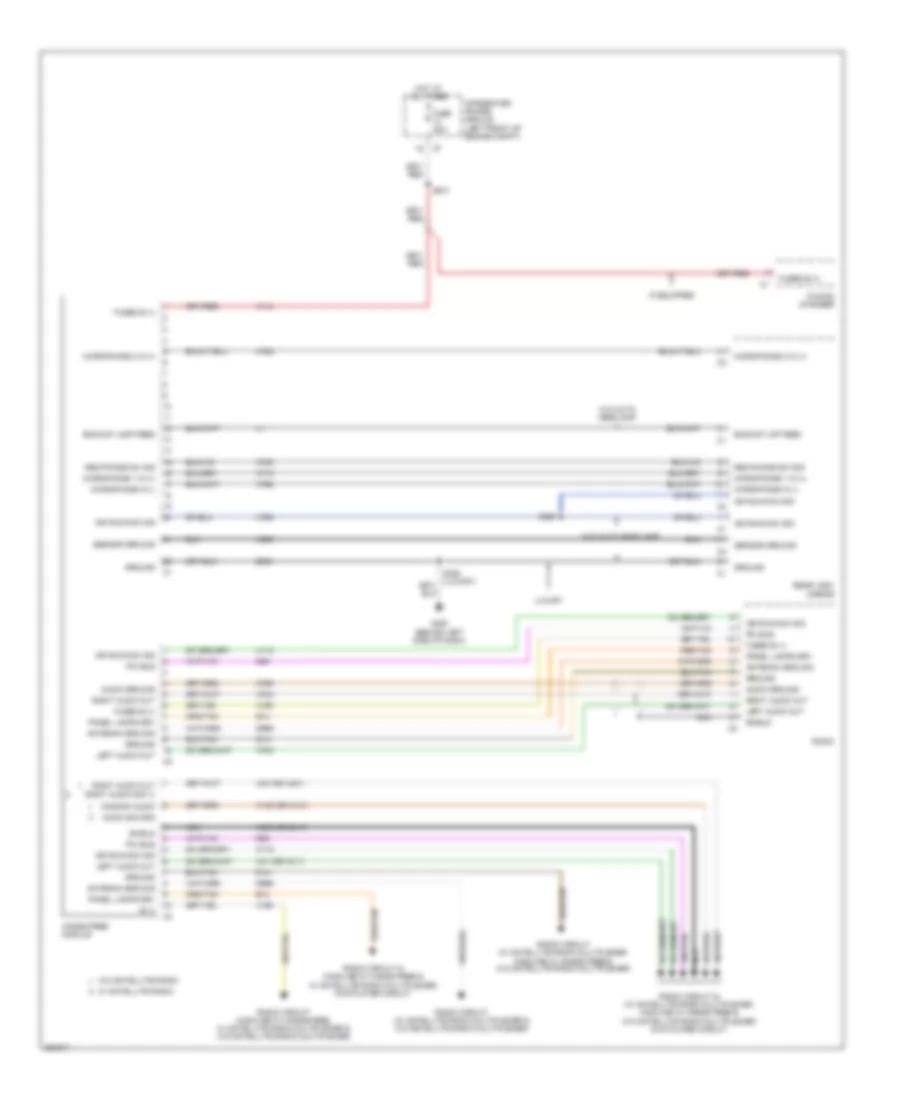

Электросхема DVD плеера для Dodge Grand Caravan SXT 2007

Электросхема DVD плеера для Dodge Grand Caravan SXT 2007 - Список элементов:

• A114
• Audio ground
• Common audio
• D25
• Dvd screen
• Dvd/cd changer
• E14
• Fuse 14 20a
• Fused b(+)
• G200 (behind left side of dash)
• Ground
• Hands free module
• Headphone left sig
• Headphone right sig
• Headphone rtn
• Headphone sw sns
• Hot at all times
• Ign run/acc sig
• Ign sw sig
• Ign sw sns
• Integrated power module (left front of engine compt)
• Left audio out
• Nca
• Panel lamp drv
• Pci bus
• Radio
• Right audio out
• S201
• Shield
• Video play sig
• Video rtn
• Video sig
• W/ hands free
• W/o hands free
• X112
• X114
• X140
• X160
• X211
• X40
• X41
• X515
• X530
• X555
• X703
• X704
• X795
• X915
• X955
• X960
• X961
• X962
• X963
• Z141
• Z530

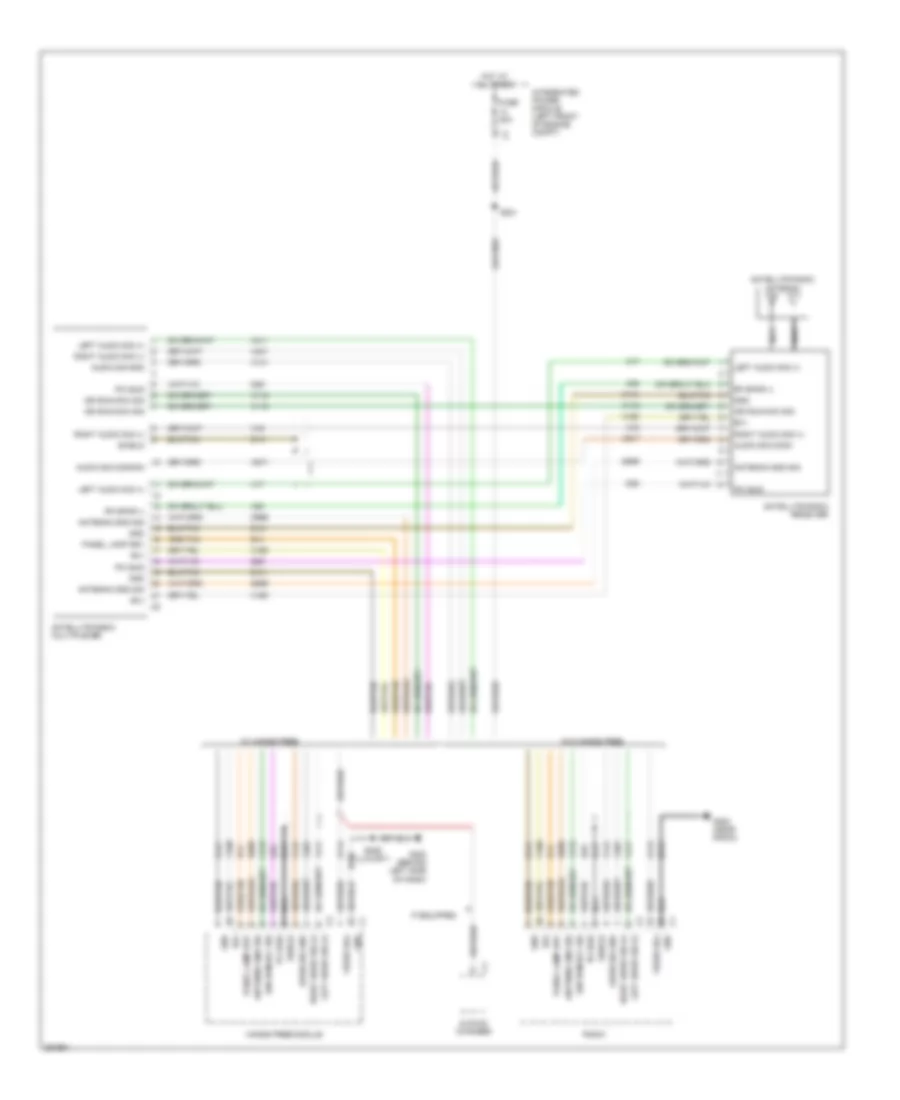

Электросхема Hands Free Bluetooth подключение телефона для Dodge Grand Caravan SXT 2007

Электросхема Hands Free Bluetooth подключение телефона для Dodge Grand Caravan SXT 2007 - Список элементов:

• A114
• Antenna grid sig
• Audio ground
• Audio sig gnd
• B (+)
• Backup lamp feed
• Backup lmp feed
• Common audio
• D25
• D999
• Dvd/cd changer
• E14
• Fuse 20a
• Fused b (+)
• G200 (behind left side of dash)
• Ground
• Hands free module
• Hot at all times
• If equipped
• Ign run/acc sig
• Integrated power module (left front of engine compt)
• Left audio out
• Luxury
• Microphone 1 in (+)
• Microphone 2 in (+)
• Microphone in (-)
• Nca
• Panel lamps drv
• Pci bus
• Radio
• Radio circuit & (highline w/ hands free & w/ satellite radio multiplexer) dvd player circuit
• Radio circuit & (w/ satellite radio multiplexer, highline w/ hands free & w/o satellite radio multiplexer) dvd player circuit
• Radio circuit (highline w/ hands free, w/ satellite radio multiplexer & w/o satellite radio multiplexer)
• Radio circuit (w/ satellite radio multiplexer & w/o satellite radio multiplexer)
• Radio circuit (w/ satellite radio multiplexer, highline w/ hands free & w/o satellite radio multiplexer)
• Rear view mirror
• Rec/phone sw sig
• Right audio out
• Right audio sig (+)
• S201
• S225
• Sensor ground
• Shield
• W/ satellite radio
• W/o auto headlamp
• W/o satellite radio
• X112
• X140 (or x141)
• X160
• X40 (or x401)
• X41 (or x411)
• X703
• X704
• X712
• X722
• X730
• X792
• X793
• X795
• X835
• X955 (or z417)
• Z141
• Z530

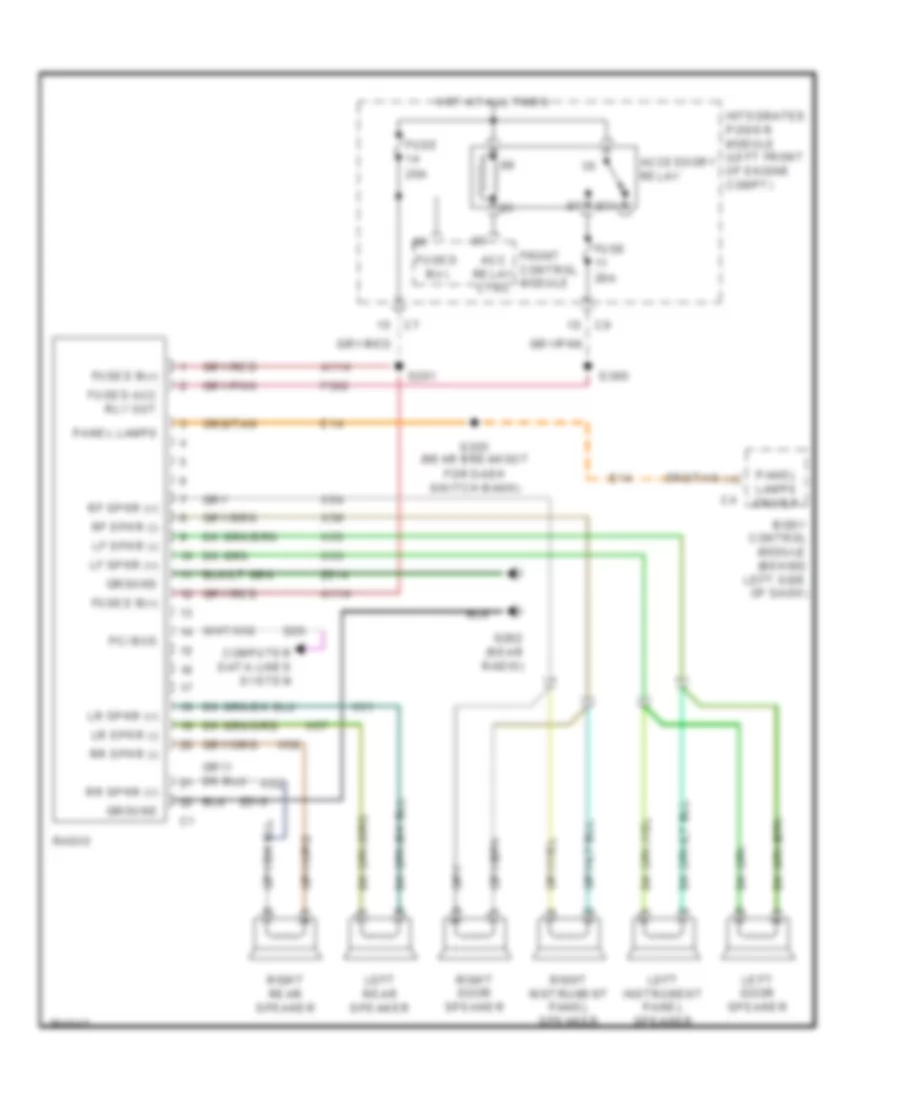

Электросхема магнитолы, стандартная комплектация для Dodge Grand Caravan SXT 2007

Электросхема магнитолы, стандартная комплектация для Dodge Grand Caravan SXT 2007 - Список элементов:

• 87a
• A114
• Acc relay ctrl
• Accessory relay
• Body control module (behind left side of dash)
• Computer data lines system
• D25
• E14
• F302
• Front control module
• Fuse 20a
• Fused acc rly out
• Fused b(+)
• G202 (near radio)
• Ground
• Hot at all times
• Integrated power module (left front of engine compt)
• Left door speaker
• Left instrument panel speaker
• Left rear speaker
• Lf spkr (+)
• Lf spkr (-)
• Lr spkr (+)
• Lr spkr (-)
• Panel lamps
• Panel lamps driver
• Pci bus
• Radio
• Rf spkr (+)
• Rf spkr (-)
• Right door speaker
• Right instrument panel speaker
• Right rear speaker
• Rr spkr (+)
• Rr spkr (-)
• S201
• S203 (near breakout for dash switch bank)
• S360
• X51
• X52
• X53
• X54
• X55
• X56
• X57
• X58
• Z514
• Z515

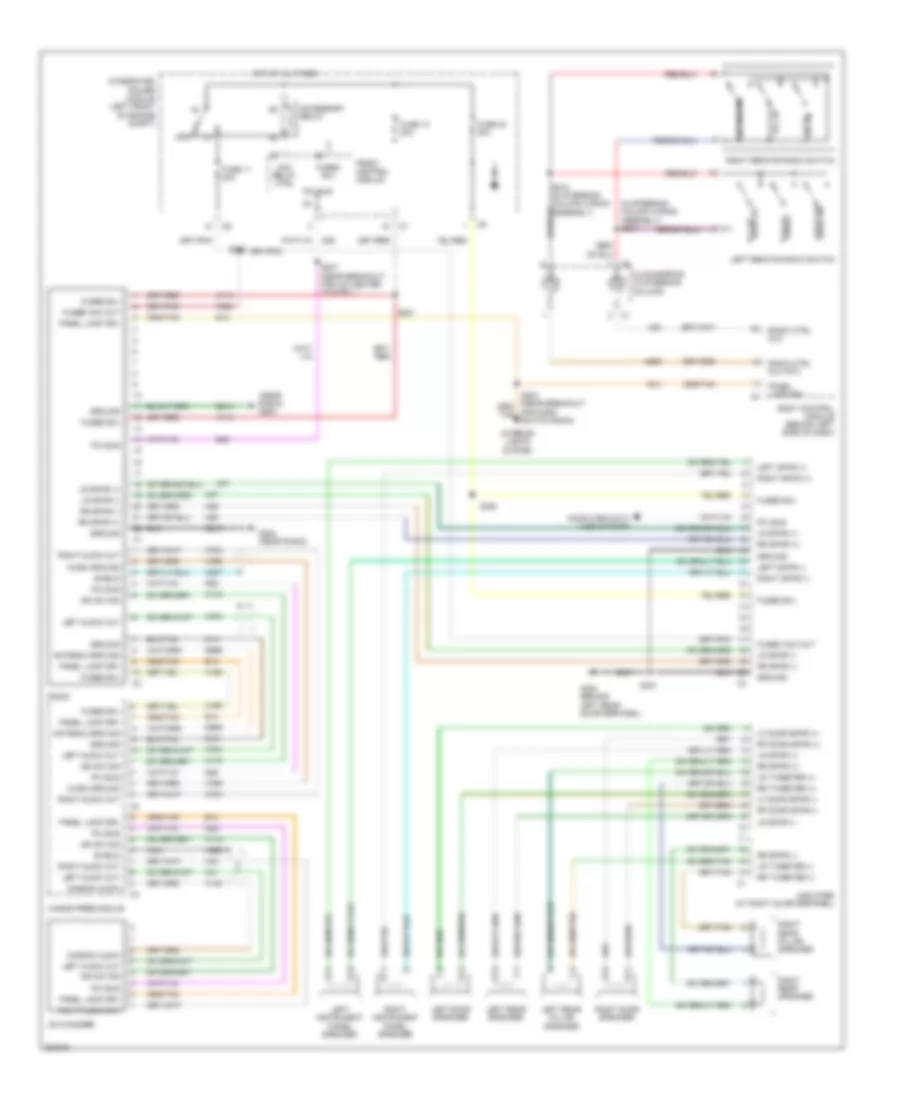

Электросхема магнитолы, Highline С BlueToothe для Dodge Grand Caravan SXT 2007

Электросхема магнитолы, Highline С BlueToothe для Dodge Grand Caravan SXT 2007 - Список элементов:

• (in steering column wiring assembly) s211
• (near radio) g202
• 87a
• A114
• Acc relay ctrl
• Accessory relay
• Amplifier (at right quarterpanel)
• Antenna grid sig
• Audio ground
• Body control module (behind left side of dash)
• Cd changer
• Clockspring (in steering column)
• Common audio
• Computer data lines system
• D25
• D999
• Diagnostic
• E14
• F302
• For dash switch bank)
• Front control module
• Fuse 11 20a
• Fuse 14 20a
• Fuse 20 30a
• Fused acc out
• Fused b(+)
• G202 (near radio)
• G302 (behind left rear quarterpanel)
• Ground
• Hands free module
• Hot at all times
• Ign sw sig
• Integrated power module (left front of engine compt)
• Interior lights system
• Left audio out
• Left door speaker
• Left instrument panel speaker
• Left rear pillar speaker
• Left rear speaker
• Left remote radio switch
• Left spkr (+)
• Left spkr (-)
• Lf door spkr (+)
• Lf door spkr (-)
• Lr spkr (+)
• Lr spkr (-)
• Lr tweeter (+)
• Lr tweeter (-)
• Nca
• Panel lamp drv
• Pci bus
• Radio
• Radio ctrl mux
• Radio ctrl mux rtn
• Reset
• Rf door spkr (+)
• Rf door spkr (-)
• Right audio out
• Right door speaker
• Right instrument panel speaker
• Right rear pillar speaker
• Right rear speaker
• Right remote radio switch
• Right spkr (+)
• Right spkr (-)
• Rr spkr (+)
• Rr spkr (-)
• Rr tweeter (+)
• Rr tweeter (-)
• S201
• S207 (near breakout for a/c heater control)
• S212 (in steering column wiring assembly)
• S360
• S380
• S381
• Seek dn
• Seek up
• Shield
• Vol dn
• Vol up
• X112
• X140
• X160
• X20
• X207
• X40
• X41
• X51
• X52
• X57
• X58
• X703
• X704
• X795
• X920
• X955
• Z141
• Z514
• Z515

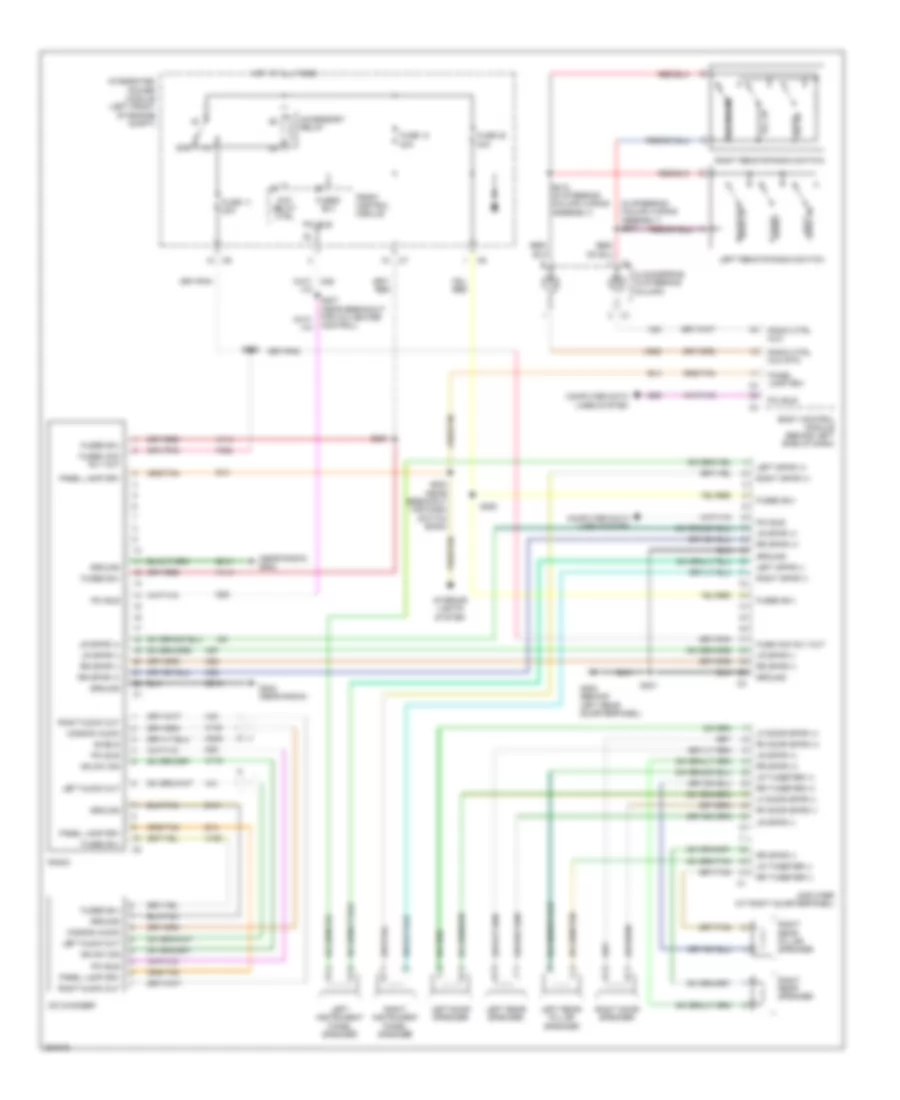

Электросхема магнитолы, Highline без BlueToothe для Dodge Grand Caravan SXT 2007

Электросхема магнитолы, Highline без BlueToothe для Dodge Grand Caravan SXT 2007 - Список элементов:

• (in steering column wiring assembly) s211
• (near radio) g202
• 87a
• A114
• Acc relay ctrl
• Accessory relay
• Amplifier (at right quarterpanel)
• Body control module (behind left side of dash)
• Cd changer
• Clockspring (in steering column)
• Common audio
• Computer data lines system
• D25
• Diagnostic
• E14
• F302
• Front control module
• Fuse 11 20a
• Fuse 14 20a
• Fuse 20 30a
• Fuse acc rly out
• Fused acc rly out
• Fused b(+)
• G202 (near radio)
• G302 (behind left rear quarterpanel)
• Ground
• Hot at all times
• Ign sw sig
• Integrated power module (left front of engine compt)
• Interior lights system
• Left audio out
• Left door speaker
• Left instrument panel speaker
• Left rear pillar speaker
• Left rear speaker
• Left remote radio switch
• Left spkr (+)
• Left spkr (-)
• Lf door spkr (+)
• Lf door spkr (-)
• Lr spkr (+)
• Lr spkr (-)
• Lr tweeter (+)
• Lr tweeter (-)
• Panel lamp drv
• Pci bus
• Radio
• Radio ctrl mux
• Radio ctrl mux rtn
• Reset
• Rf door spkr (+)
• Rf door spkr (-)
• Right audio out
• Right door speaker
• Right instrument panel speaker
• Right rear pillar speaker
• Right rear speaker
• Right remote radio switch
• Right spkr (+)
• Right spkr (-)
• Rr spkr (+)
• Rr spkr (-)
• Rr tweeter (+)
• Rr tweeter (-)
• S201
• S203 (near breakout for dash switch bank)
• S207 (near breakout for a/c heater control)
• S212 (in steering column wiring assembly)
• S360
• S380
• S381
• Seek dn
• Seek up
• Shield
• Vol dn
• Vol up
• X112
• X140
• X160
• X20
• X235
• X40
• X41
• X51
• X52
• X57
• X58
• X920
• Z141
• Z514
• Z515

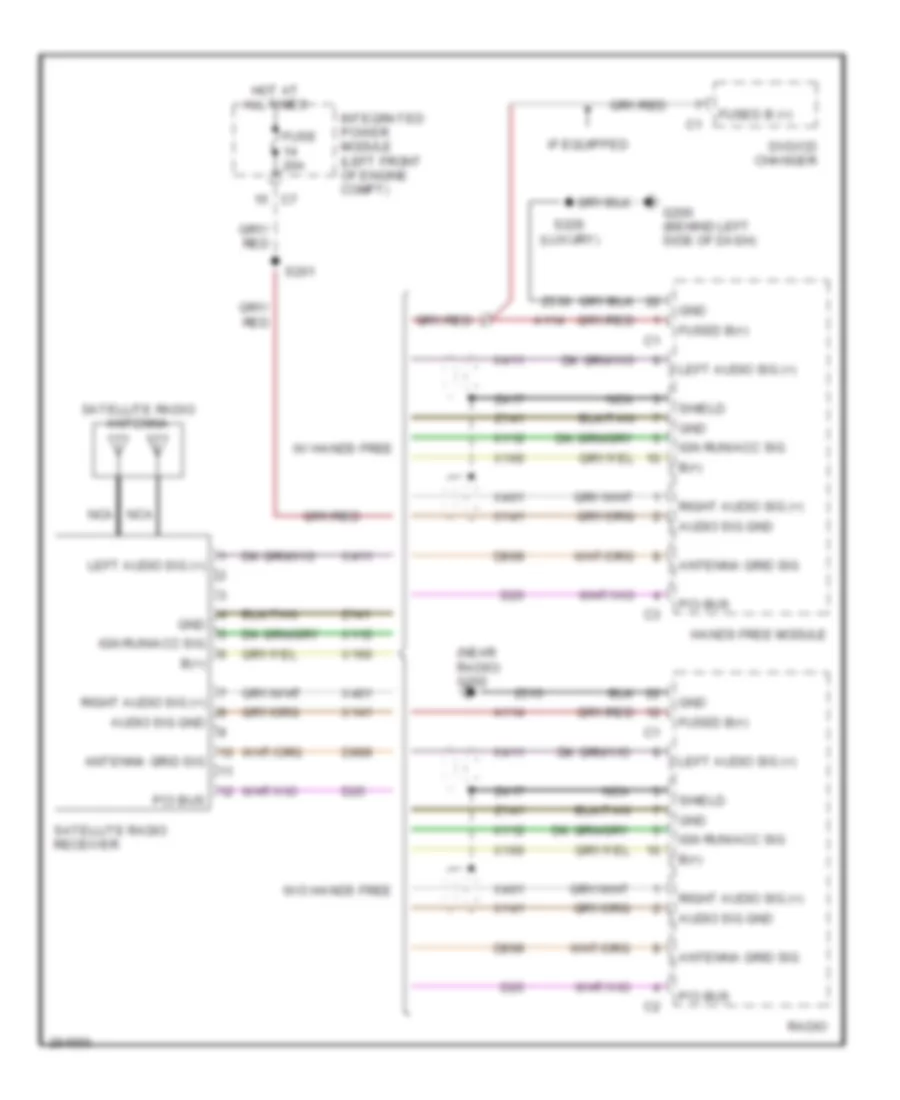

Электросхема спутникового радио, С Спутниковое Радио для Dodge Grand Caravan SXT 2007

Электросхема спутникового радио, С Спутниковое Радио для Dodge Grand Caravan SXT 2007 - Список элементов:

• A114
• Antenna gnd sig
• Audio sig comm
• Audio sig common
• Audio sig gnd
• B(+)
• D25
• D999
• Dvd/cd changer
• E14
• Fuse 20a
• Fused b(+)
• G200 (behind left side of dash)
• G202 (near radio)
• Gnd
• Hands free module
• Hot at all times
• If equipped
• Ign run/acc sig
• Integrated power module (left front of engine compt)
• Left audio sig (+)
• Nca
• Panel lamp drv
• Pci bus
• Radio
• Rf spkr (-)
• Right audio sig (+)
• S201
• S226 (luxury)
• Satellite radio antenna
• Satellite radio multiplexer
• Satellite radio receiver
• Shield
• W/ hands free
• W/o hands free
• X112
• X141
• X16
• X160
• X17
• X401
• X411
• X80
• X917
• Z141
• Z417
• Z515
• Z530

Электросхема спутникового радио, без Спутниковое Радио для Dodge Grand Caravan SXT 2007

Электросхема спутникового радио, без Спутниковое Радио для Dodge Grand Caravan SXT 2007 - Список элементов:

• (near radio) g202
• A114
• Antenna grid sig
• Audio sig gnd
• B(+)
• D25
• D999
• Dvd/cd changer
• Fuse 20a
• Fused b (+)
• Fused b(+)
• G200 (behind left side of dash)
• Gnd
• Hands free module
• Hot at all times
• If equipped
• Ign run/acc sig
• Integrated power module (left front of engine compt)
• Left audio sig (+)
• Nca
• Pci bus
• Radio
• Right audio sig (+)
• S201
• S226 (luxury)
• Satellite radio antenna
• Satellite radio receiver
• Shield
• W/ hands free
• W/o hands free
• X112
• X141
• X160
• X401
• X411
• Z141
• Z417
• Z515
• Z530
