Система Фар

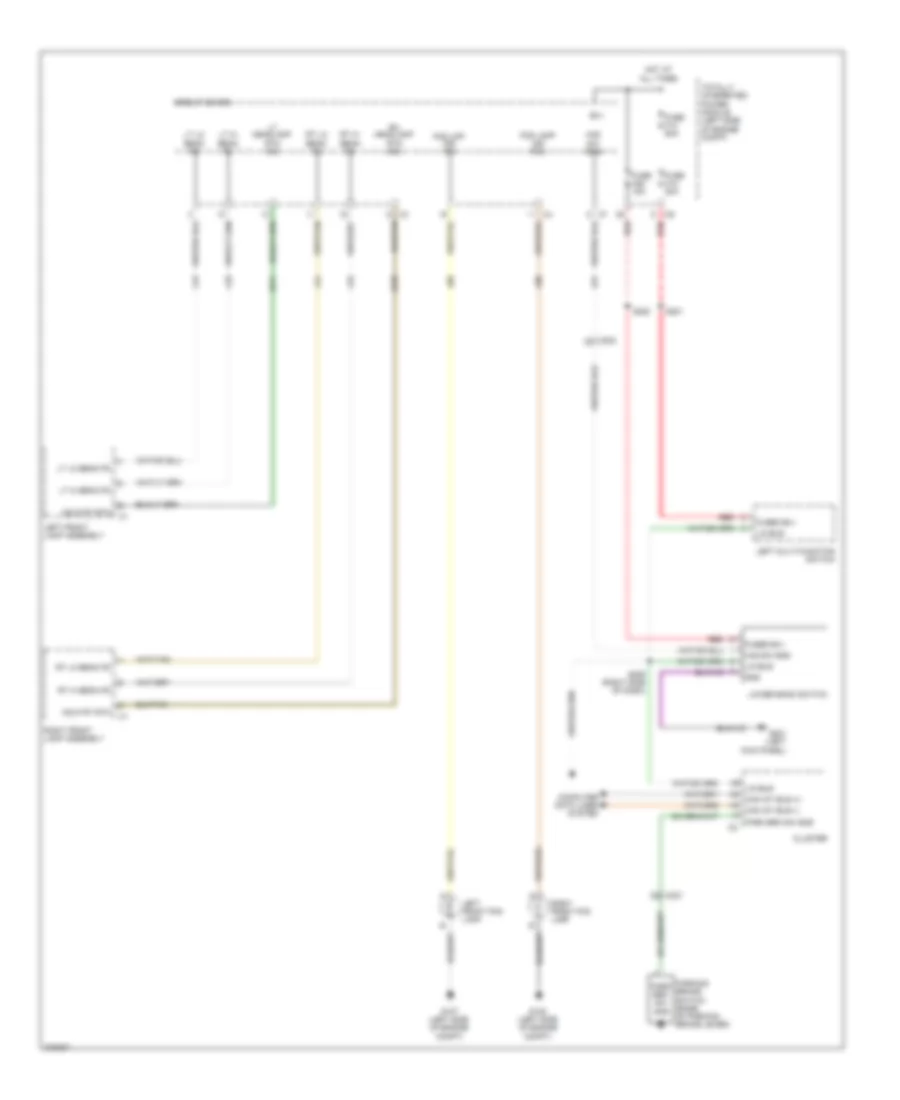

Электросхема фар для Dodge Nitro Shock 2010

Электросхема фар для Dodge Nitro Shock 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема фар для Dodge Nitro Shock 2010 - Список элементов:

  • B(+)
  • C201
  • C202
  • Can int bus (+)
  • Can int bus (-)
  • Circuit board
  • Cluster
  • Computer data lines system
  • Fog lamp ind fd 2
  • Fog lmp/ ind fd1
  • Fuse f13 60a
  • Fuse m13 20a
  • Fuse m20 15a
  • Fused b(+)
  • G107 (left side of engine compt)
  • G108 (left side of engine compt)
  • G201 (left kick panel)
  • Gnd
  • Haz sw sns
  • Hdlp rt rtn
  • Hot at all times
  • L33
  • L34
  • L43
  • L44
  • L89
  • L90
  • L91
  • L910
  • L911
  • Left front fog lamp
  • Left front lamp assembly
  • Left multi-function switch
  • Lin bus
  • Lower bank switch
  • Lt headlamp rtn sig
  • Lt hi beam fd
  • Lt lo beam fd
  • Park brk sw sns
  • Parking brake switch (base of parking brake lever)
  • Red
  • Rh headlamp rtn sig
  • Right front fog lamp
  • Right front lamp assembly
  • Rt hi beam fd
  • Rt lo beam fd
  • S201
  • S209 (right side of dash)
  • S220
  • Totally integrated power module (left side of engine compt)
