СИСТЕМА КОНДИЦИОНЕРА

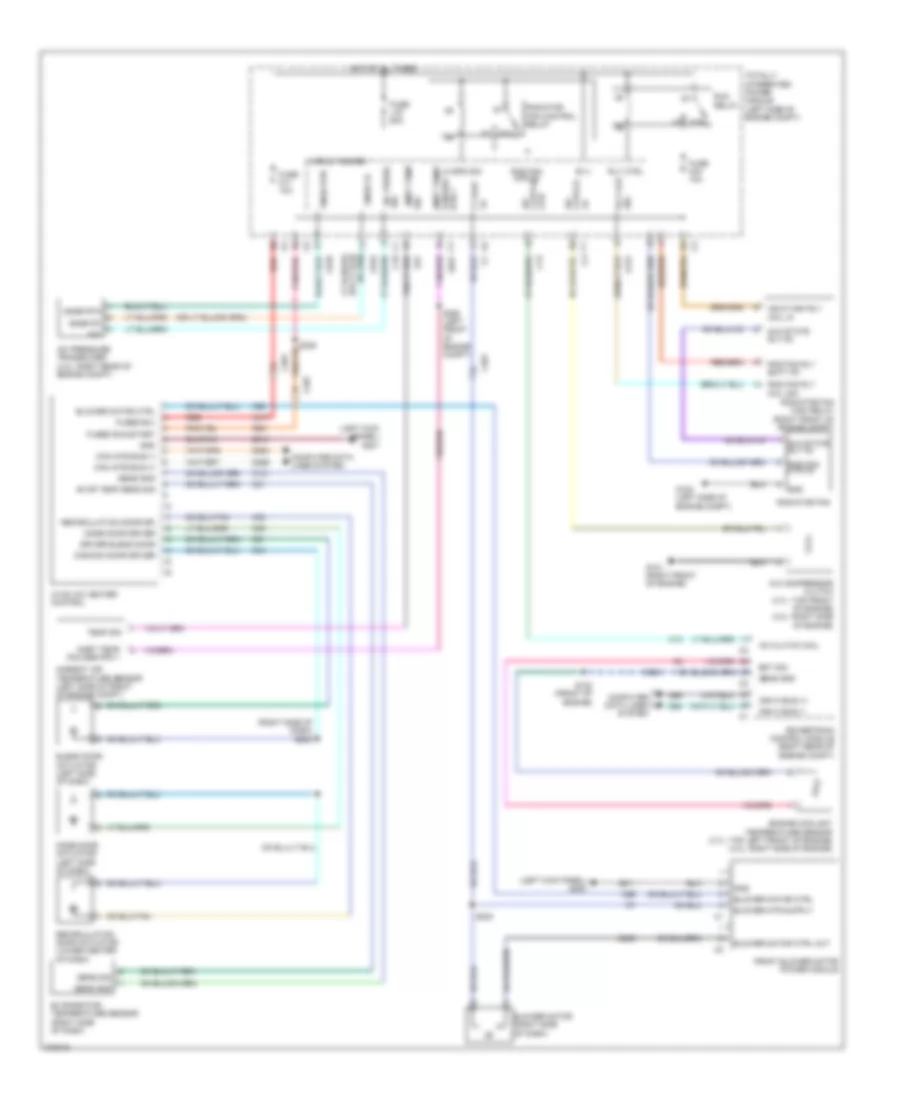

Электросхема кондиционера с ручный управлением для Dodge Nitro Shock 2010

Электросхема кондиционера с ручный управлением для Dodge Nitro Shock 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема кондиционера с ручный управлением для Dodge Nitro Shock 2010 - Список элементов:

  • (left kick panel) g200
  • (left kick panel) g201
  • (right side of dash) s202
  • 87a
  • A/c
  • A/c clutch coil
  • A/c compressor clutch (3.7l: top front of engine) (4.0l: right side of engine)
  • A/c press
  • A/c pressure transducer (4.0l: right rear of engine compt)
  • A417
  • Ambient air temperature sensor (left side of front of engine compt)
  • Ambt temp
  • Ambt temp/
  • Ambt temp/ fcm ssr rtn 1
  • B (+)
  • Blend door actuator (left side of dash)
  • Blower motor (right side of dash)
  • Blower motor ctrl
  • Blower motor ctrl out
  • C121
  • C13
  • C18
  • C201
  • C21
  • C32
  • C34
  • C35
  • C56
  • C61
  • C806
  • C818
  • C918
  • Can c bus (+)
  • Can c bus (-)
  • Can inte bus (+)
  • Can inte bus (-)
  • Circuit board
  • Coil clutch a/c
  • Common door driver
  • Computer data lines system
  • D264
  • D265
  • D64
  • D65
  • Driver blend door
  • Ect sig
  • Engine coolant temperature sensor (3.7l: top left front of engine) (4.0l: right side of engine)
  • Evap temp sens sig
  • Evaporator temperature sensor (right side of dash)
  • F921
  • Fcm ssr rtn 1
  • Fd clutch
  • Front blower motor power module
  • Ft blw
  • Fuse j19 60a
  • Fuse m11 10a
  • Fuse m34 10a
  • Fused b(+)
  • Fused run/start
  • G101 (right front of engine)
  • G108 (left side of engine compt)
  • G31
  • G931
  • Gnd
  • Hdlp wsh rly coil in
  • Hot at all times
  • Hvac a/c heater control
  • K175
  • K900
  • Lo spd sig
  • Mode door actuator (left side of dash)
  • Mode door driver
  • Powertrain control module (right rear of engine compt)
  • Rad fan mtr fd
  • Rad fan rly batt fd
  • Rad fan rly coil sig
  • Radiator fan
  • Radiator fan control relay
  • Radiator fan high relay (right front of engine compt)
  • Recirculation door actuator (lower center of dash)
  • Recirculation door dri
  • Red
  • Rly coil
  • Rly ctrl
  • Run relay
  • S120 (front of engine)
  • S223
  • S360 (left front of engine compt)
  • Sens gnd
  • Sens sig
  • Sig
  • Sld state rly fd
  • Snsr fd
  • Snsr rtn
  • Temp sig
  • Totally integrated power module (left side of engine compt)
  • Z910
  • Z911
