Электросхемы СИСТЕМЫ ПАМЯТИ Dodge Nitro Shock 2010

СИСТЕМЫ ПАМЯТИ

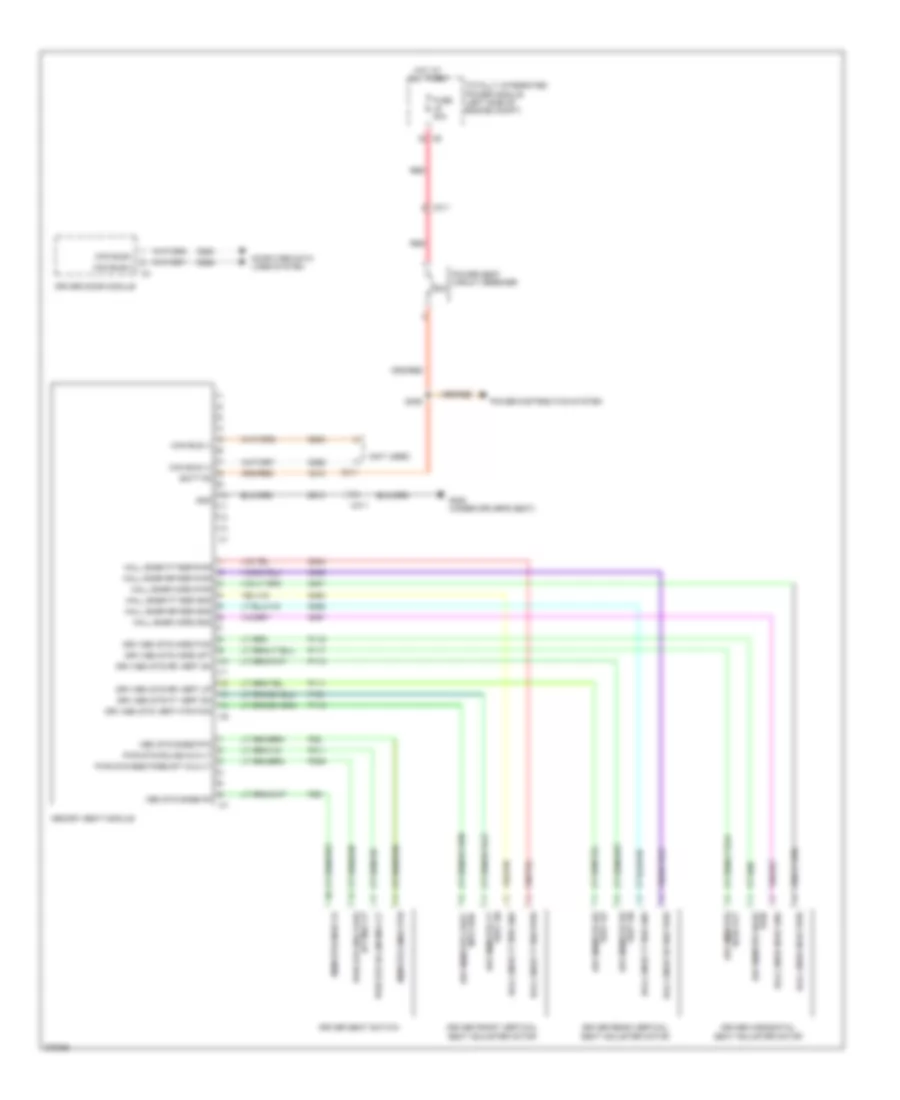

Электросхема системы памяти для Dodge Nitro Shock 2010

Электросхема системы памяти для Dodge Nitro Shock 2010 - Список элементов:

• (not used)
• 25a
• A210
• Aft mux-lt pwr sts bse fore
• Batt fd
• C311
• Can bus (+)
• Can bus (-)
• Can bus(+)
• Can bus(-)
• Computer data lines system
• D264
• D265
• Driver door module
• Driver front vertical seat adjuster motor
• Driver horizontal seat adjuster motor
• Driver rear vertical seat adjuster motor
• Driver seat switch
• Drv mem sts ft vert dn
• Drv mem sts horz aft
• Drv mem sts horz fwd
• Drv mem sts rr vert dn
• Drv mem sts rr vert up
• Drv mem sts vert mtr fwd
• Fuse j8 40a
• G305 (under driver's seat)
• G401
• G402
• G404
• G491
• G492
• G494
• Gnd
• Hall snsr ft rsr gnd
• Hall snsr ft rsr-pwr
• Hall snsr horz gnd
• Hall snsr horz pwr
• Hall snsr rr rsr gnd
• Hall snsr rr rsr pwr
• Horz aft drv mem sts
• Hot at all times
• Mem sts snse fd
• Mem sts snse rtn
• Memory seat module
• Mtr fwd drv mem sts vert
• P111
• P113
• P115
• P117
• P119
• P121
• P28
• P29
• P309
• P311
• Power distribution system
• Power seat circuit breaker
• Pwd drv mem sts horz
• Pwr sts bse fore/aft mux-lt
• Pwr sts rclne mux-lt
• Red
• S306
• Totally integrated power module (left side of engine compt)
• Vert dn drv mem sts ft
• Vert dn drv mem sts rr
• Vert up drv mem sts rr
• Z913
