Электросхемы Противоугонная система Сигнализация Audi Q7 4.2 2008

Противоугонная система Сигнализация

получите доступ/Начните к Схеме (1 из 2) для Audi Q7 4.2 2008

получите доступ/Начните к Схеме (1 из 2) для Audi Q7 4.2 2008 - Список элементов:

• 10a
• 11a
• 3.6l engine
• 4.2l engine
• Access/start authorization button
• Access/start control module
• Computer data lines system
• Engine control module
• Fuse 10a 30a
• Fuse 125a
• Fuse 15a
• Fuse 5a
• Fuse 60a
• Fuse panel b1
• Fuse panel b3
• Fuse panel d
• Fuse panel f1
• G44
• G45
• Hot at all times
• Hot w/ power relay relay energized
• Multi-function transmission range (tr) switch (w/ 4.2l engine)
• Red
• T10p
• T16g
• T20e
• T3a
• T94
• Transmission control module (w/ 3.6l engine)
• Transmission system

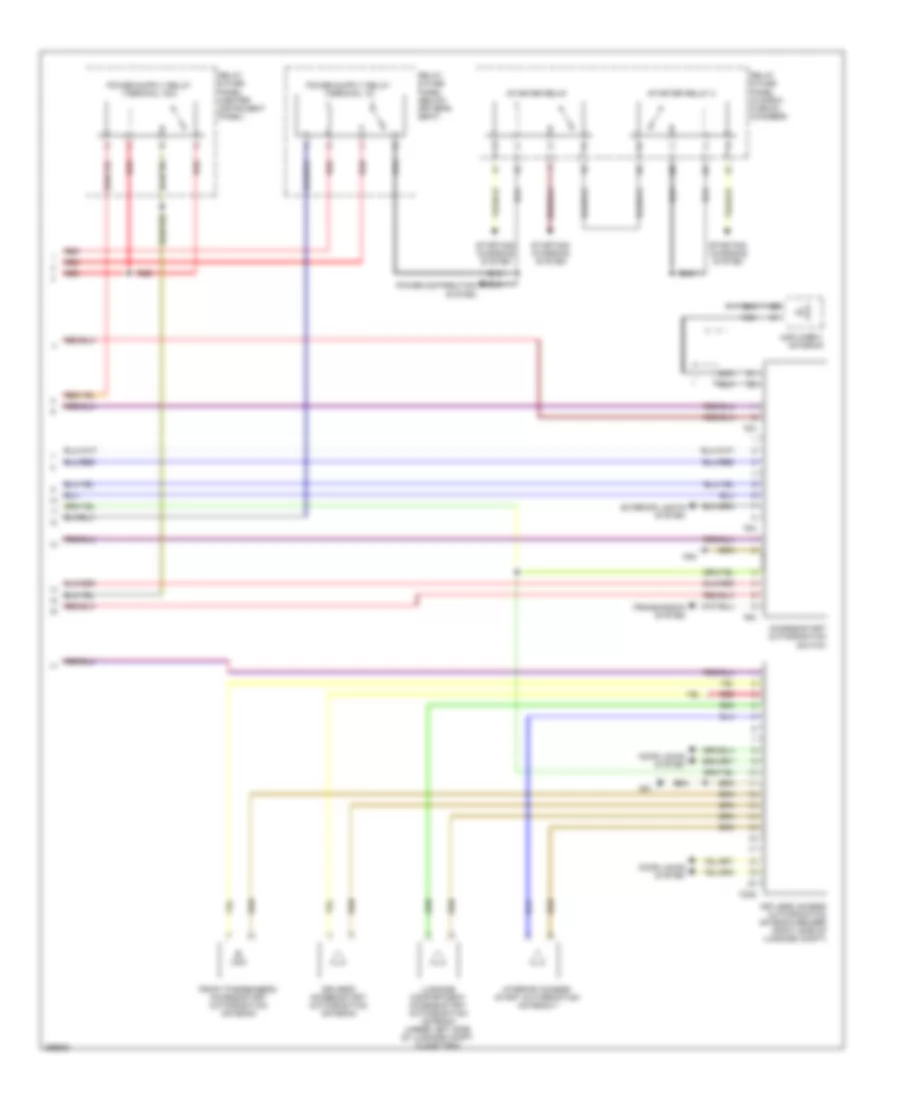

получите доступ/Начните к Схеме (2 из 2) для Audi Q7 4.2 2008

получите доступ/Начните к Схеме (2 из 2) для Audi Q7 4.2 2008 - Список элементов:

• Access/start authorization switch
• Amplifier 2 antenna
• Door locks system
• Driver's access/start authorization antenna
• Exterior lights system
• Front passenger's access/start authorization antenna
• G45
• G51
• Interior access/ start authorization antenna 1
• Keyless access authorization antenna reader (right side of luggage compt)
• Luggage compartment access/start authorization antenna (under left side of luggage compt floor trim)
• Nca
• Power distribution system
• Red
• Relay & fuse panel (below driver's seat)
• Relay & fuse panel (center instrument panel)
• Relay & fuse panel (in e-box plenum chamber)
• Starter relay
• Starter relay 2
• Starting/ charging system
• T20g
• T2a
• T6a
• T8a
• Transmission system

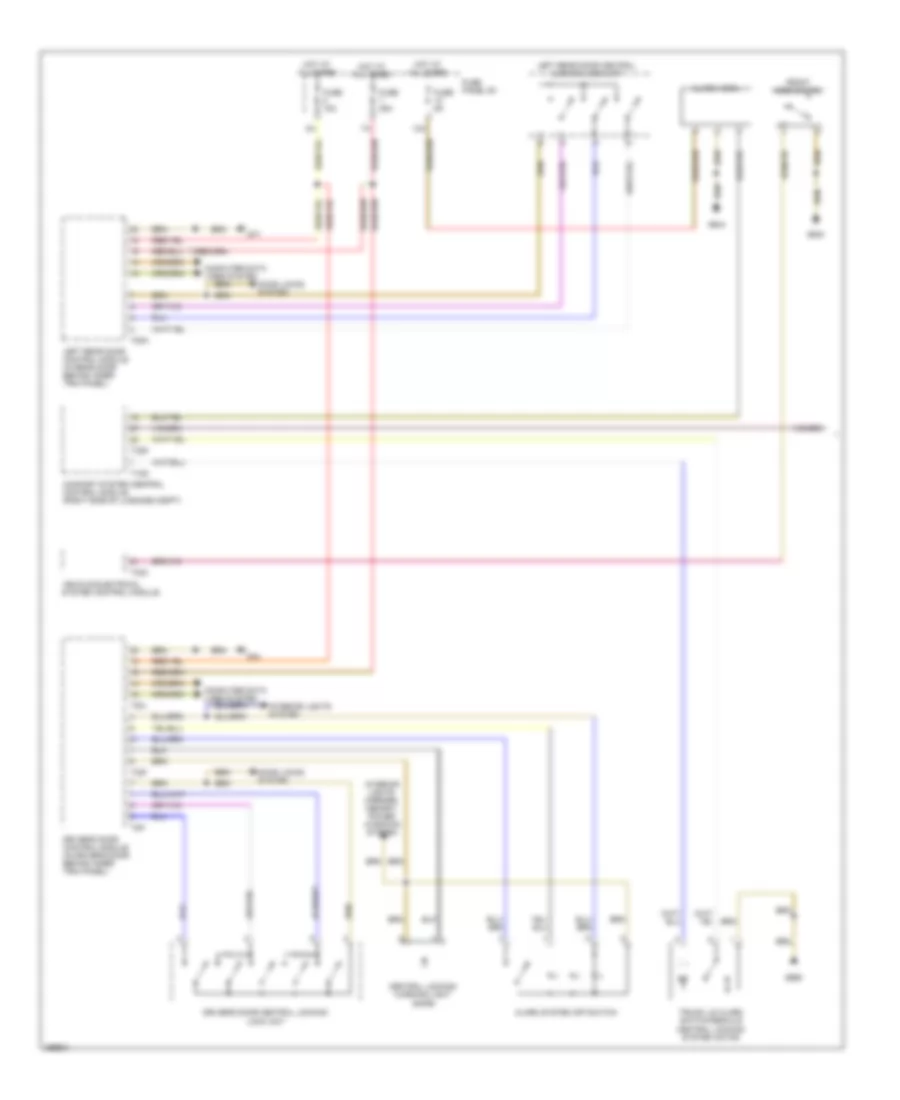

Электросхема противоугонной сигнализации (1 из 2) для Audi Q7 4.2 2008

Электросхема противоугонной сигнализации (1 из 2) для Audi Q7 4.2 2008 - Список элементов:

• 12a
• Alarm horn
• Alarm system off switch
• Central locking warning light (safe)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Door locks system
• Driver's door central locking lock unit
• Driver's door control module (in driver's door behind inner trim panel)
• Front hood switch
• Fuse 15a
• Fuse 35a
• Fuse 5a
• Fuse panel b1
• G44
• G640
• G644
• G668
• G77
• Hot at all times
• Interior lights system
• Interior lights, mirrors, memory, power windows system
• Left rear door central locking lock unit
• Left rear door control module (in rear door behind inner trim panel)
• T10g
• T20i
• T20l
• T20n
• T32c
• T32d
• T32f
• Trunk lid alarm switch/decklid central locking system motor
• Vehicle electrical system control module

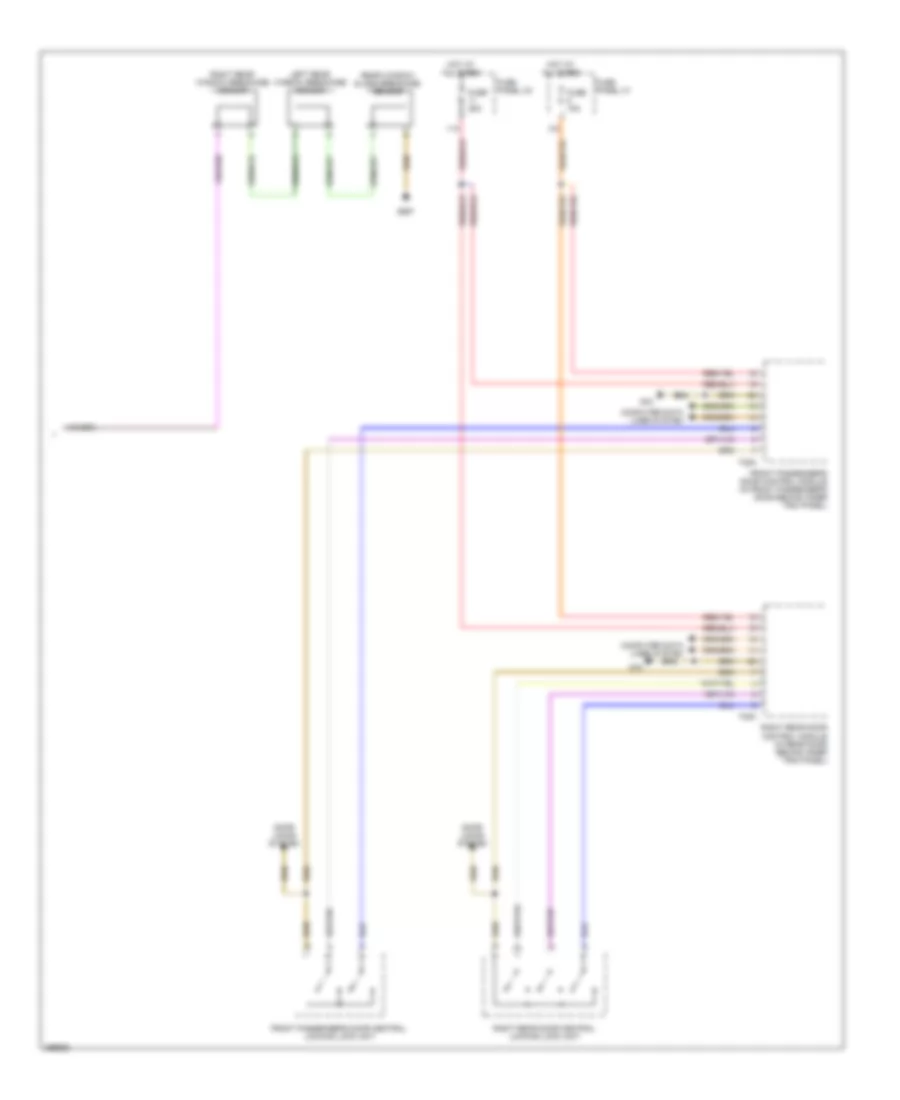

Электросхема противоугонной сигнализации (2 из 2) для Audi Q7 4.2 2008

Электросхема противоугонной сигнализации (2 из 2) для Audi Q7 4.2 2008 - Список элементов:

• 11a
• Computer data lines system
• Door locks system
• Front passenger's door central locking lock unit
• Front passenger's door control module (in front passenger's door behind inner trim panel)
• Fuse 15a
• Fuse 35a
• Fuse panel c1
• Fuse panel c3
• G43
• G657
• G78
• Hot at all times
• Left rear window breakage sensor
• Rear window glass breakage sensor
• Right rear door central locking lock unit
• Right rear door control module (in rear door behind inner trim panel)
• Right rear window breakage sensor
• T20m
• T20o
