Электросхемы СИСТЕМЫ СИДЕНИЙ Audi A6 Avant Quattro 1998

СИСТЕМЫ СИДЕНИЙ

Электросхема подогрева сидений для Audi A6 Avant Quattro 1998

Электросхема подогрева сидений для Audi A6 Avant Quattro 1998 - Список элементов:

• 227a
• 244a
• 75x
• Driver's backrest heat element
• Driver's seat heat element
• Driver's seat temperature sensor
• Driver's side facial element (backrest)
• Driver's side facial element (seatback)
• Fuse 27 15a
• Fuse 44 30a
• Fuse 5 5a
• Fuse panel
• G202 (behind left side of dash)
• Heated driver's seat adjuster
• Heated passenger's seat adjuster
• Heated steering wheel
• Hot at all times
• Hot in run
• Hot in run or acc
• Left rear backrest heating element
• Left rear heated seat regulating switch
• Left rear heated seat switch
• Left rear heated seat temperature sensor
• Left rear seat heating element
• Load reduction relay
• Micro central electric panel (left side of dash)
• Nca
• Passenger's backrest heat element
• Passenger's seat heat element
• Passenger's seat temperature sensor
• Right rear backrest heating element
• Right rear heated seat regulating switch
• Right rear heated seat temperature sensor
• Right rear seat heating element
• Solid state
• T2bg
• T5d

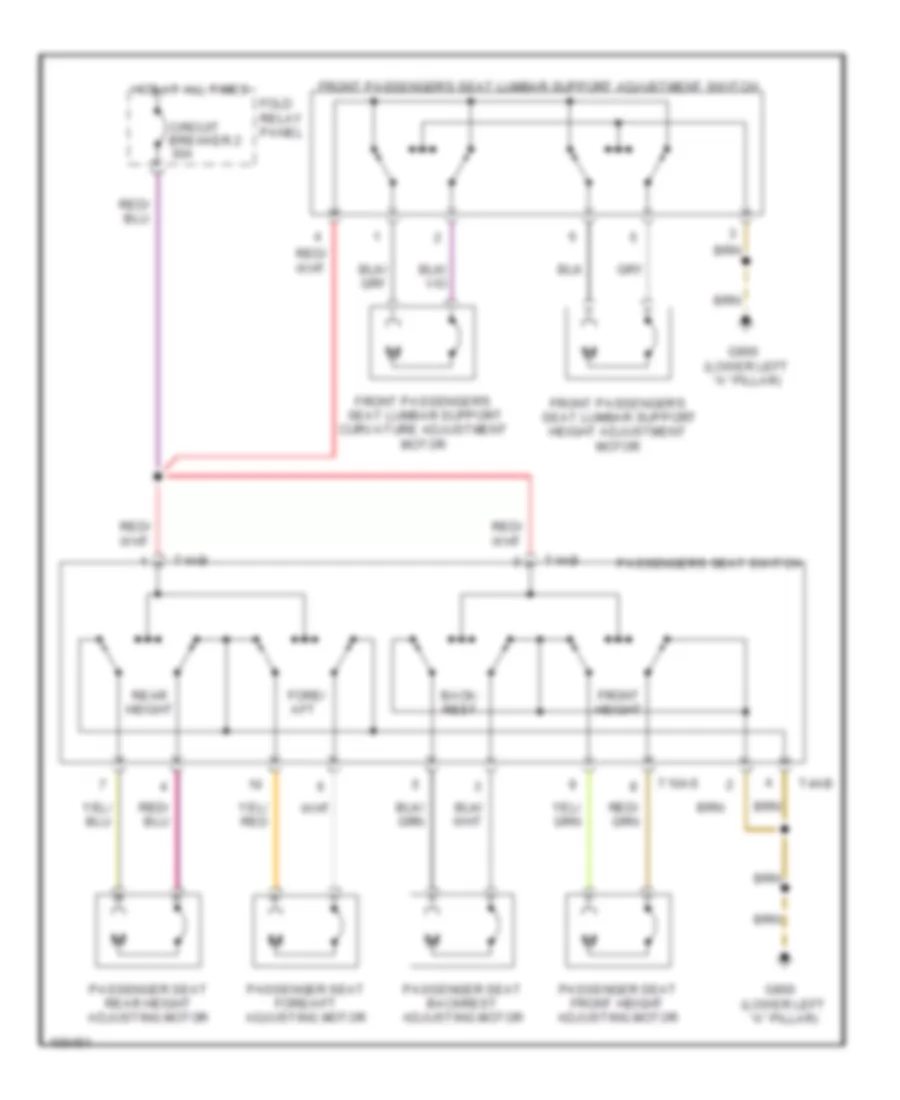

Электросхема привода пассажирского сиденья для Audi A6 Avant Quattro 1998

Электросхема привода пассажирского сиденья для Audi A6 Avant Quattro 1998 - Список элементов:

• Back- rest
• Circuit breaker 2 30a
• Fold relay panel
• Fore/ aft
• Front height
• Front passenger's seat lumbar support curvature adjustment motor
• Front passenger's seat lumbar support height adjustment motor
• Front passenger's seat lumbar support adjustment switch
• G900 (lower left "a" pillar)
• Hot at all times
• Passenger seat backrest adjusting motor
• Passenger seat fore/aft adjusting motor
• Passenger seat front height adjusting motor
• Passenger seat rear height adjusting motor
• Passenger's seat switch
• Rear height
• T10as
• T4ab
