Электросхемы Система Фар Audi A6 Avant Quattro 1998

Система Фар

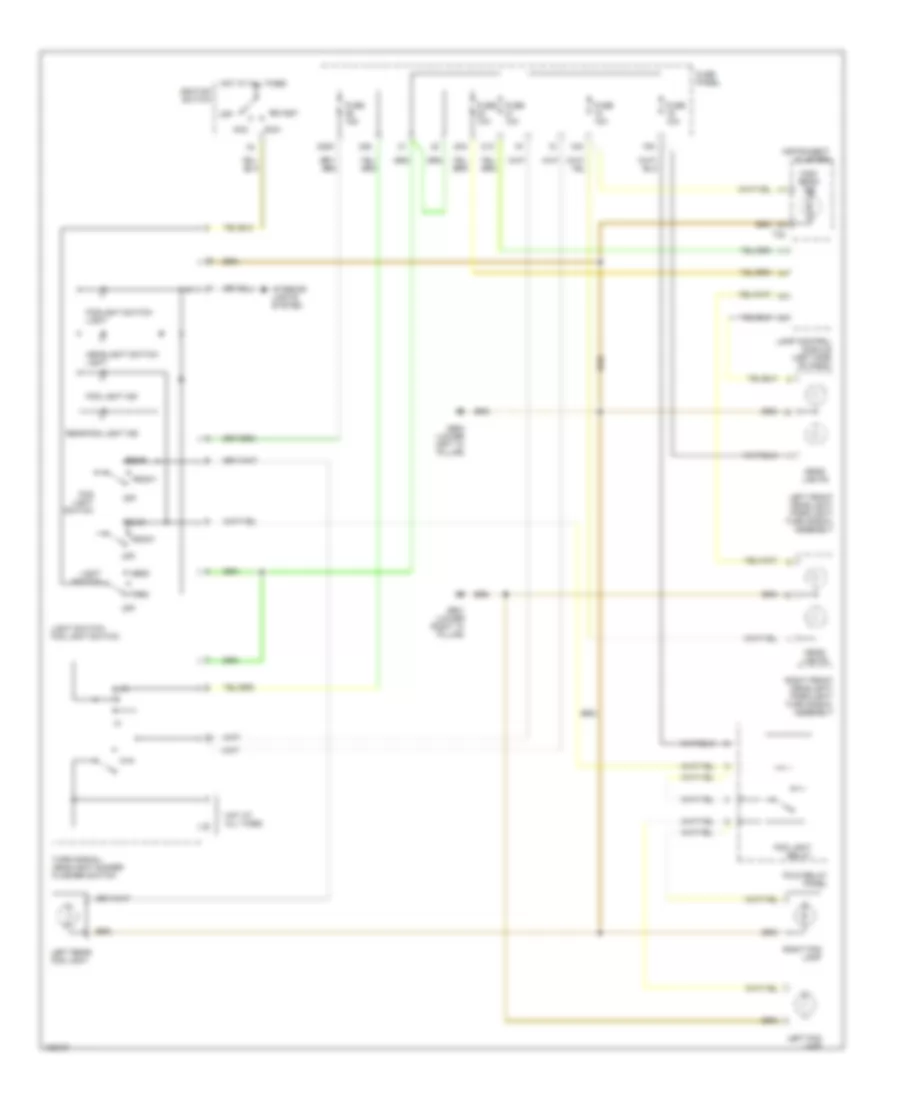

Электросхема фар и противотуманок, С DRL для Audi A6 Avant Quattro 1998

Электросхема фар и противотуманок, С DRL для Audi A6 Avant Quattro 1998 - Список элементов:

• 18a
• 19a
• 20a
• 21a
• 236a
• Acc
• Combination processor
• Fog light ind
• Fog light relay
• Fog light switch
• Foglight switch light
• Fold relay panel
• Front
• Ftp
• Fuse 10a
• Fuse 15a
• Fuse panel
• G900 (lower left "a" pillar)
• G901 (lower right "a" pillar)
• Head
• Head- lights
• Headlight switch light
• High beam ind
• Hot at all times
• Ignition switch
• Instrument cluster
• Lamp control module (left side of dash)
• Left fog lamp
• Left front headlight/ parklight/ turn signal assembly
• Left rear fog light
• Light switch
• Light switch/ fog light switch
• Off
• Park
• Rear
• Rear fog light ind
• Resistance wire (w/o xenon lamps)
• Right fog lamp
• Right front headlight/ parklight/ turn signal assembly
• Run
• Start
• T32
• Turn signal/ headlight dimmer/ flasher switch
• W/xenon lamps

Электросхема фар и противотуманок, без DRL для Audi A6 Avant Quattro 1998

Электросхема фар и противотуманок, без DRL для Audi A6 Avant Quattro 1998 - Список элементов:

• 18a
• 19a
• 20a
• 21a
• 236a
• Acc
• Fog light ind
• Fog light relay
• Fog light switch
• Foglight switch light
• Fold relay panel
• Front
• Ftp
• Fuse 10a
• Fuse 15a
• Fuse panel
• G900 (lower lrft "a" pillar)
• G901 (lower right "a" pillar)
• Head
• Head- lights
• Headlight switch light
• High beam ind
• Hot at all times
• Ignition switch
• Instrument cluster
• Interior lights system
• Lamp control module (left side of dash)
• Left fog lamp
• Left front headlight/ parklight/ turn signal assembly
• Left rear fog light
• Light switch
• Light switch/ fog light switch
• Off
• Park
• Rear
• Rear fog light ind
• Right fog lamp
• Right front headlight/ parklight/ turn signal assembly
• Run
• Start
• T32
• Turn signal/ headlight dimmer/ flasher switch
