Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Audi A6 Avant Quattro 1998

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

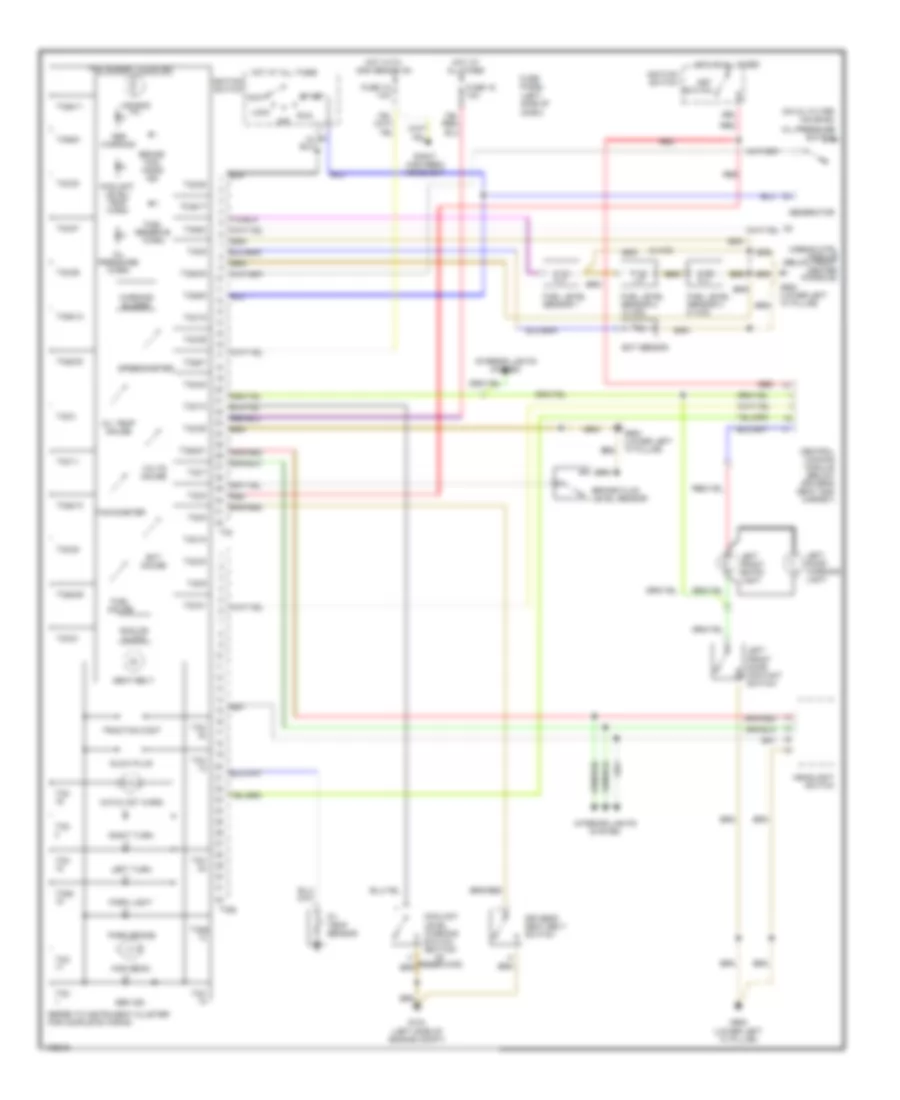

Электросхема предупреждающей системы для Audi A6 Avant Quattro 1998

Электросхема предупреждающей системы для Audi A6 Avant Quattro 1998 - Список элементов:

• (2 w/d)
• (left side of dash)
• (on oil filter housing)
• 15a
• 18a
• 86s
• Abs warning
• Air bag mil
• Airbag ctrl module (below front center console)
• Analog clock
• Brake fluid level sensor
• Brake pad wear ind
• Catalyst warn
• Central locking module (below driver's seat and carpet)
• Coolant level warning switch (bottom
• Coolant level/ temp warn
• Driver's seat belt switch
• Ect gauge
• Ect sensor
• Fuel gauge
• Fuel level sensor 1
• Fuel level sensor 2 (4 w/d)
• Fuel level sensor 3 (4 w/d)
• Fuel reserve warn
• Fuse 15 10a
• Fuse 18 10a
• Fuse panel
• G104 (left side of engine compt)
• G900 (lower left "a" pillar)
• Gen ind.
• Generator
• Glow plug
• Headlight switch
• High beam
• Hot at all times
• Hot with high beams on
• Ignition switch
• Ignition switch acc
• Instrument cluster
• Interior lights system
• Key switch
• Left door warning light
• Left front door contact switch
• Left front entry light
• Left turn
• Lock
• Off
• Oil pressure switch
• Oil pressure warn
• Oil temp gauge
• Oil temp sensor
• Park brake
• Park light
• Red
• Refer to instrument cluster for complete wiring
• Reservoir)
• Right high beam headlight
• Right turn
• Run
• Seat belt
• Speedometer
• Start
• T32
• T32/
• T32/10
• T32/11
• T32/15
• T32/19
• T32/20
• T32/21
• T32/22
• T32/23
• T32/25
• T32/26
• T32/27
• T32/28
• T32/29
• T32/3
• T32/30
• T32/31
• T32/5
• T32/6
• T32/7
• T32/8
• T32/9
• T32a
• T32a/
• T32a/10
• T32a/11
• T32a/12
• T32a/17
• T32a/2
• T32a/21
• T32a/23
• T32a/29
• T32a/30
• T32a/5
• T32a/6
• T32a/7
• Tachometer
• Traction cont
• Volts gauge
• Warning buzzer
