HORN – Suzuki Vitara JS+ 1999 – SYSTEM WIRING DIAGRAMS

    HomeSUZUKISuzuki 1999Suzuki Vitara JS+ 1999Suzuki Vitara JS+ 1999 - ALL WIRING DIAGRAMS
Download PDF file

HORN

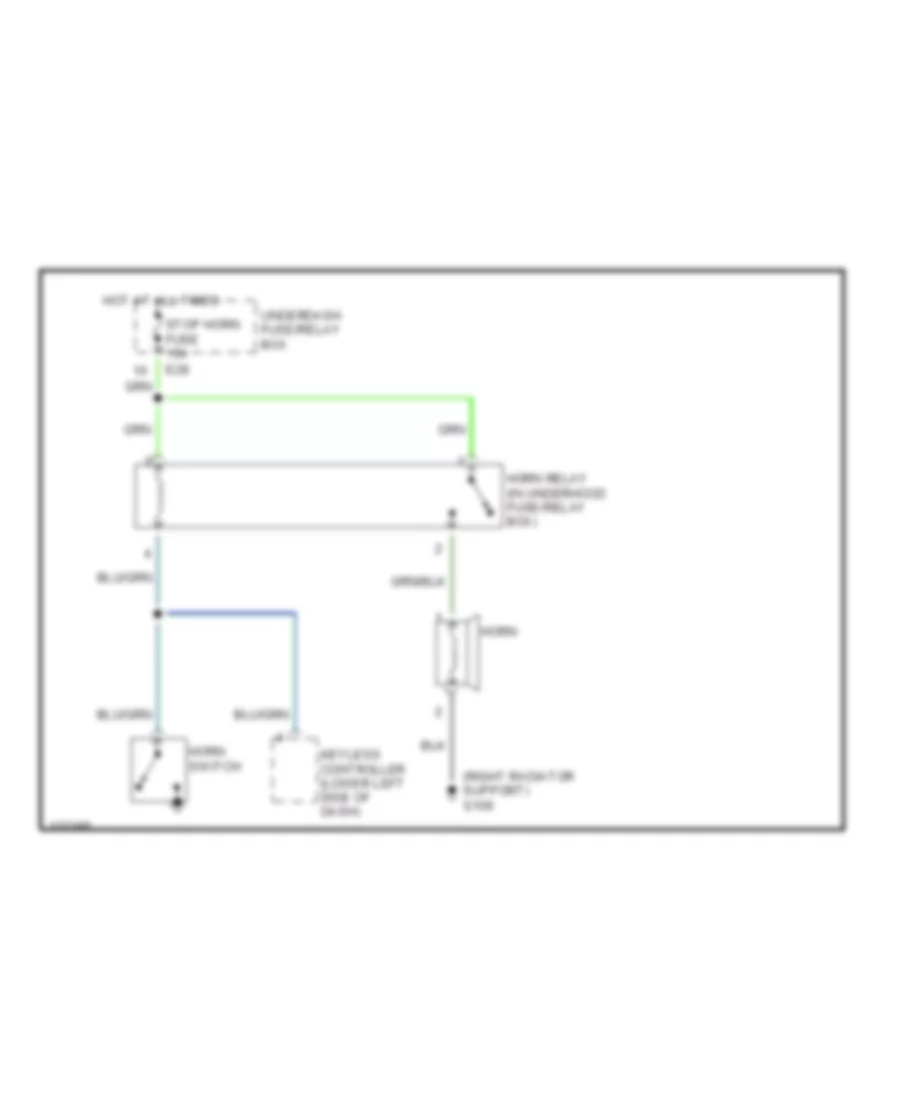

Horn Wiring Diagram for Suzuki Vitara JS+ 1999

Horn Wiring Diagram for Suzuki Vitara JS+ 1999Get access to all wiring diagrams of the carDownload PDF file

List of elements for Horn Wiring Diagram for Suzuki Vitara JS+ 1999:

  • (right radiator support) g109
  • E28
  • Horn
  • Horn relay (in underhood fuse/relay box)
  • Horn switch
  • Hot at all times
  • Keyless controller (lower left side of dash)
  • Stop horn fuse 15a
  • Underdash fuse/relay box
