POWER MIRRORS – Suzuki Vitara JS+ 1999 – SYSTEM WIRING DIAGRAMS

    HomeSUZUKISuzuki 1999Suzuki Vitara JS+ 1999Suzuki Vitara JS+ 1999 - ALL WIRING DIAGRAMS

POWER MIRRORS

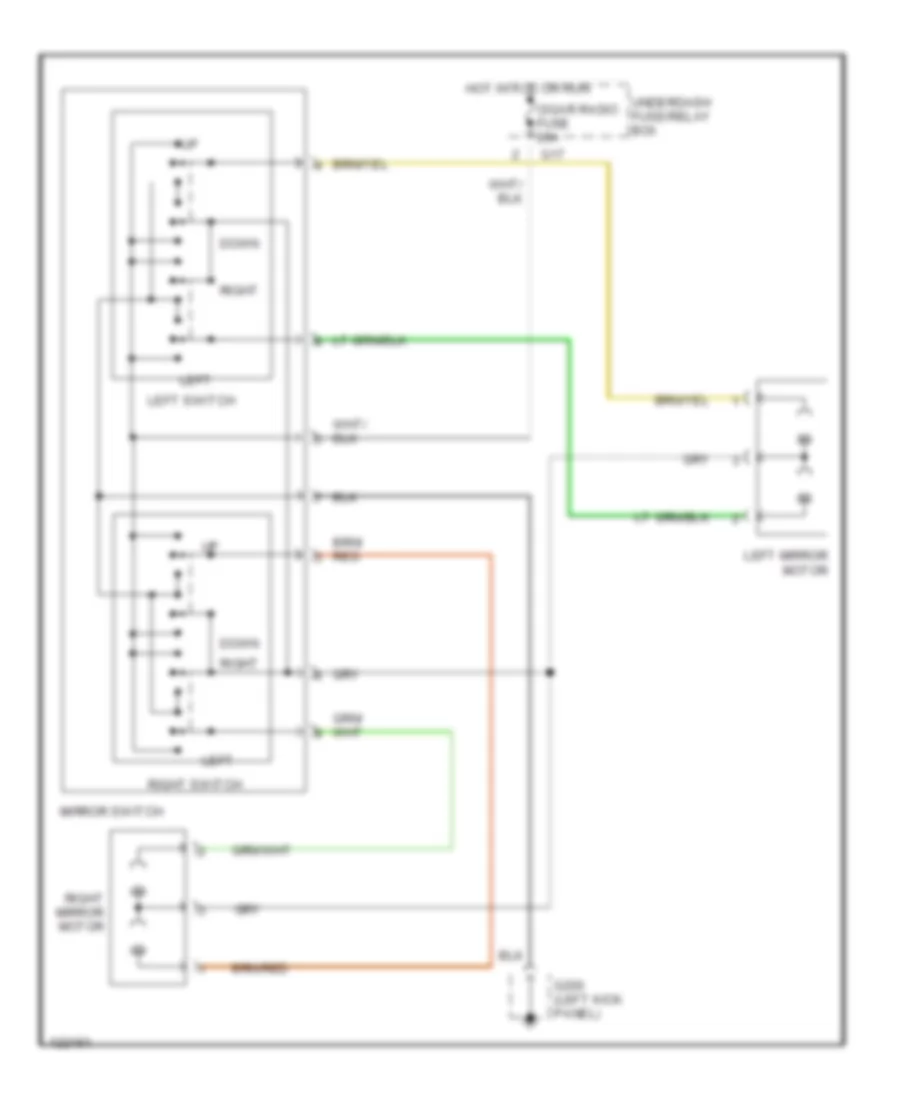

Power Mirror Wiring Diagram for Suzuki Vitara JS+ 1999

Power Mirror Wiring Diagram for Suzuki Vitara JS+ 1999Get access to all wiring diagrams of the car

List of elements for Power Mirror Wiring Diagram for Suzuki Vitara JS+ 1999:

  • Cigar radio fuse 20a
  • Down
  • G17
  • G200 (left kick panel)
  • Hot in acc or run
  • Left
  • Left mirror motor
  • Left switch
  • Mirror switch
  • Right
  • Right mirror motor
  • Right switch
  • Underdash fuse/relay box
