WIPER/WASHER – Suzuki Vitara JS+ 1999 – SYSTEM WIRING DIAGRAMS

WIPER/WASHER

Front Wiper/Washer Wiring Diagram for Suzuki Vitara JS+ 1999

List of elements for Front Wiper/Washer Wiring Diagram for Suzuki Vitara JS+ 1999:

• Combination switch
• E27
• G108 (left radiator support)
• G203 (right kick panel)
• Hot in run or start
• Intermittent controller
• Lo int
• Off
• Underdash fuse/relay box
• Wash
• Washer switch
• Windshield washer motor
• Windshield wiper motor
• Wiper switch
• Wiper washer fuse 15a

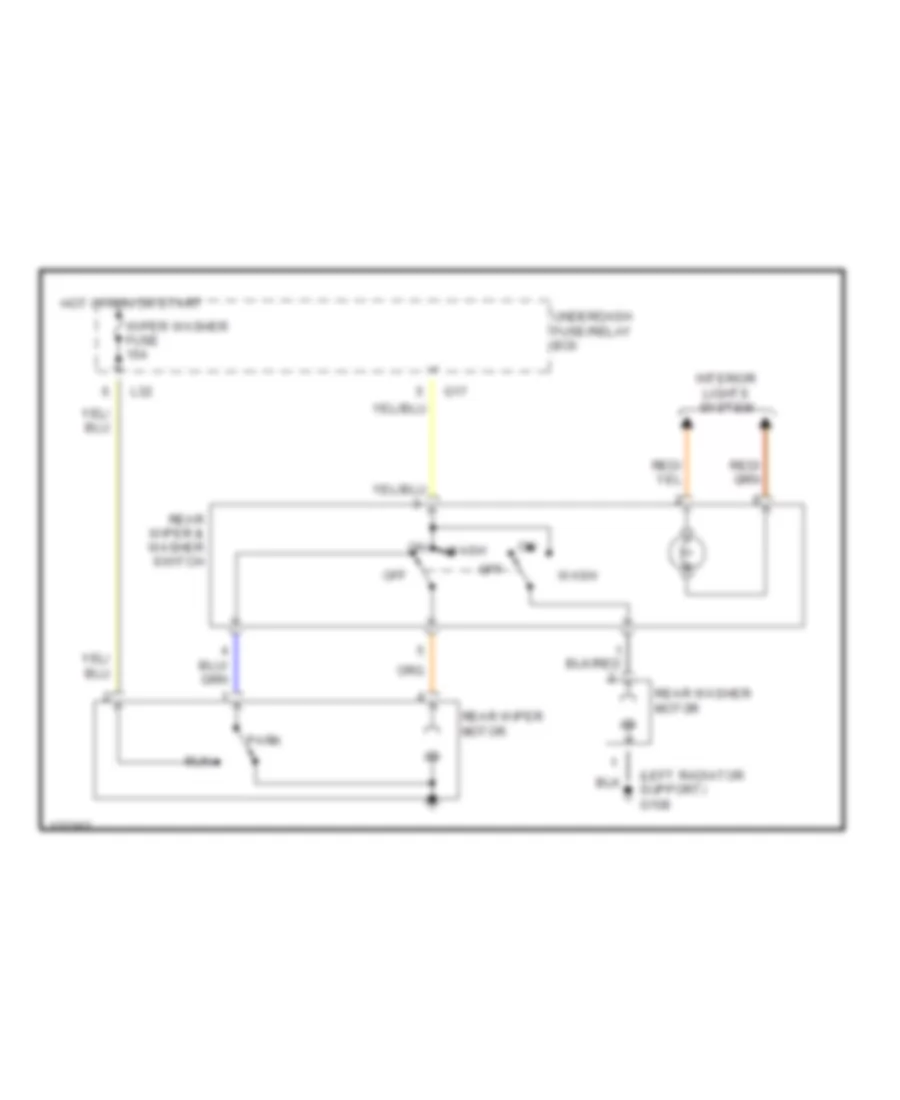

Rear Wiper/Washer Wiring Diagram for Suzuki Vitara JS+ 1999

List of elements for Rear Wiper/Washer Wiring Diagram for Suzuki Vitara JS+ 1999:

• (left radiator support) g108
• G17
• Hot in run or start
• Interior lights system
• L32
• Off
• Park
• Rear washer motor
• Rear wiper & washer switch
• Rear wiper motor
• Run
• Underdash fuse/relay box
• Wash
• Wiper washer fuse 15a
