VW PASSAT CC 2010 – Electromechanical parking brake . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW PASSAT CC
  4. >VW PASSAT CC 2010
  5. >VW PASSAT CC 2010 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

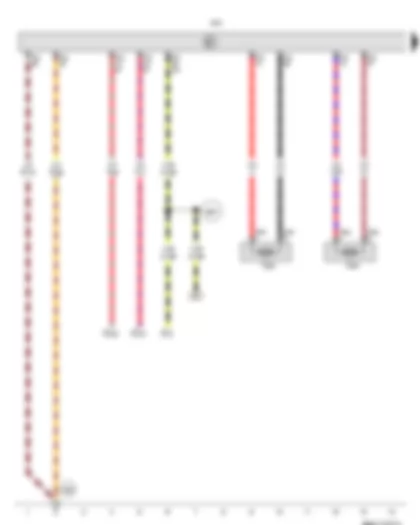

Wiring Diagram VW PASSAT CC 2010 - Control unit for electromechanical parking brake - Left parking brake motor - Right parking brake motor



Wiring Diagram VW PASSAT CC 2010 - Control unit for electromechanical parking brake - Left parking brake motor - Right parking brake motor https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
J540 Control unit for electromechanical parking brake
SC2 Fuse 2 on fuse holder C
SC29 Fuse 29 on fuse holder C
SC30 Fuse 30 on fuse holder C
T2an 2-pin connector
T2ao 2-pin connector
T30 30-pin connector
V282 Left parking brake motor
V283 Right parking brake motor
  688 Earth point 2, on centre tunnel
  B287 Positive connection 11 (15a) in main wiring harness

Wiring Diagram VW PASSAT CC 2010 - Electromechanical parking brake button - Auto-hold button - Onboard supply control unit - Control unit for electromechanical parking brake - Electromechanical parking brake warning lamp - Auto-hold warning lamp - Button illumination bulb



Wiring Diagram VW PASSAT CC 2010 - Electromechanical parking brake button - Auto-hold button - Onboard supply control unit - Control unit for electromechanical parking brake - Electromechanical parking brake warning lamp - Auto-hold warning lamp - Button illumination bulb https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
E538 Electromechanical parking brake button
E540 Auto-hold button
J519 Onboard supply control unit
J540 Control unit for electromechanical parking brake
K213 Electromechanical parking brake warning lamp
K237 Auto-hold warning lamp
L76 Button illumination bulb
SC17 Fuse 17 on fuse holder C
T6h 6-pin connector
T10i 10-pin connector
T12i 12-pin connector
T30 30-pin connector
T52b 52-pin connector
  249 Earth connection 2, in interior wiring harness
  396 Earth connection 31, in main wiring harness
  639 Earth point, left A-pillar
  687 Earth point 1, on centre tunnel
  B332 Positive connection 18 (30a) in main wiring harness
  B340 Connection 1 (58d), in main wiring harness
  B482 Connection 18, in main wiring harness
*From March 2011
*2Up to March 2011

Wiring Diagram VW PASSAT CC 2010 - ABS control unit - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface - Control unit for electromechanical parking brake



Wiring Diagram VW PASSAT CC 2010 - ABS control unit - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface - Control unit for electromechanical parking brake https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J104 ABS control unit
J119 Multifunction indicator
J285 Control unit in dash panel insert
J533 Data bus diagnostic interface
J540 Control unit for electromechanical parking brake
K118 Brake system warning lamp
K214 Electric parking brake and handbrake fault warning lamp
T20e 20-pin connector
T30 30-pin connector
T32c 32-pin connector
T38 38-pin connector
  B384 Connection 2 (powertrain CAN bus, high), in main wiring harness
  B391 Connection 2 (powertrain CAN bus, low), in main wiring harness
