Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Isuzu Ascender Limited 2004

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

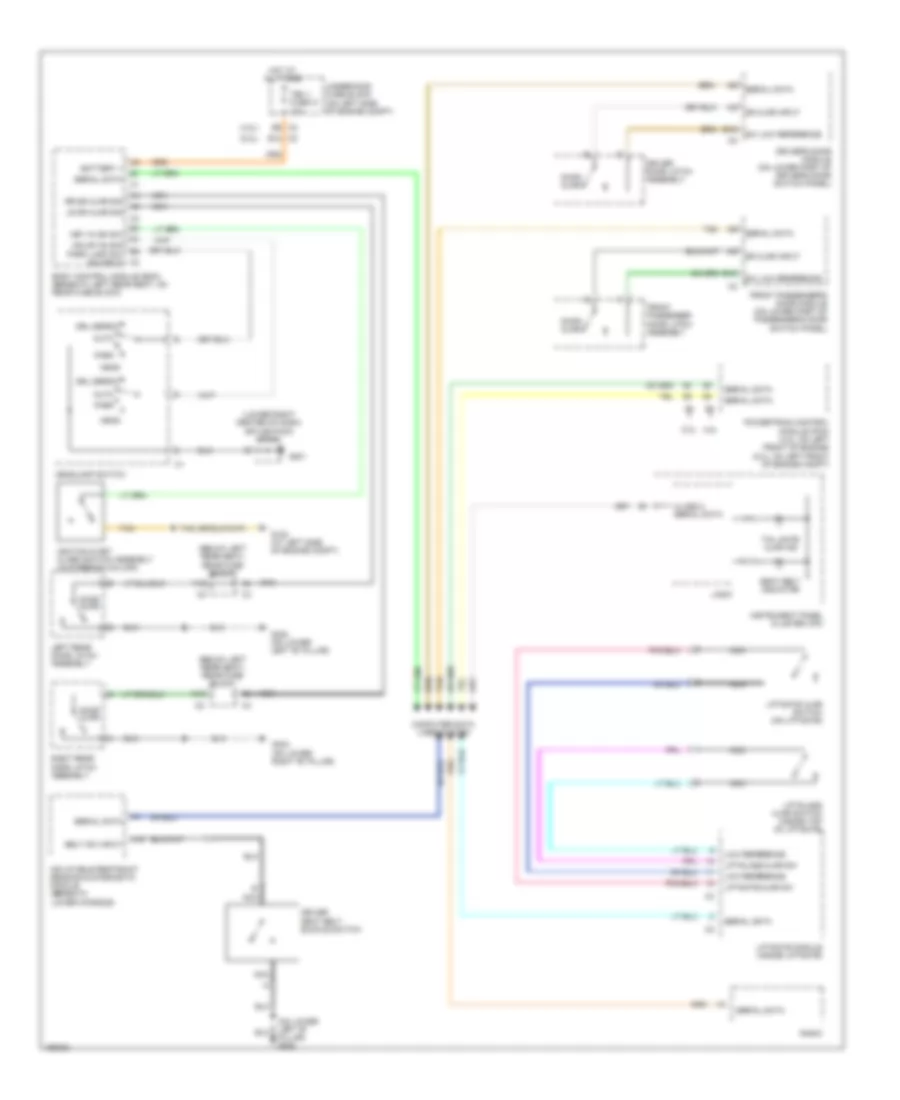

Электросхема сигнала для Isuzu Ascender Limited 2004

Электросхема сигнала для Isuzu Ascender Limited 2004 - Список элементов:

• (4.2l)
• (5.3l)
• (below left rear seat) rear fuse block
• (lower right center of dash) splice pack sp201
• (on lower left "b" pillar) g302
• 4.2l
• 5.3l
• A12
• A15
• Auto
• B10
• Battery +
• Belt sw input
• Body control module (bcm) (beneath left rear seat, on rear fuse block)
• Class 2 serial data
• Computer data lines system
• Door ajar
• Dr ajar input
• Driver door latch assembly
• Driver seat belt buckle switch
• Driver's door module (on lower part of driver's door switch panel)
• Drl defeat
• E12 c2
• E6 c2
• F10
• Front passenger door latch assembly
• Front passenger's door module (on lower part of passenger's door switch panel)
• G102 (at left side of engine compt)
• G201
• G302 (on lower left "b" pillar)
• G303 (on lower right "b" pillar)
• Hdlmp on sig
• Head
• Headlamp switch
• Hot at all times
• Ignition & key alarm switch assembly (in steering column)
• Inflatable restraint sensing & diagnostic module (beneath lower console)
• Instrument panel cluster (ipc)
• Key in ign sw
• Left rear door latch assembly
• Liftgate ajar sw
• Liftgate ajar switch (on liftgate)
• Liftgate module (inside liftgate)
• Liftglass ajar sw
• Liftglass ajar switch (inside top of liftgate)
• Logic
• Low reference
• Lr dr ajar sig
• Nca
• Park
• Park lamp sw on input
• Powertrain control module (pcm) (4.2l: on left front of engine) (5.3l: on left front of engine compt)
• Radio
• Right rear door latch assembly
• Rr dr ajar sig
• Seat belt indicator
• Serial data
• Sw low reference
• Tail gate ajar ind
• Tan
• Tbc 1 fuse 31 10a
• Underhood fuse block (on left side of engine compt)

дверь багажника, приоткрытая предупреждение схемы для Isuzu Ascender Limited 2004

дверь багажника, приоткрытая предупреждение схемы для Isuzu Ascender Limited 2004 - Список элементов:

• 12v
• B6 c2
• Battery
• Class 2
• Defog sply volt
• Defogger system
• Door ajar
• Door locks system
• G401 (on lower left "d" pillar)
• Ground
• Hot at all times
• Instrument panel cluster (ipc)
• Key buzzer
• Lgm 2 fuse 3 30a
• Lgm/dsm fuse 19 10a
• Liftgate ajar switch (on liftgate)
• Liftgate module (lgm) (inside liftgate)
• Liftglass ajar switch (inside top of liftgate)
• Lock ctrl
• Logic
• Low ref
• Nca
• Open sw sig
• Rear fuse block (below left rear seat)
• Serial data
• Sp205 (below left side of i/p)
• Sp306 (under right rear seat)
• Sw sig
• Tailgate ajar
• Tan
• Unlock ctrl
• Wiper motor sig
• Wiper/washer system
