Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Isuzu Ascender Limited 2004

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

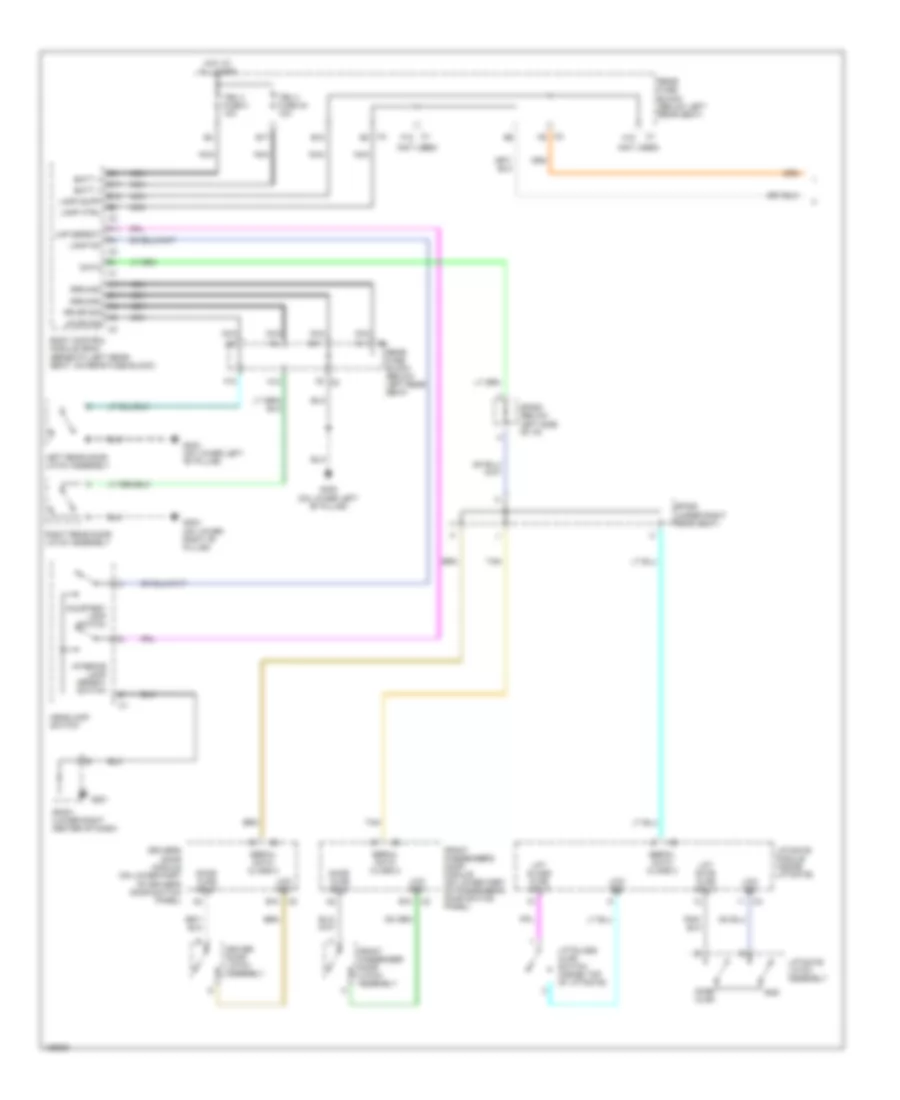

Электросхема подсветки (1 из 2) для Isuzu Ascender Limited 2004

Электросхема подсветки (1 из 2) для Isuzu Ascender Limited 2004 - Список элементов:

• (not used)
• A11
• A12
• B11
• B17
• B18
• Batt +
• Body control module (bcm) (beneath left rear seat, on rear fuse block)
• C1 f12
• C2 b10
• C3 f6
• C4 b3
• Courtesy lamp switch
• Data
• Door ajar
• Door ajar input
• Driver door latch assembly
• Driver's door module (on lower part of driver's door switch panel)
• F10
• F11
• F8 c2
• Front passenger door latch assembly
• Front passenger's door module (on lower part of passenger's door switch panel)
• G201
• G302 (on lower left "b" pillar)
• G303 (on lower right "b" pillar)
• Gnd
• Ground
• Headlamp switch
• Hot at all times
• Interior lamp defeat switch
• Lamp ctrl
• Lamp on
• Lamp supp
• Left rear door latch assembly
• Lift gate ajar input
• Lift glass ajar input
• Liftgate latch assembly
• Liftgate module (inside liftgate)
• Liftglass ajar switch (inside top of liftgate)
• Lmp defeat
• Low ref
• Lr dr sig
• Nca
• Rear fuse block (below left rear seat)
• Right rear door latch assembly
• Rr dr sig
• Serial data class 2
• Sp201 (lower right center of dash)
• Sp205 (below left side of i/p)
• Sp306 (under right rear seat)
• Tan
• Tbc 3 fuse 4 10a
• Tbc 4 fuse 40 10a

Электросхема подсветки (2 из 2) для Isuzu Ascender Limited 2004

Электросхема подсветки (2 из 2) для Isuzu Ascender Limited 2004 - Список элементов:

• Cargo lamp
• Courtesy
• G302 (on lower left "b" pillar)
• Left front courtesy/ reading lamp
• Left rear courtesy/ reading lamp
• Left rear reading lamp (lwb)
• Left vanity mirror lamp
• Lwb
• Nca
• Reading
• Right front courtesy/ reading lamp
• Right rear courtesy/ reading lamp
• Right rear reading lamp (lwb)
• Right vanity mirror lamp
• Swb

Электросхема подсветки приборов (1 из 2) для Isuzu Ascender Limited 2004

Электросхема подсветки приборов (1 из 2) для Isuzu Ascender Limited 2004 - Список элементов:

• (automatic a/c)
• (automatic a/c) (manual a/c)
• (manual a/c)
• A15
• A5 a1
• Auxiliary hvac control module (at rear of lower console)
• B c1
• B1 a1
• B1 b16
• B9 c1
• C1 c
• C3 e3
• C4 b13
• Fan/ temp switch
• Front auxiliary blower motor switch
• Fuel/ trip switch
• G201
• G302 (on lower left "b" pillar)
• G303 (on lower right "b" pillar)
• Garage door opener
• Headlamp switch
• Hot at all times
• Hvac control module
• Inflatable restraint steering wheel module (on steering wheel)
• Instrument panel cluster (ipc)
• Left quarter glass switch (lwb)
• Left rear window switch
• Lwb
• Nca
• Radio
• Rear fuse block (below left rear seat)
• Rear window wiper/ washer switch
• Right quarter glass switch (lwb)
• Right rear window switch
• Select/ personal- ization switch
• Sp201 (lower right center of dash)
• Steering wheel control assembly (on steering column)
• Steering wheel controls fuse
• Sunroof switch
• Swb
• Tbc 2 fuse 7 10a
• Tbc 5 fuse 32 10a
• Traction control switch
• Transfer case shift control switch
• Voice recorder (in upper console)
• Volume am/fm switch

Электросхема подсветки приборов (2 из 2) для Isuzu Ascender Limited 2004

Электросхема подсветки приборов (2 из 2) для Isuzu Ascender Limited 2004 - Список элементов:

• 2wd
• 4 hi
• 4 lo
• 5v ref
• A10
• Afwd
• Auto
• B1 pulse width modulated
• B10
• B13
• B14
• Batt +
• Body control module (bcm) (beneath left rear seat, on rear fuse block)
• D1 c2
• Data
• Dimming
• Driver memory seat switch
• Driver's door module (on lower part of driver's door switch panel)
• Drl defeat
• E11
• Electronic brake control module (on inner left frame rail, adjacent to transmission)
• Fog rly ctrl
• G102 (at left side of engine compt)
• G201
• Hdlp on
• Head
• Headlamp on indicator
• Headlamp switch
• Illum
• Input
• Lamp control
• Lamp indicator front fog
• Led dim
• Low ref
• Mem pwr
• Nca
• Park
• Park lamp on
• Pnk
• Rear fuse block (below left rear seat)
• Sp201 (lower right center of dash)
• Sp205 (below left side of i/p)
• Sp306 (under right rear seat)
• Traction active
• Traction control switch
• Traction disabled
• Transfer case shift control module (4wd) (behind left lower dash)
• Transfer case shift control switch
• Underhood fuse block (on left side of engine compt)
