Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Isuzu Ascender Limited 2004

СИСТЕМА КРУИЗКОНТРОЛЯ

4.2L

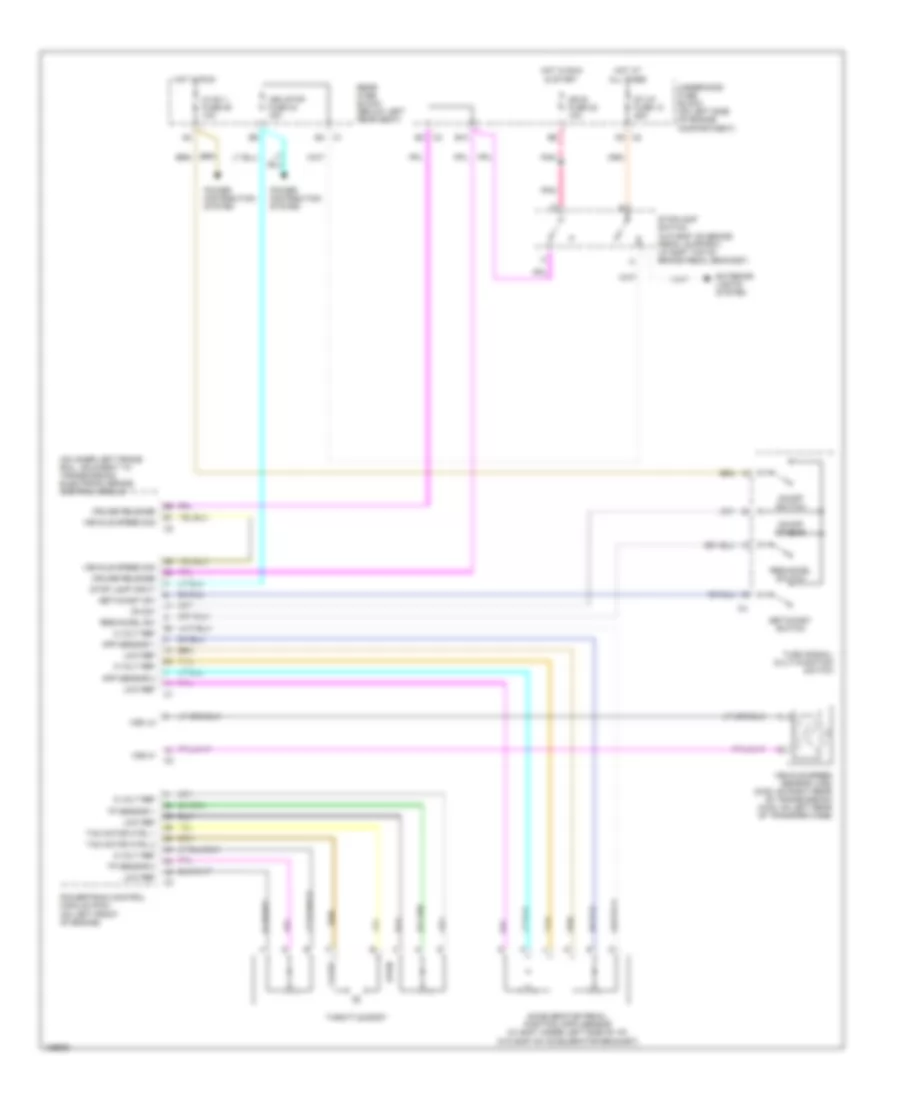

4.2L, Электросхема системы круизконтроля для Isuzu Ascender Limited 2004

4.2L, Электросхема системы круизконтроля для Isuzu Ascender Limited 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

4.2L, Электросхема системы круизконтроля для Isuzu Ascender Limited 2004 - Список элементов:

  • (on inner left frame rail, adjacent to transmission) electronic brake control module
  • 5 volt ref
  • Accelerator pedal position (app) sensor (w/ eap: under left side of i/p) (w/o eap: on accelerator bracket)
  • App sensor 1
  • App sensor 2
  • B10
  • B4 c1
  • C9 c2
  • Close
  • Cruise release
  • E3 c3
  • Exterior lights system
  • Hot at all times
  • Hot in run
  • Hot in run & start
  • Hvac 1 fuse 39 10a
  • Ign e fuse 22 10a
  • Low ref
  • On sw
  • On/off sensor
  • On/off switch
  • Open
  • Pnk
  • Power distribution system
  • Powertrain control module (pcm) (on left front of engine)
  • Rear fuse block (below left rear seat)
  • Res/accel sw
  • Res/accel switch
  • Set/coast sw
  • Set/coast switch
  • St/lp fuse 12 25a
  • Stop lamp input
  • Stoplamp switch (w/o eap: on brake pedal support) (w/ eap: top of brake pedal bracket)
  • Tac motor ctrl 1
  • Tac motor ctrl 2
  • Tan
  • Throttle body
  • Tp sensor 1
  • Tp sensor 2
  • Turn signal/ multi-function switch
  • Underhood fuse block (on left side of engine compartment)
  • Veh stop fuse 34 15a
  • Vehicle speed sensor (vss) (2wd: on right rear of transmission) (4wd: on left rear of transfer case)
  • Vehicle speed sig
  • Vss hi
  • Vss lo

5.3L

5.3L, Электросхема системы круизконтроля для Isuzu Ascender Limited 2004

5.3L, Электросхема системы круизконтроля для Isuzu Ascender Limited 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

5.3L, Электросхема системы круизконтроля для Isuzu Ascender Limited 2004 - Список элементов:

  • 5 volt ref
  • Accelerator pedal position sensor (w/o eap: on accelerator bracket) (w/ eap: under left side of i/p)
  • App sensor 1
  • App sensor 2
  • B10
  • B4 c1
  • C9 c2
  • Close
  • Cruise release
  • E12 c1
  • E3 c3
  • Electronic brake control module (on inner left frame rail, adjacent to transmission)
  • Exterior lights system
  • G108 (lower left side of engine)
  • Ground
  • Hot at all times
  • Hot in run & start
  • Hot in run rear fuse block (below left rear seat)
  • Hvac 1 fuse 39 10a
  • Ign e fuse 22 10a
  • Ign voltage
  • Low ref
  • On sw
  • On/off sensor
  • On/off switch
  • Open
  • Pnk
  • Power distribution system
  • Powertrain control module (pcm) (on left front of engine compartment)
  • Res/accel sw
  • Res/accel switch
  • Set/coast sw
  • Set/coast switch
  • St/lp fuse 12 25a
  • Stop lamp input
  • Stoplamp switch (w/o eap: on brake pedal support) (w/ eap: top of brake pedal bracket)
  • Tac fuse 23 15a
  • Tac motor ctrl
  • Tan
  • Throttle actuator control module (on left rear of engine compartment)
  • Throttle body
  • Tp sensor 1
  • Tp sensor 2
  • Turn signal/ multi-function switch
  • Uart serial data
  • Underhood fuse block (on left side of engine compartment)
  • Veh stop fuse 34 15a
  • Vehicle speed sensor (vss) (2wd: on right rear of transmission) (4wd: on left rear of transfer case)
  • Vehicle speed sig
  • Vss hi
  • Vss lo
