Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Dodge Caravan C/V 2004

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

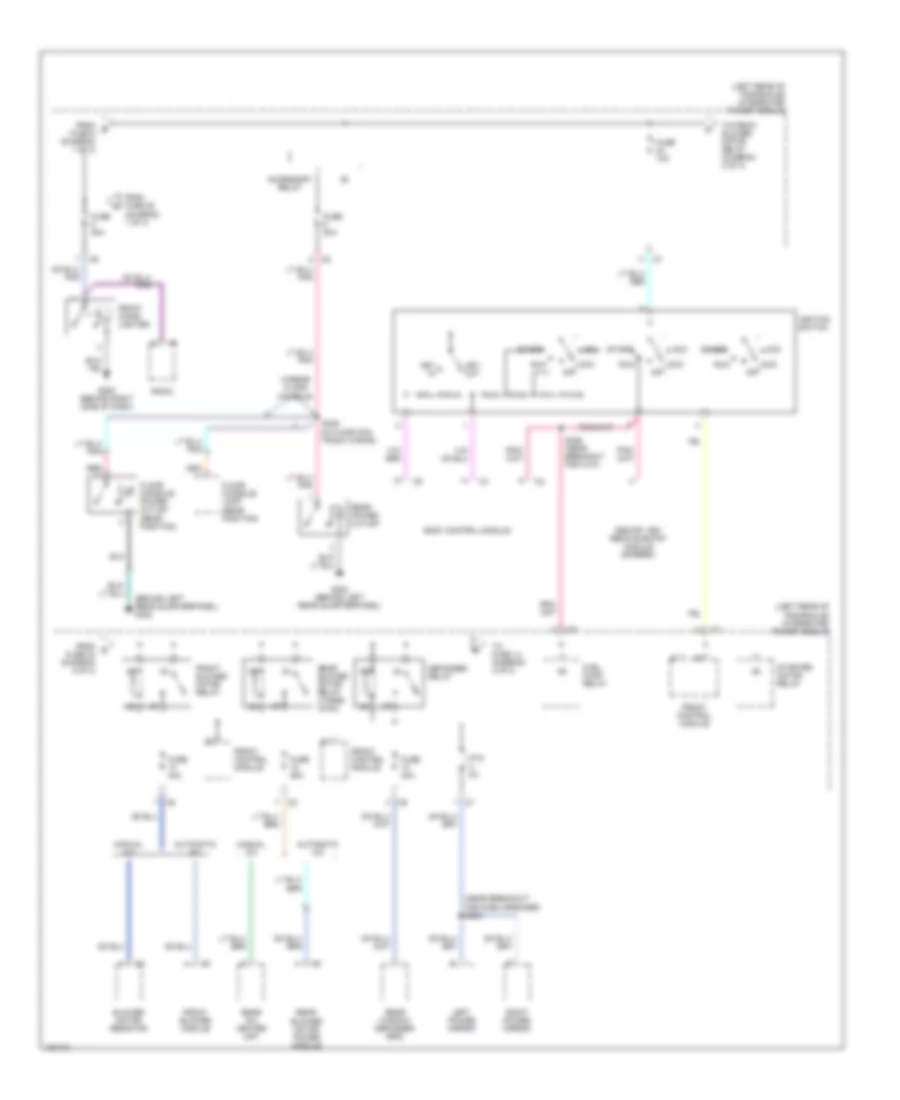

Электросхема блока предохранителей и реле (1 из 3) для Dodge Caravan C/V 2004

Электросхема блока предохранителей и реле (1 из 3) для Dodge Caravan C/V 2004 - Список элементов:

• (at breakout for data link connector) s303
• (highline)
• (in floor pan track wiring) s323
• (left rear of transaxle) integrated power module
• (near breakout for c301) s322
• (near breakout for instrument cluster) s206
• (near breakout for power liftgate module) s313
• 25a
• Accessory relay
• Battery
• Body control module
• Controller anti-lock brake
• Data link connector
• Driver power window switch
• Driver's power window switch) s346
• Floor console power outlet (front position)
• From a fuse 8 (diagram 1 of 3)
• Front control module
• Front fog lamp relay
• Front wiper on/off relay
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 40a
• G200 (behind right side of dash)
• G302 (behind left rear quarterpanel)
• Generator
• Highline
• Horn relay
• Instrument cluster
• Integrated power module (left rear of transaxle)
• Left front park/ turn signal lamp
• Left rear lamp assembly
• License lamp
• Lowline
• Message center
• Nca
• Park lamp relay
• Passenger power window switch
• Power outlet (except low line)
• Power window circuit breaker (left kick panel)
• Power window switch
• Ptc 13a
• Rear wiper motor
• Red
• Right front park/ turn signal lamp
• Right rear lamp assembly
• S122 (at breakout for engine starter motor)
• Starter motor
• Starter motor relay
• Sunroof module
• Tan/ red
• To fuse 23 (diagram 2 of 3)
• To fuse 5 (diagram 2 of 3)
• To fuse 9 (diagram 1 of 3)
• Trailer tow connector
• W/ sunroof
• W/ trailer tow

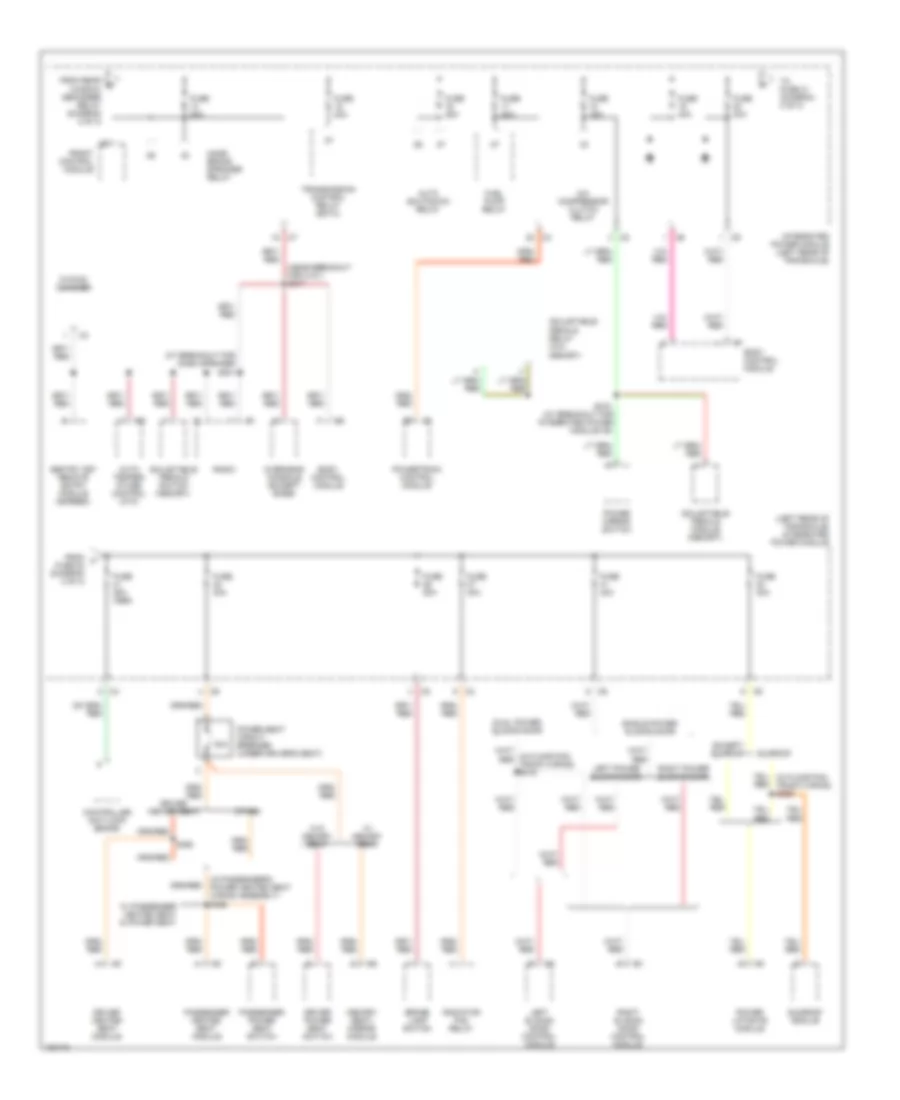

Электросхема блока предохранителей и реле (2 из 3) для Dodge Caravan C/V 2004

Электросхема блока предохранителей и реле (2 из 3) для Dodge Caravan C/V 2004 - Список элементов:

• (behind left rear quarterpanel) g302
• (left rear of transaxle) integrated power module
• (near breakout for dash speaker) s204
• Acc
• Accessory relay
• Automatic a/c
• Blower motor resistor
• Body control module
• Defogger relay
• Floor console lamp (rear position)
• Floor console power outlet (rear position)
• From b fuse 9 (diagram 1 of 3)
• From d fuse 23 (diagram 2 of 3)
• From fuse 28 (diagram 1 of 3)
• Front blower module
• Front blower motor relay
• Front cigar lighter
• Front control module
• Fuel pump relay
• Fuse 10a
• Fuse 20a
• Fuse 25a
• Fuse 40a
• G200 (behind right side of dash)
• G302 (behind left rear quarterpanel)
• Ignition switch
• Key in
• Key out
• Left power mirror
• Lock off
• Manual a/c
• Ptc 8a
• Radio
• Rear a/c heater unit
• Rear blower motor power module
• Rear blower motor relay (3 zone hvac)
• Rear power outlet
• Rear window defogger grid
• Red
• Right power mirror
• Run
• S325 (in floor pan track wiring)
• S326 (near breakout for c101)
• Sentry key remote entry module (skreem)
• Start
• Starter motor relay
• To front blower motor relay (diagram 2 of 3)
• To fuse 14 (diagram 3 of 3)
• W/rear floor console

Электросхема блока предохранителей и реле (3 из 3) для Dodge Caravan C/V 2004

Электросхема блока предохранителей и реле (3 из 3) для Dodge Caravan C/V 2004 - Список элементов:

• (at breakout for dash speaker s201
• (in passenger's power heated seat wiring assembly) s366
• (left rear of transaxle) integrated power module
• (near breakout for c101) s317
• 30a
• A/c compressor clutch relay
• Adjustable pedals module (memory)
• Adjustable pedals relay (w/o memory)
• Adjustable pedals switch (memory)
• Auto shutdown relay
• Auto temper- ature control (atc)
• Body control module
• Brake lamp switch
• Controller anti-lock brake
• Driver heated seat
• Driver heated seat module
• Driver power seat switch
• Dual power sliding door
• Dvd/cd changer
• Except sunroof
• From f fuse 20 (diagram 3 of 3)
• From rear e window defogger relay (diagram 2 of 3)
• Front control module
• Fuel pump relay
• Fuse 15a
• Fuse 20a
• Fuse 25a
• Fuse 25a (abs)
• Fuse 40a
• Integrated power module (left rear of transaxle)
• Left power sliding door
• Left sliding door control module
• Memory seat/ mirror module
• Name brand speaker relay
• Other
• Overhead console (except base)
• Passenger heated seat module
• Passenger power seat switch
• Power liftgate module
• Power mirror switch
• Power seat circuit breaker (under driver's seat)
• Powertrain control module
• Radiator fan relay
• Radio
• Red
• Right power sliding door
• Right sliding door control module
• S362
• S370 (at breakout for integrated power module c6)
• Sentry key remote entry module (skreem)
• Single power sliding door
• Sunroof
• Sunroof module
• To fuse 21 (diagram 3 of 3)
• Transmission control relay (eatx)
• W/ memory seat
• W/ passenger heated seat & power seat
• W/o memory seat
