Электросхемы Магнитола Мультимедия Dodge Caravan C/V 2004

Магнитола Мультимедия

Электросхема DVD плеера для Dodge Caravan C/V 2004

Электросхема DVD плеера для Dodge Caravan C/V 2004 - Список элементов:

• Audio out left
• Audio out right
• Common audio
• Dvd screen
• Dvd/cd changer
• Fuse 14 20a
• Fused b(+)
• G200 (behind right side of dash)
• Ground
• Hot at all times
• Ign run/acc sig
• Ign sw sense
• Ign switch out
• Ignition switch
• Integrated power module (left rear of transaxle)
• Panel lamps
• Panel lamps driver
• Pci bus
• Play signal
• Radio
• S201
• S222
• Shield
• Video return
• Video signal

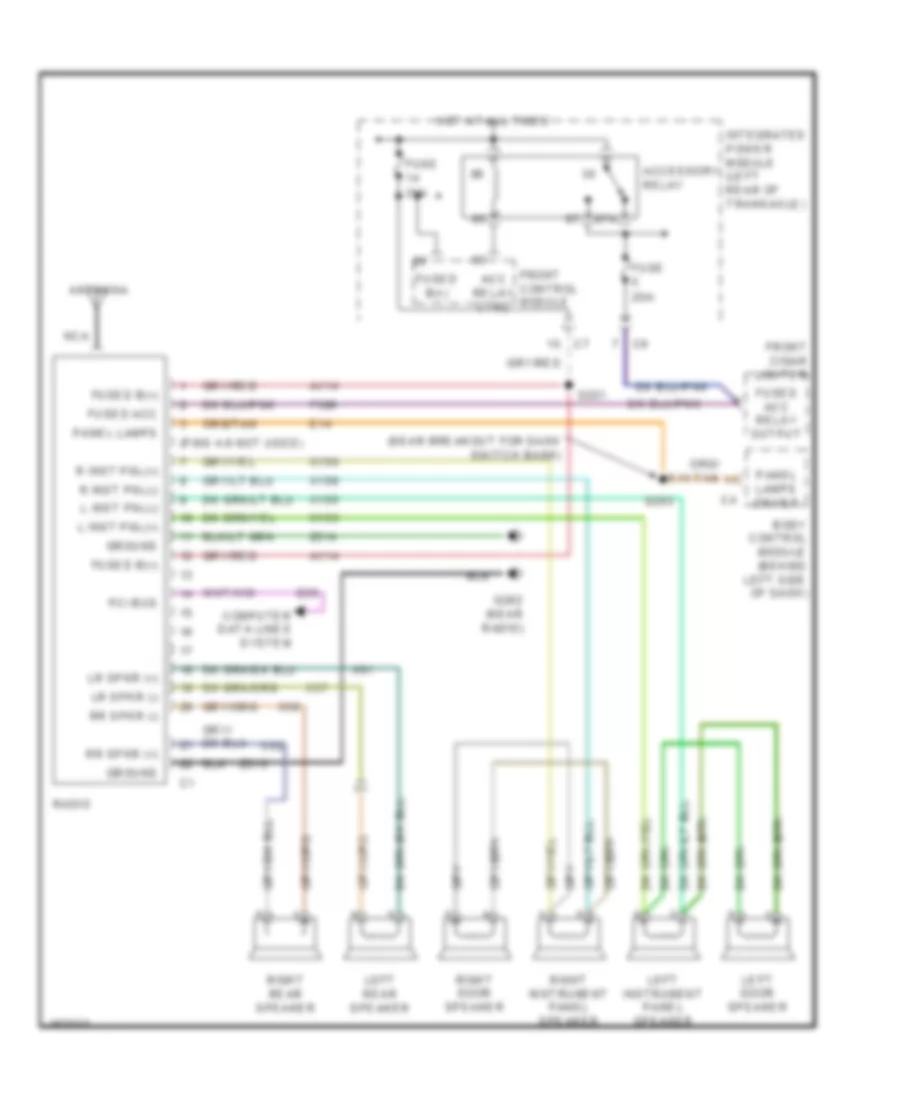

Электросхема магнитолы, Стандартная комплектация Lowline 1 для Dodge Caravan C/V 2004

Электросхема магнитолы, Стандартная комплектация Lowline 1 для Dodge Caravan C/V 2004 - Список элементов:

• (near breakout for dash switch bank)
• (pins 4-6 not used)
• 87a
• A114
• Acc relay ctrl
• Accessory relay
• Antenna
• Body control module (behind left side of dash)
• Computer data lines system
• D25
• E14
• F306
• Front cigar lighter
• Front control module
• Fuse 20a
• Fused acc
• Fused acc relay output
• Fused b(+)
• G202 (near radio)
• Ground
• Hot at all times
• Integrated power module (left rear of transaxle)
• L inst pnl(+)
• L inst pnl(-)
• Left door speaker
• Left instrument panel speaker
• Left rear speaker
• Lr spkr (+)
• Lr spkr (-)
• Nca
• Panel lamps
• Panel lamps driver
• Pci bus
• R inst pnl(+)
• R inst pnl(-)
• Radio
• Right door speaker
• Right instrument panel speaker
• Right rear speaker
• Rr spkr (+)
• Rr spkr (-)
• S201
• S203
• X153
• X154
• X155
• X156
• X51
• X52
• X57
• X58
• Z514
• Z515

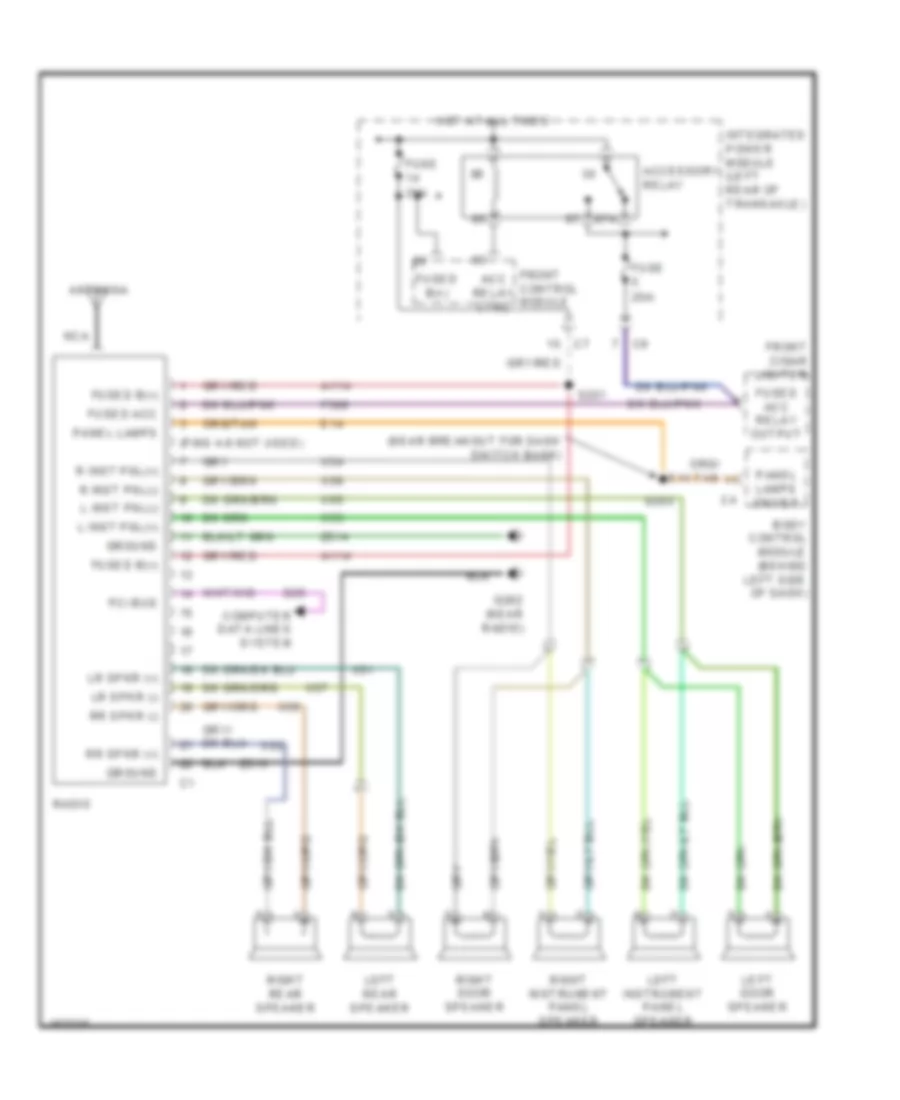

Электросхема магнитолы, Стандартная комплектация Lowline 2 для Dodge Caravan C/V 2004

Электросхема магнитолы, Стандартная комплектация Lowline 2 для Dodge Caravan C/V 2004 - Список элементов:

• (near breakout for dash switch bank)
• (pins 4-6 not used)
• 87a
• A114
• Acc relay ctrl
• Accessory relay
• Antenna
• Body control module (behind left side of dash)
• Computer data lines system
• D25
• E14
• F306
• Front cigar lighter
• Front control module
• Fuse 20a
• Fused acc
• Fused acc relay output
• Fused b(+)
• G202 (near radio)
• Ground
• Hot at all times
• Integrated power module (left rear of transaxle)
• L inst pnl(+)
• L inst pnl(-)
• Left door speaker
• Left instrument panel speaker
• Left rear speaker
• Lr spkr (+)
• Lr spkr (-)
• Nca
• Panel lamps
• Panel lamps driver
• Pci bus
• R inst pnl(+)
• R inst pnl(-)
• Radio
• Right door speaker
• Right instrument panel speaker
• Right rear speaker
• Rr spkr (+)
• Rr spkr (-)
• S201
• S203
• X51
• X52
• X53
• X54
• X55
• X56
• X57
• X58
• Z514
• Z515

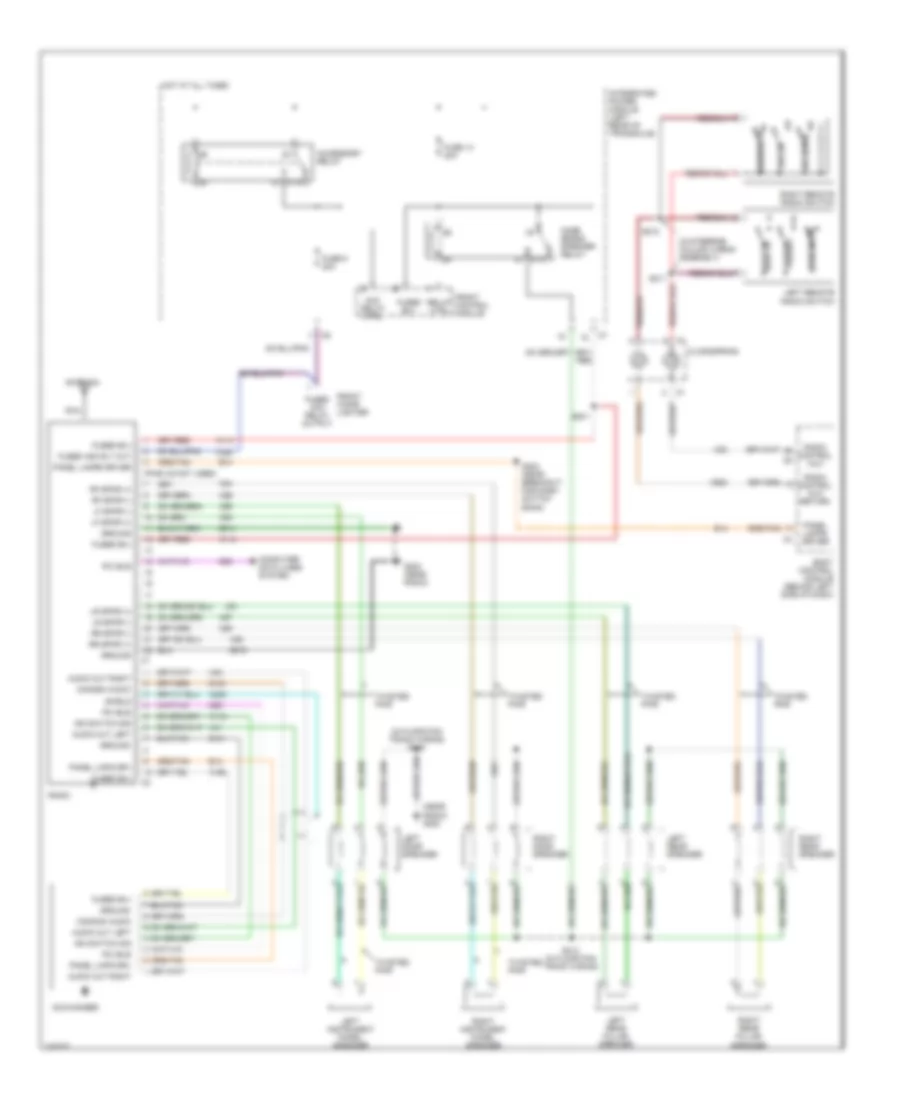

Электросхема магнитолы, Премиум комплектация для Dodge Caravan C/V 2004

Электросхема магнитолы, Премиум комплектация для Dodge Caravan C/V 2004 - Список элементов:

• (in floor pan track wiring) s315
• (in steering column wiring assembly)
• (near radio) g202
• (pins 4-6 not used)
• 87a
• A114
• Acc relay ctrl
• Accessory relay
• Antenna
• Audio out left
• Audio out right
• Body control module (behind left side of dash)
• Cd changer
• Clockspring
• Common audio
• Computer data lines system
• D25
• Diagnostic
• E14
• F306
• Front cigar lighter
• Front control module
• Fuse 14 20a
• Fuse 5 20a
• Fused acc relay output
• Fused acc rly out
• Fused b(+)
• G202 (near radio)
• Ground
• Hot at all times
• Ign switch sig
• Integrated power module (left rear of transaxle)
• Left door speaker
• Left instrument panel speaker
• Left rear pillar speaker
• Left rear speaker
• Left remote radio switch
• Lf spkr (+)
• Lf spkr (-)
• Lr spkr (+)
• Lr spkr (-)
• Name brand speaker relay
• Nca
• Panel lamps driver
• Panel lmps drv
• Pci bus
• Preset
• Radio
• Radio control mux
• Radio control mux return
• Relay ctrl
• Rf spkr (+)
• Rf spkr (-)
• Right door speaker
• Right instrument panel speaker
• Right rear pillar speaker
• Right rear speaker
• Right remote radio switch
• Rr spkr (+)
• Rr spkr (-)
• S201
• S203 (near breakout for dash switch bank)
• S211
• S212
• S314 (in floor pan track wiring)
• Seek down
• Seek up
• Shield
• Twisted pair
• Vol down
• Vol up
• X112
• X160
• X20
• X235
• X40
• X41
• X51
• X52
• X53
• X54
• X55
• X56
• X57
• X58
• X920
• Z140
• Z141
• Z514
• Z515
