Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Caravan C/V 2004

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

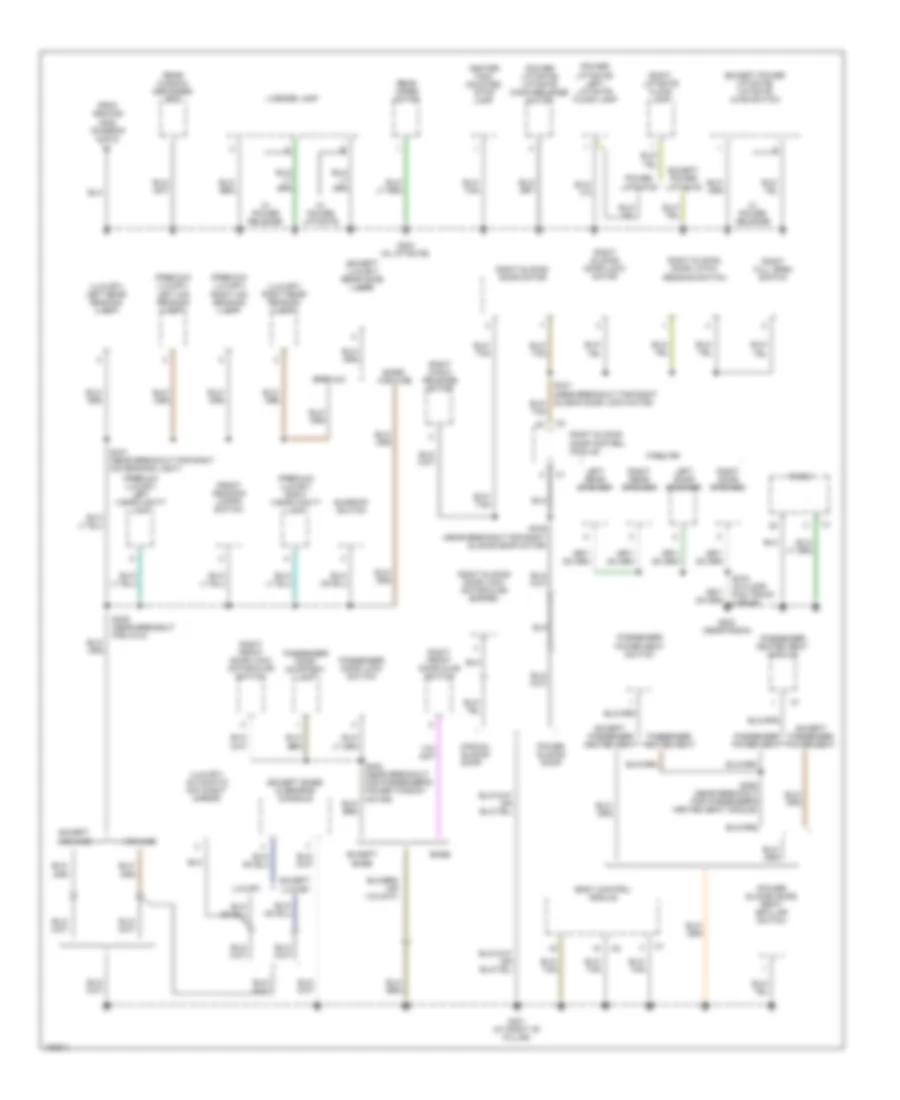

Электросхема подключение массы заземления (1 из 3) для Dodge Caravan C/V 2004

Электросхема подключение массы заземления (1 из 3) для Dodge Caravan C/V 2004 - Список элементов:

• (3 zone manual a/c) rear blower front control switch
• (3.3l)
• (except lowline) power power outlet outlet
• (left rear of transaxle) (a/t) integrated power module
• (left rear of transaxle) integrated power module
• (left rear of transaxle) powertrain control module
• (m/t) back-up lamp switch
• (not used)
• A/c compressor clutch
• A/c- heater control
• Adjustable pedals module
• Auto temp control
• Automatic a/c
• Battery
• Controller anti-lock brake
• Data link connector (dlc)
• Driver heated seat
• Driver heated seat module
• Driver power seat switch
• Dvd/cd changer
• Egr solenoid
• Except driver heated seat
• Except heated seats
• Except memory
• Front blower module
• Front cigar lighter
• Front control module
• G100 (near powertrain control module)
• G101 (near starter)
• G102 (near left headlight)
• G200 (behind right side of dash)
• G300 (at left ``b" pillar)
• Generator
• Headlamp switch
• Heated seats
• High note horn
• Horn switch
• Instrument cluster
• Instrument panel switch bank
• Left fog lamp
• Left front park/turn signal lamp
• Left power mirror
• Low note horn
• Manual a/c
• Memory
• Memory seat/ mirror module
• Natural vacuum leak detection assembly
• Oxygen sensor 1/1 upstream
• Oxygen sensor 1/2 down stream
• Power mirror switch
• Powertrain control module (a/t)
• Radiator fan 1
• Radiator fan 2
• Radiator fan relay
• Right fog lamp
• Right front park/turn signal lamp
• Right power mirror
• S106 (2.4l: near breakout for torque converter clutch solenoid) (3.3l & 3.8l: near breakout for g103)
• S111 (2.4l: near breakout for c101) (3.3l & 3.8l: near breakout for output speed sensor)
• S361
• Sentry key remote entry module (skreem)
• Speed control servo
• Traction control switch
• Transmission control relay
• W/ abs
• W/o abs
• Washer fluid level switch

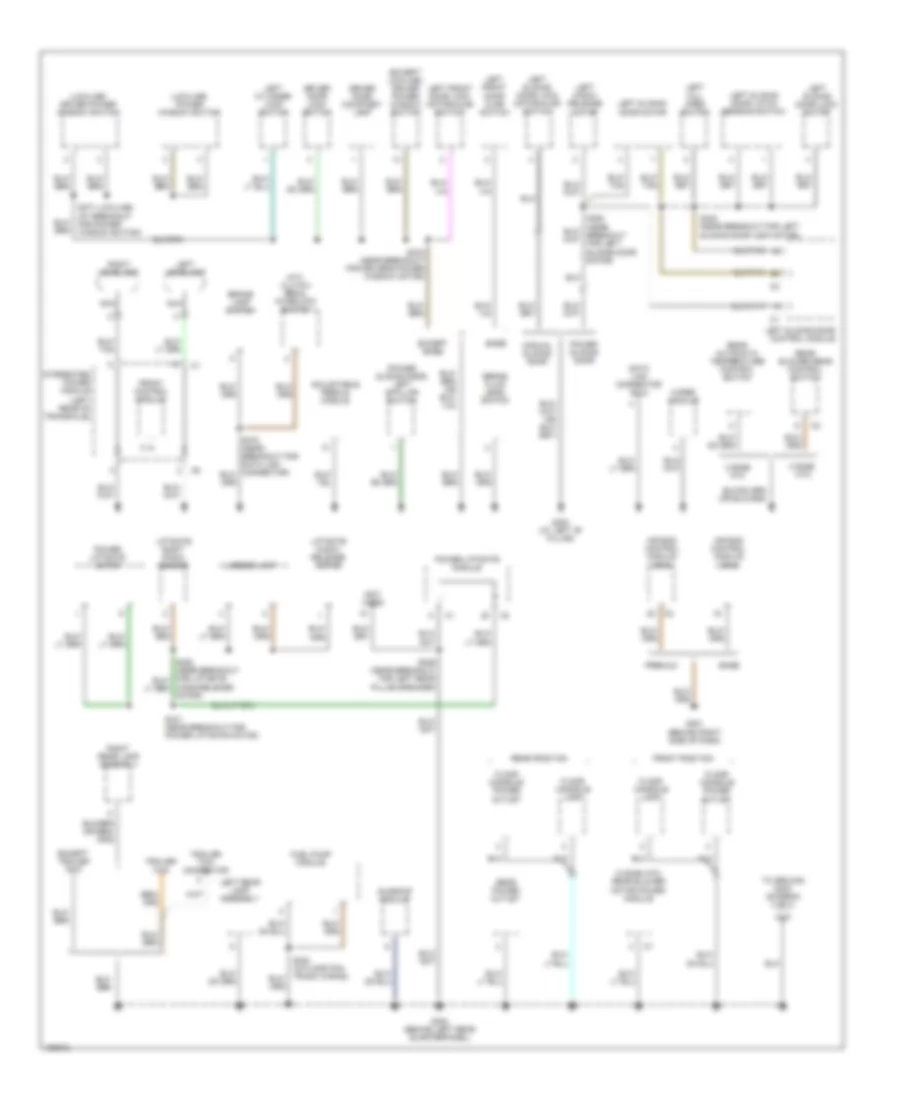

Электросхема подключение массы заземления (2 из 3) для Dodge Caravan C/V 2004

Электросхема подключение массы заземления (2 из 3) для Dodge Caravan C/V 2004 - Список элементов:

• (3 zone atc) rear blower motor power module
• (except lowline) driver power window switch
• (left rear of transaxle)
• (lowline) driver power window switch
• (lowline) power window switch
• (m/t) clutch pedal interlock switch
• (not used)
• (power sliding door) left b-pillar switch
• 3 zone atc
• 3 zone mtc
• Adjustable pedals module
• Air bag control module (orc)
• Base
• Brake fluid level switch
• Brake lamp switch
• Cinch/release motor)
• Data link connector (dlc)
• Driver door courtesy lamp
• Driver door lock switch
• Except base
• Except trailer tow
• Floor console lamp
• Floor console power outlet
• Front control module
• Front position
• Fuel pump module
• G201 (behind right side of dash)
• G300 (at left "b" pillar)
• G302 (behind left rear quarterpanel)
• Integrated power module
• Left cinch/ release motor
• Left cylinder lock switch
• Left front door ajar switch
• Left front door lock motor/ajar switch
• Left full open switch
• Left headlamp
• Left rear lamp assembly
• Left sliding door control module
• Left sliding door latch sensing switch
• Left sliding door lock motor
• Left sliding door lock motor/ajar switch
• Left sliding door motor
• License lamp
• Liftgate cinch/ release motor
• Liftgate right pinch sensor
• Manual sliding door
• Nca
• Power liftgate module
• Power liftgate motor
• Power sliding door
• Premium
• Rear automatic temperature control switch
• Rear blower rear control switch
• Rear position
• Rear power outlet
• Right headlamp
• Right rear lamp assembly
• S329 (near breakout for left rear pillar speaker)
• S331 (near breakout for power liftgate motor)
• S343 (near breakout for driver's power window motor)
• S348 (near breakout for left sliding door lock motor)
• S371 (lowline) (at breakout for power window switch)
• Sunroof module
• To ground g303 (diagram 3 of 3)
• Trailer tow
• Trailer tow connector
• Wiper module

Электросхема подключение массы заземления (3 из 3) для Dodge Caravan C/V 2004

Электросхема подключение массы заземления (3 из 3) для Dodge Caravan C/V 2004 - Список элементов:

• (except base) overhead console
• (except luxury) rear dome lamp
• (except power liftgate) liftgate ajar switch
• (luxury) automatic day/night mirror
• (luxury) left rear reading lamp
• (luxury) right rear reading lamp
• (power liftgate) left liftgate flood lamp
• (power liftgate) liftgate cinch/release motor
• (power sliding door) right b-pillar switch
• (premium/ luxury) left mid reading lamp
• (premium/ luxury) left visor/vanity lamp
• (premium/ luxury) right mid reading lamp
• (premium/ luxury) right visor/vanity lamp
• Base
• Base/ highline
• Body control module
• Center high mounted stop lamp
• Door
• Except base
• Except highline
• Except luxury
• Except passenger heated seat
• Except passenger power seat
• Except power liftgate
• From ground g302 (diagram 2 of 3)
• Front reading lamps/ switch
• G202 (near radio)
• G301 (at right "b" pillar)
• G303 (in liftgate)
• Highline
• Left door speaker
• Left rear speaker
• License lamp
• Luxury
• Manual sliding
• Passenger door courtesy lamp
• Passenger door lock switch
• Passenger heated seat
• Passenger heated seat module
• Passenger power seat
• Passenger power seat switch
• Power liftgate
• Power sliding door
• Premium
• Radio
• Rear window defogger grid
• Rear wiper motor
• Right cinch/ release motor
• Right door speaker
• Right front door ajar switch
• Right front door lock motor/ajar switch
• Right full open switch
• Right liftgate flood lamp
• Right rear speaker
• Right sliding door control module
• Right sliding door latch sensing switch
• Right sliding door lock motor
• Right sliding door lock motor/ajar switch
• Right sliding door motor
• S315 (in floor pan track wiring)
• S337 (near breakout for right mid reading light)
• S339 (near breakout for c312)
• S345 (near breakout for right sliding door motor)
• S355 (near breakout for passenger's heated seat module)
• Sunroof switch
• W/ power liftgate
• W/ power release
